iFlight M4 AC 100-240V 30W Battery Charger 2.5A 25W Charging Power for 1-4S XT30 Battery

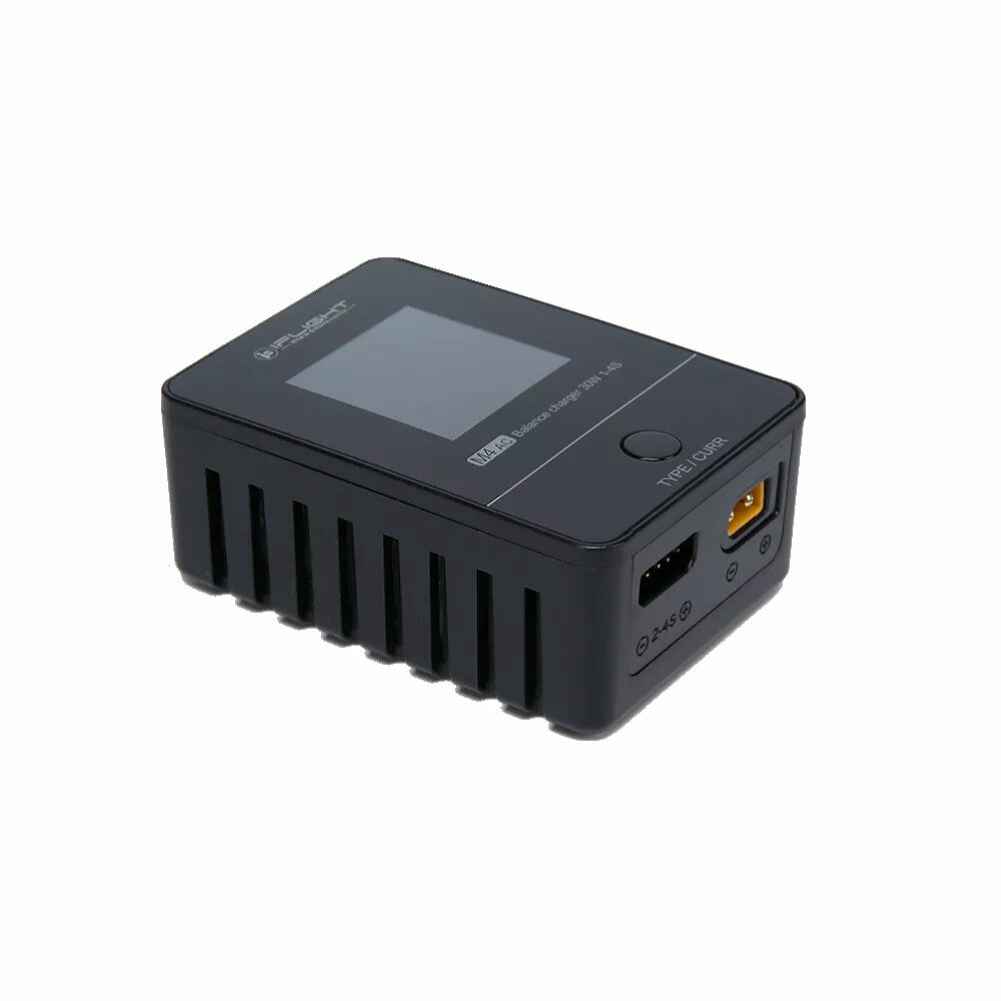

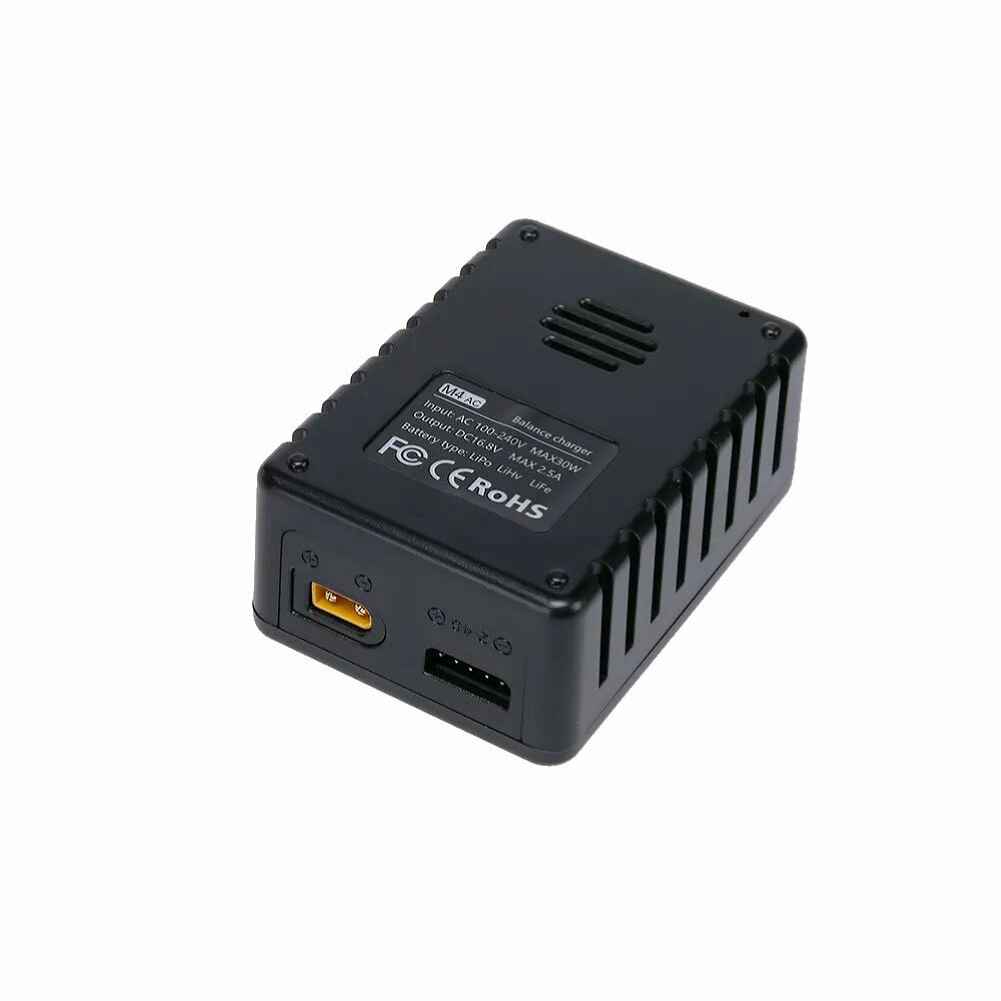

The iFlight M4 AC Battery Charger is designed for charging 1-4S XT30 LiPo batteries with an input range of AC 100-240V and a maximum power of 30W. It features a 1.54-inch LCD IPS display with a resolution of 240×240, providing clear and precise charging information. With a charging power of 0.5-2.5A at 25W and a balance current of 200mA for 2-4S, it ensures efficient and accurate charging. The charger is compact, measuring 75mm x 54mm x 30mm and weighing 120g, making it portable and easy to use. Please note that UK and AU plug versions are EU plugs, but adapters are included.
Specification:
Input: AC100-240V@MAX30W
Battery Type: LiPo LiHV LiFe @1-4S
Charging Power: 0.5-2.5A@25W
Bal Cur. : 200mA @2-4S
Charging accuracy: <0.005V
Display: LCD IPS 1.54 inch 240*240 resolution
Size: 75mm*54mm*30mm
Weight: 120g
Connector: XT30
Suitable for 4S 350mAh~850mAh LiPo Battery. For the bigger battery, please choose the ISDT Q6 NANO
Using Instructions
Connect the power cord佾and after booting佾 enter the main interface
Press and hold the button for 2 seconds to select the battery cut-off voltage.
Press the button once to select the charging current.

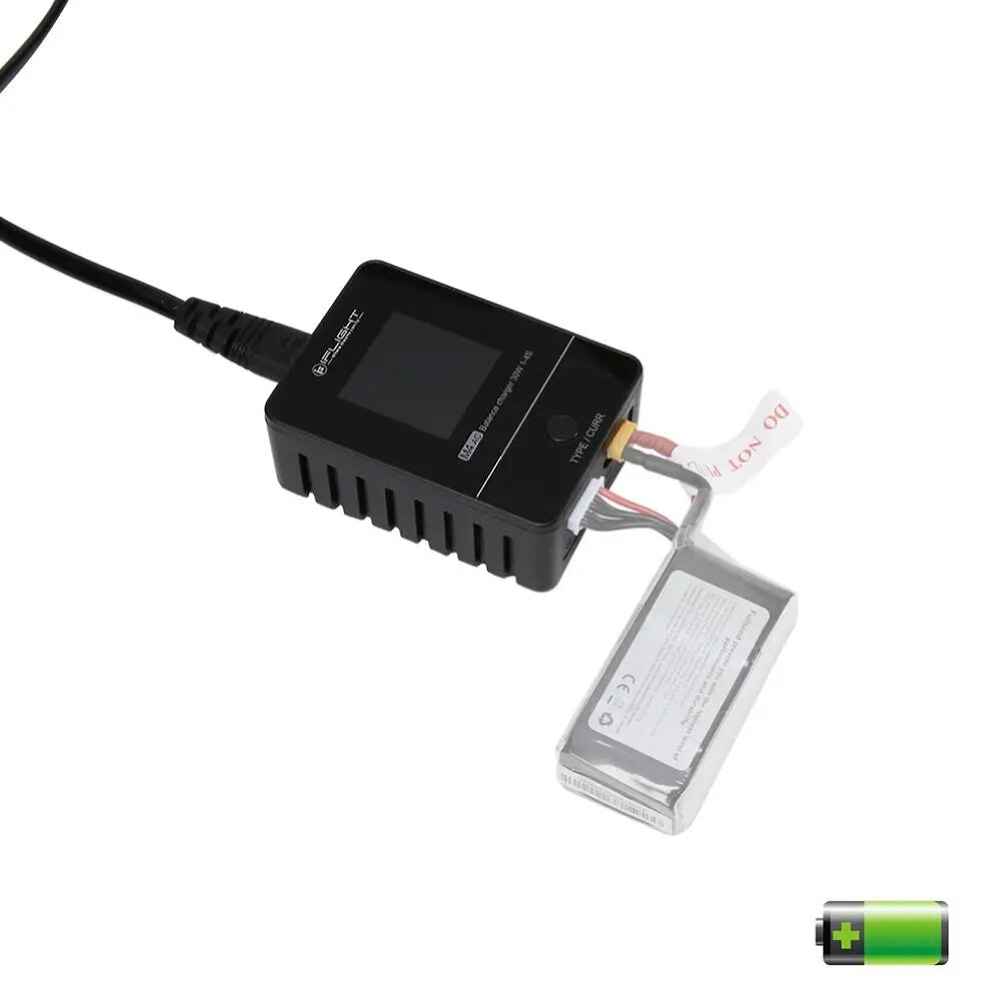

Connected to the battery main port and balance port佾the charger will automatically start charging after detecting that the battery voltage is normal.
After each power on, you need to press the key once to unlock it before it starts charging automatically.
Safety
M4AC allows input AC 100-240V佾 please use normal voltage.
Do does not use this product in heat佾moisture, flammable or explosive atmospheres.
Make sure that the product is running under the attendance of the user.
Please unplug the input power when not using this product.
Caution券The UK and AU plug versions are actually EU plugs, but we will ship with UK or AU adapters.
Packaging included:1X iFlight M4AC Charger
1x AC cable
1x manual
or
The UK and AU plug versions are actually EU plugs, but we will ship with UK or AU adapters
Package Included:
1 x iFlight M4AC Charger
1 x AC Cable
1 x Manual
