HTRC C150 150W 10A AC/DC Balance Charger Discharger for 1-6S LiPo Battery
The HTRC C150 150W 10A AC/DC Balance Charger Discharger is a versatile and compact device designed for charging a variety of battery types, including LiPo, LiFe, LiHV, NiCd, NiMH, and PB batteries. This charger supports 1-6 cell LiPo batteries and 1-15 cell NiCd/NiMH batteries, with a maximum charge power of 150W and discharge power of 10W. It features multiple charging modes such as balance charge, fast charge, and storage. The built-in fan ensures efficient heat dissipation, while the smart functions include battery meter, internal resistance check, and terminal voltage control. With a user-friendly interface and safety features like automatic charge current limit and temperature threshold, this charger is ideal for hobbyists and professionals alike.
Specification:
Input: AC 100-240V / DC 11-18V
Charge power: Max 150W
Discharge power: 10W
Charge current : 0.1-10A
Discharge current : 0.1-2A
Lilon/LiPo/LiFe/LiHV cell count: 1-6cells
NiCd/NiMH battery cell count: 1-15cells
PB Battery voltage: 2-20V
Smart battery: I/II/III
Current drain for balancing: 500mA/cell
Net Weight: 0.48kg
Dimension: 145*105*64mm
Gross weight: 0.8kg
Package size: 215*155*75mm
Features:
*Compact charger, easy to carry, easy to use.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts
*Built in cool fan for easy heat dissipation
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-extra function:
-Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage,each cell’s voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Balancer: individual-cell-voltage balancing,cell voltage Monitoring
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*5V 2.1A USB port.
*Data storage and loading
*Battery break in and cycling.
*Maximum Safety:Automatic charge current limit,capacity limit, processing time limit,temperature threshold.
*Built-In PFC
*Firmware update.

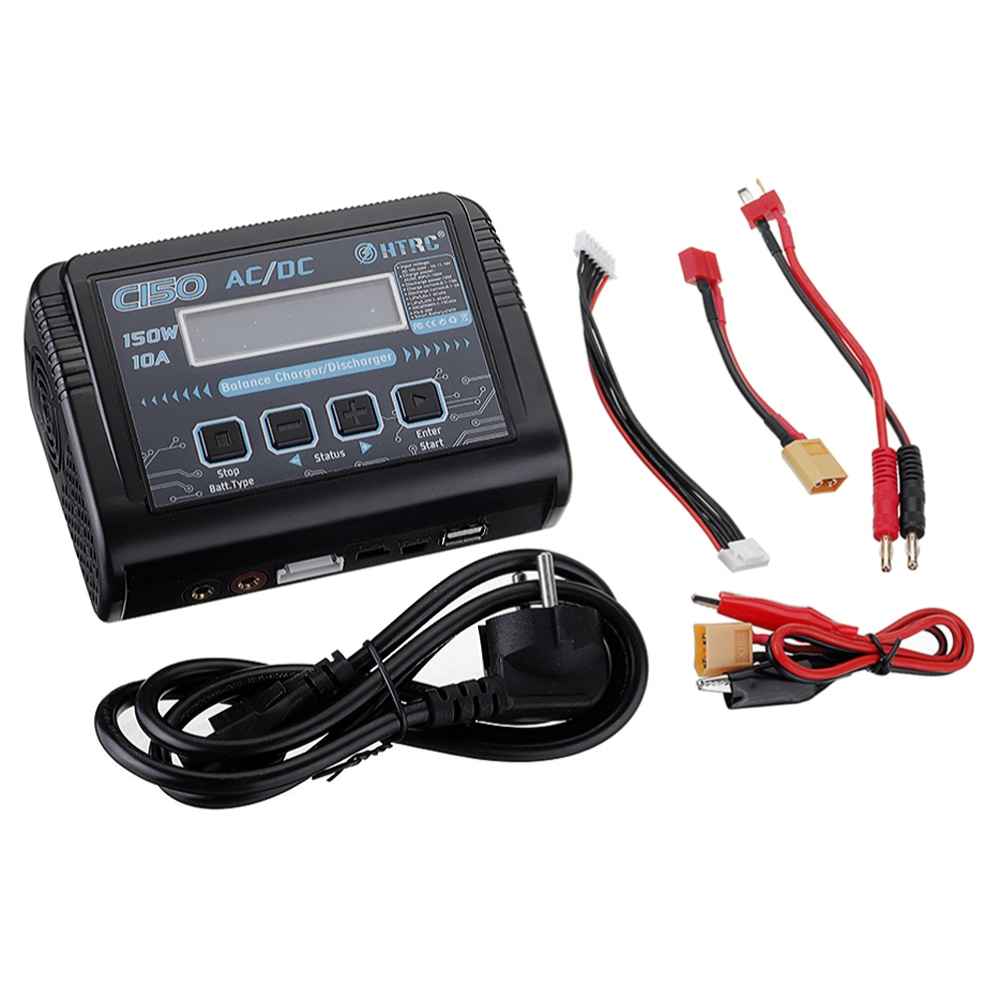

Packaging Included:
1X HTRC C150 Smart Charger
Package Included:
1 x HTRC C150 Smart Charger
