Description
Toolkitrc M6AC AC 100W DC 300W 15A with IPS 2.0 Inch LCD Screen Balance Charger Discharger for 1-6S LiPo LiHv LiFe Lilon 1-16S NiMH 1-10S PB Battery
The Toolkitrc M6AC is a versatile balance charger and discharger, designed for a wide range of batteries, including LiPo, LiHv, LiFe, Lilon, NiMH, and PB. It supports input voltages of AC 100-240V and DC 7-35V, delivering up to 300W charging power and 15A current. The device features an IPS 2.0-inch LCD screen for easy monitoring and precise balance accuracy of less than 0.005V. With a balance current of 1000mA at 4.2V, the M6AC ensures efficient charging and discharging. It also includes a USB port for convenient upgrades and additional functionality. Compact and lightweight, this charger is perfect for RC enthusiasts seeking reliable performance.
Specification:
CHARGE
Input voltage: AC 100-240V@MAX 120W | DC 7-35V@MAX 30A
Battery type: LiPo LiHV LiFe Lilon LTO @1-6S | NiMH @1-16S Pb@1-10S
Balance current: 1000mA@4.2V
Balance accuracy: <0.005V
Charging power: 0.1-15A@300W
Discharging power: 0.1-15A@300W Recycle Mode | 0.1-3A@15W Internal Mode
USBA:5.0V/1.0A @10W or upgrade
Voltage:1.0V-5.0V @1-6S
Internal resistance: 0.1m棒-99m棒 @1-6S
MEASURER
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us沁8 CH@20-50Hzz
SBUS: 880us-2200us沁16 CH@20-100Hz
OUTPUT
PWM:500us-2500us@20-1000Hz
PPM: 880us-2200us沁8 CH@50Hz
SBUS: 880us-2200us沁16 CH@74Hz
Power supply: 0.5-15A@1-28V Mode: CC+CV
GENERAL

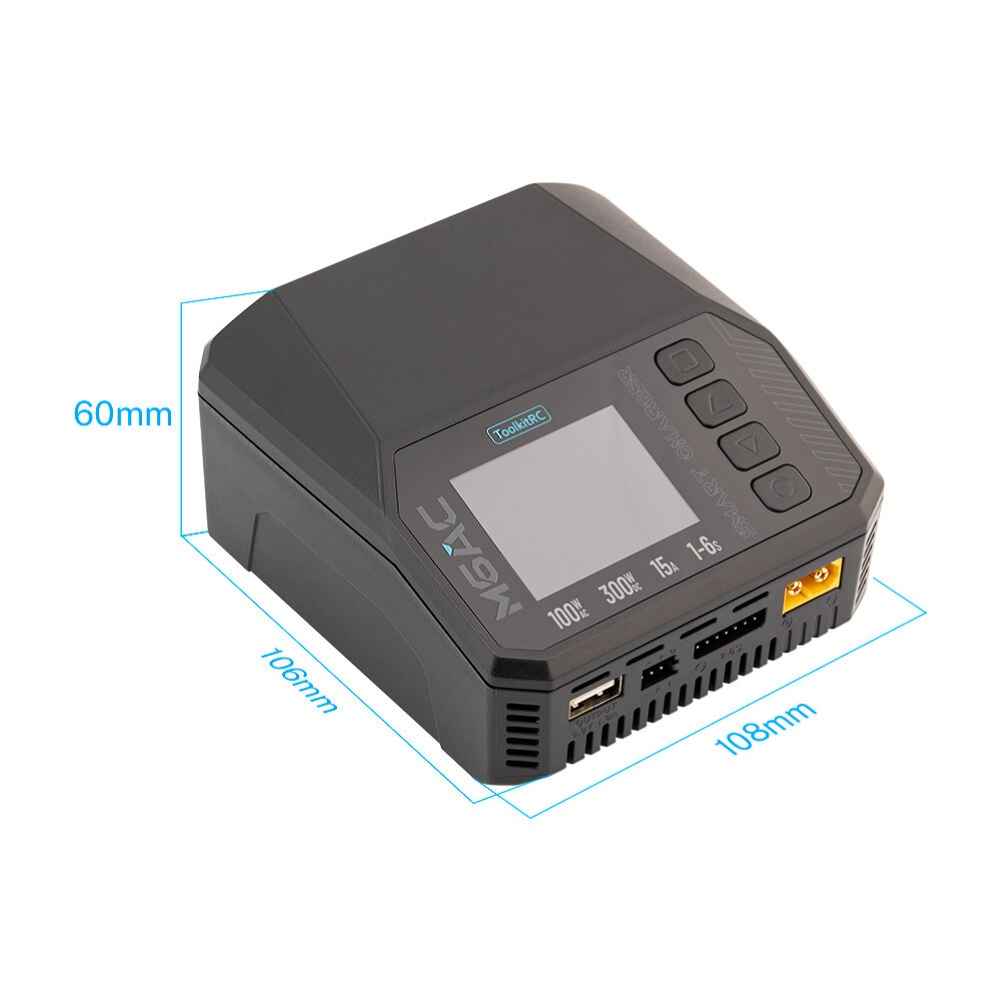

Product size: 108沁106沁60mm
Product weight: 350g
Packing size: 144沁158沁63mm
Packaging weight: 510g
LCD: IPS 2.0﹍ LCD 320沁240 px

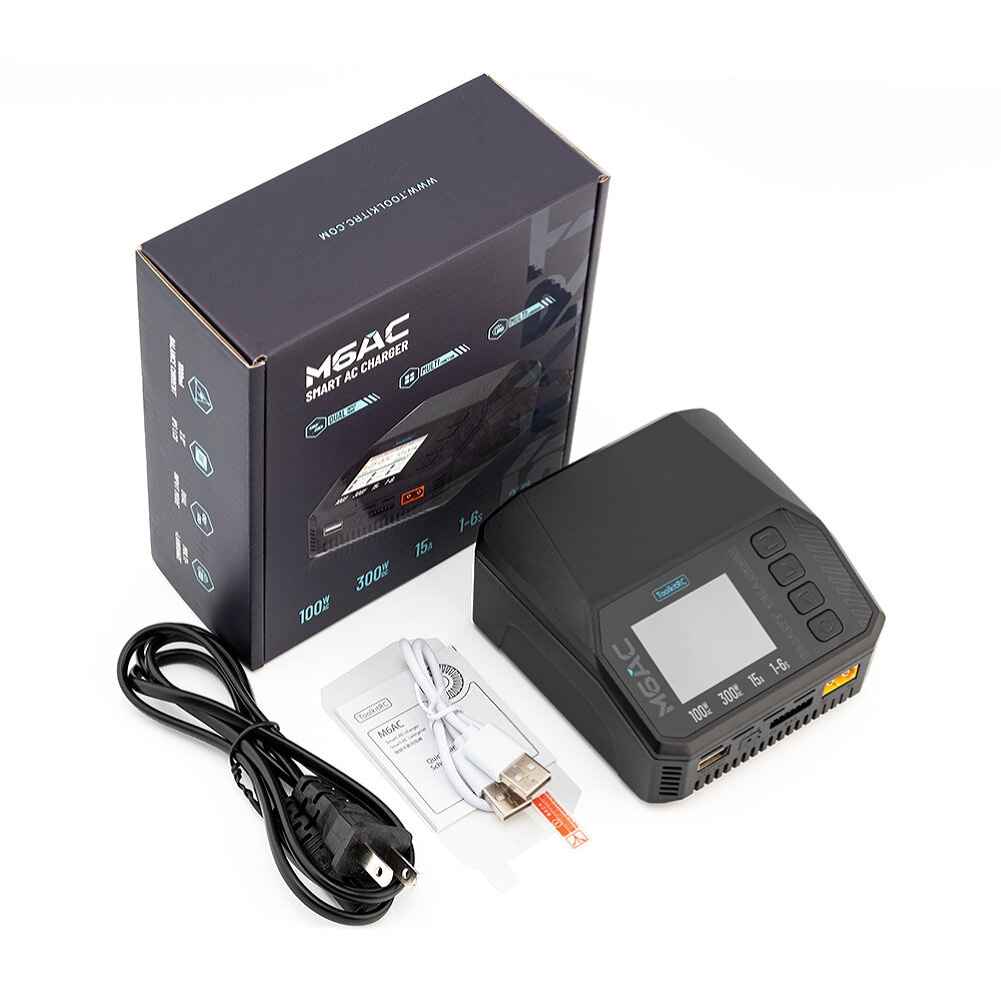

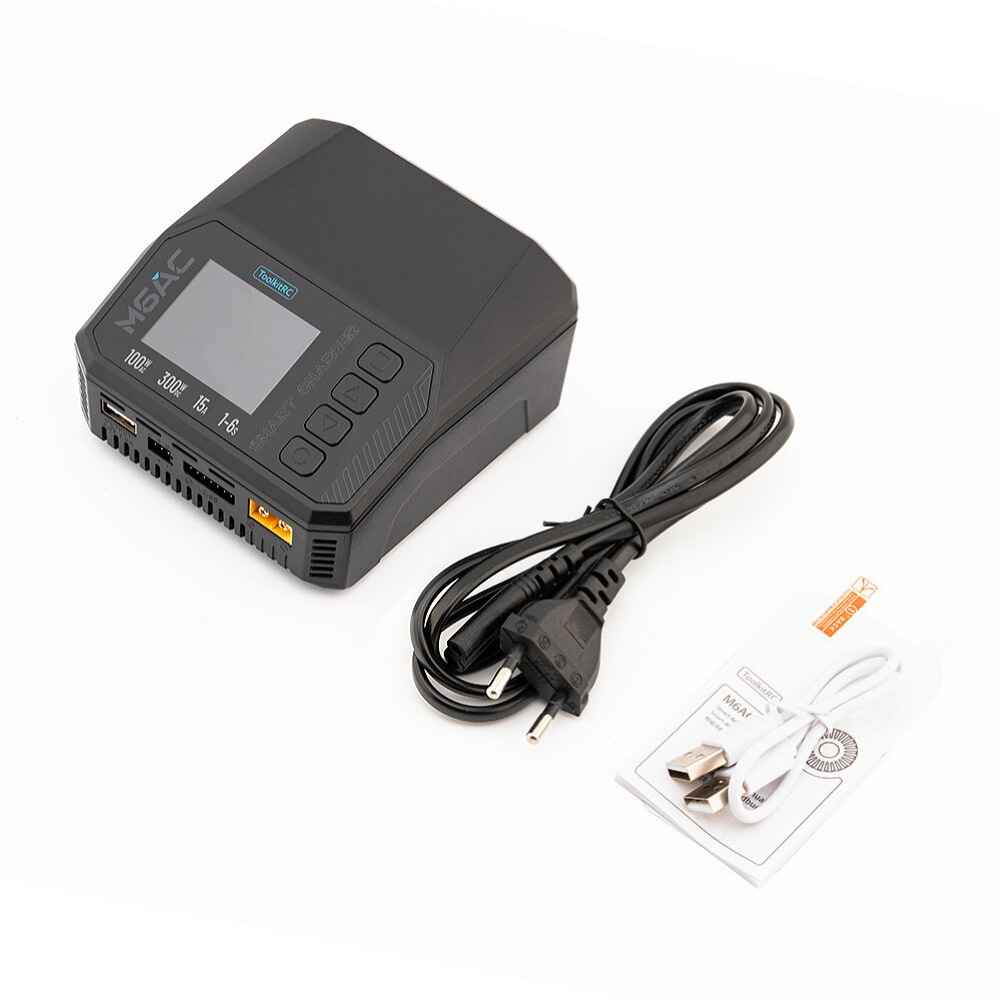

Package Included:
1 x Toolkitrc M6AC Charger
1 x AC Input Cable
1 x USB Cable
1 x Quick Manual
1 x Screen Protector
