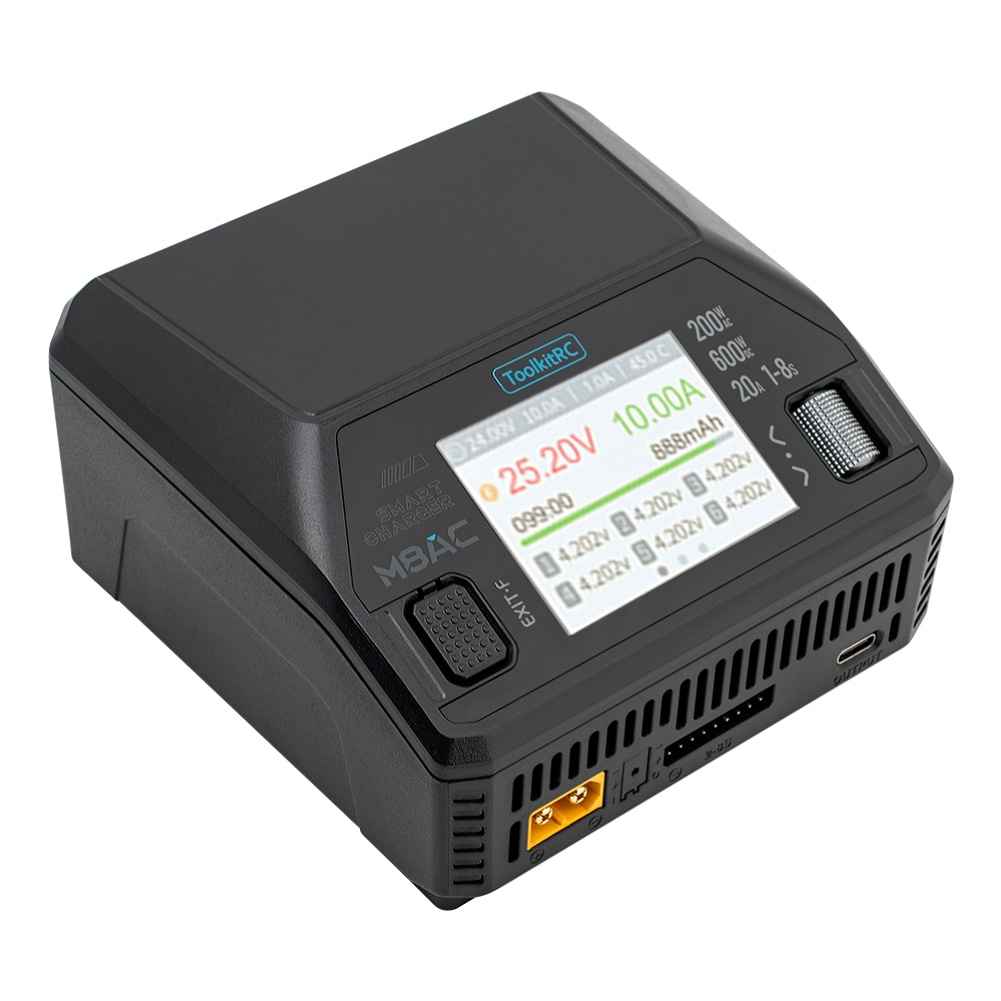

ToolkitRC M8AC AC 200W DC 600W 65W IPS 2.4 Inch LCD Screen Chargerfor 1-8S LiPo LiHV LiFe Lilon LTO 1-12S Pb 1-20S NiMH Battery
The ToolkitRC M8AC Charger is a versatile charging solution designed for a wide range of battery types, including 1-8S LiPo, LiHV, LiFe, Lilon, LTO, 1-12S Pb, and 1-20S NiMH. It features both AC and DC input options, with 200W AC and 600W DC charging power. The charger is equipped with a 2.4-inch IPS LCD screen for clear display and easy navigation. With a balance current of 1000mA and a balance accuracy of less than 0.005V, it ensures efficient and precise charging. The device also includes a USB output with a maximum of 65W. Its compact design makes it a convenient choice for hobbyists and professionals alike.
Specification:
CHARGE
Input Voltage: AC 100-240V@MAX2.5A
DC 7-35V@MAX25A
Battery Type: LiPo LiHV LiFe Lilon LTO @1-8S
NiMH@1-20S Pb@1-12S
Balance Current: 1000mA@4.2V
Balance Accuracy: <0.005V
Charging Power: 0.1-20A@600W
Discharging Power: 0.1-20A@600W Recyle mode
0.1-3A@20W Normal mode
USBC Output: MAX 20.0V@65W Upgrade
Voltage: 1.0V-5.0V@1-8S
Internal Resistance: 1-99m棒@1-8S
MEASURER
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us沁8 CH@20-50Hz
SBUS: 880us-2200us沁16 CH@20-100Hz
OUTPUT
PWM: 500us-2500us@20-1000Hz
PPM: 880us-2200us沁8CH@50Hz
SBUS: 880us-2200us沁16CH@74Hz
Power Supply: 1-20A@1-35V Mode: CC+CV
GENERAL

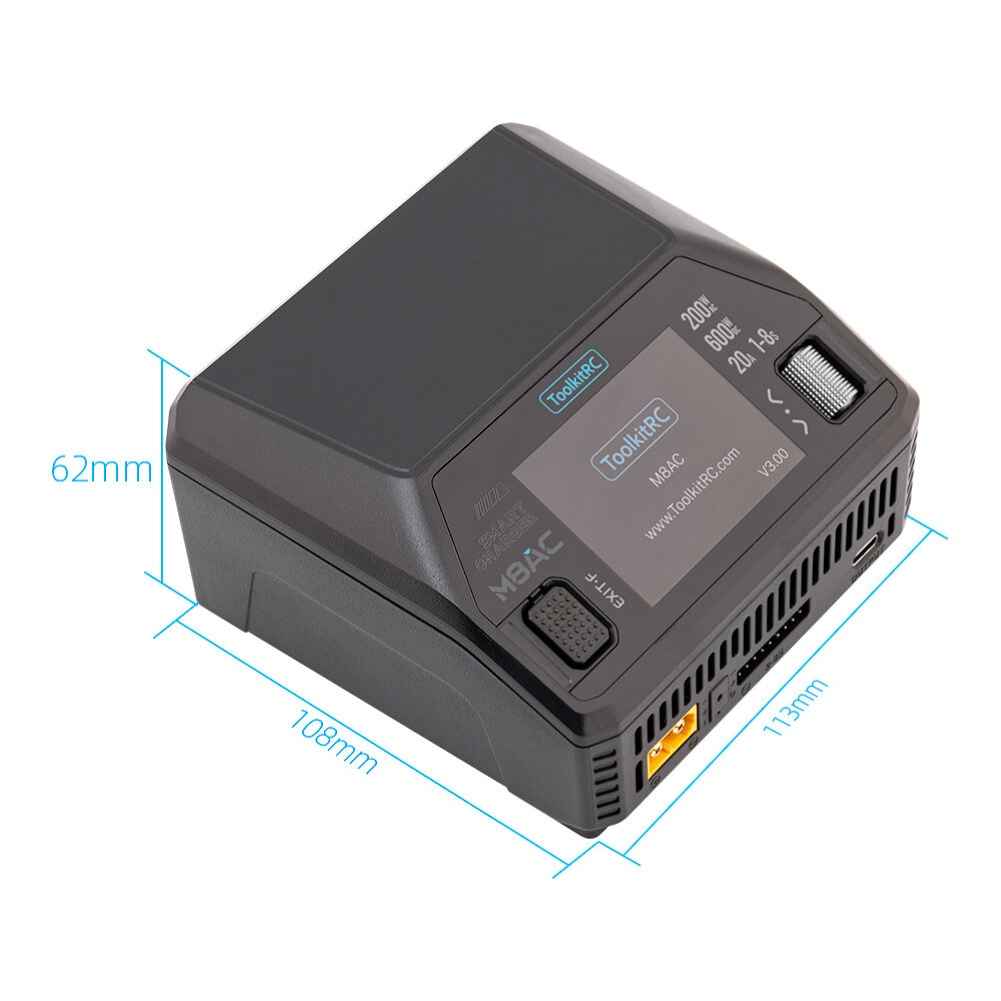

Product Size: 108沁113沁62mm
Product Weight: 500g
Packing Size: 136沁153沁67mm
Packaging Weight: 600g
LCD: IPS 2.4﹍ LCD 320沁240px
Caution券The UK and AU plug versions are actually shipped with EU plug, and we will send UK or AU adapters with them.

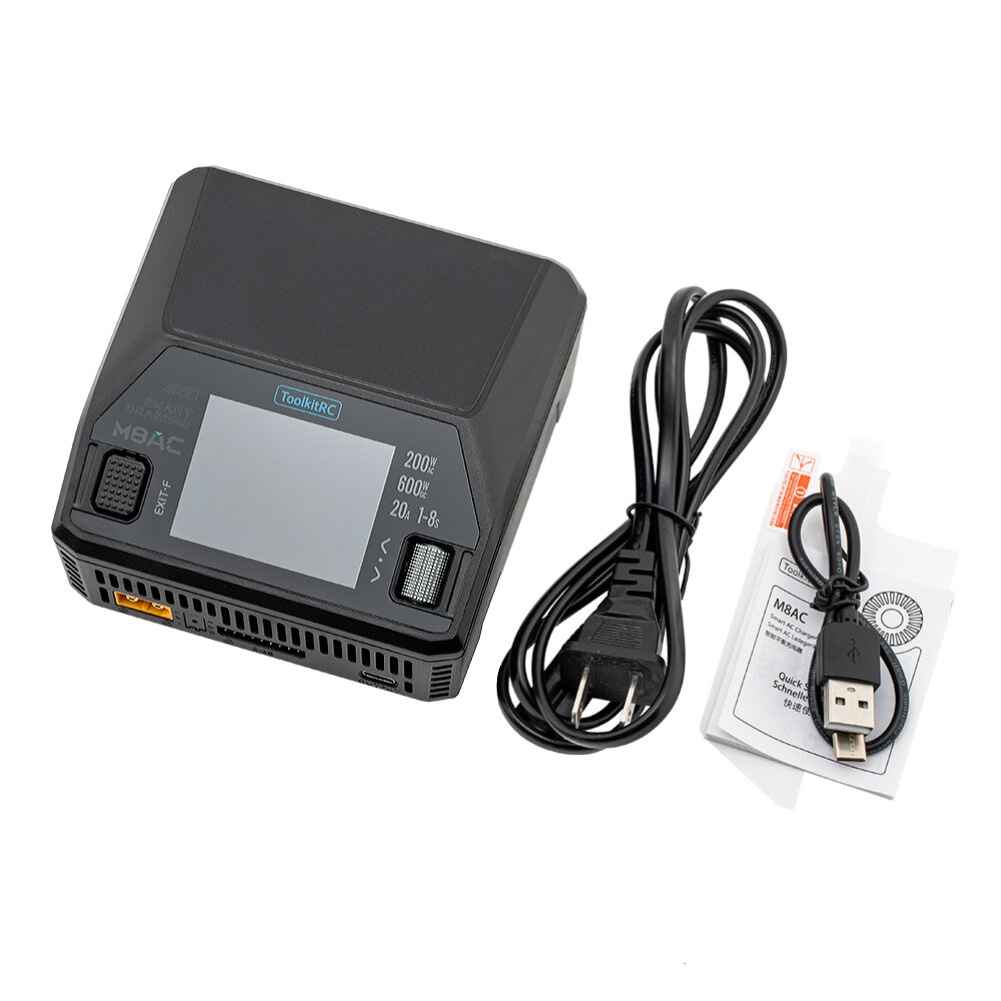

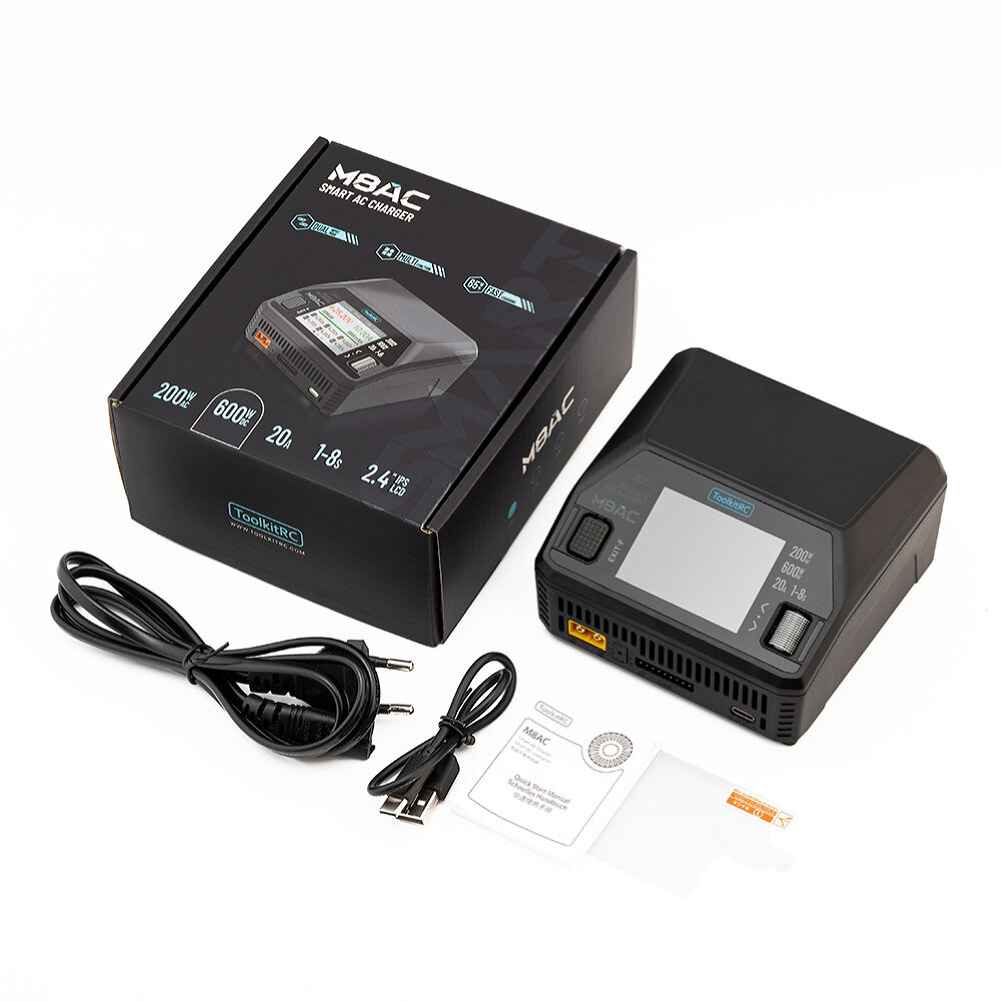

Package Included:
1 x M8AC Charger
1 x AC Input Cable
1 x USB Cable
1 x Quick Manual
1 x Screen Protector
