Description

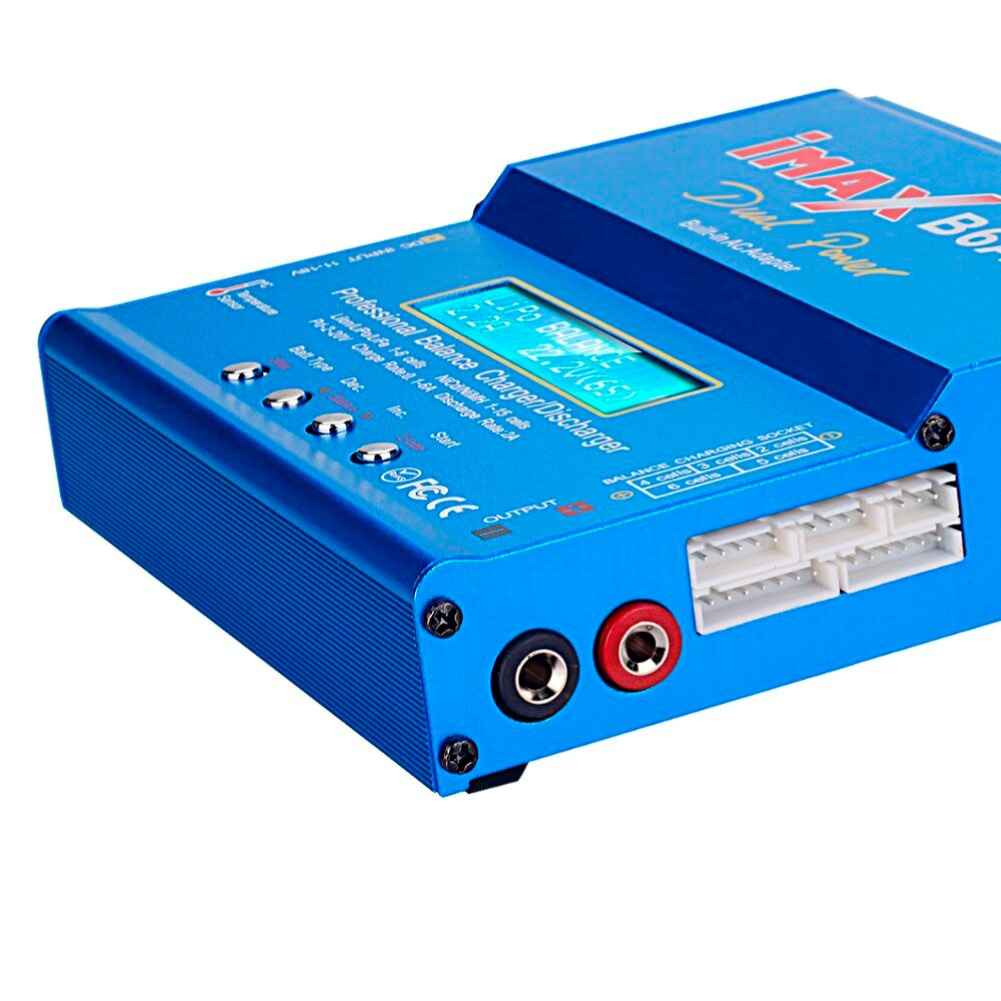

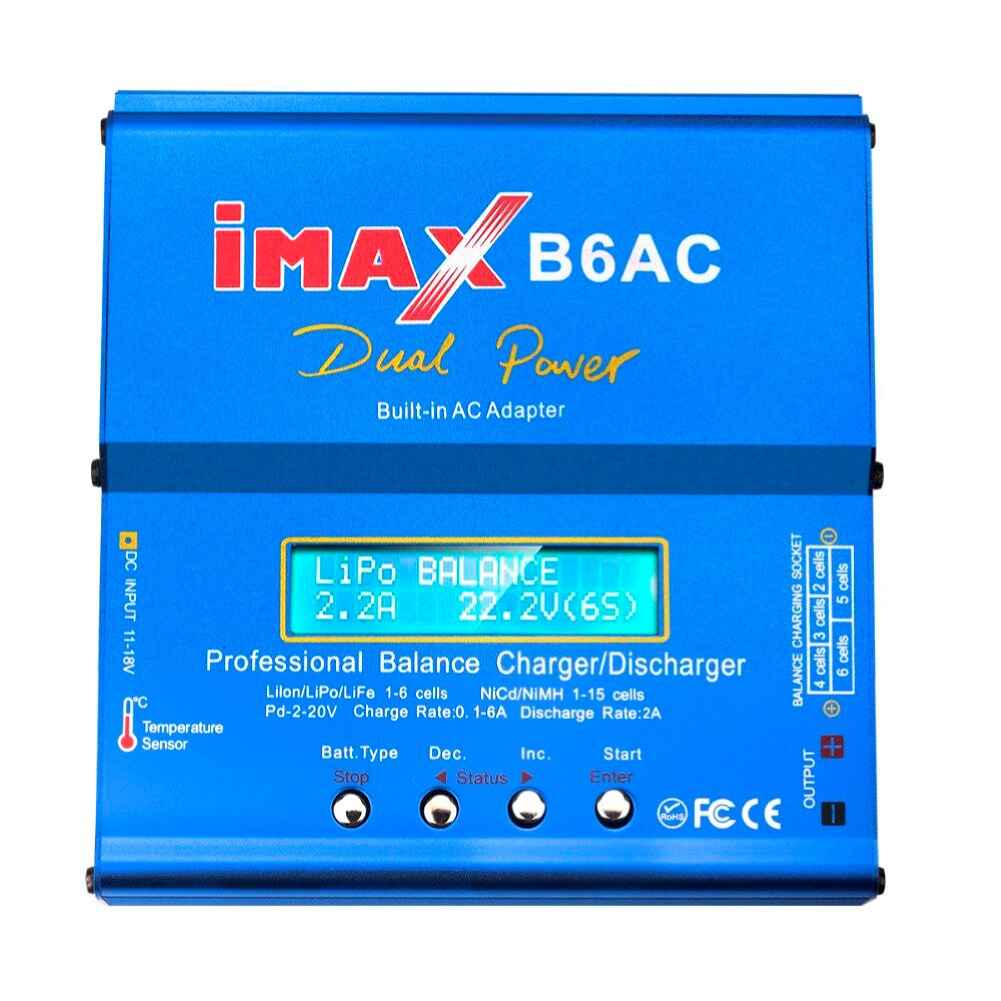

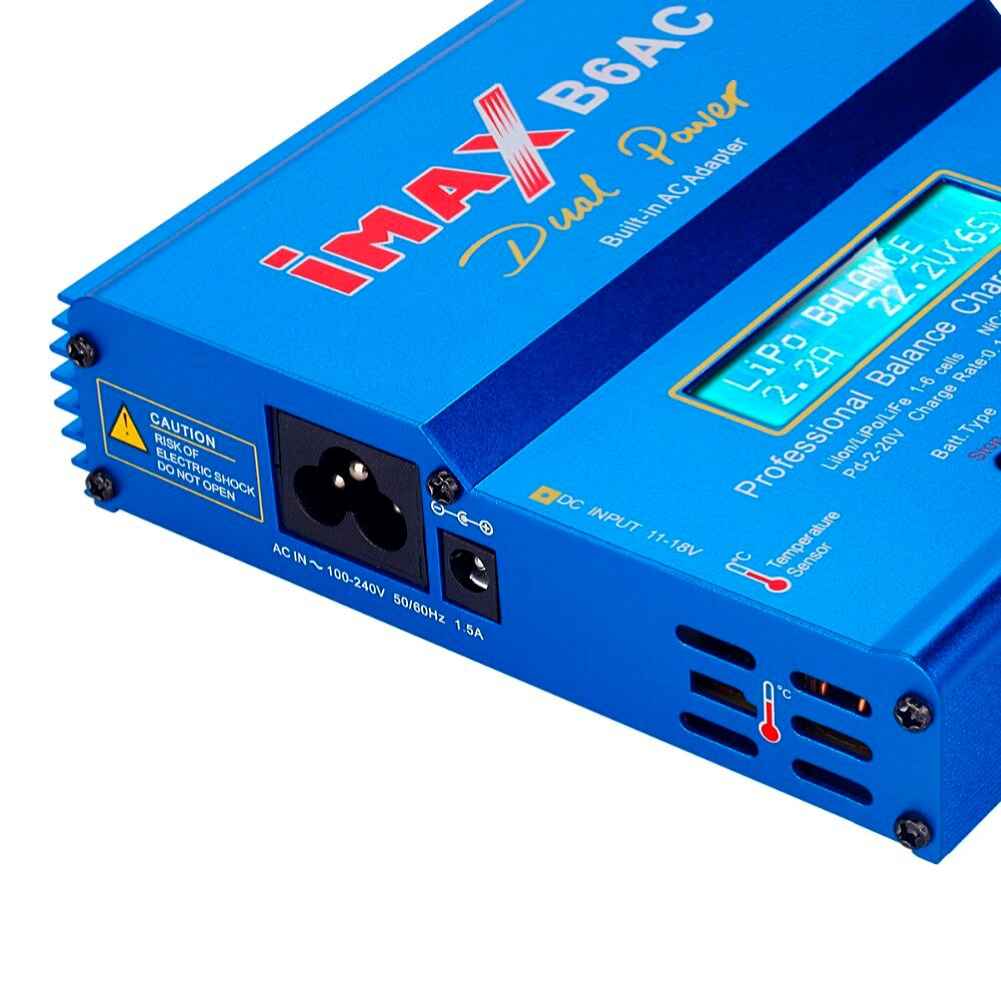

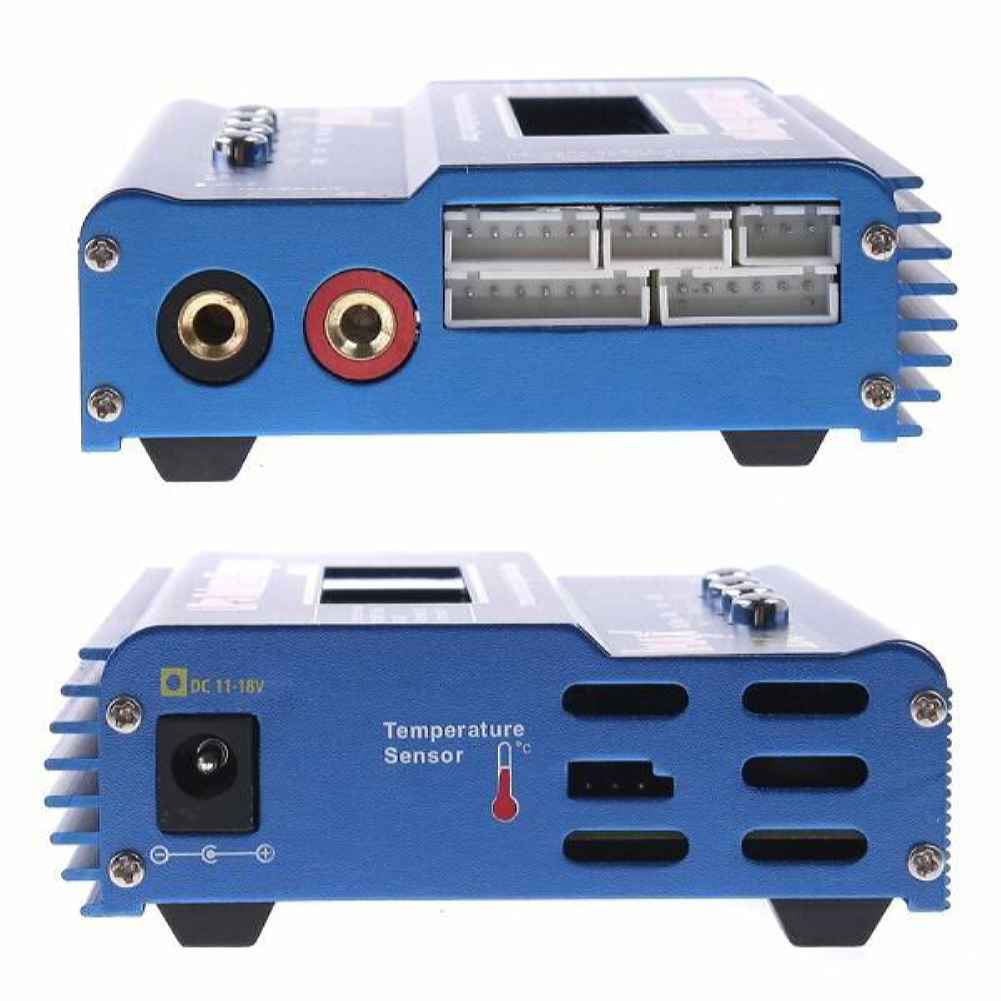

IMAX B6AC 80W 6A Updated Balance Charger Discharge for Lipo/Li-ion/LiFe/NiMh Battery
The IMAX B6AC 80W 6A Balance Charger is a versatile and efficient solution for charging various batteries, including Li-ion, LiPo, LiFe, Ni-Cd, and NiMH. This microprocessor-controlled device features Delta-peak sensitivity and individual cell balancing, ensuring optimal performance. It offers a wide range of charge currents and includes a store function for safe storage currents. The charger is equipped with input voltage monitoring to protect car batteries and can store data for up to five packs. Its battery break-in and cycling capabilities support the new generation 123 system (LiFe) batteries. The compact design, with dimensions of 133x87x33mm, makes it a convenient choice for hobbyists and professionals alike.
Features:
*Microprocessor controlled Delta-peak sensitivity.
*Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
*Large range of charge currents Store function, allows safe storage current
*Time limit function
*Input voltage monitoring. (Protects car batteries at the field)
*Data storage (Store up to 5 packs in memory)
*Battery break in and cycling.
*Support new generation 123 system (LiFe) battery
Specifications:
* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/5A)
* Circuit power: Max.charge power 80W / Max.discharge power 5W Charge Current Range: .1~5.0A
* Discharge current range: 0.1-1.0A
* Current drain for balancing Li-po: 300mAH/cell
* LiIon/LiPo/LiFe cells : 1-6
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
* Unit Package Gross Weight: 580g
* Dimensions: 133x87x33mm Compare to iMAX B5:
* Can charge 6 cells LiPo battery (B5 can charge maximum 5 cells)
* With Discharge Function
* 123 Life Charging

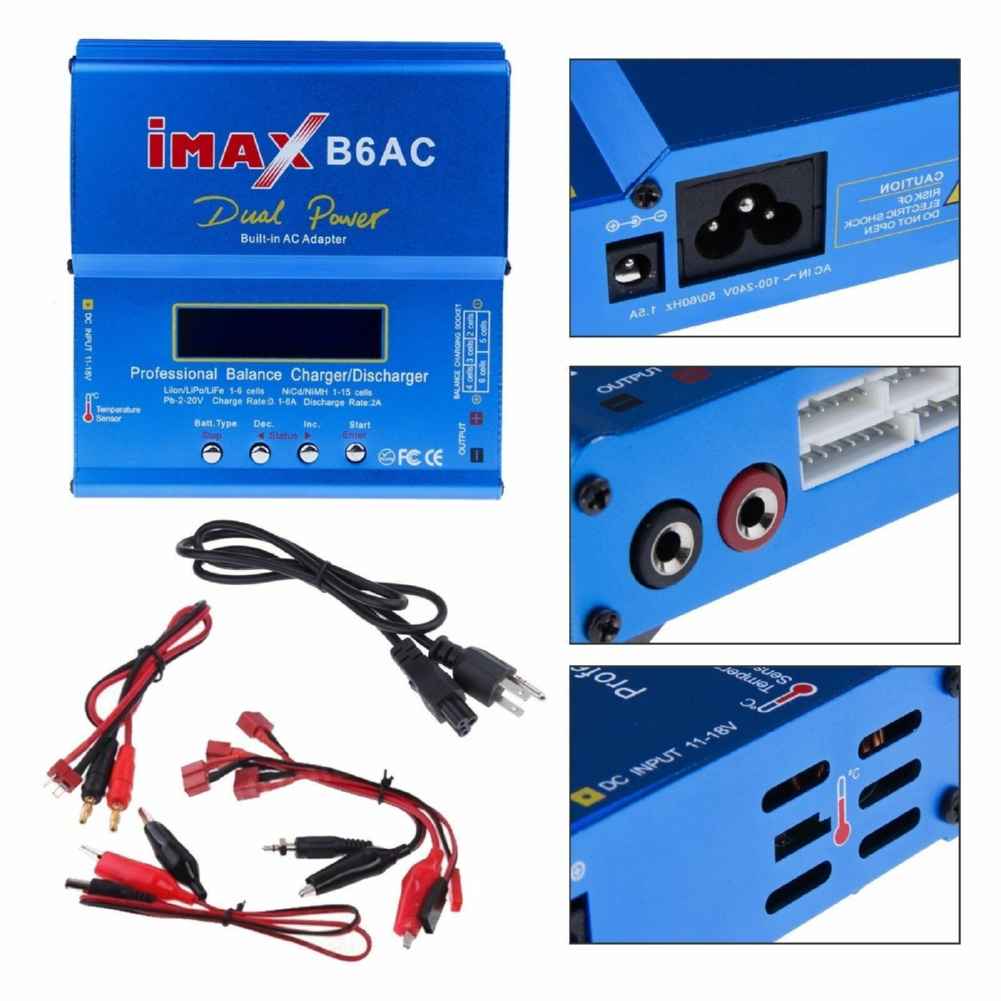

Package:
1 x IMAX B6 AC 80W
1 x Power adapter (US/EU/AU/UK plug)
1 x Charging Cable
Package Included:
1 x IMAX B6AC 80W
1 x Power adapter (US/EU/AU/UK plug)
1 x Charging Cable
