HTRC T150 AC/DC 150W 10A Touch Balance Smart Charger Discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb Battery
The HTRC T150 is a versatile, high-power balance charger designed for various battery types, including LiPo, LiFe, LiIon, LiHV, NiCd, NiMh, and Pb. Featuring a 3.2-inch color LCD touch screen, it offers easy operation and a built-in cooling fan for heat dissipation. With dual power input options (DC 11-18V or AC 100-240V), it provides a maximum charging power of 150W and a charge current of up to 10A. The charger includes multiple charging modes and safety features such as automatic charge current limit and peak sensitivity. Additionally, it offers a 5V 2.1A USB output for powering other electronic devices.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

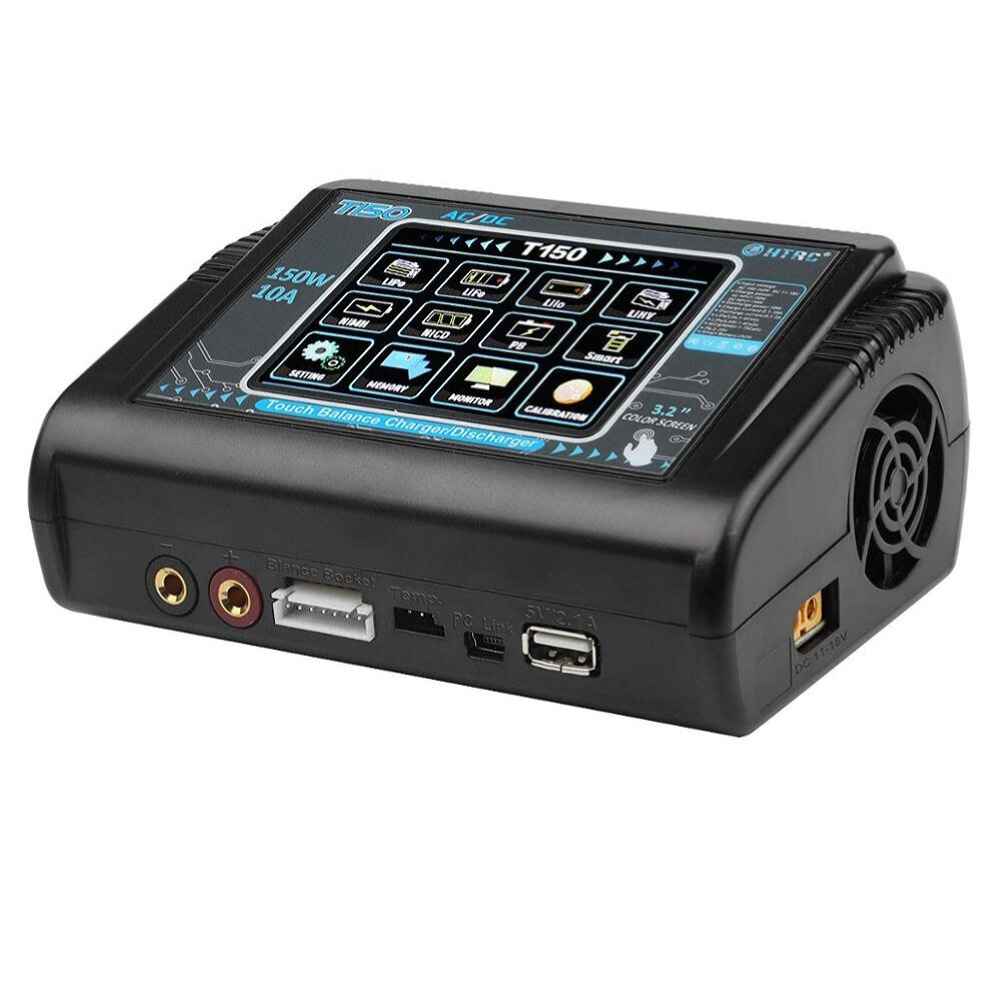

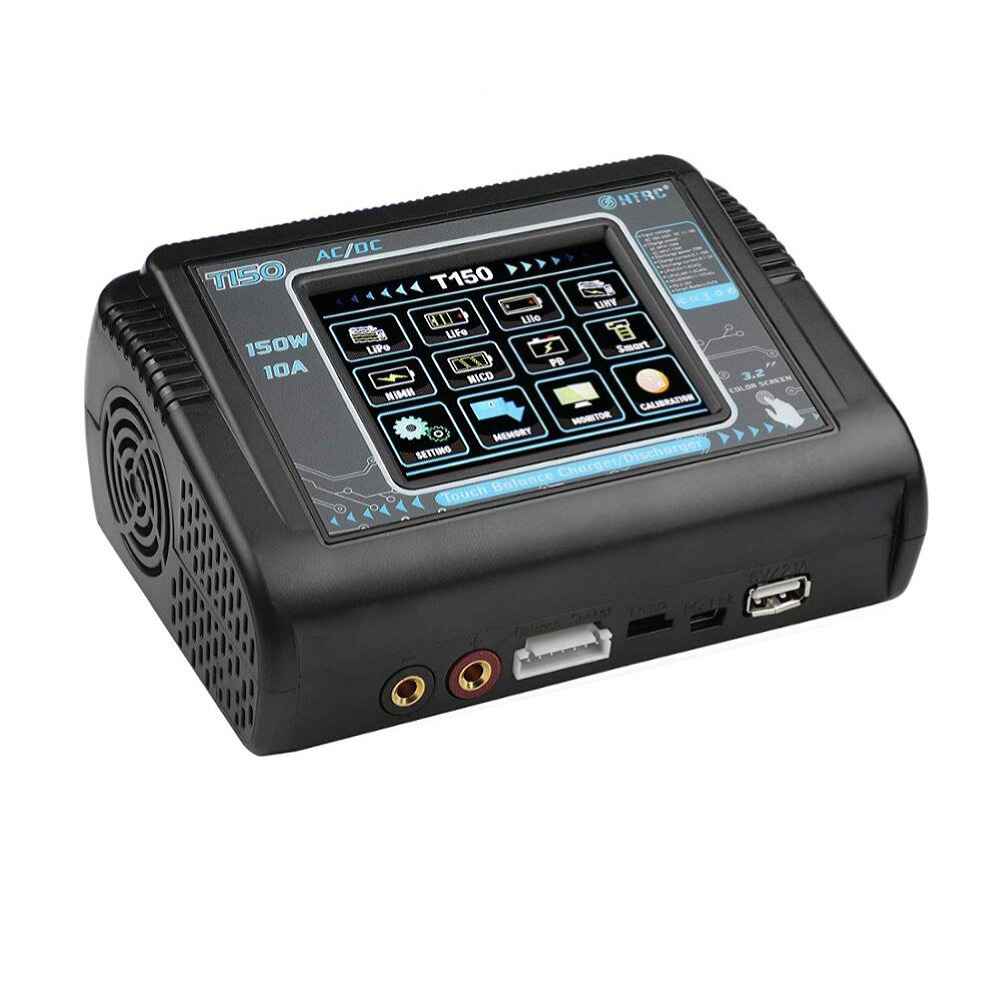

T150 is a new design multi-functional high power balance charger by HTRC,Utilizing 3.2 inch color LCD Toch screen display,easy operation, built-in cooling fan,DC 11-18V or AC 100-240V dual power.Max charger power 150w,Max charge current 10A.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.
Besides it has a 5V 2.1A USB DC output port, which can be a power supply to other electronic products.
Features:
*Compact touch screen charger, easy to carry, easy to use.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts
*Built in cool fan for easy heat dissipation
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell’s voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell’s resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration. (caliration function for 6s battery only)
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*5V 2.1A USB port.
*Data storage and loading
*Battery break in and cyclin
*Built-In PFC
*Firmware update.
*Maximum Safety:Automatic charge current limit,Peak sensitivity, capacity limit, processing time limit,temperature threshold.
Specification:
Model No:HT-0100
Input: AC 100-240V / DC 11-18V
Charge power:Max 150W
Discharge power:10W
Charge current range:0.1-10A
Discharge current range:0.1-2A
Lilon/LiPo/LiFe/LiHV cell count :1-6cells
NiCd/NiMH battery cell count:1-15cells
PB Battery voltage:2-20V
Smart battery:I/II/III
Current drain for balancing: 500mA/cell
Net Weight:0.48kg
Dimension:145*105*64mm
Gross weight:0.80kg
Package size:215*155*75mm
Package Included:
1 x T150 charger
1 x Charge cable banana plug to T-Plug
1 x Extension charge cable T-Plug to XT60
1 x AC Cord (US EU UK AU optional)
1 x DC Cord
1 x User’s Manual
