Description

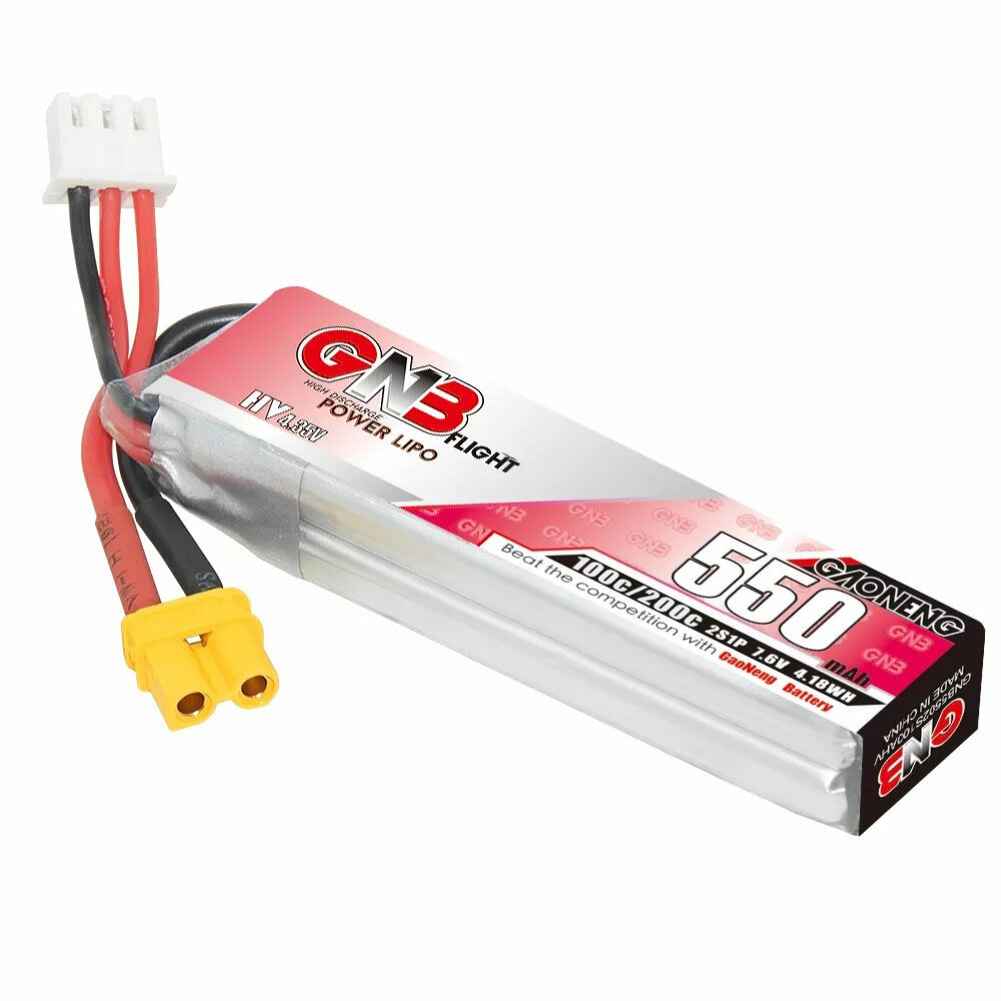

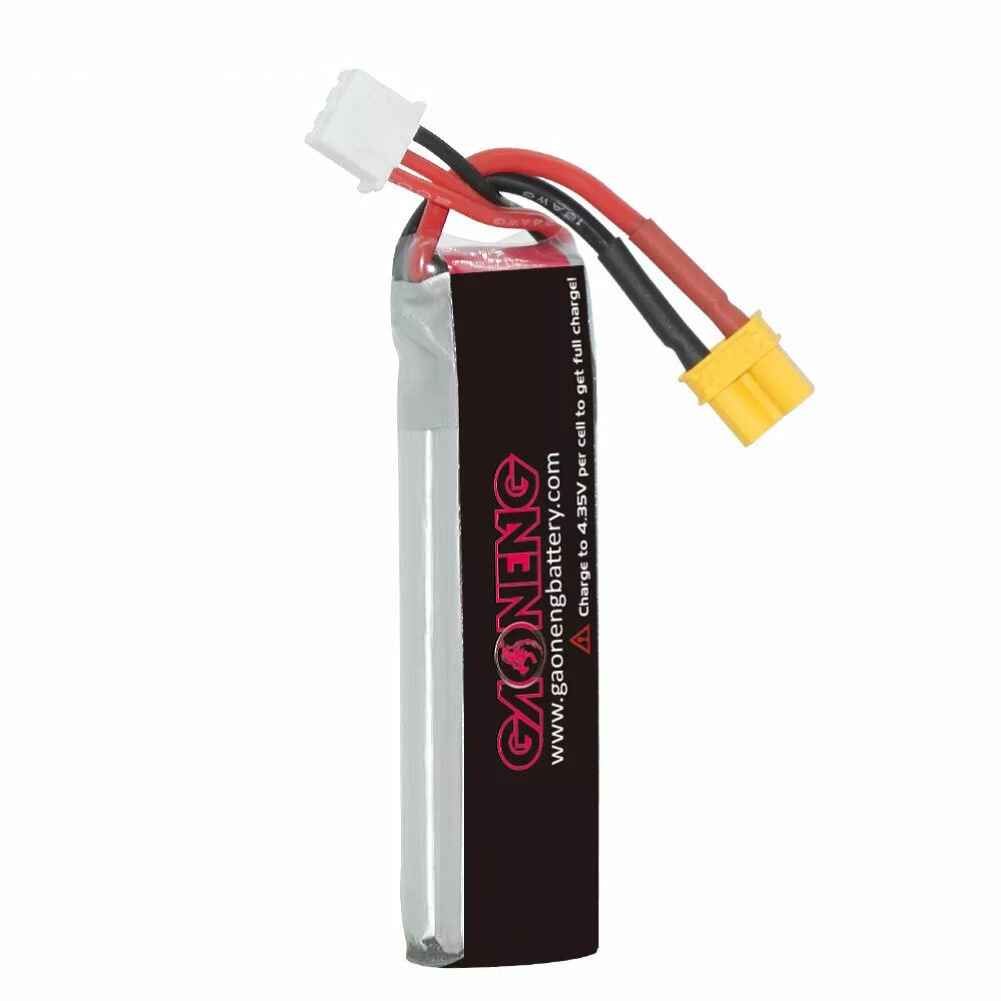

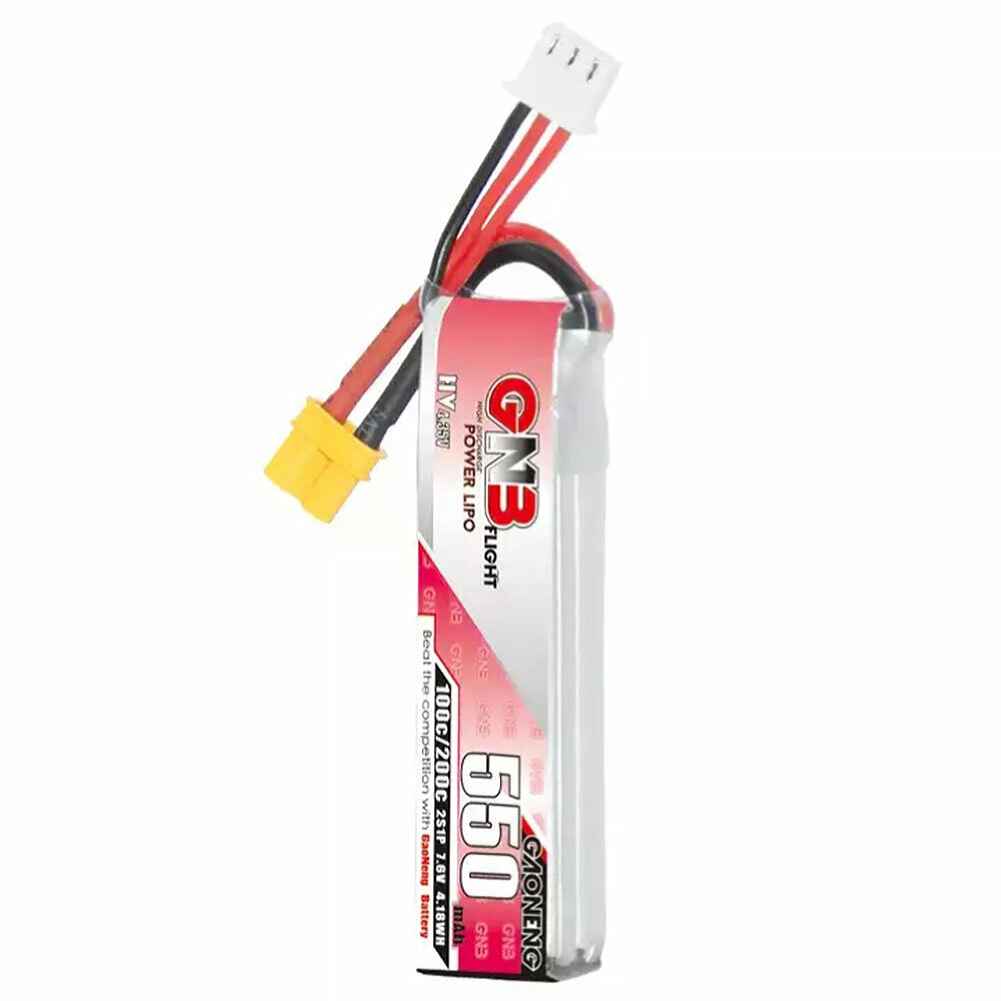

Gaoneng GNB 2S 7.6V 550mAh 100C Lipo Battery XT30 Plug for Happymodel Mobula 8 GEPRC TinyGo Crux3 Cinewhoop FPV Drone RC Helicopter
The Gaoneng GNB 2S 7.6V 550mAh 100C Lipo Battery is designed for high-performance FPV drones and RC helicopters. Featuring a 2S1P configuration and nominal voltage of 7.6V, this battery delivers a reliable power source with a maximum continuous discharge rate of 100C and a burst rate of 200C. It includes a JST-XH 3P charge connector and an XT30 discharge connector. The compact design measures 12x18x69mm and weighs approximately 29g. It operates efficiently within a wide temperature range and humidity conditions. Please handle with care, avoiding overcharging and exposure to extreme temperatures.
Specifications:
Brand: Gaoneng
Model No.: GNB5502S100AHV
Capacity: 550mAh
Configuration: 2S1P
Nominal Voltage: 7.6V
Dimension: 12*18*69mm Appr. (H*W*L)
Weight: 29g (+/-3g)
Max cont. discharge (C-rate/current): 100C
Max Burst (C-rate/current): 200C
Charge Connector: JST-XH 3P
Discharge Connector: XT30
Working Temperature Charge: 0~45‵﹠
Working Temperature Discharge: (-20~60‵﹠)
Working Humility: 65%RH +/-20%
Storage Temperature: (-20~35‵﹠)
Storage Humility: 65%RH +/-20%
Note: Due to the difference between the measurement, the battery dimension and weight may have little error.
Caution:
Don’t over-charge, or over-discharge batteries.
Don’t put it beside the high temperature condition.
Don’t throw it into fire.
Don’t throw it into water.
Package Included:
1 x Gaoneng GNB 7.6V 550mAh 100C 2S XT30 Plug Lipo Battery
