Description

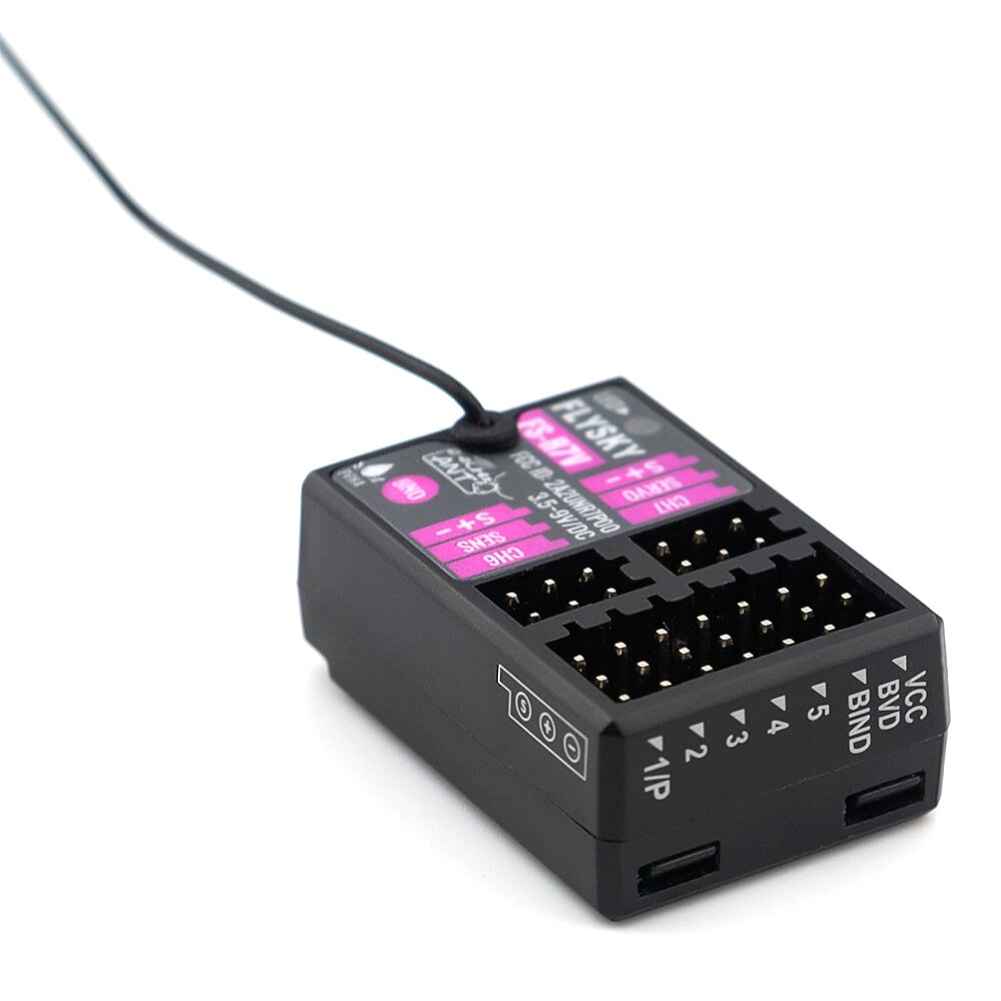

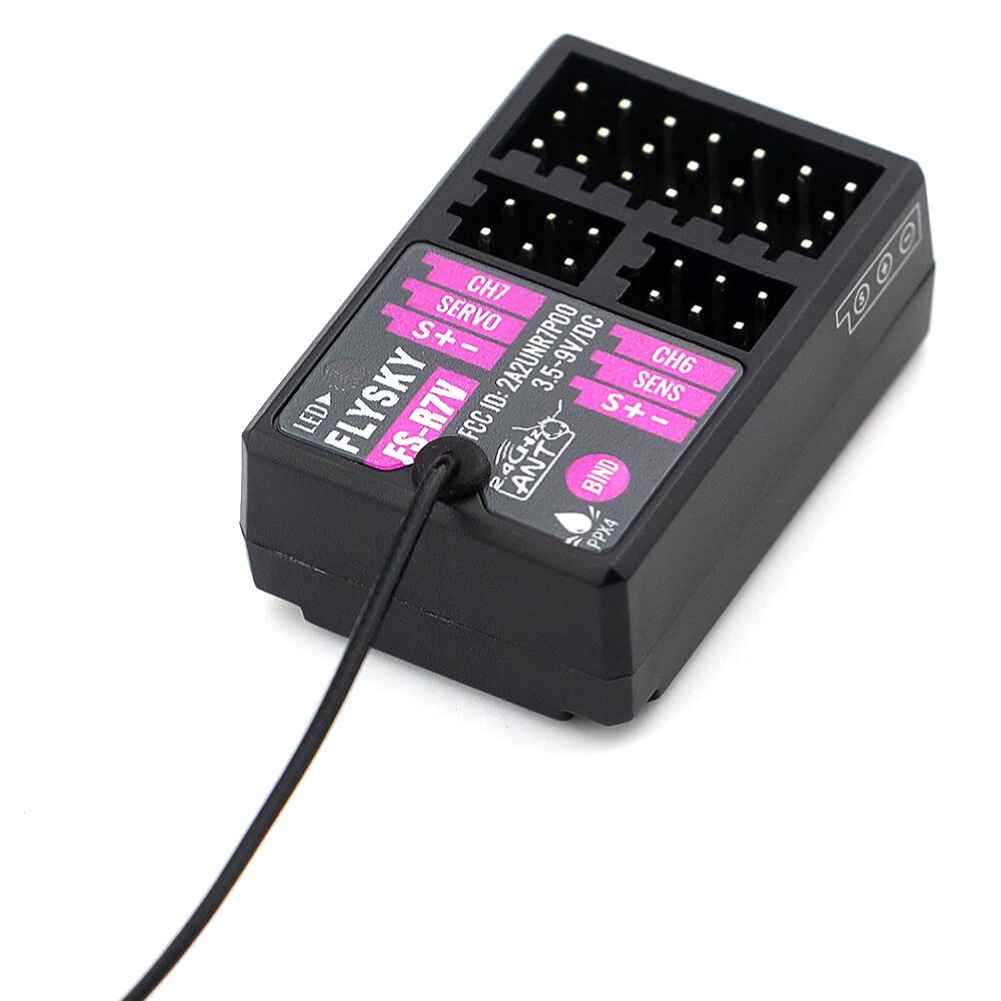

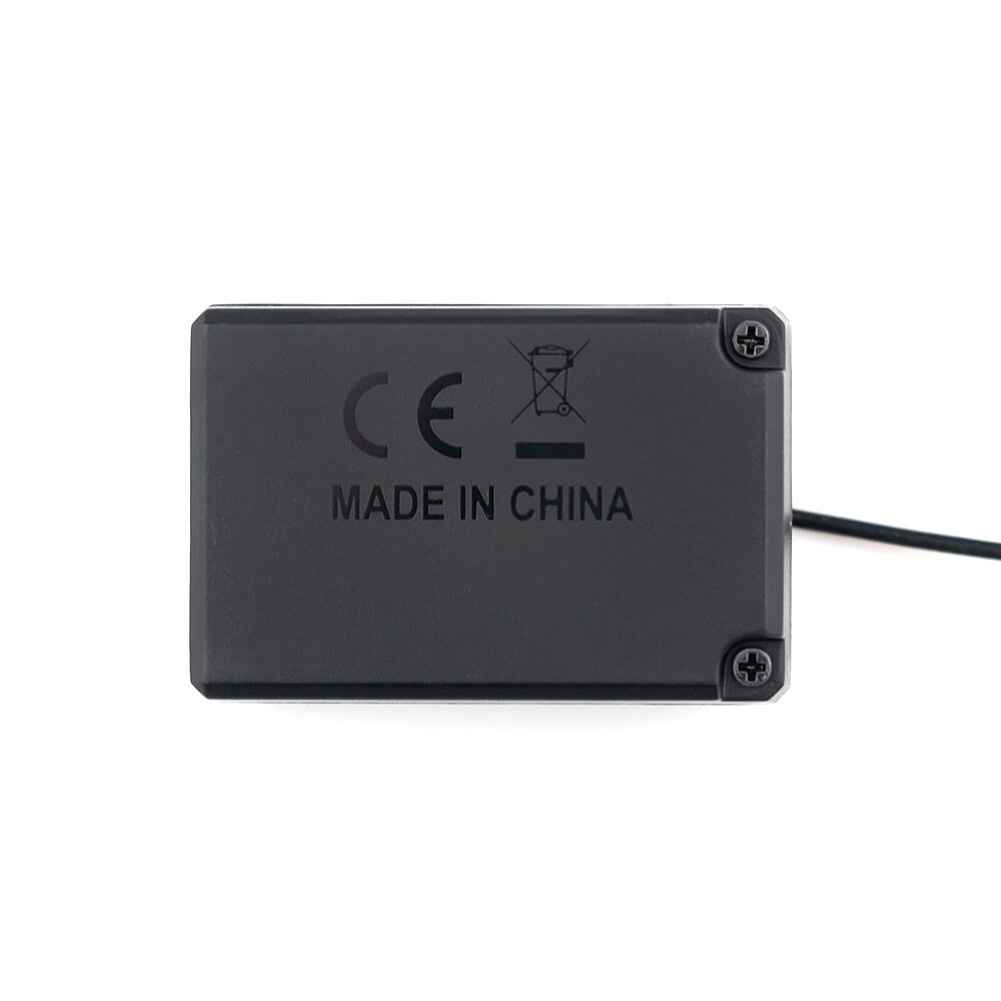

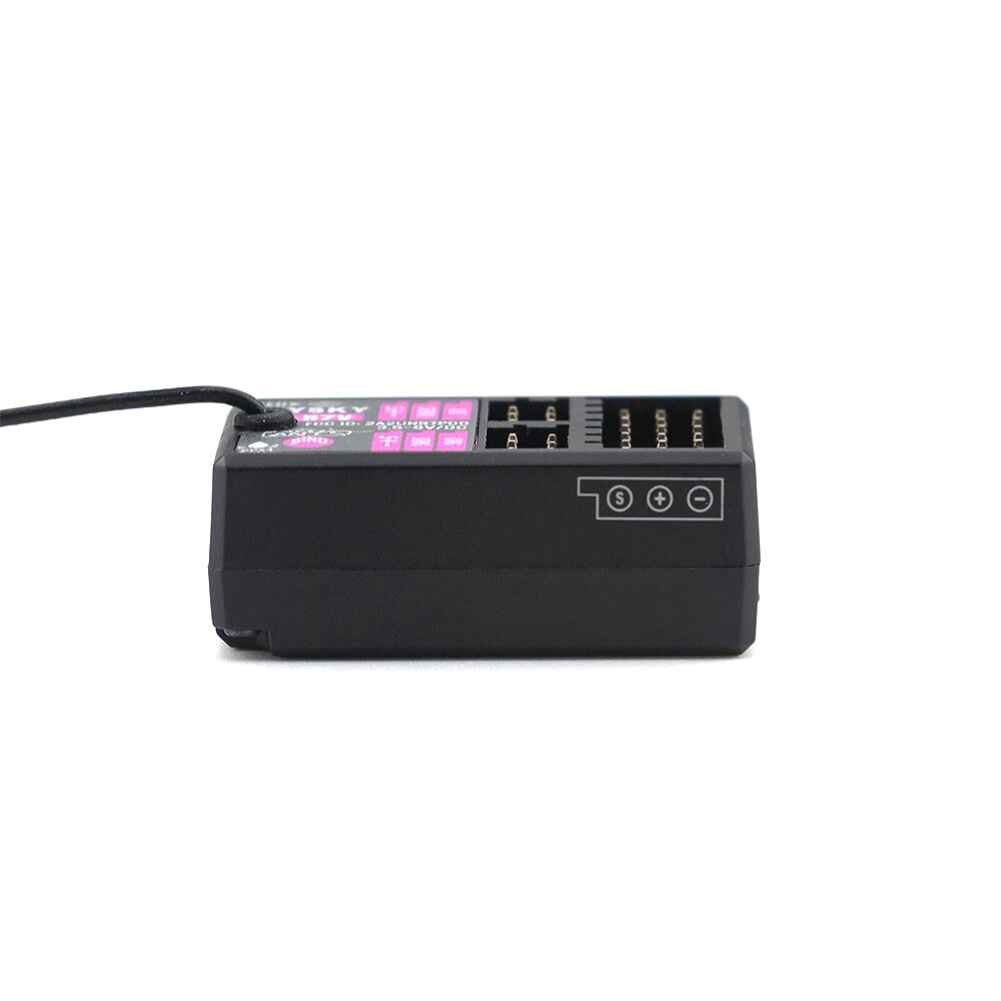

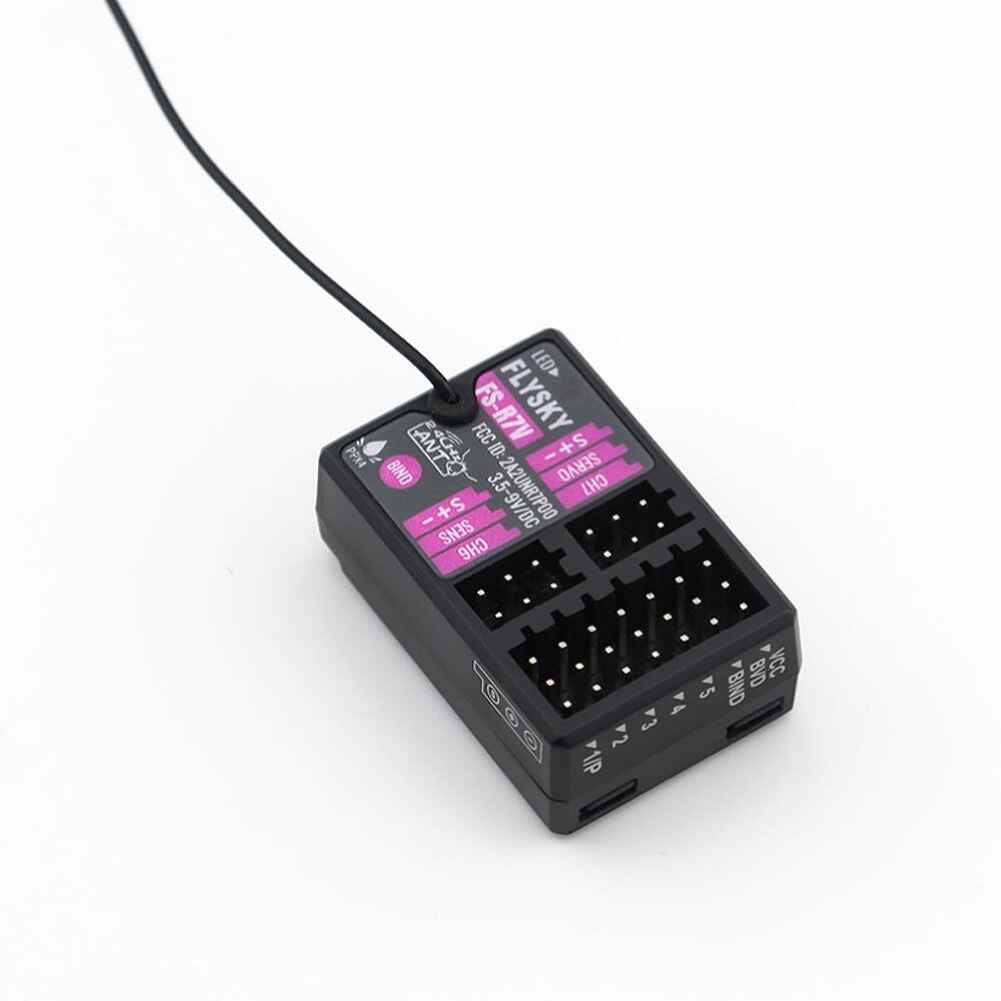

Flysky FS-R7V 2.4G 7CH ANT Protocol PWM/PPM/i-BUS/S.BUS RC Receiver External Single Antenna Built-in Gyroscope for G7P/G7P+ Transmitter RC Airplane Car Boat
The Flysky FS-R7V is a 2.4GHz, 7-channel RC receiver designed for use with the G7P and G7P+ transmitters. It operates on the ANT protocol, ensuring reliable bidirectional communication. This receiver features an external single antenna and a built-in gyroscope, providing stable control for RC airplanes, cars, and boats. With a compact design, it outputs PWM, PPM, i-BUS, or S.BUS signals, adapting to various model requirements. The FS-R7V supports a range of up to 300 meters in optimal conditions and is built to withstand a wide range of temperatures and humidity levels. It is also certified with CE and FCC standards for safety and performance.
Flysky FS-R7V 2.4G 7CH ANT Protocol PWM/PPM/i-BUS/S.BUS RC Receiver External Single Antenna Built-in Gyroscope for G7P/G7P+ Transmitter RC Airplane Car Boat
Description:
FS-R7V based on ANT protocol is a receiver which provides seven channels and bidirectional transmission. It features an external single antenna with built-in gyroscope and compact design, outputs of PWM or PPM/i-BUS/S.BUS signal, adaption to a variety of model cars or boats.
Specification:
Product Name: FS-R7V
Compatible Transmitters: FS-G7P( Adapts surface transmitters with ANT protocol)
Compatible Models: Cars or boats
PWM Channels: 7
RF: 2.4GHz ISM
Maximum Power: <20dBm (e.i.r.p.) 侈EU佩
Antenna: Single antenna
Distance: √ 300m (Ground distance without interference)
2.4G Protocol: ANT
Resolution: 4096
Data Output: PWM/PPM/i-BUS/S.BUS
Input Power: 3.5 ~ 9V/DC
Online Update: Yes
Temperature Range: -10﹠ ~ +60﹠
Humidity Range: 20% ~ 95%
WaterProof: PPX4
Dimensions: 35.0mm*23.3mm*13.3mm
Weight: 8.0g
Certifications: CE, FCC ID: 2A2UNR7P00

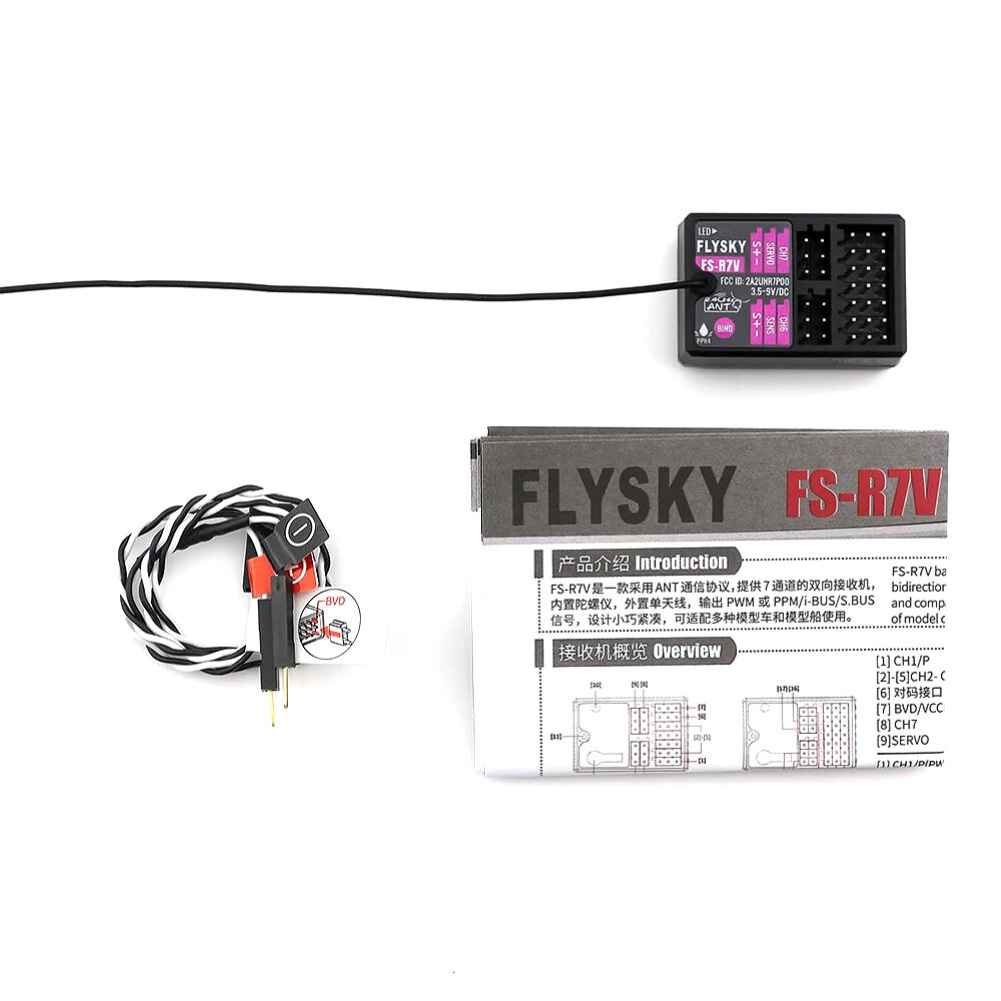

Package Included:
1 x FS-R7V Receiver
