Hobbywing Sensored Brushless 10BL120 G2 ESC and Rocket 540 V3 Motor Combo for 1/10 Drift RC Cars

Description

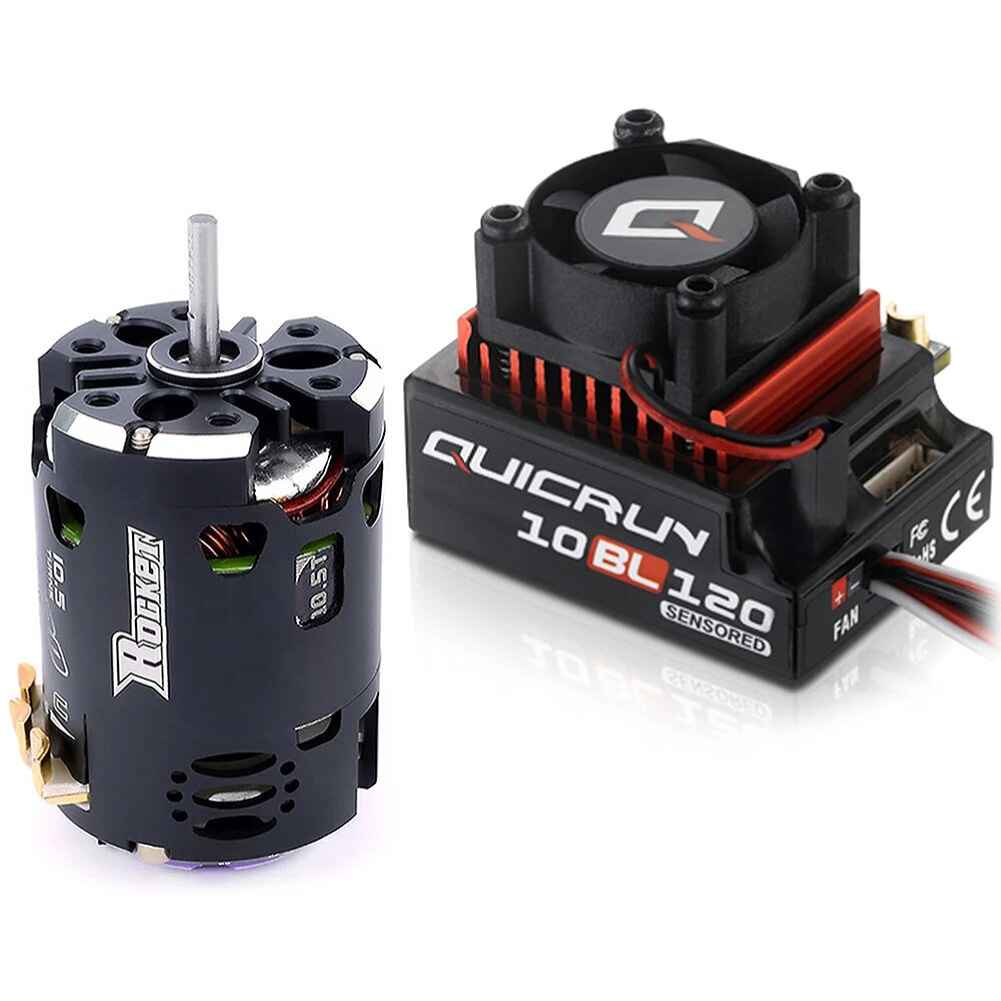

Hobbywing Sensored Brushless 10BL120 G2 ESC+Rocket 540 V3 Motor Combo for 1/10 Drift RC Car Parts

The Hobbywing Sensored Brushless 10BL120 G2 ESC combined with the Rocket 540 V3 Motor is designed for 1/10 drift RC cars. This set includes a CNC machined billet aluminum heatsink can, high purity copper windings, and a powerful sintered neodymium magnet. The ESC features a compact size suitable for various car chassis, with a built-in auto identification system that recognizes both sensored and sensorless brushless motors. It offers multiple programmable items and protections, including low voltage cut-off and over-heat protection. The ESC is easy to set with a one-button reset to factory default settings, and it’s compatible with a portable Digital LED Program Card for convenient outdoor use.

Note:
This is a set,included a ESC+Motor, 10BL120 G2 ESC+540 motor,and you need to choose which motor do you want.

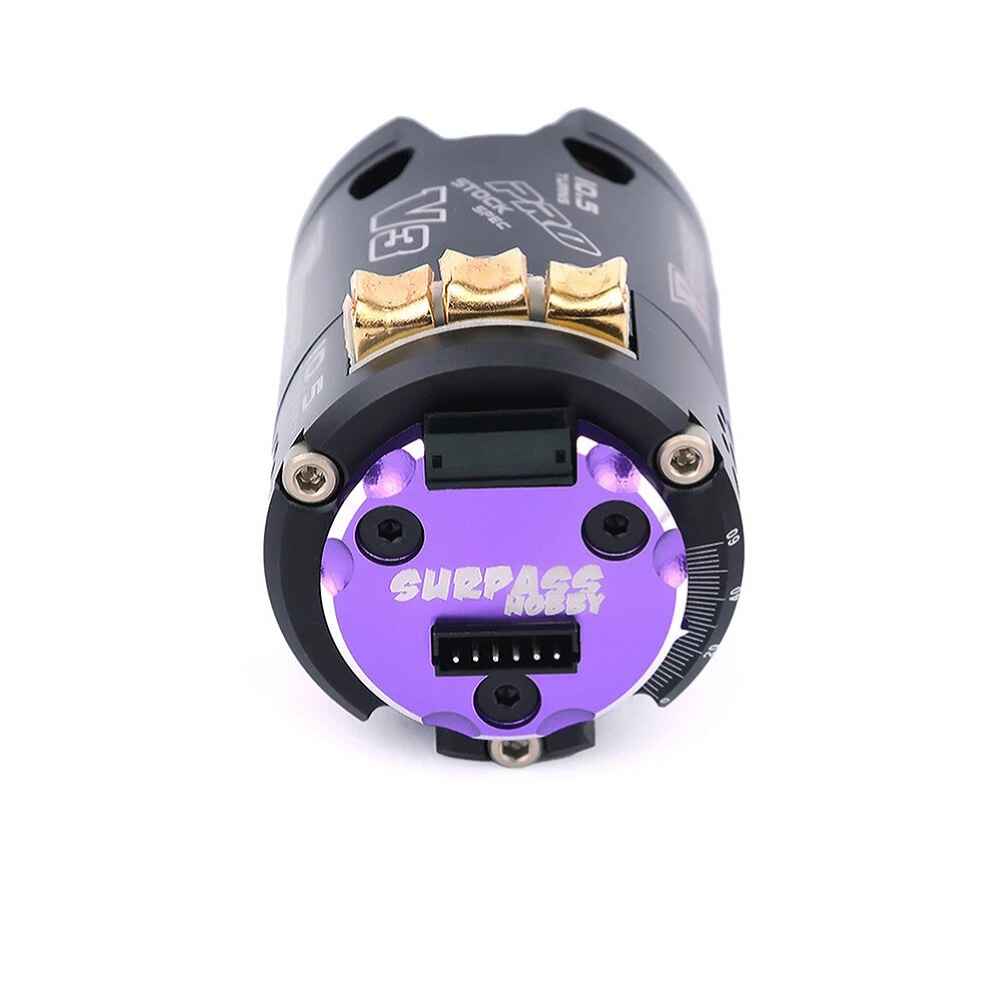

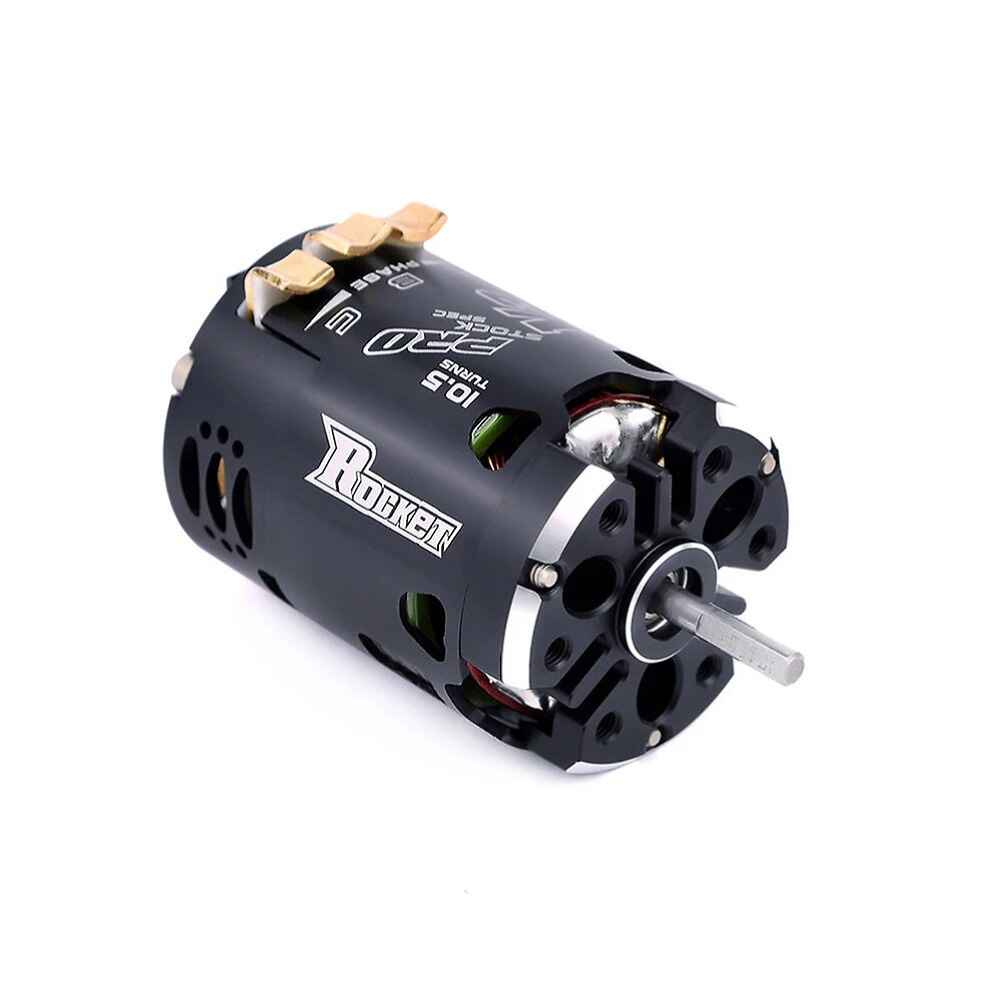

Rocket 540 V3 Motor Features:
-CNC Machined Billet Aluminum Heatsink Can.
-High Purity Copper Windings Maximizes Conductivity.
-High Power Solder Tabs.
-Removable/Replaceable Rotor.
-Powerful Sintered Neodymium Magnet.
-Precision Engineered for Maximum Energy Conversion.
-Adjustable Timing.
-Compatible with any Sensored/ Sensorless ESC.
-Dual sensor port .
-IFMAR, ROAR Compliance.

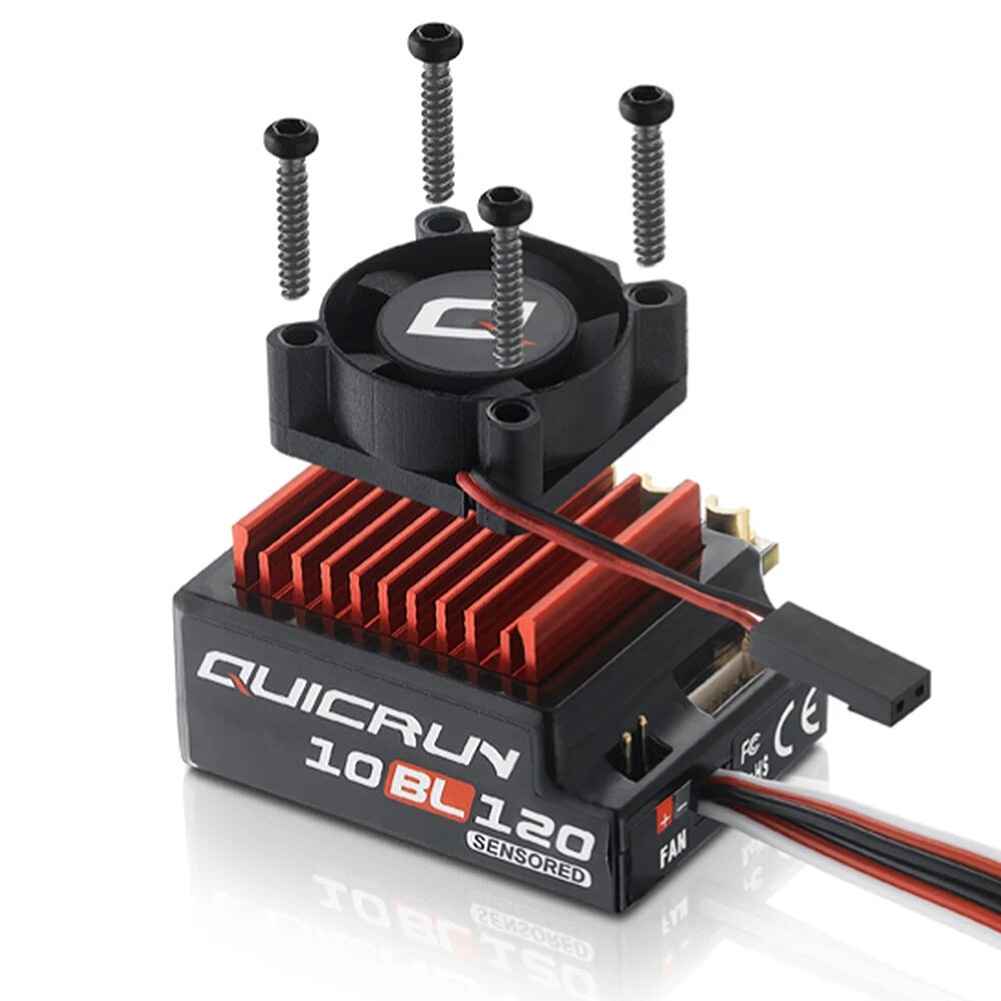

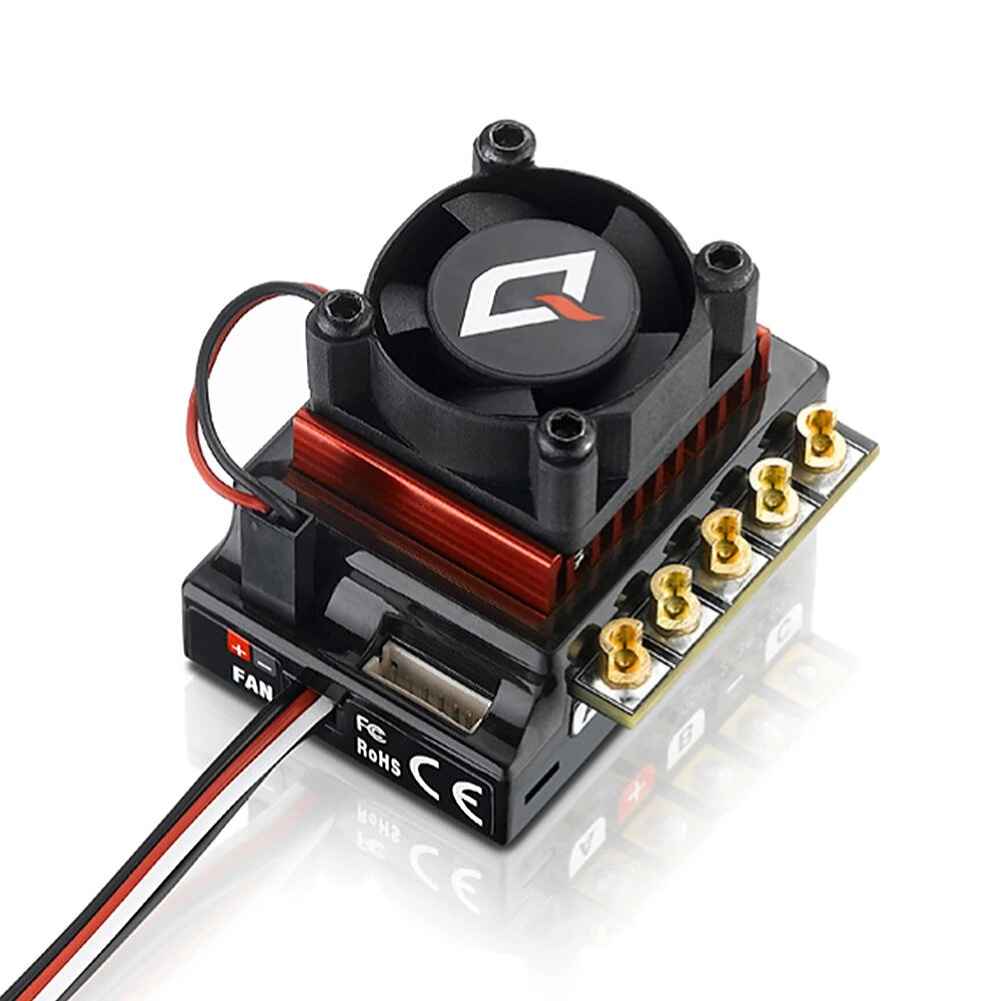

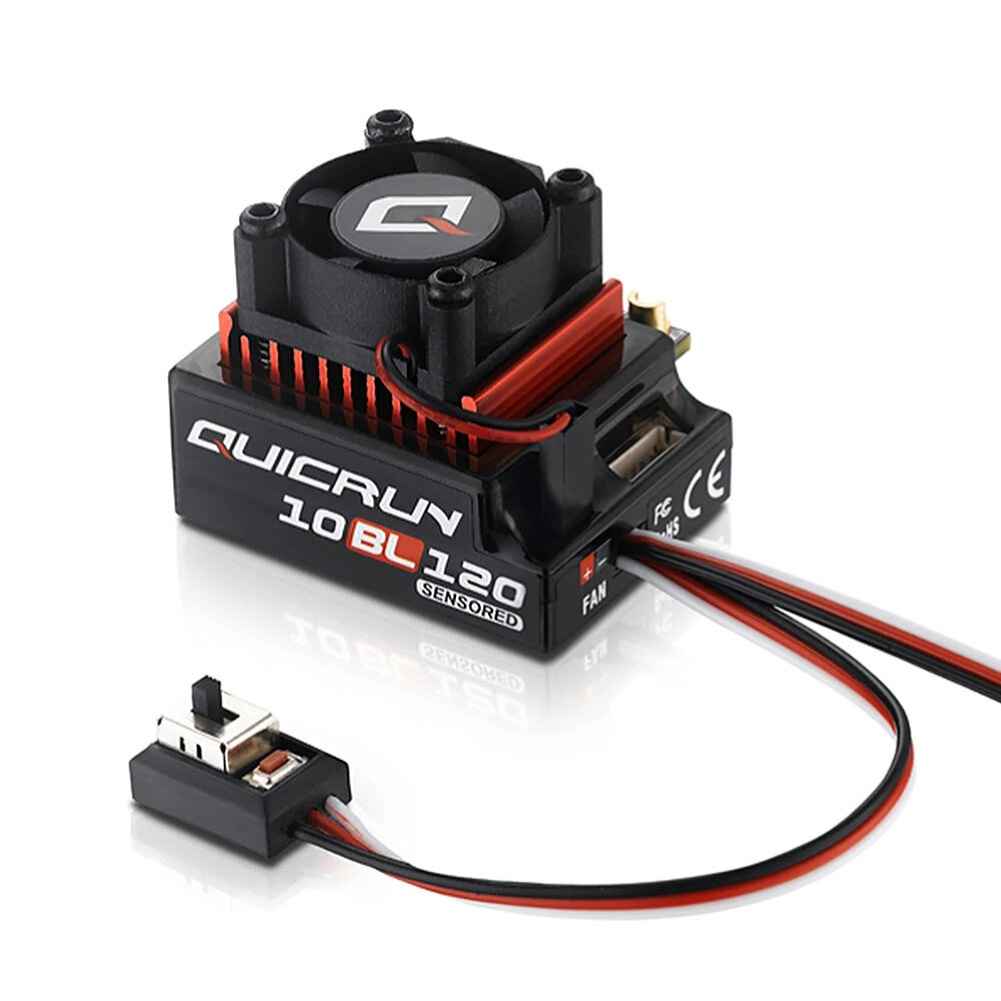

Hobbywing QincRun 10120BL Sensored ESC Features:
High performance, reliable,race-ready ESC.The compact size is suitable forvarious car chassis’.
The built-in auto identification system recognizes sensored or sensorless brushless motors.
Core competition program forexcellent control feel & multiple programmable items.
8 steps of timingadjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4 steps of initial brake force adjustments 9 steps ofacceleration (punch) adjustment, from ‘soft’ to ‘very aggressive’ to fit fordifferent kinds of cars, tires and tracks.
Multiple protections include: Lowvoltage cut-off protection for Lipo or NiMH battery Over-heat protection Throttlesignal loss protection Motor Lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability and durability have been greatly improved.
One-button to set the ESC,and easy to reset all parameters to the factory default settings.
Compatiblewith optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.
Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo:8.5T (1/10On-road),10.5T (1/10 Off-road)
Descriptions:
Designed for entry-level and intermediate players to create, inherited the hobbywing products outstandin quality,
And simplify the operation of the difficulty, without any complicated debugging to get started.
Products for 1/10 & 1/12 car, SUV, F1, drift car for running and daily practice.
Motor Specifications:
Brand:Rocket
Item no.:540 V3 Pro
Turns nunmber:3.5T 4.5T 5.5T 6.5T 7.5T 8.5T 9.5T 10.5T 13.5T 17.5T 21.5T optional
Please read the parameter chart and instruction carefully
ESC Specifications:
Brand:Hobbywing
Product name:QincRun 10120BL Sensored optional
Model:30125000 optional
Battery: 2-3s lipo battery

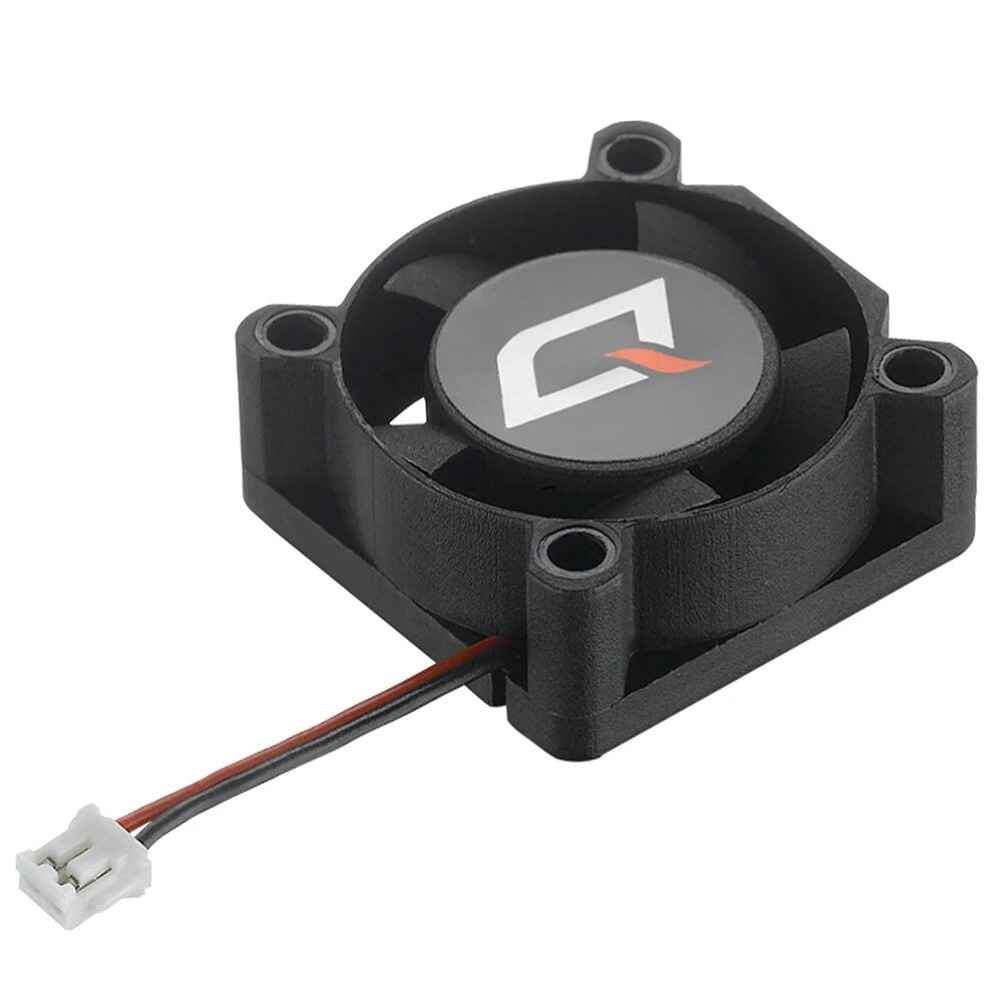

Fan size:25*25*10mm
Fan Voltage range:5-8.4V
Specifications: 33x28x33mm (with fan height)
Weight: 105g (including line weight)

Package Included:
1 x Rocket 540 Sensored Brushless Motor
1 x Sensored line
1 x Hobbywing Sensored Brushless ESC
1 x Instruction
