Description

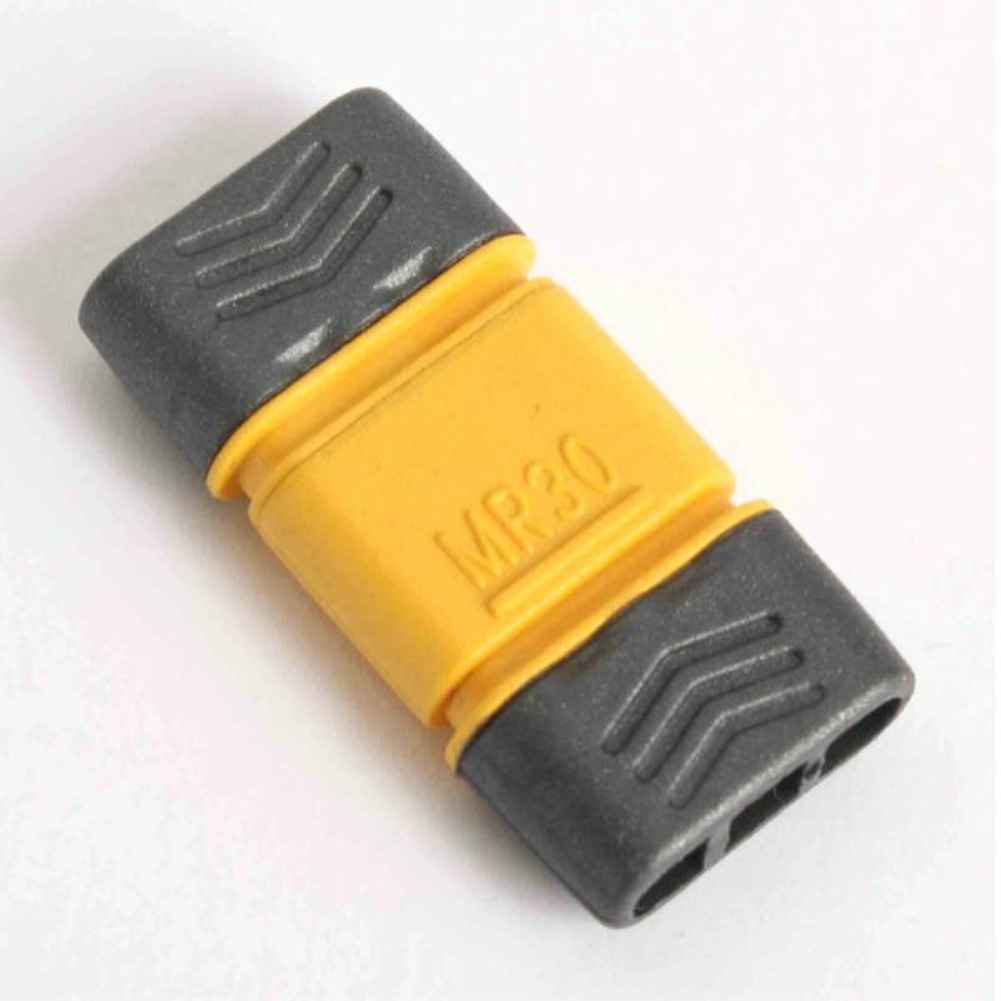

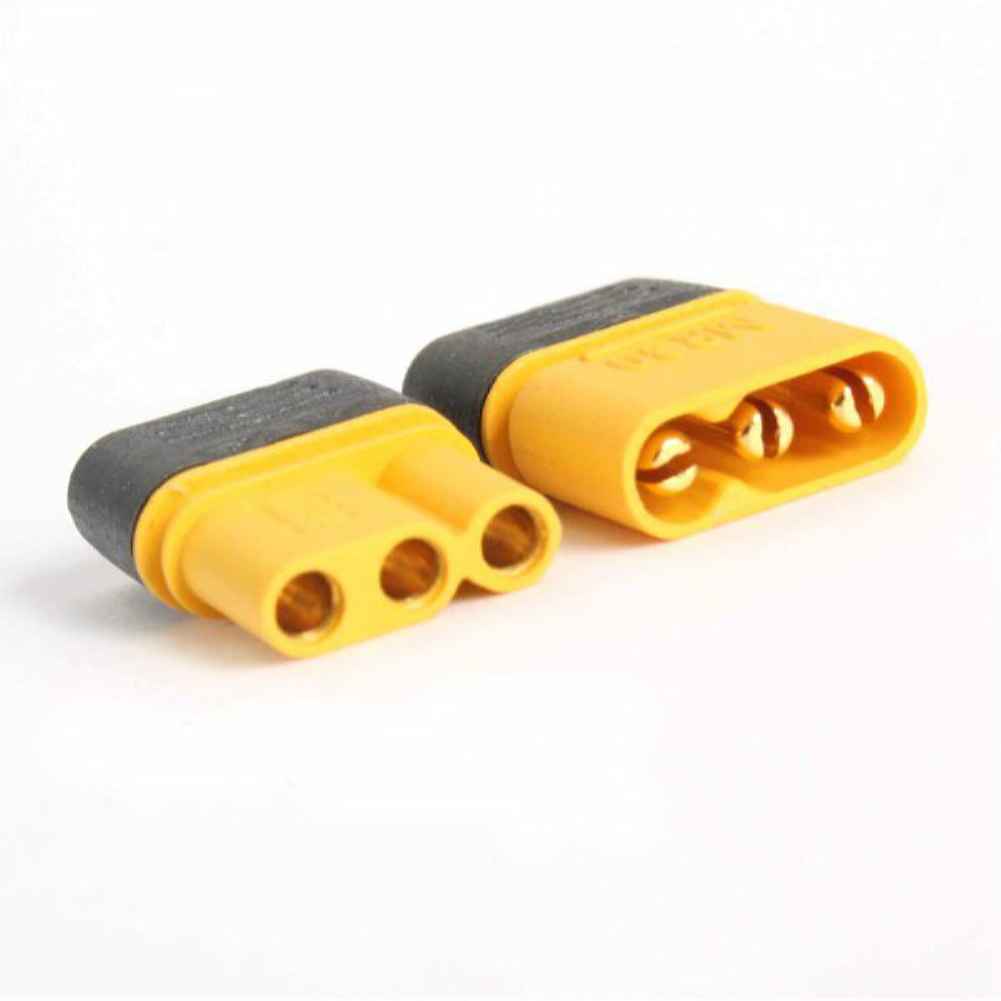

Amass MR30 Connector Plug With Sheath Female & Male 1 Pair for RC Battery
The Amass MR30 Connector Plug is designed for RC battery applications, offering a robust connection with brass and gold-plated materials. It features a PA66 insulation material with a UL94V-0 insulation degree, ensuring safety and durability. The connector supports a maximum continuous current of 30A for up to 30 minutes and a peak instantaneous current of 40A for up to 1 minute. Recommended for use with 18AWG cables and a soldering spec of 400～C/3S, the MR30 connector is equipped with a protective sleeve and assistive weld foot for enhanced stability. Each connector weighs 1.2g and boasts a machine life of up to 3000 cycles.
Description:Brand Name: Amass Item Name: MR30 connectorBody Material and Surface Plating: Brass and gold platedInsulation Material: PA66Original Internal Resistance: 0.8M棒500 Times Internal Resistance: 0.85M棒Max. Continuous Current: 30A (within 30 minitues)Max. Instantaneous Current: 40A (within 1 minitues)Recommended Cable Spec: 18AWG 2.8mm diameterRecommended Soldering Spec: 400‵ C/3SWeight: 1.2g/pcsInsulation Degree: UL94V-0Machine Life: 3000 Times
Features:- Suitable for connecting ESCs and motors- With protective sleeve- Assistive weld foot, more stable
Package Included:
1 x Amass MR30 Connector Male
1 x Amass MR30 Connector Female
