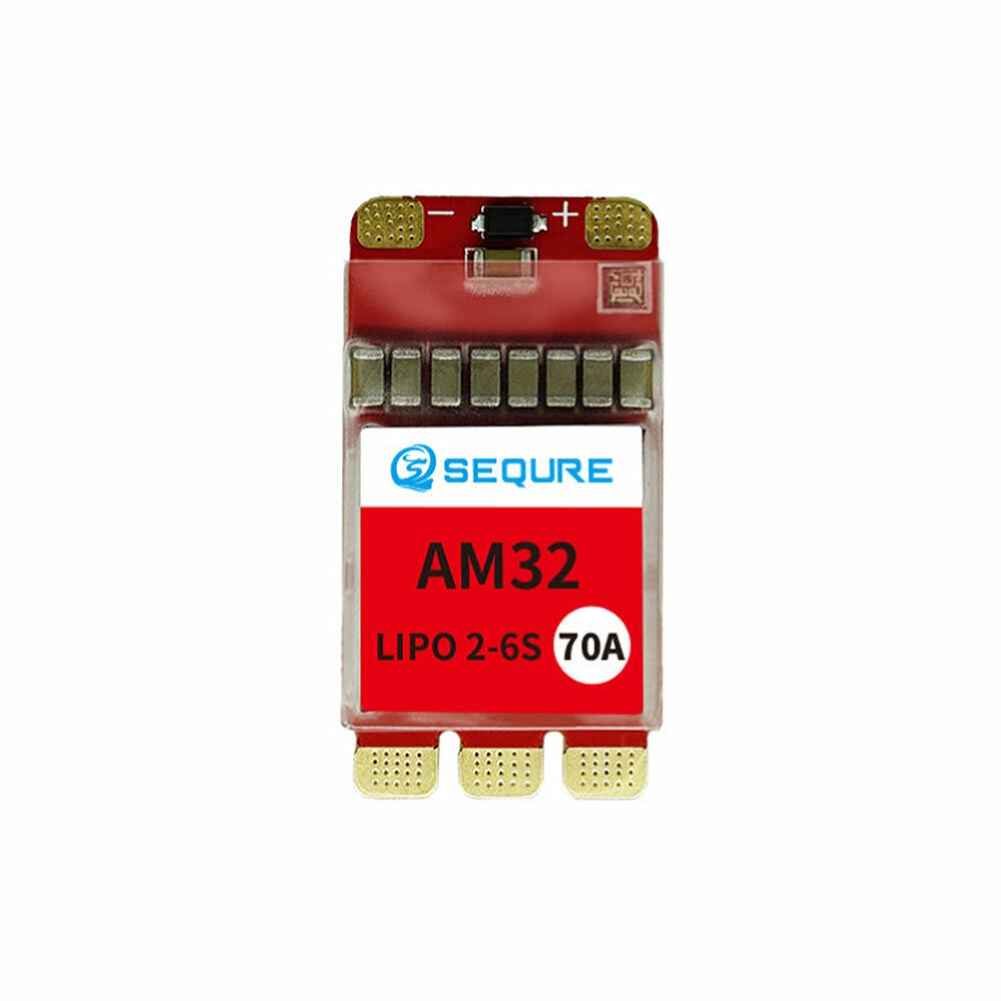

SEQURE 2670 Brushless ESC 70A Firmware AM32, 2-6S Lipo, Supports 128KHz PWM, for FPV Racing Drones, Multi-Axis Drones, UAVs, Model Boats, RC Cars

Description

SEQURE 2670 Brushless ESC 2-6S Lipo Powered 70A Firmware AM32 Supports 128KHz PWM Frequency Suitable For FPV Racing Drone Multi-Axis Drones Fixed-Wing UAV Model Boats Climbing Vehicles RC Car Parts

The SEQURE 2670 Brushless ESC is powered by a high-performance 32-bit STM32G071 processor, operating at a frequency of up to 64MHz with support for 128KHz motor PWM. Its robust 8-layer 3OZ immersion gold PCB and high-power MOS with metal heat sink ensure efficient heat dissipation under high current loads. This ESC supports various motor modes including unidirectional, bidirectional, and braked. It offers multiple protections like low voltage, temperature, locked rotor, and current protection. Compatible with all Dshot signals and protocols such as PWM, Oneshot, and Multishot, it features adjustable BEC outputs. Ideal for FPV racing drones, multi-axis drones, fixed-wing UAVs, model boats, and RC cars, it also supports visual programming for parameter adjustments.

Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.
(7) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(8) Onboard RGB LED color light settings, multiple LED colors can be customized.
(9) Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios.
Parameters of Product:
Model:SQESC 2670
Processor:STM32G071
Input Voltage:DC 7V-25.2V侈2-6S Lipo佩
Continuous Current (good heat dissipation):70A
Maximum Current (good heat dissipation):110A
Support Firmware:AM32
AM32 Firmware:SEQURE_G071
Signal Protocol:Dshot (All), PWM, Oneshot, Multishot, etc.
Programming Parameter Adjustment:Support
Throttle Calibration:Support
Timing Angle Setting:Support
Current Detection:Support
Telemetry Signal:Support
Motor Steering Settings:Support
RGB LED Color Lights:Support
BEC (if any):5V/4A佾6V/4A佾7.2V/4A佾8.2V/4A佾12V/3A adjustable
Application Scenarios:FPV racing drones, multi-axis drones, fixed-wing UAV, model ships, climbing vehicles, model cars, etc.
Overall Dimension:
2670侈AM32佩
Product Size:35*18*8mm
Net Weight Of Product:9g
Package Size:110*70*10mm
Packing Weight:18g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):62g

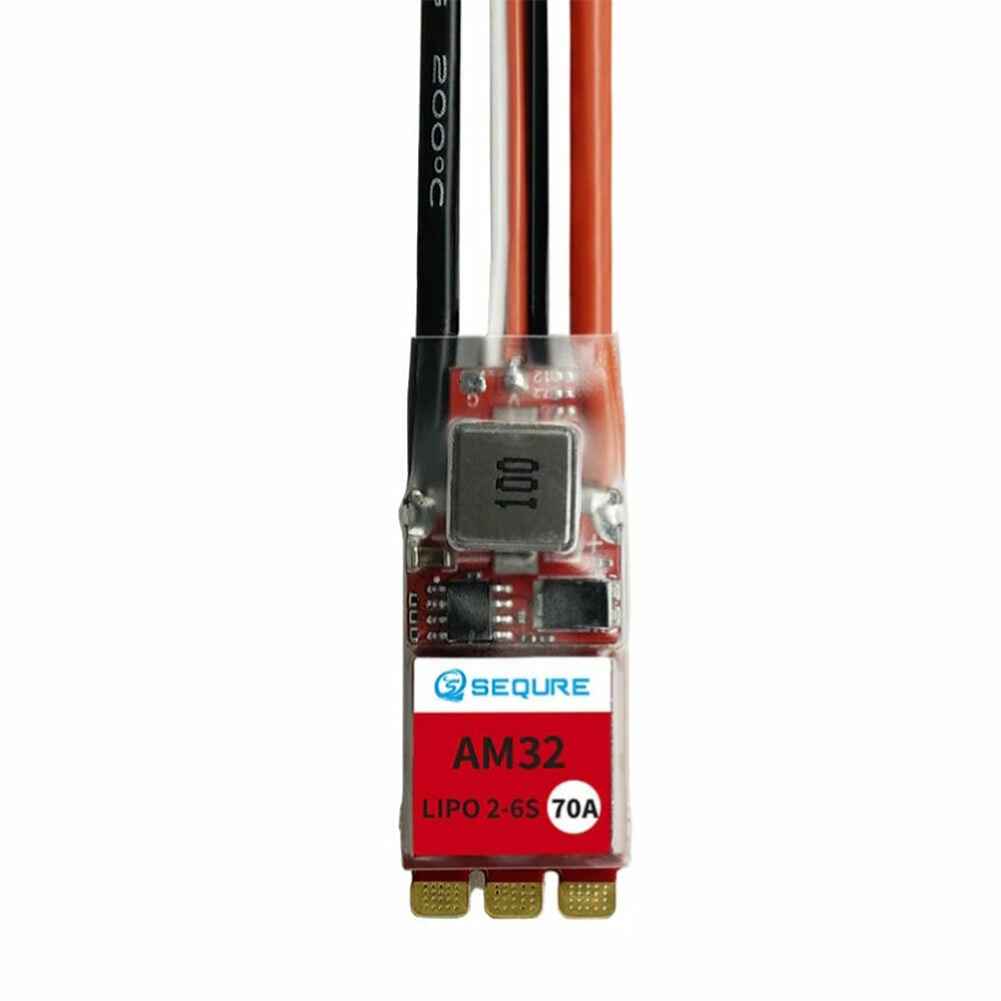

2670侈AM32佩+ BEC
Product Size:190*18*11mm
Net Weight Of Product:22g
Package Size:150*100*12mm
Packing Weight:24g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):68g

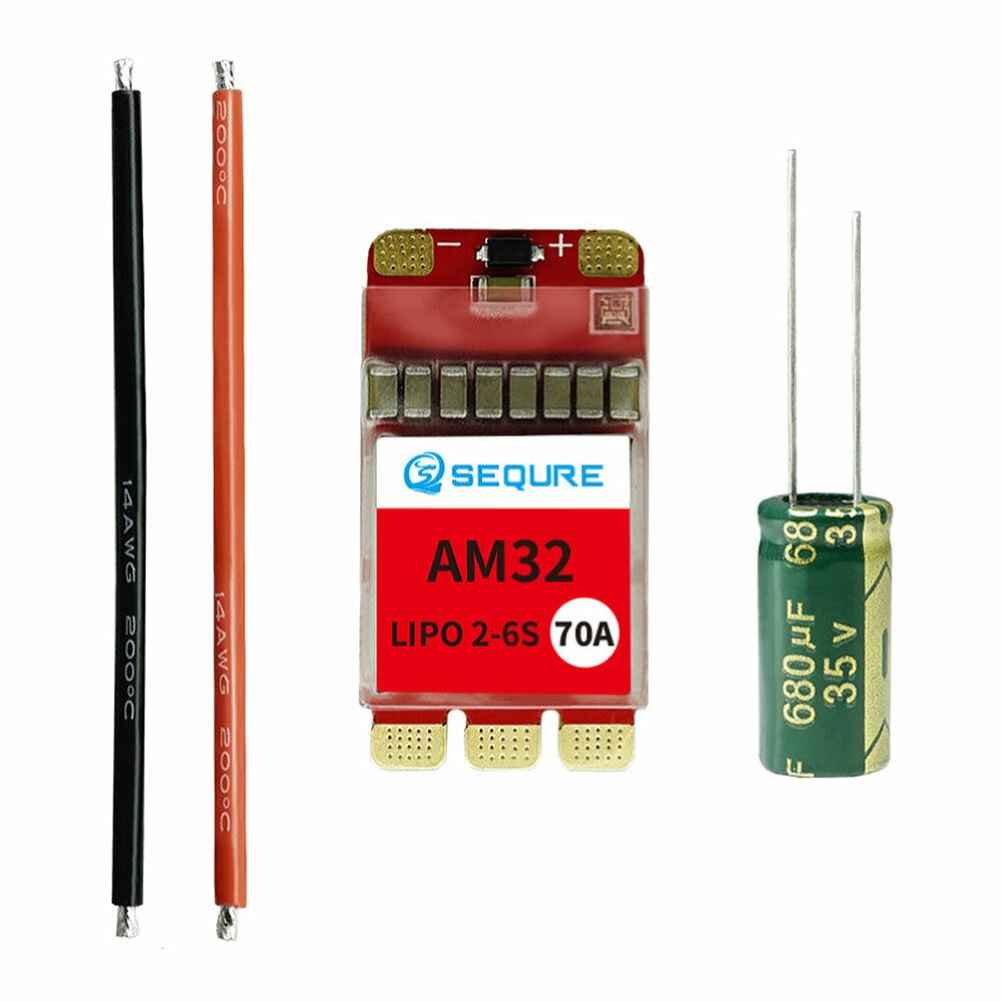

Package Included:
1 x SEQURE 2670 (AM32) Brushless ESC
1 x 14awg 100mm Black Silicone Wire
1 x 14awg 100mm Red Silicone Wire
1 x 35v 680uf High Frequency Capacitor
2 x 18 Specifications Heat Shrinkable Tube 50mm
2 x 18 Gauge Heat Shrink Tube 28mm
1 x 2670 (AM32) + BEC Motherboard
2 x 18 Gauge Heat Shrink Tube 28mm
