Hobbywing Platinum 80A V5 Brushless ESC for RC Helicopter, VBar Telemetry Ready, 3-8S Lipo Compatible

Description

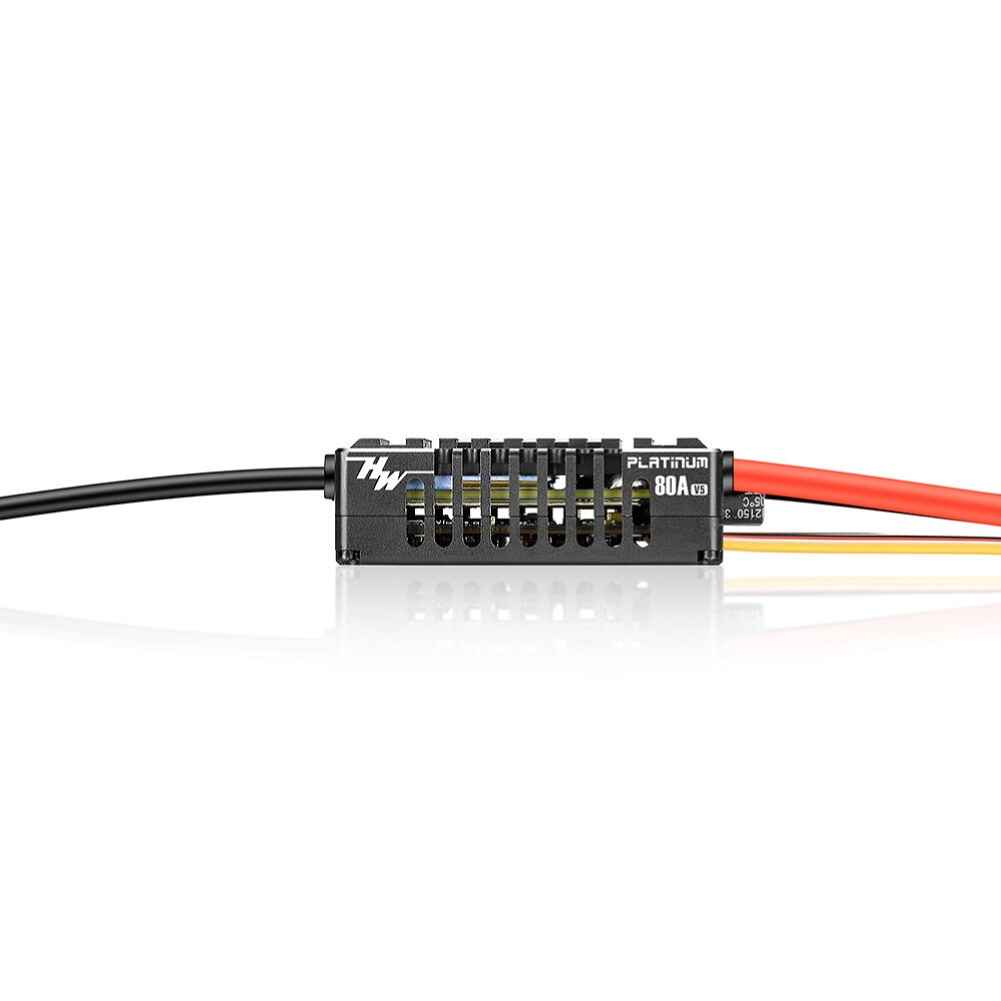

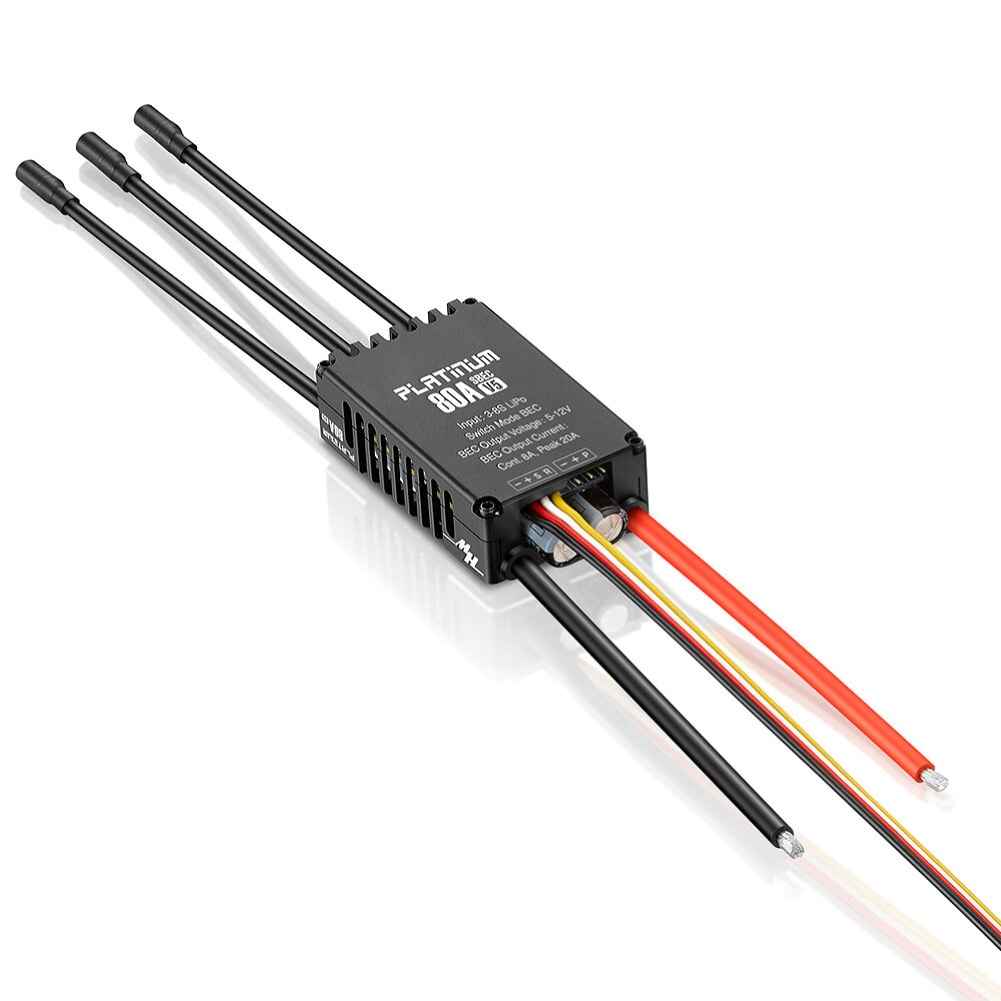

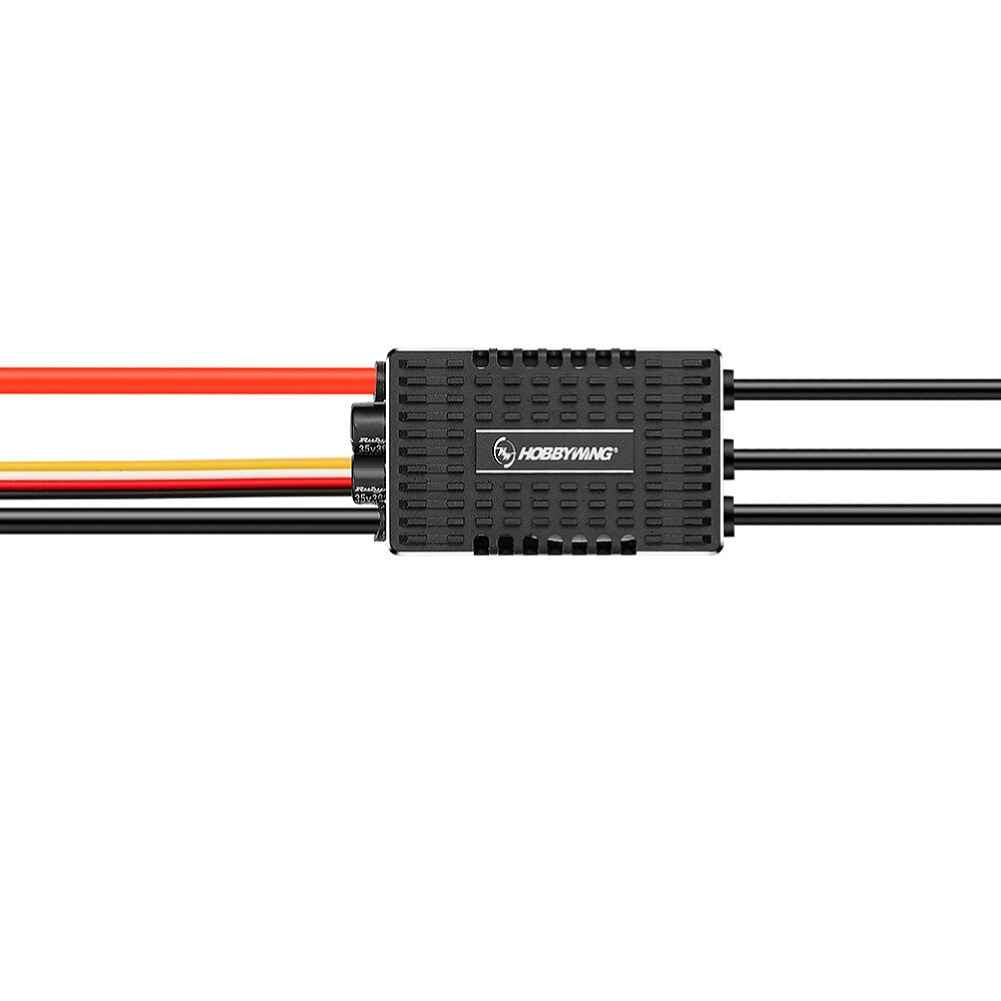

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

The Hobbywing Platinum 80A V5 Brushless ESC is designed for RC helicopter enthusiasts seeking reliable performance. This ESC supports a continuous current of 80A and a peak current of 120A. It is compatible with 3-8S Lipo batteries and features a switch mode BEC with an output of 5-12V and a continuous 8A, peaking at 20A. The ESC includes 12AWG input wires and 14AWG output wires, with 3.5mm gold connectors for seamless integration. Note that programming via transmitter or LED program card is not supported.

Specifications:

Product Name

Platinum 80A V5

Product Number

30203201

Type

Brushed/Brushless

BL

High Voltage/Regular

Regular

Specifications

Cont./Peak Current

80A/120A

Input Voltage

3-8S Lipo

BEC Output

Switch Mode券5-12V & Cont. 8A佾Peak 20A

Wires & Connectors

Input Wires

Red-12AWG-100mm*1/Black-12AWG-100mm*1

Output Wires

Black-14AWG-100mm*3

Input Connectors

No

Output Connecotors

3.5mm Gold Connectors (Female)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported
