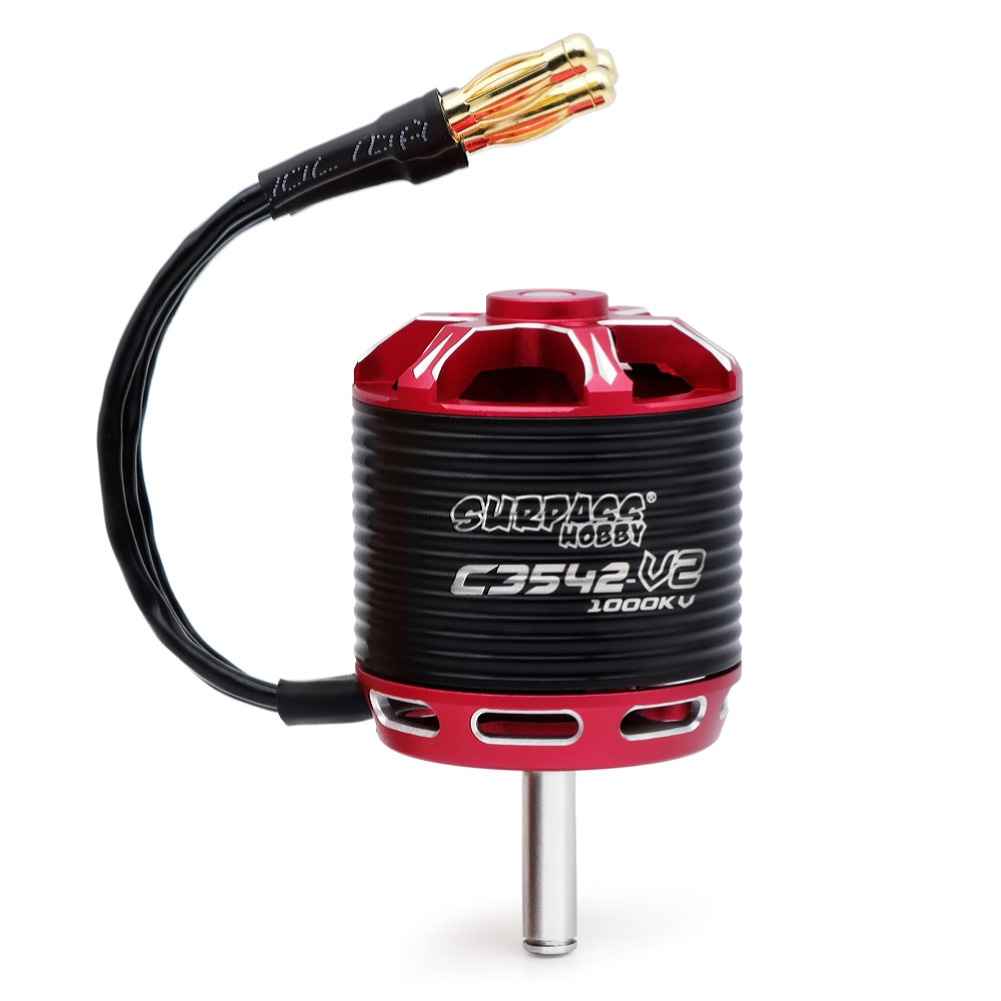

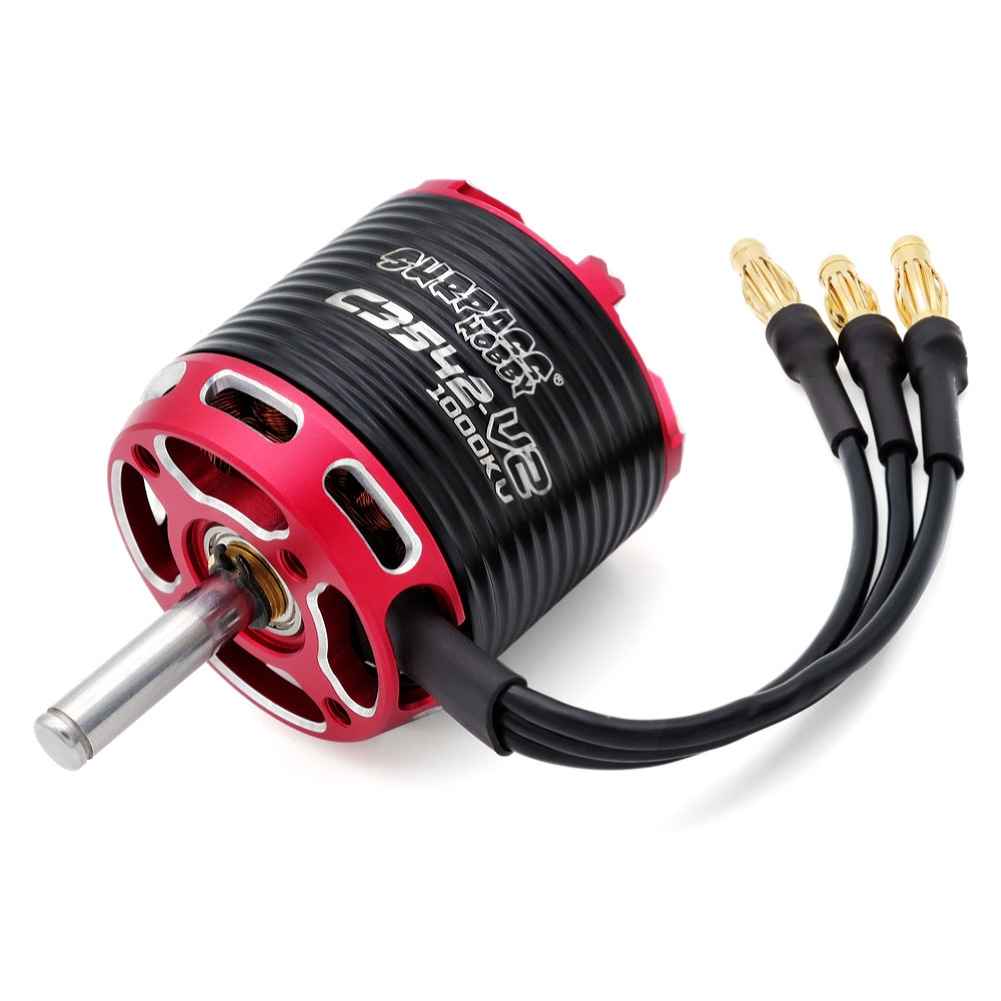

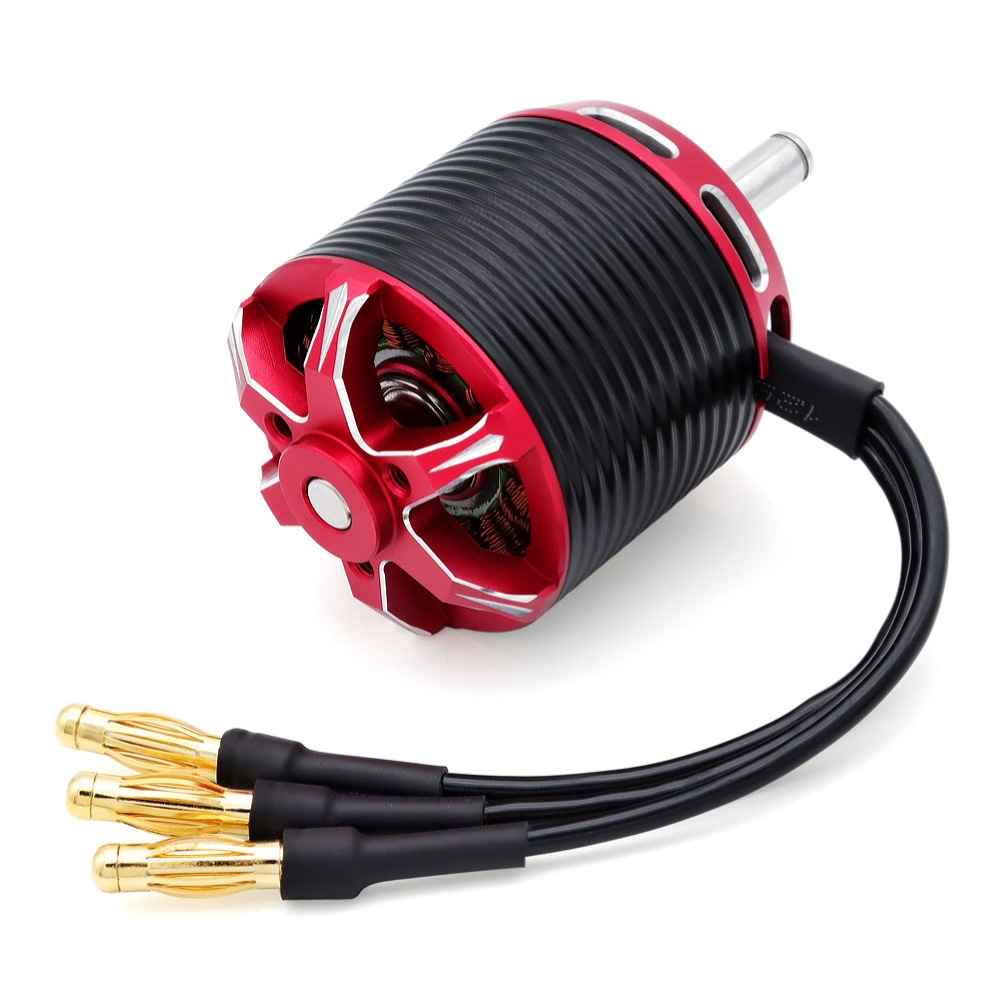

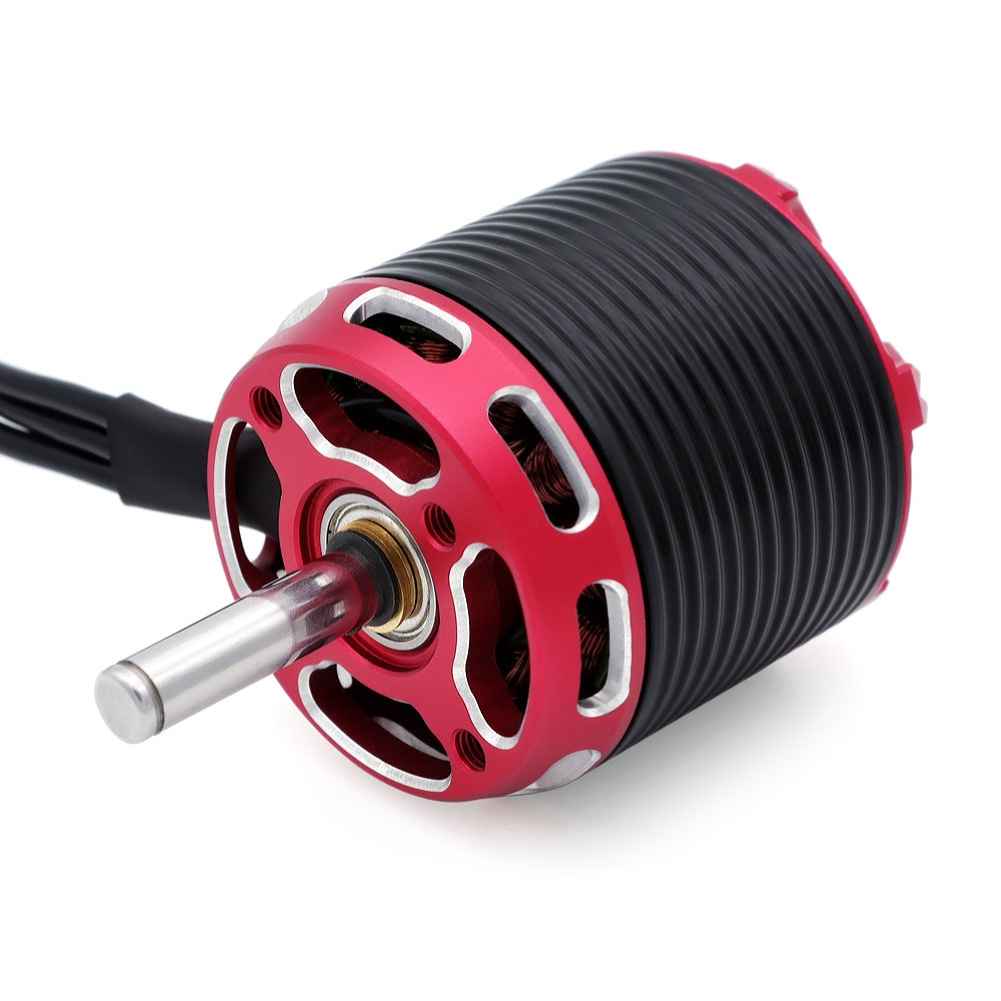

SURPASS-HOBBY C35 Series V2 C3542 1000KV/ 1250KV/ 1450KV Outrunner Brushless Motor 2-4S for RC Airplane
Overview:
Brand: SURPASS-HOBBY
Model: C3542-V2
Item Number: SP-235420-01
KV(RPM/Volt): 1000KV, 1250KV, 1450KV (optional)

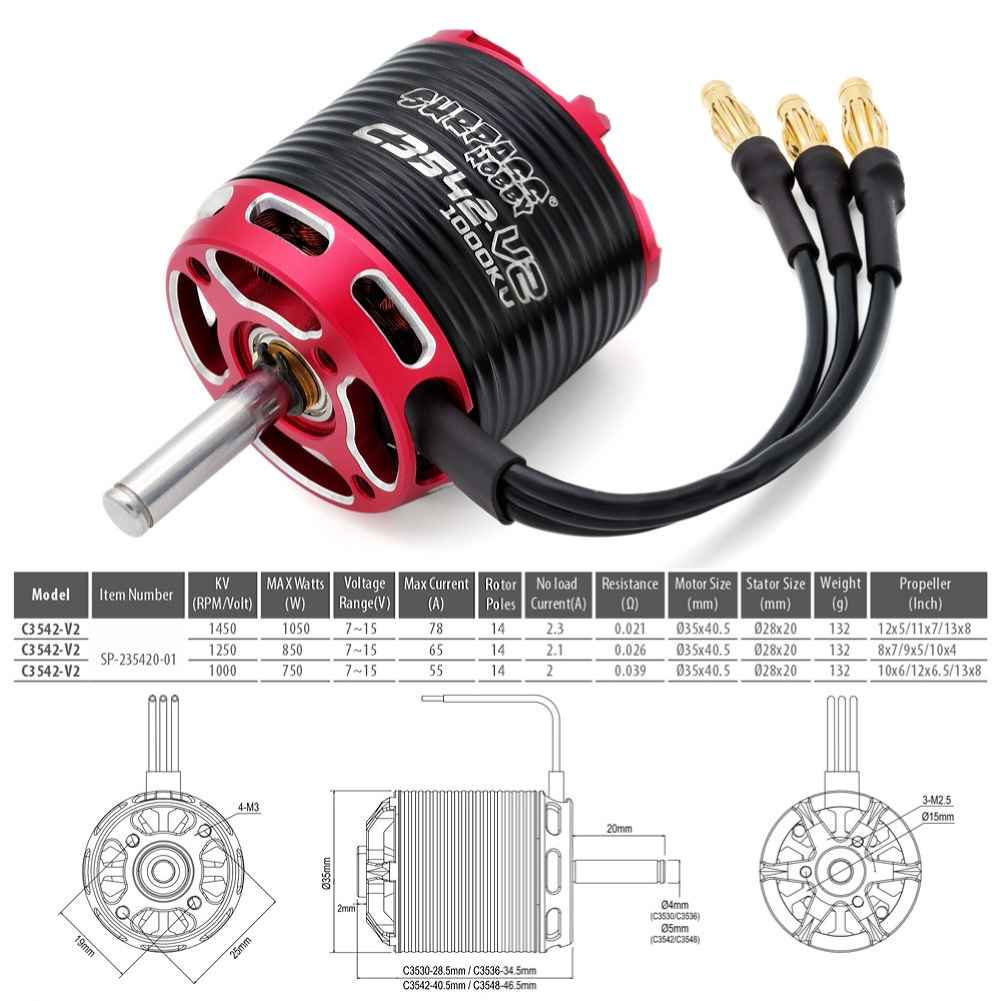

Specifications
:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(??) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1450 | 1050 | 7~15 | 728 | 14 | 2.3 | 0.021 | 5×40.5 | 8×20 | 132 | 12×5/11×7/13×8 |
| 1250 | 850 | 7~15 | 65 | 14 | 2.1 | 0.026 | 5×40.5 | 8×20 | 132 | 8×7/9×5/10×4 |
| 1000 | 750 | 7~15 | 55 | 14 | 2.0 | 0.039 | 5×40.5 | 8×20 | 132 | 10×6/12×6.5/13×8 |
Features:
– 14 Pole Hi-torque rotor design, stable output power.
– Fits all fixed wing aircraft model.

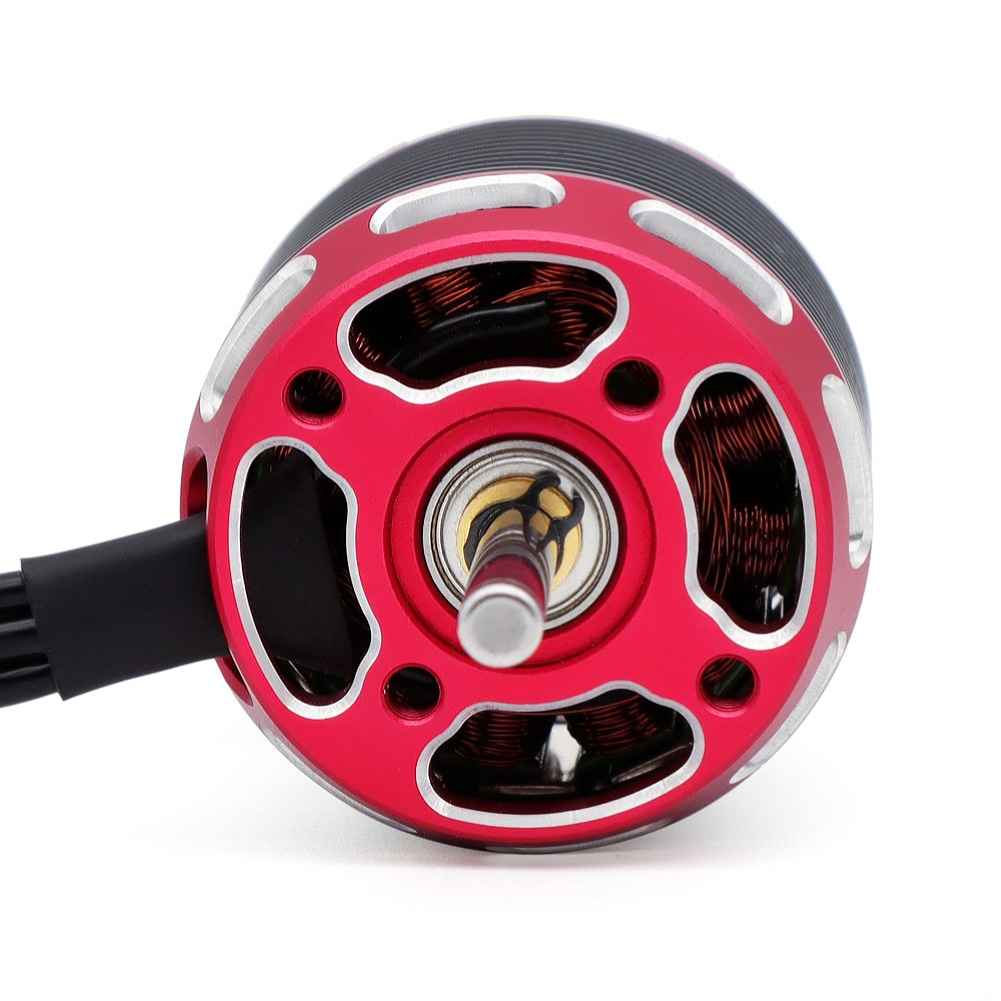

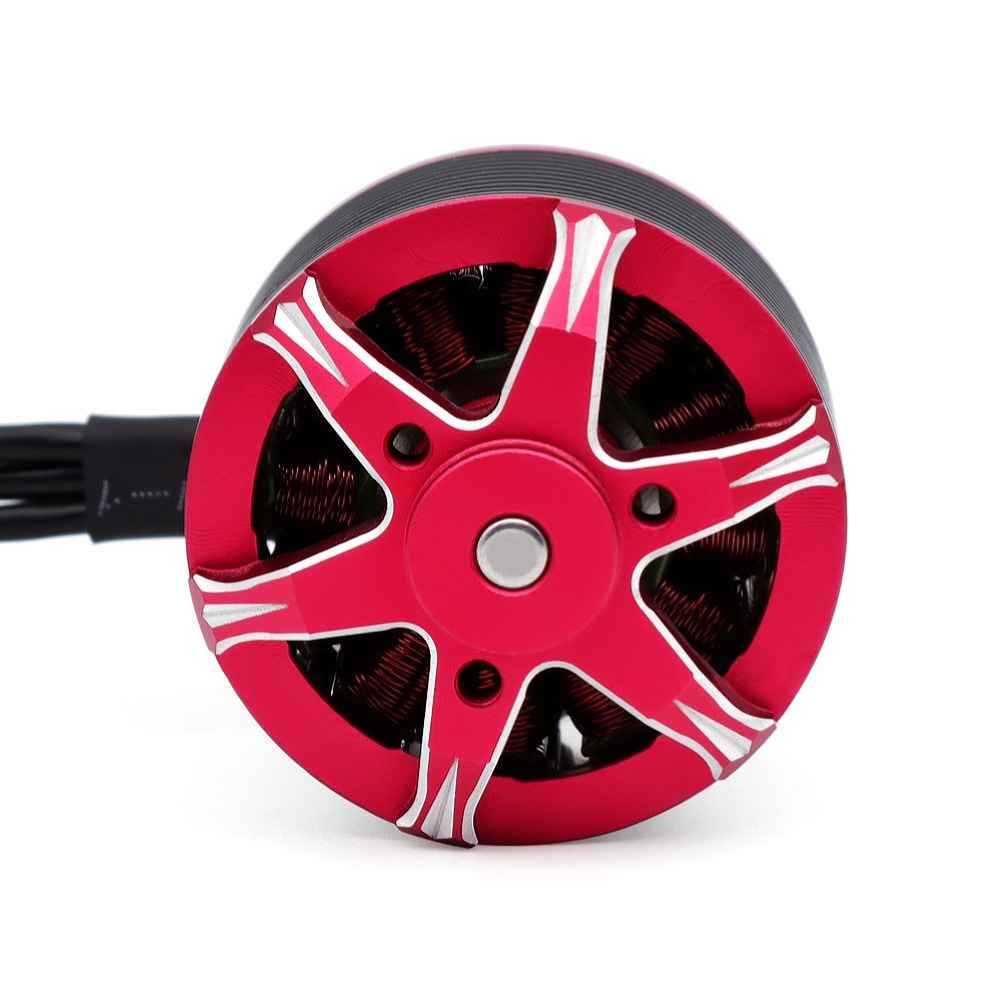

– CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here

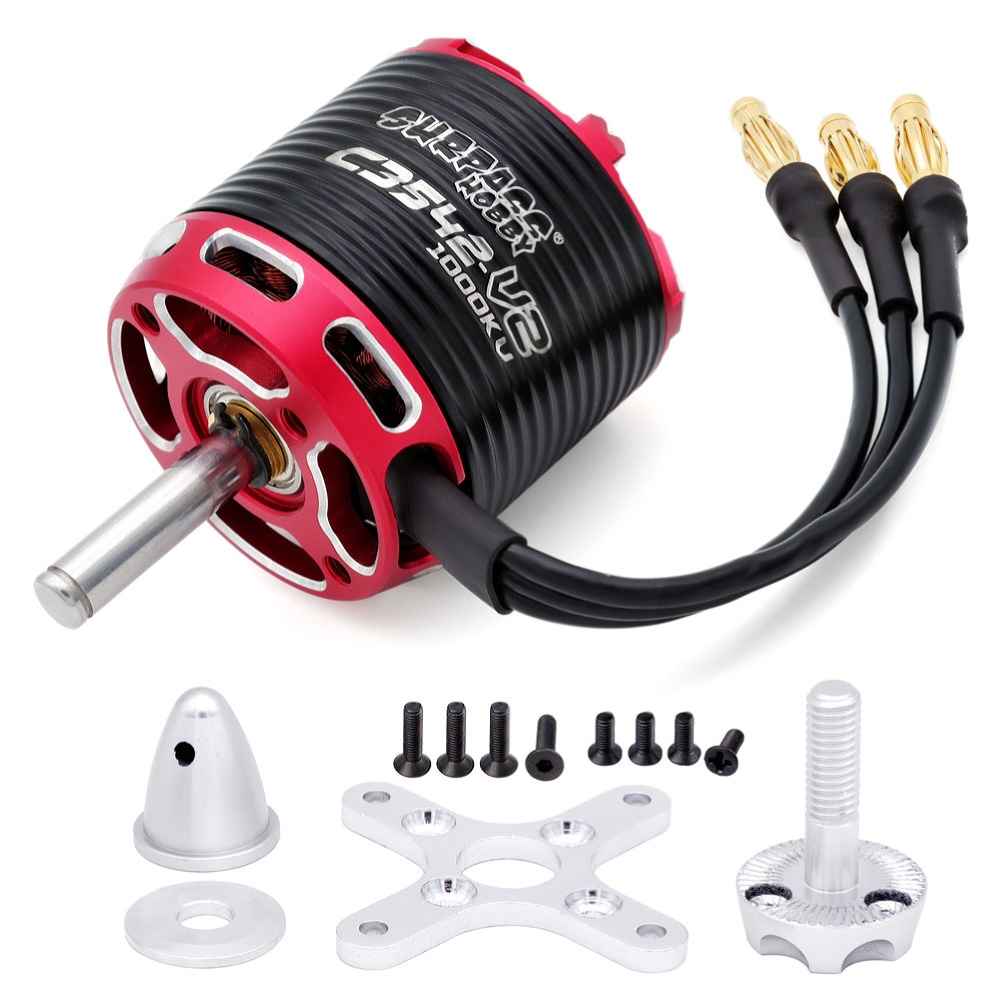

Package Includes:
1x SURPASS-HOBBY C3542 V2 Brushless Motor
Additional information
| Weight | 0.15 kg |
|---|---|
| KV: No selection | 1000KV, 1250KV, 1450KV |
