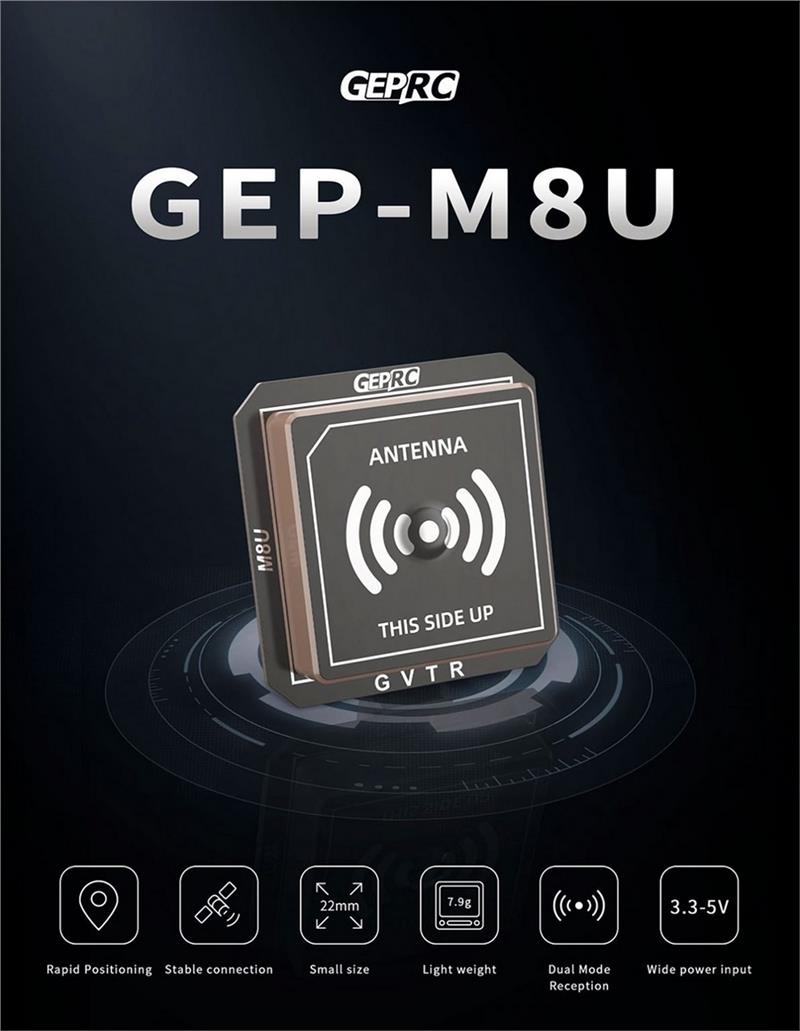

GEPRC GEP M8U GPS Module 3.3-5V 22x22mm Fast Positioning for FPV Racing Drone Fixed-wing RC Airplane

GEPRC GEP M8U GPS Module 3.3-5V 22x22mm Fast Positioning for FPV Racing Drone Fixed-wing RC Airplane

Specifications:
Brand: Geprc
Model: M8U GPS
Optional Version: GPS+BDS / GPS+GLONASS

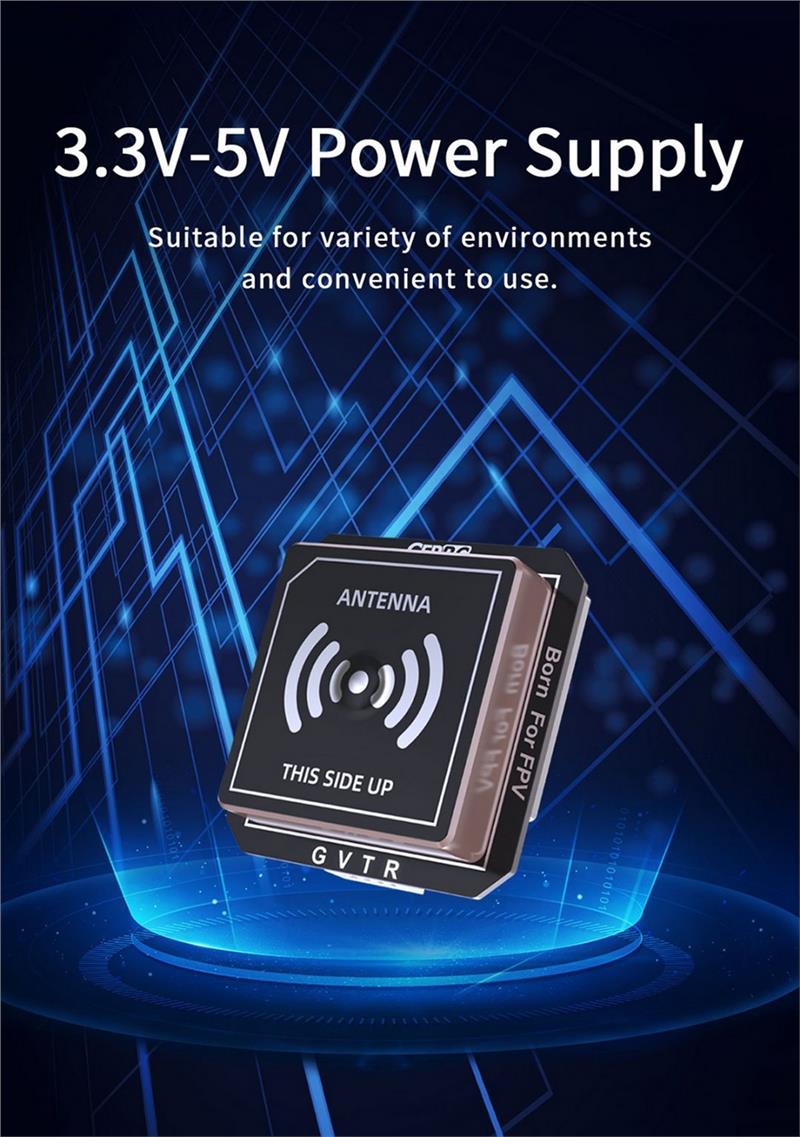

Input Voltage: 3.3V-5V
Receiving Format: GPS, GLONASS, BDS(Choose GLONASS or BDS)
Channel: 72ch
Compass: None
Baud Rate: 115200bps

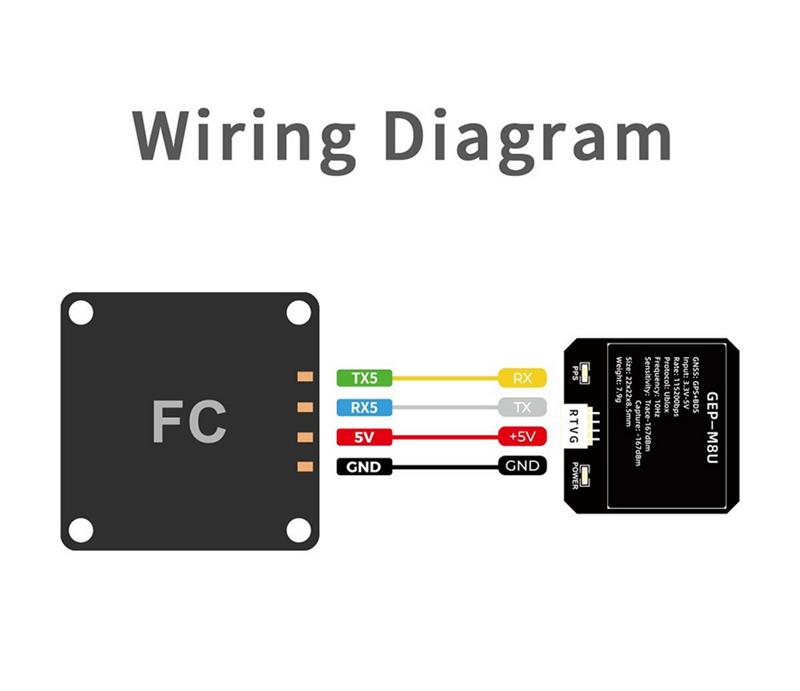

Output Connector: SH1.0-4P
Communication Protocol: UART
Output Protocol: UBLOX
Output Frequency: 10Hz
Speed Accuracy: 0.05 m / s
Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
Timing Accuracy: 30 ns
Receiving Sensitivity: Trace -162dBm, Capture-160dBm
Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
Max Acceleration: 4G

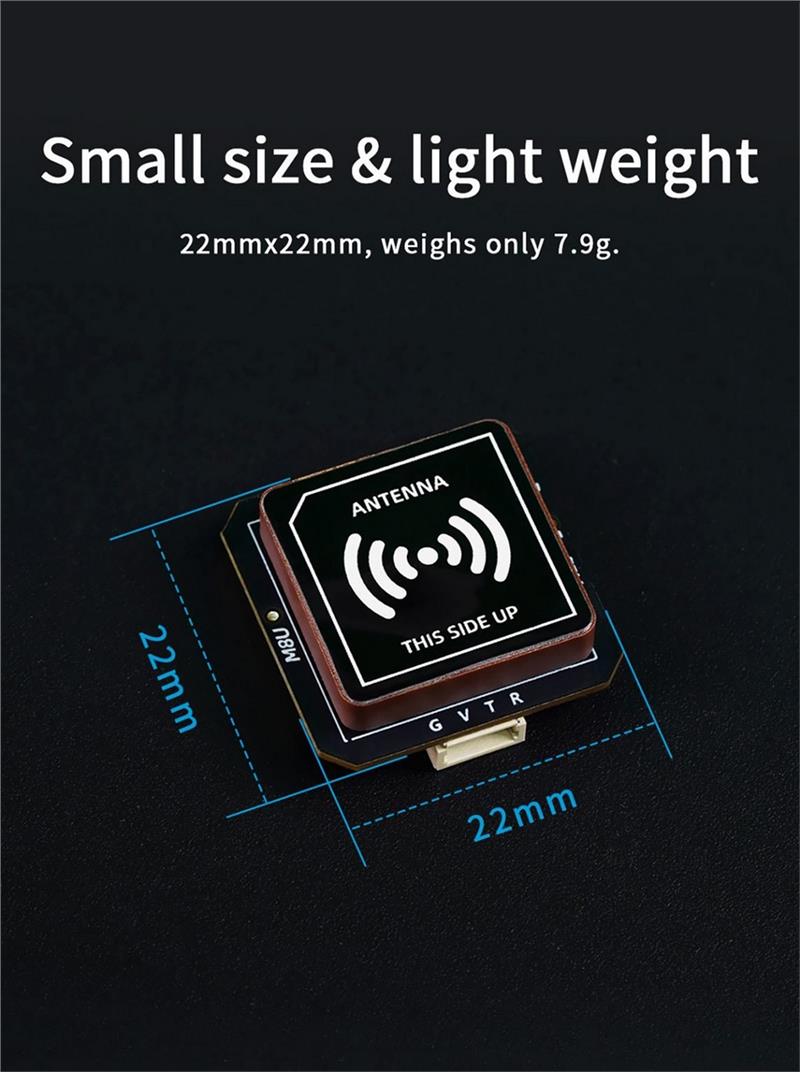

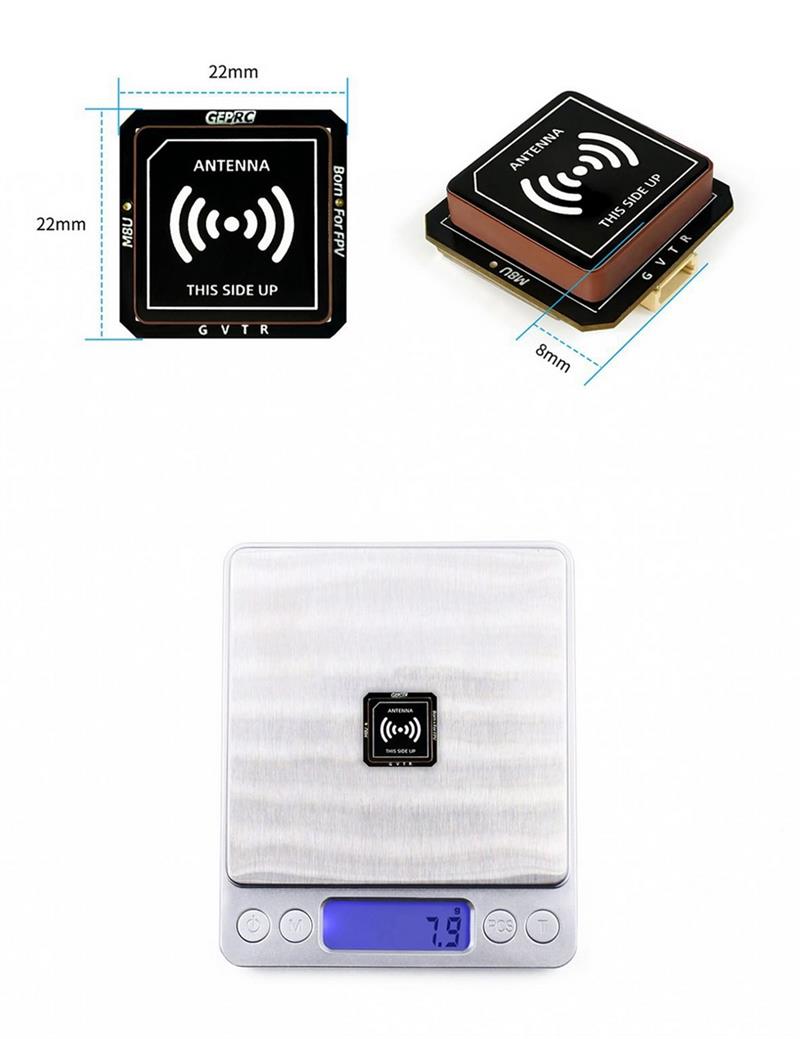

Size: 22mm x 22mm x 8mm
Weight: 7.9g
Features:
Rapid Positioning Speed: The GEPRC GEP-M8U GPS module offers fast positioning speed, allowing you to quickly acquire accurate location data for your drone or other devices.

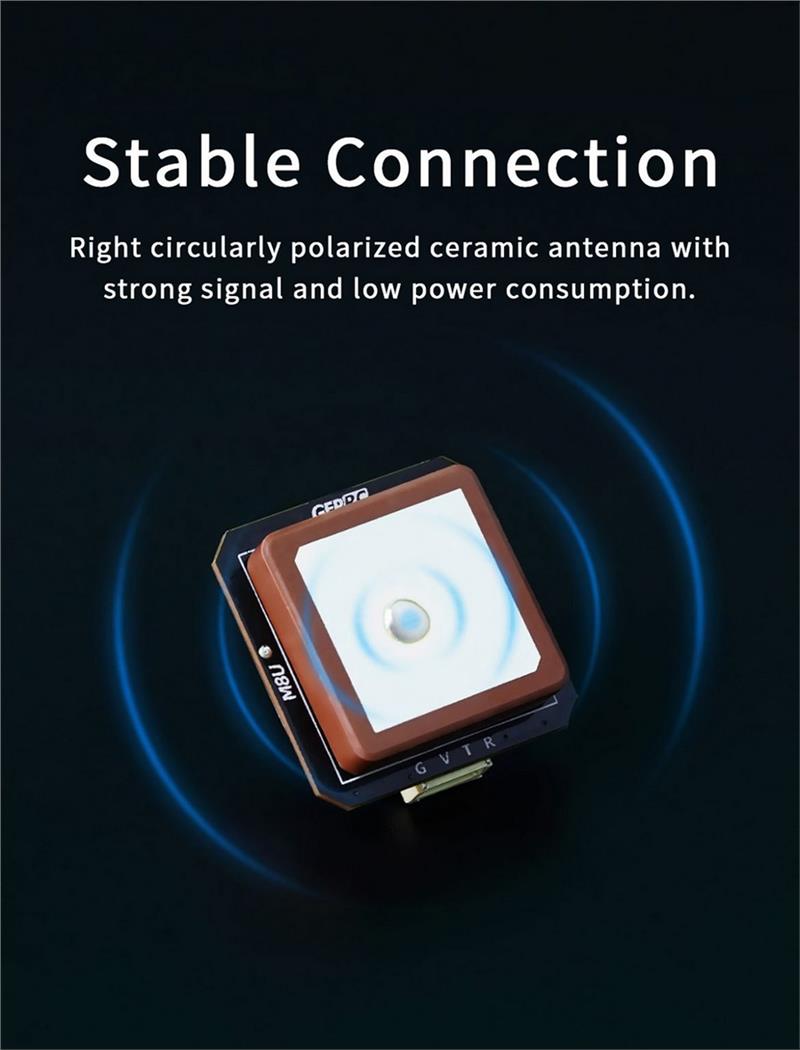

Stable Connection: The module ensures a stable connection during operation, providing reliable and uninterrupted communication between your drone and the GPS system. This stable connection enhances the accuracy of positioning and navigation.
Unique Design: With a unique appearance design, the GEP-M8U stands out from other GPS modules, adding a touch of style to your drone setup.
Compact and Lightweight: The module features a small size and light weight, making it an ideal choice for installations in various devices. It won’t add unnecessary bulk or weight to your drone, ensuring optimal performance.
User-Friendly Terminal Design: The SH1.0-4Pin terminal design eliminates the need for soldering, making installation hassle-free and convenient. It simplifies the setup process, saving you time and effort.

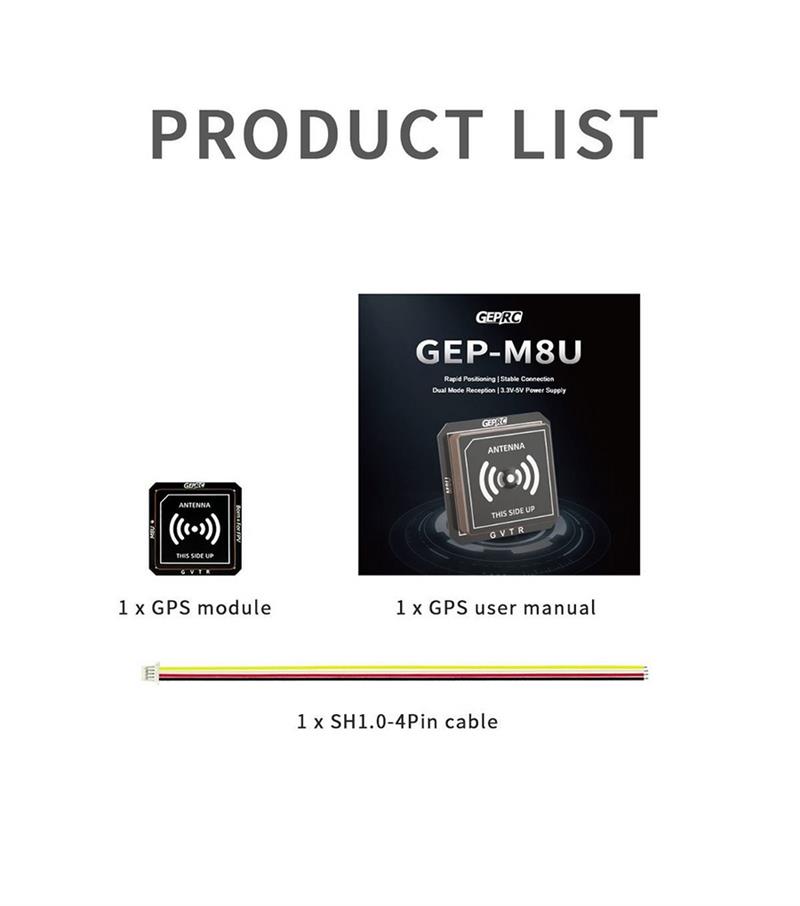

Package Includes:
1 x M8U GPS module
1 x SH1.0-4Pin terminal cable
1 x GPS user manual
