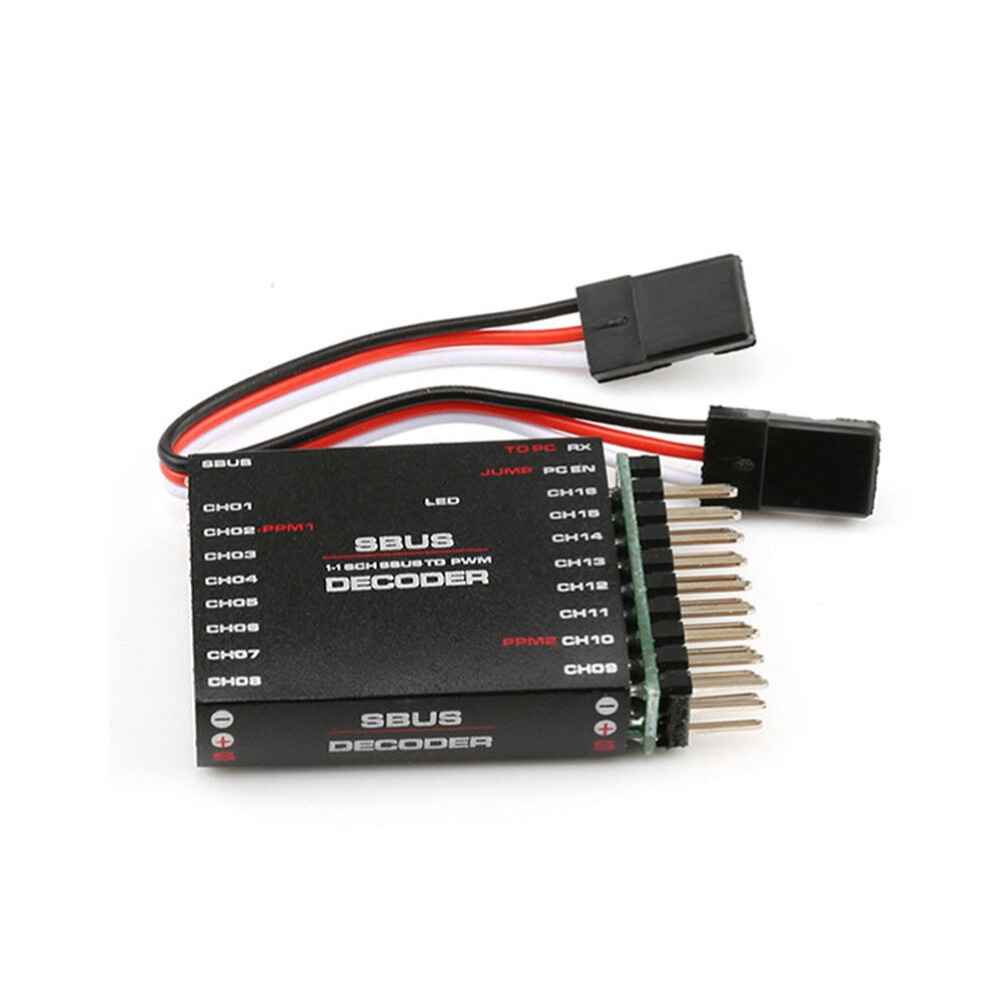

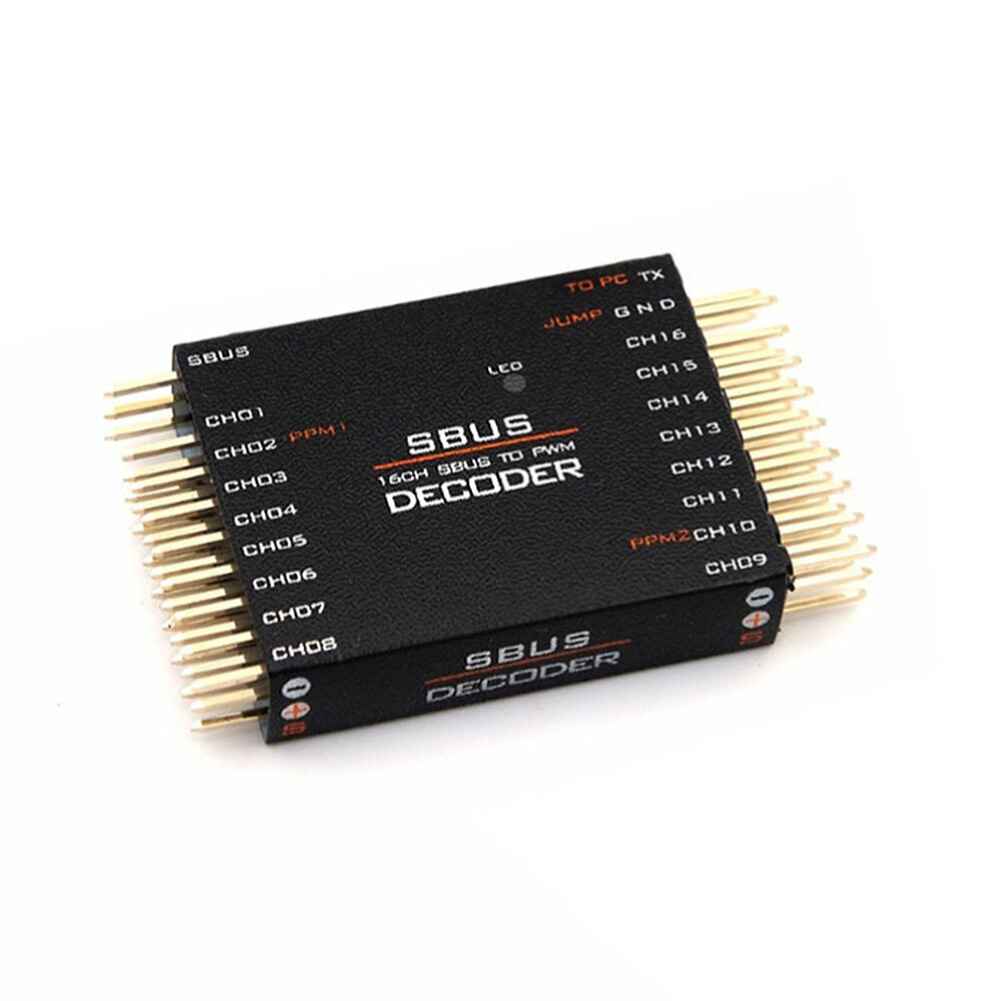

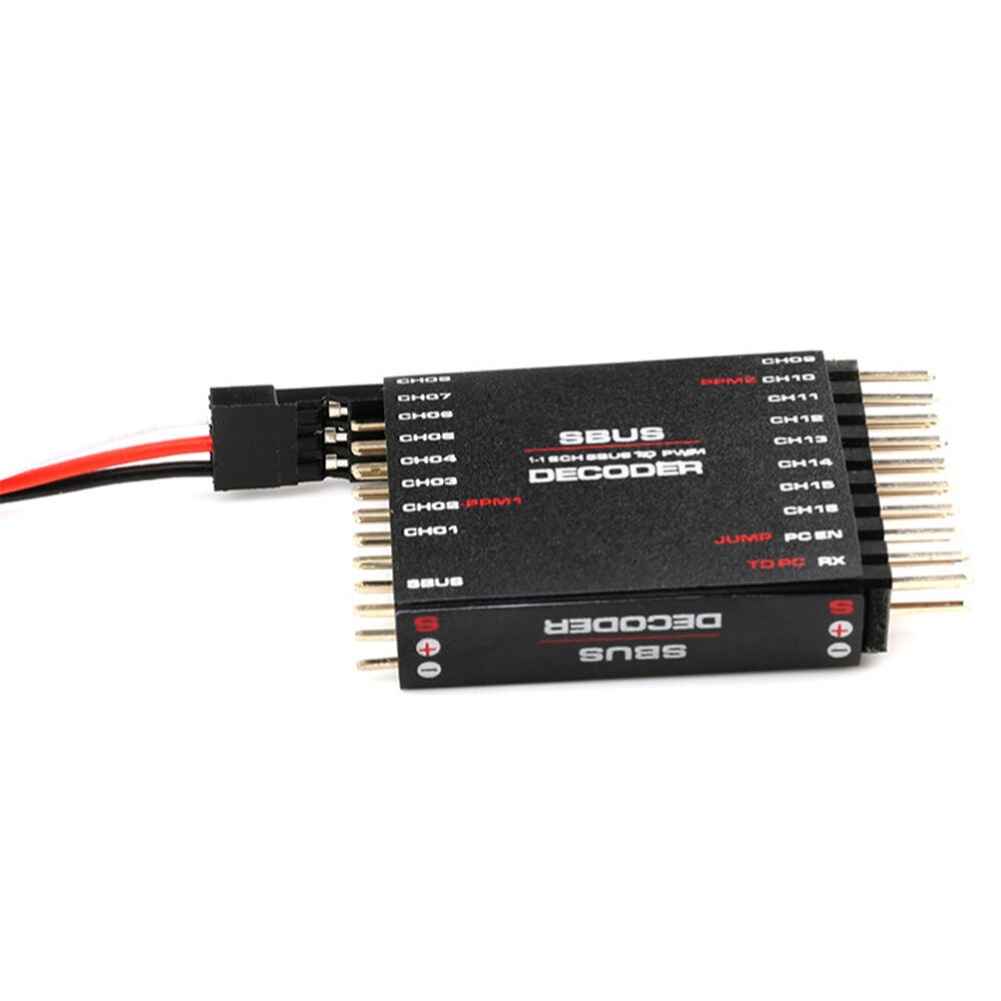

16CH SBUS to PWM/PPM Decoder Signal Converter for Futaba FrSky Receiver, Supports PC Settings

Description

16CH SBUS To PWM/PPM Decoder Signal Converter For Futaba Frsky Reveiver

The 16CH SBUS to PWM/PPM Decoder Signal Converter is designed for seamless integration with Futaba, FrSky, FlySky, and TBS receivers. This versatile converter supports 16-channel output and allows for easy customization of channel output sequences. It is ideal for users who need to expand the capabilities of receivers like the X8R, which typically offer only 8 PWM interfaces. By using this decoder, you can achieve full 16 PWM channel output with just one receiver and converter. Please note, it is not compatible with Futaba 7008 and newer receivers, only supporting older models like Futaba 6008. This decoder is essential for X8R users with multiple servos, ensuring efficient power distribution with a minimum 5A Ubec.

16CH SBUS To PWM/PPM Decoder Signal Converter For Futaba Frsky Reveiver
Descriptions:
Item Name: SBUS To PWM/PPM Decoder
Suitable For Futaba, FrSky, FlySky, TBS and other reveivers
Channel: 16CH
Features:
SBUS to PWM/PPM decoder, 16 channel output, supporting the PC Settings.Any port output and any channel data ,can be more ports output 1 or more road signals, customize all channel output sequence , super perfect SBUS decoder, perfectly suitable for futaba, orange, SBUS signal.
For example, X8R receiver, only 8 PWM interface, but this receiver can use the SBUS port output 16 channels, but if you want to use 16 PWM channel output, you can work together on the frequency of dual receiver, but the use of sbus to pwm Decoder, only need a receiver plus converter can achieve all 16 pwm channel output.
Notes:
not suitable for futaba7008 and the updated receiver,
only support generation sbus (for futaba6008 and before 6008) receiver
X8R users, if you have to use a lot of servos, will need it. If you just connect 2-3pcs servos, use 9-16 channel control, connect flight control, don’t need it.
According to the x8r manual, the counter frequency is set to 9-16 for the servo pwm channel, and the receiver can complete the external converter directly
at connect 16pcs servos, the general bec power supply is not enough, 16pcs servos current consumption is very large, so the corresponding supply current also needs at least 5A Ubec to be able to bring

Package Included:
1 x SBUS To PWM/PPM Decoder
