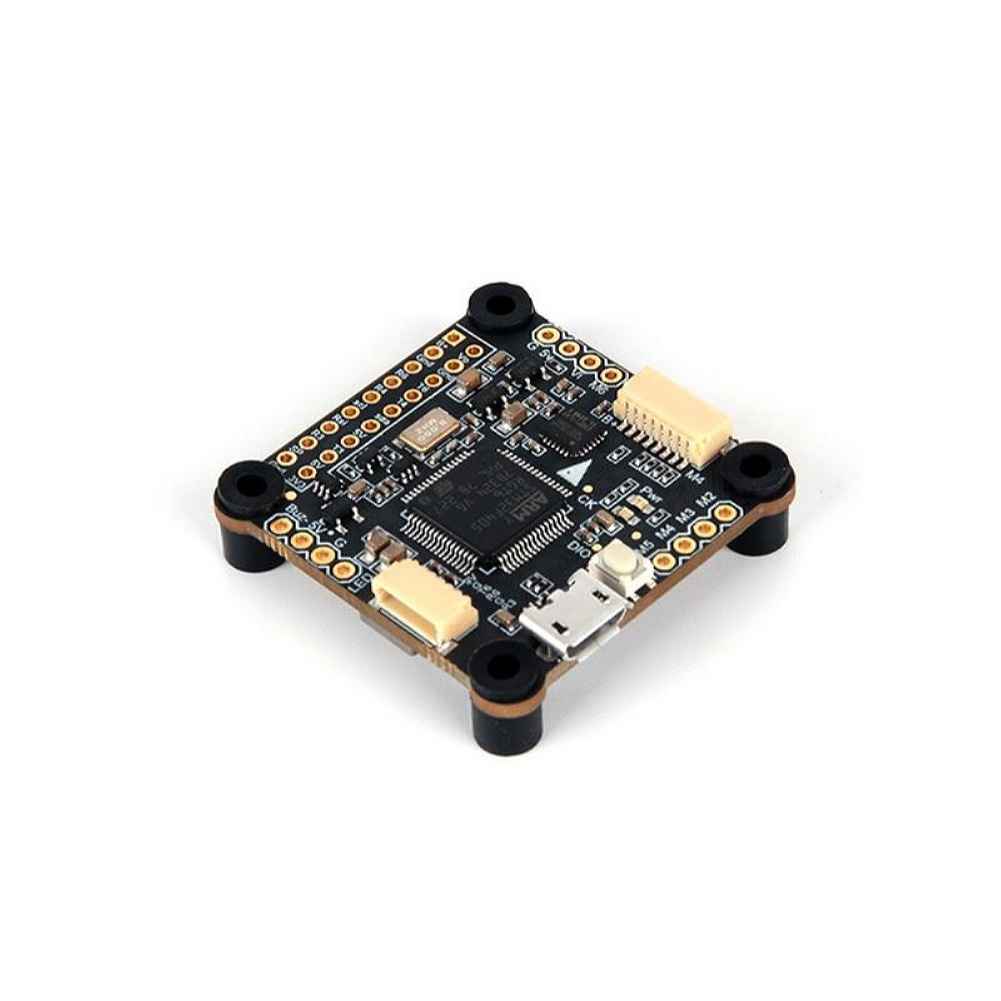

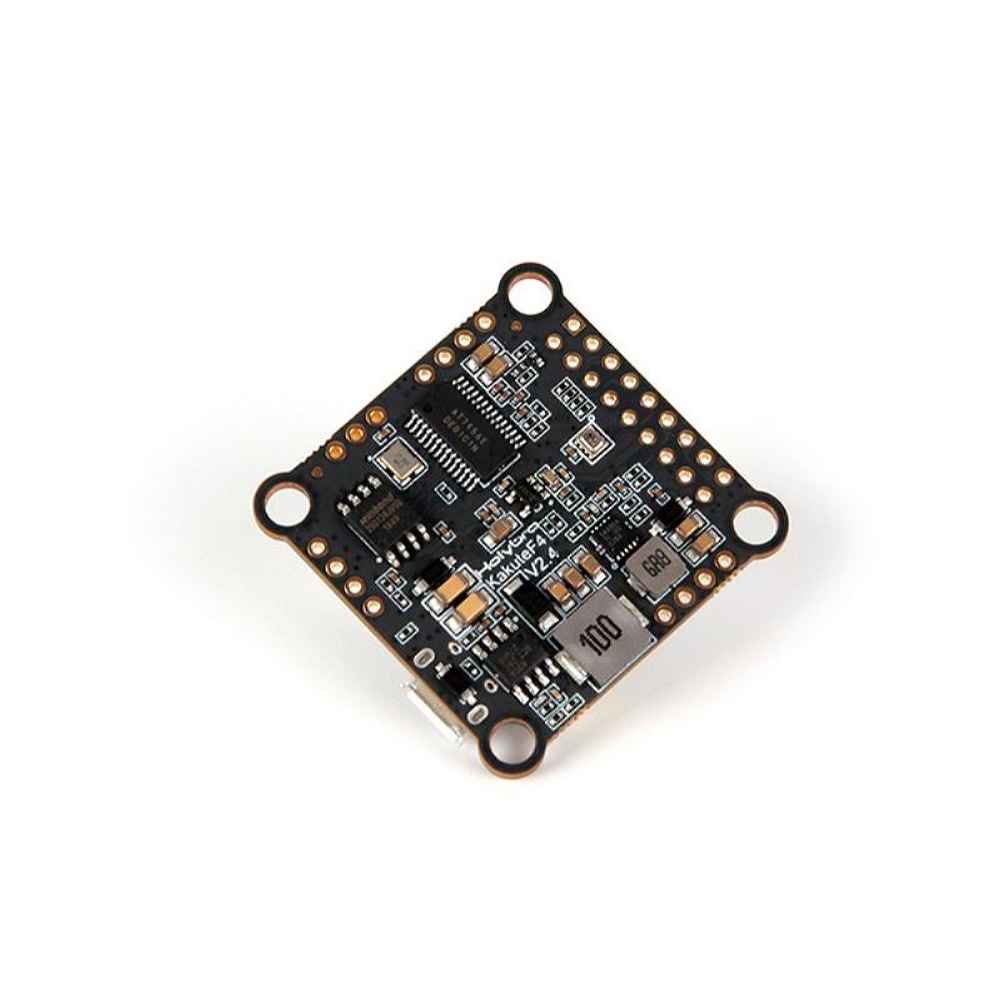

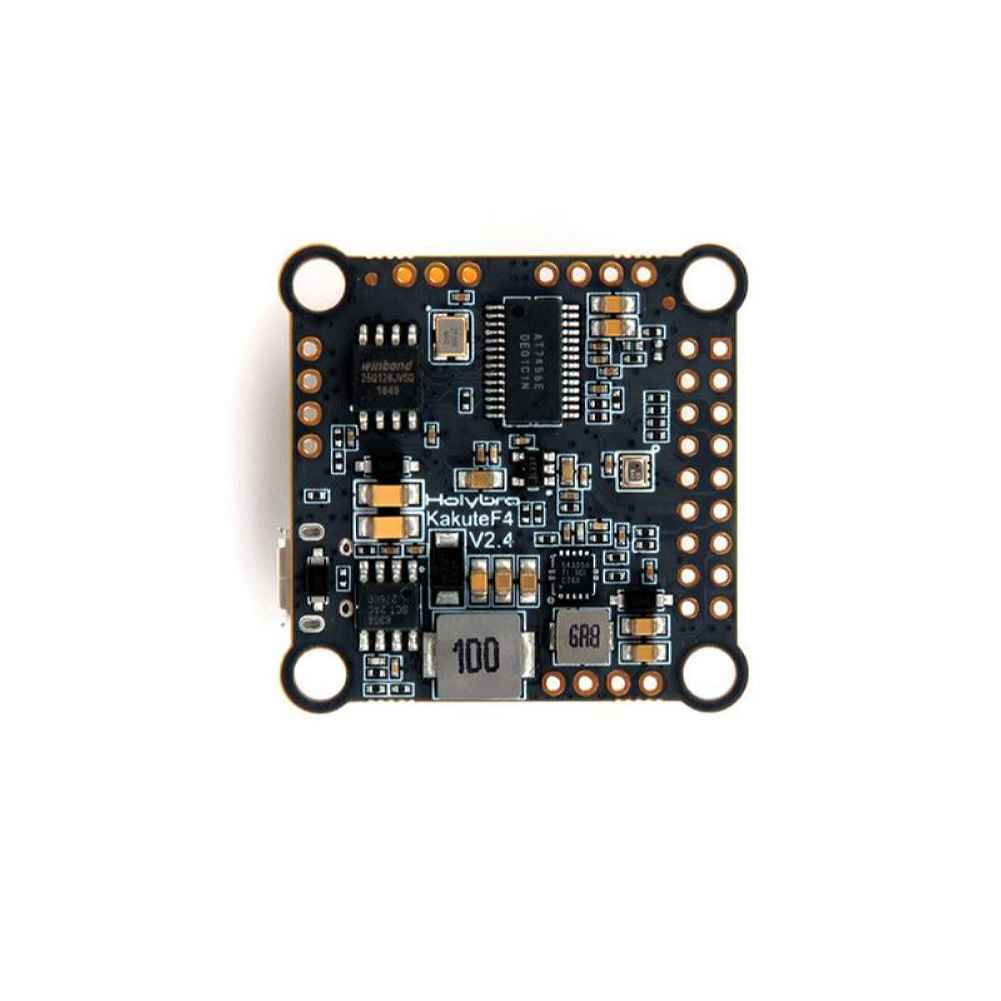

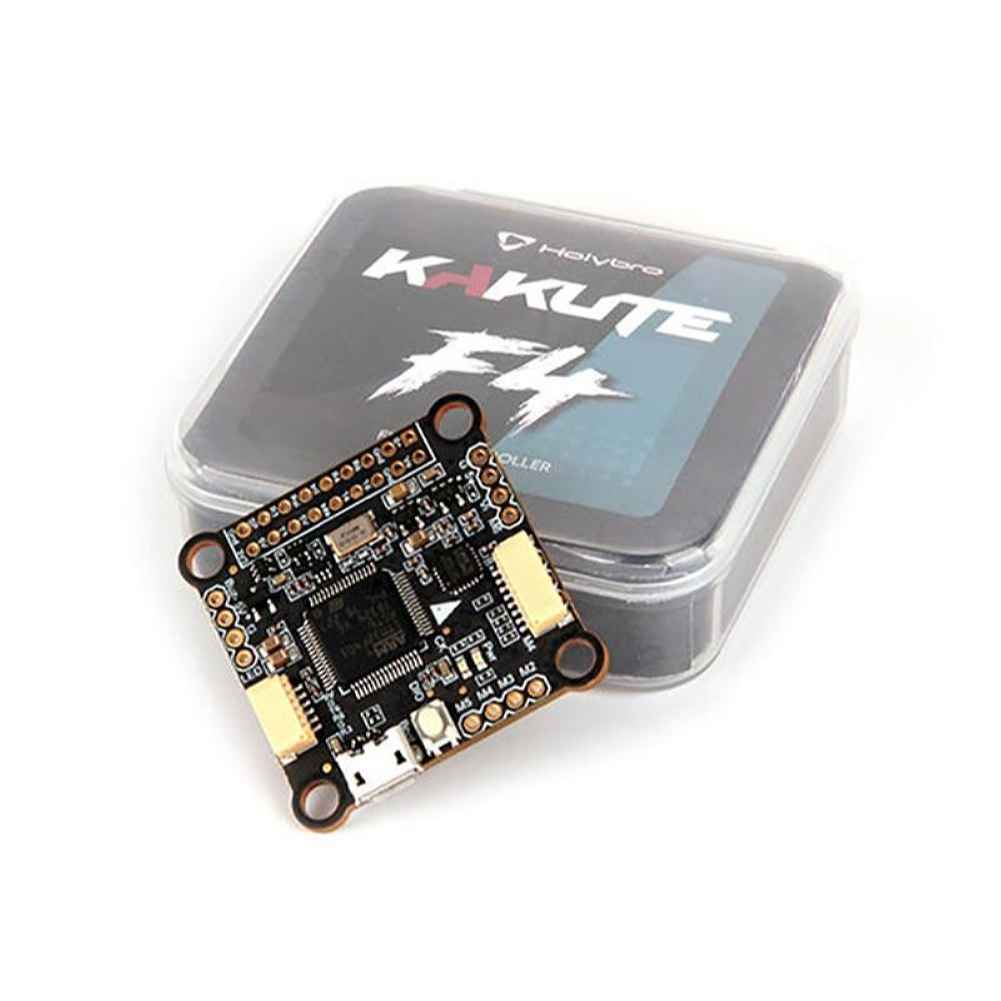

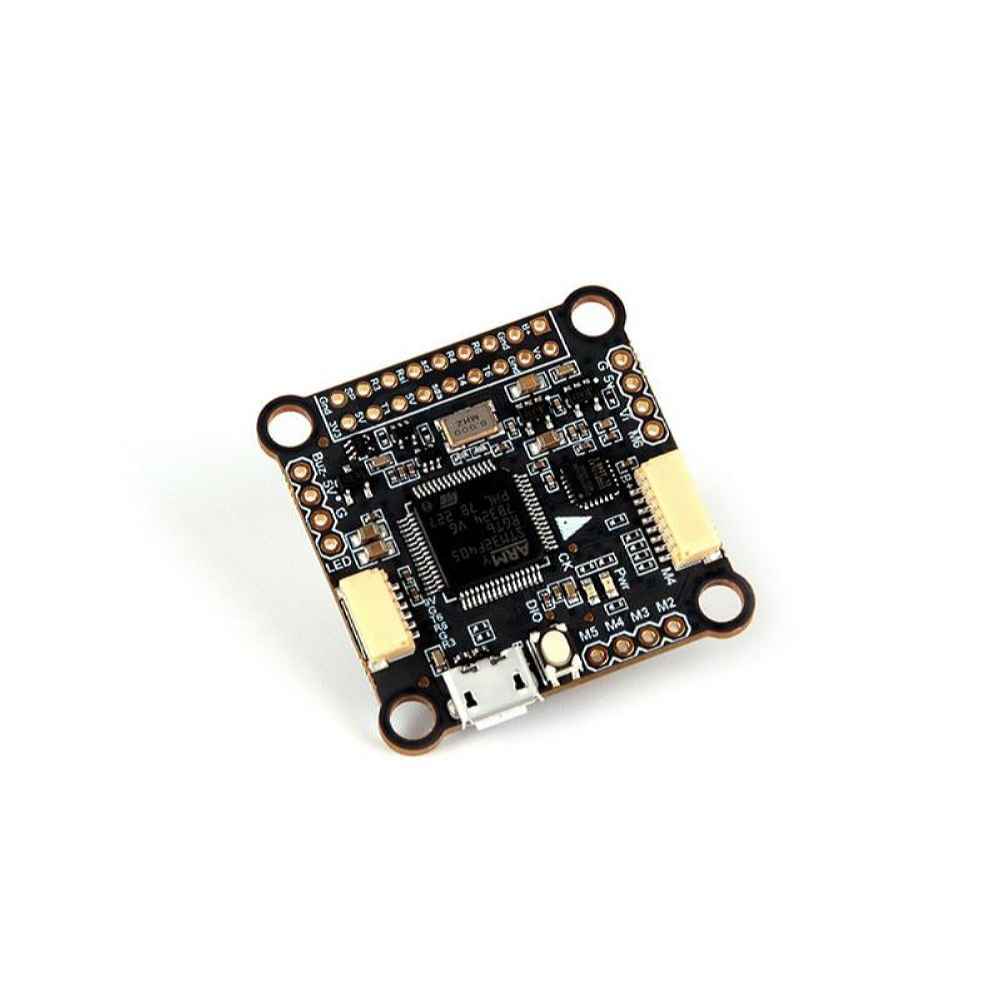

Holybro Kakute F4 V2.4 Flight Controller 30.5×30.5mm with OSD and 5V/9V BEC for DJI O3 Air Unit, RC Drone FPV Racing
Original price was: $74.07.$56.54Current price is: $56.54.
- Plug-and-play DJI O3 HD camera port
- Supports 2-8S battery input voltage
- 5x UARTs for peripherals
- Built-in 9V/A regulator for HD video transmitters
- Includes 5V and 9V/3A BEC outputs
You May Also Like
Description
30.5×30.5mm Holybro Kakute F4 V2.4 Flight Controller 2-8S MPU6000 OSD with 5V 9V BEC Output Support DJI O3 Air Unit for RC Drone FPV Racing
The Holybro Kakute F4 V2.4 Flight Controller is designed for optimal performance in RC drone FPV racing. It features a plug-and-play DJI O3 HD camera port, 4in1 ESC ports, and a barometer. With 5 dedicated UARTs, it supports peripherals and autonomous flight. The built-in 9V/A regulator powers HD video transmitters like the DJI O3 Air Unit and Caddx Vista, while also supporting analog systems. The controller includes a 5V and 9V/3A BEC and an easy soldering layout. Additional features include LED and buzzer pads, an I2C pad for external GPS/Magnetometers, and a 128 Mbit Dataflash chip for logging.
Description:
The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.
The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers
Specification: ( User Manual)
Brand: Holybro
Model: Kakute F4 V2.4

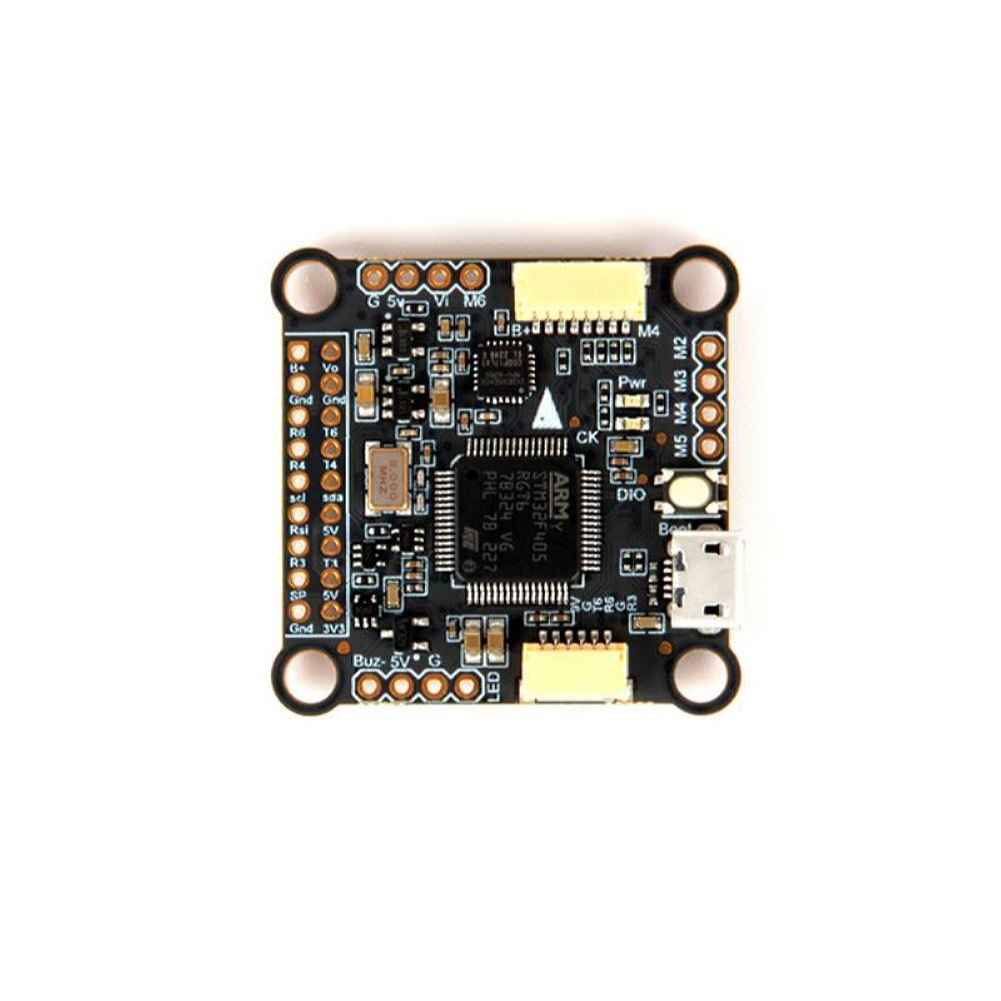

MCU: STM32F405
IMU: MPU6000
Barometer: BMP280
OSD: AT7456E
5x UARTs (1,3,4,4,6,7)
128 Mbit Dataflash chip
Battery input voltage: 2-8S
BEC Output: 5V 2A ; 9V/3A ( Optimized for DJI O3 Air unit)
7x PWM Outputs (6 Motor Output, 1 LED)
Supports serial receivers (SBUS, iBus, Spektrum, TBS CRSF, ESLR).
Mounting Hole: 30.5×30.5mm, 鏈?mm hole with M3 Grommets
Dimension: 37x37mm

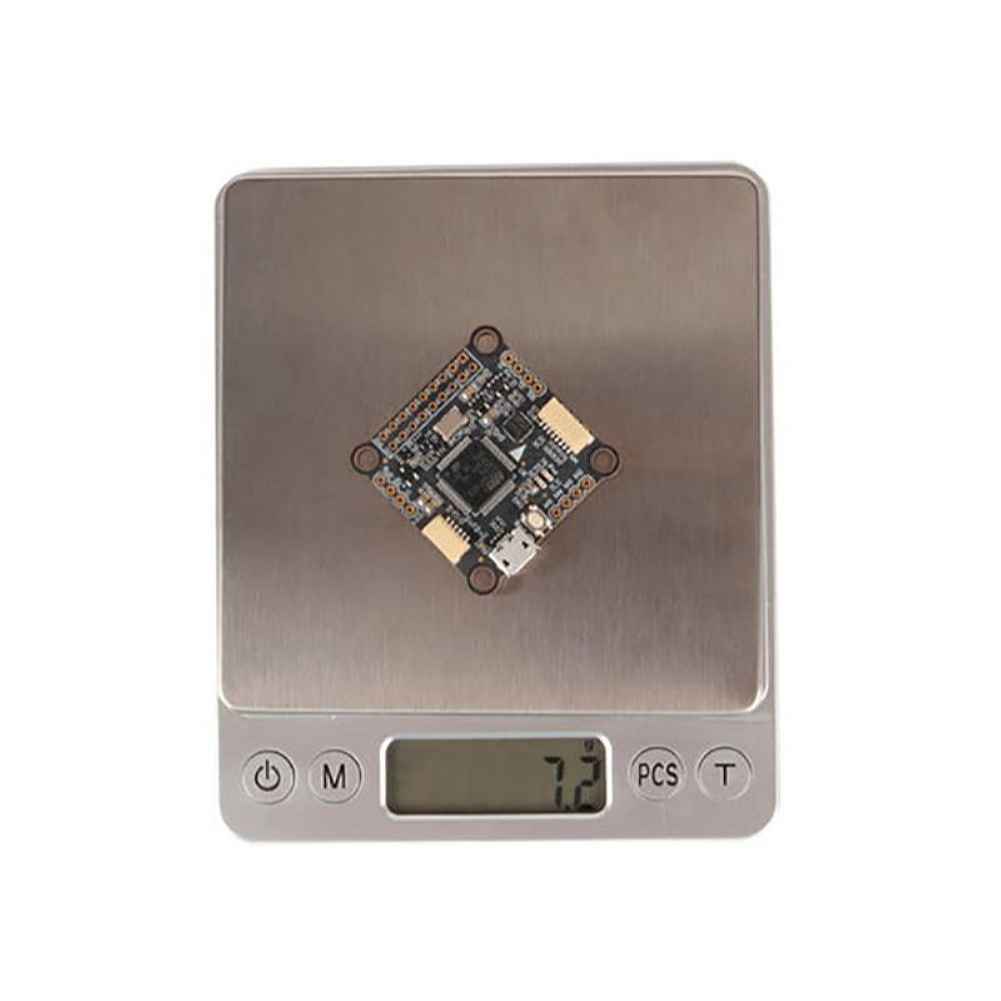

Weight: 7g
JST-SH1.0_8pin port (For 4in1 ESCs)
JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

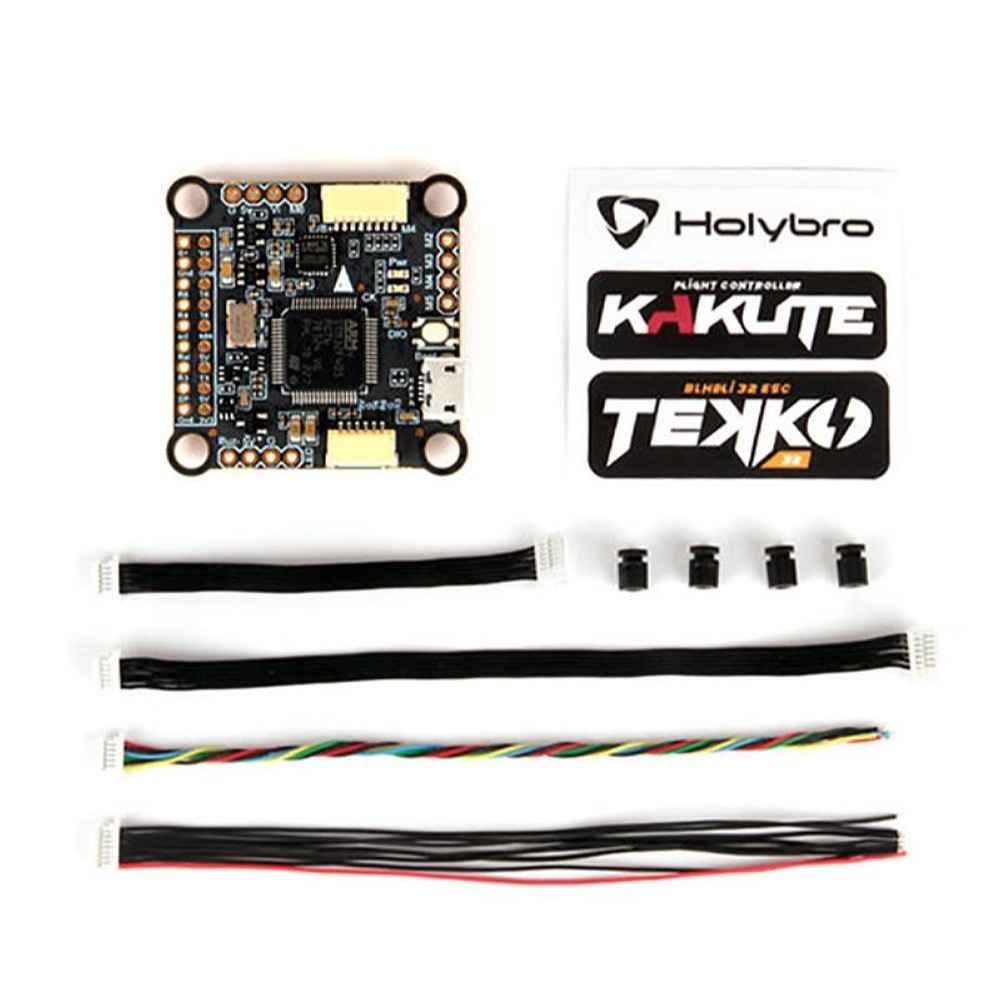

Package Included:
1 x Kakute F4 V2.4 4 x Anti-Vibration Silicone Grommet Insert 1 x JST SH 6pin to JST GHR 8pin 80mm & 150mm cable (for DJI/Caddx HD System) 1 x JST SH 6pin 100mm cable (for Caddx HD Systems) 1 x JST SH 8pin 100mm cable (for ESCs)
