30A Electronic Switch Module with LED Light for FPV RC Airplane, 3.7V-27V, 1S-6S, PWM Control

Description

30A 3.7V-27V 1S-6S Electronic Switch Module with LED Light for FPV RC Airplane

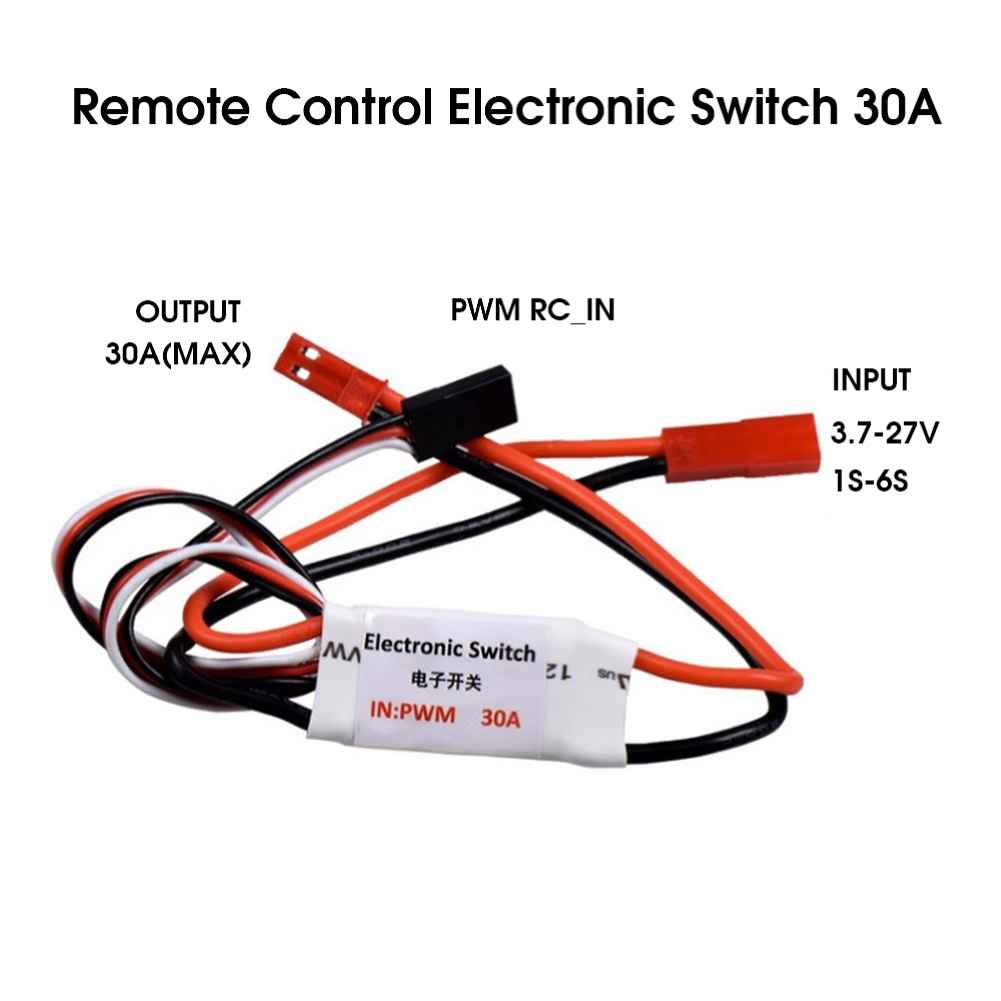

The 30A Electronic Switch Module is designed for FPV RC airplanes, supporting an input voltage range of 3.7V to 27V. This module is equipped with a PWM control signal, ensuring efficient operation with a maximum output current of 30A. It features JST male and female connectors for input and output, along with a JR male control connector. The module includes a convenient LED light indicator to signal activation. It is recommended to use a 2-stage switch for optimal control. Please ensure the current does not exceed the nominal value to prevent overheating or damage.

30A 3.7V-27V 1S-6S Electronic Switch Module with LED Light for FPV RC Airplane
Specifications:
Product Name: Electronic Switch
Input Voltage: 3.7-27V
Output Current: 30A
Control Signal: PWM
Output Connector: JST Female
Input Connector: JST Male
Control Connector: JR Male
Product Weight: Approximately 11g
JST Wire Length: 15CM
Signal Wire Length: 20CM
Note:
It is recommended to use a 2-stage switch to control this electronic switch. The opening and closing strokes each account for half of the rudder volume. There is an LED light when the switch is on. The current cannot exceed the nominal value, otherwise it may cause the wire to heat up or burn the electronic switch.

Package Included:
1 x Electronic Switch
