iFlight XING-E Pro 2306 1700KV Brushless Motor, 3-6S, for RC Drone FPV Racing, 4 Pack
Original price was: $99.41.$80.82Current price is: $80.82.
- High-performance 1700KV brushless motor for FPV racing drones
- Compatible with 3-6S input voltage for versatile use
- Lightweight design with a weight of 33.1g
- Durable construction with a 5mm shaft diameter
- Includes motor nut and screws for easy installation
You May Also Like
Description
4 PCS iFlight XING-E Pro 2306 1700KV 3-6S Brushless Motor for RC Drone FPV Racing
The iFlight XING-E Pro 2306 1700KV Brushless Motor is designed for high-performance RC drone FPV racing. This motor operates efficiently with an input voltage of 3-6S and features a CW screw thread. With a configuration of 12N14P, it offers a stator diameter of 23mm and a stator length of 6mm, ensuring optimal performance. The motor’s dimensions are 29.5×18.7mm, and it weighs 33.1g, making it lightweight yet powerful. It supports a maximum continuous power of 893W and a maximum current of 37.2A for 180 seconds. The motor is built with a shaft diameter of 5mm and an internal resistance of 76.4m鎯? ensuring durability and efficiency.
Specification:
Brand Name: iFlight
Model: XING-E Pro 2306
Item Name: 2306 1700KV 3-6S Brushless Motor
KV: 1700KV
Input Voltage: 3-6S
Version: CW Screw Thread
Quantity: 4 PC
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6mm
Shaft Diameter: 5mm

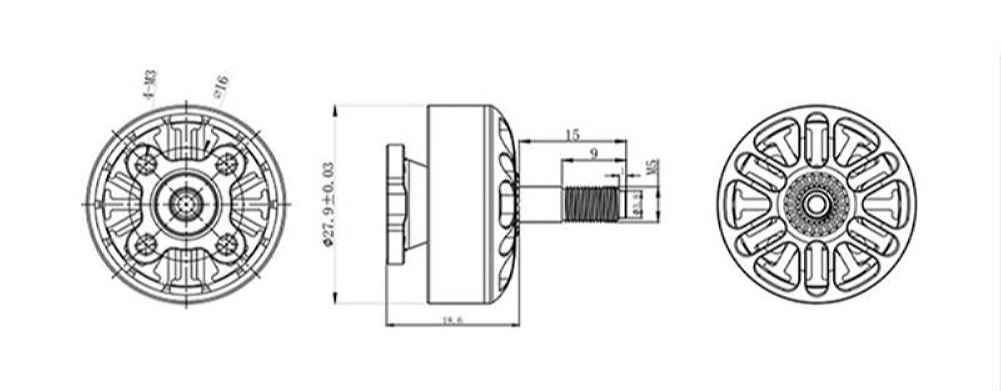

Motor Dimension: 29.5×18.7mm (Dia*Len)

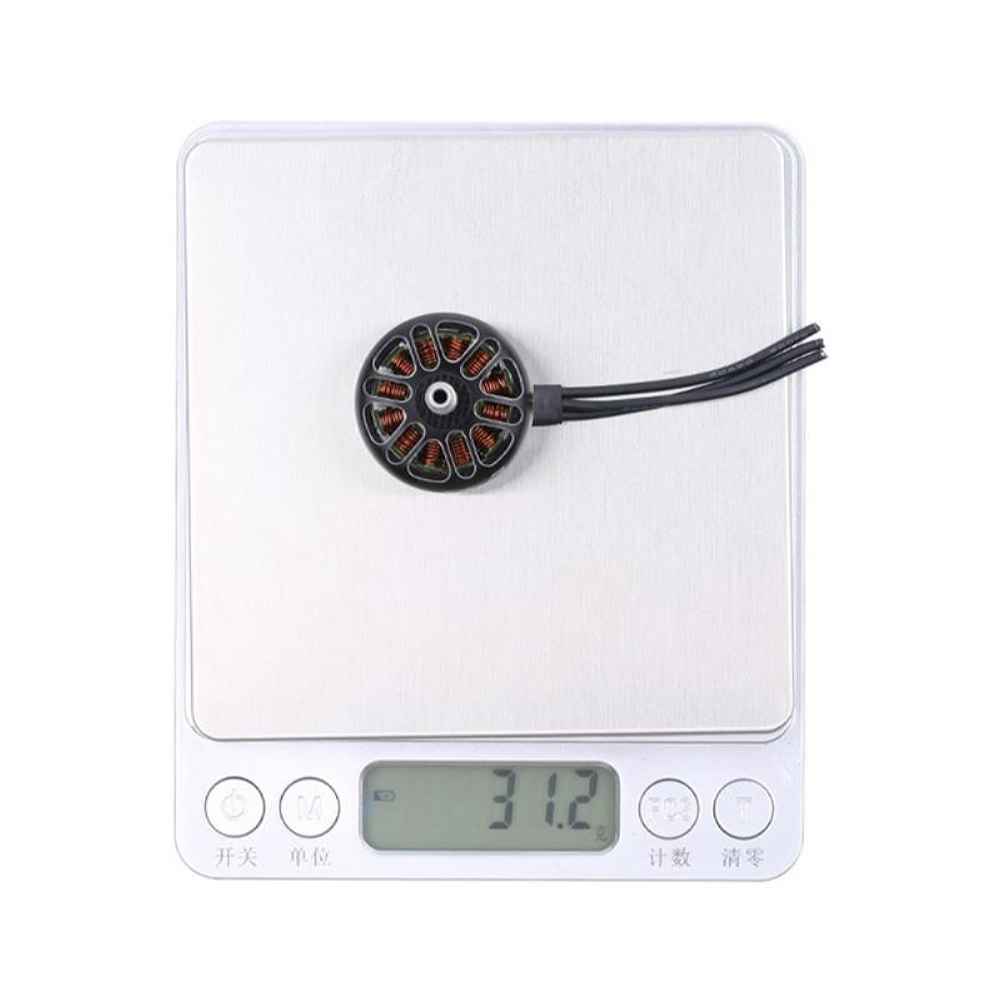

Weight: 33.1g
Idle Current(10) @10V: less than 1A
Max. Con. Power (180S): 893W
Internal Resistance: 76.4m娆?br/>Max. Current (180S): 37.2A

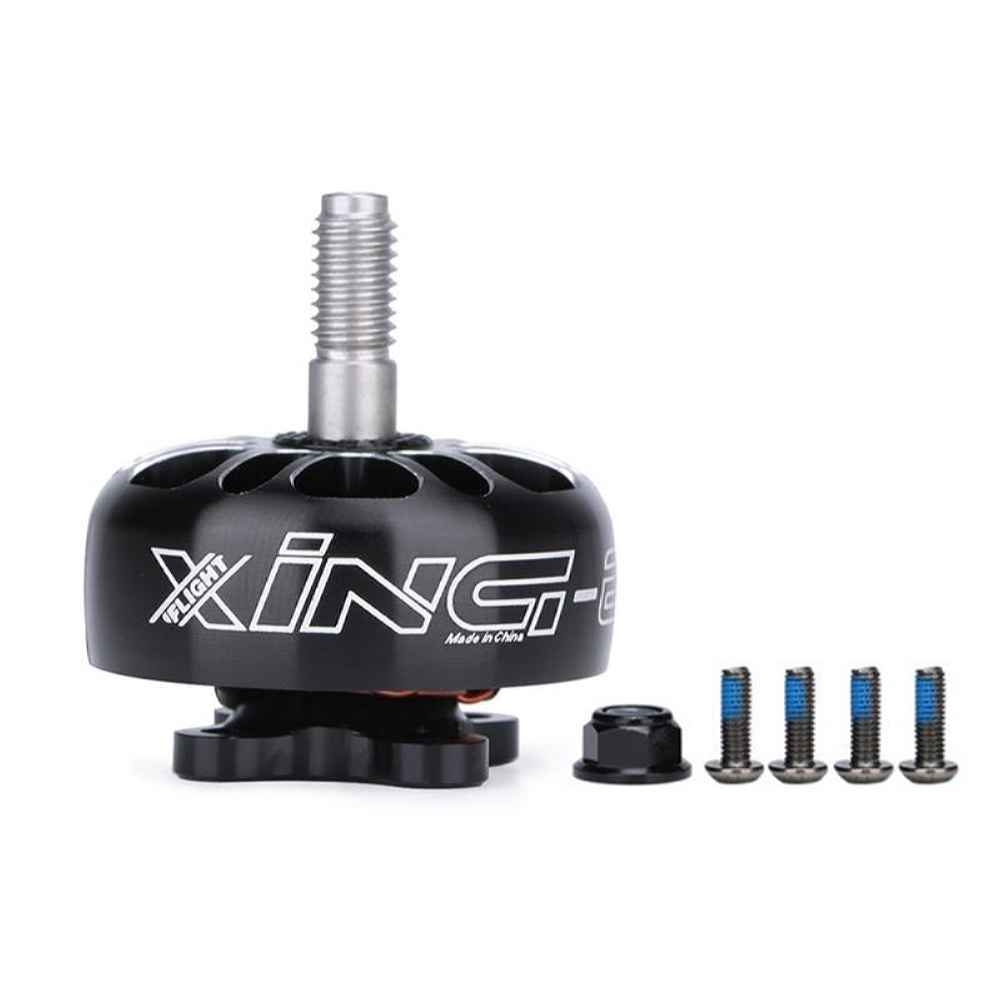

Package Included:
1x iFlight XING-E Pro 2306 1700KV Motor
1x Motor Nut
4x Screws
