iFlight XING2 2306 1755KV Brushless Motor, 6S, for 5-6 Inch RC Drone FPV Racing, 4 Pack

Description

4 PCS iFlight XING2 2306 1755KV 6S Brushless Motor for 5 Inch 5.1 Inch 6 Inch RC Drone FPV Racing

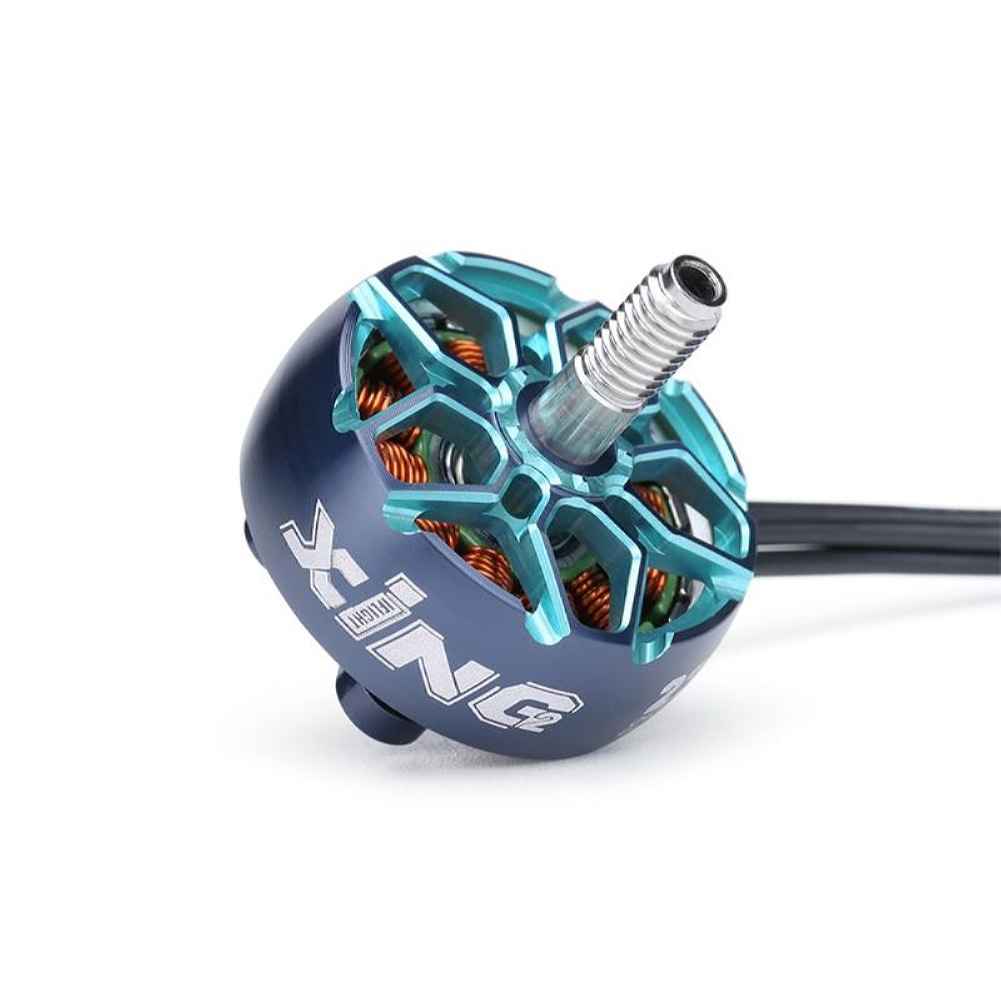

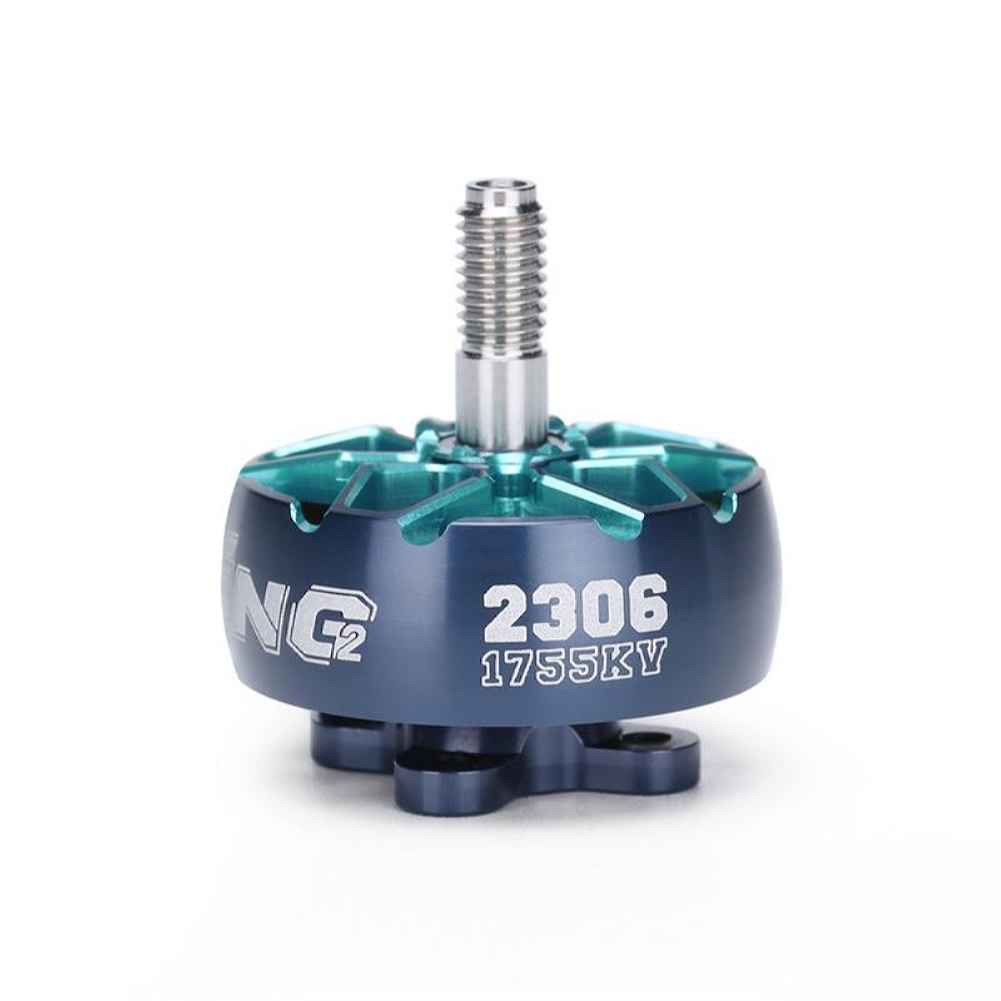

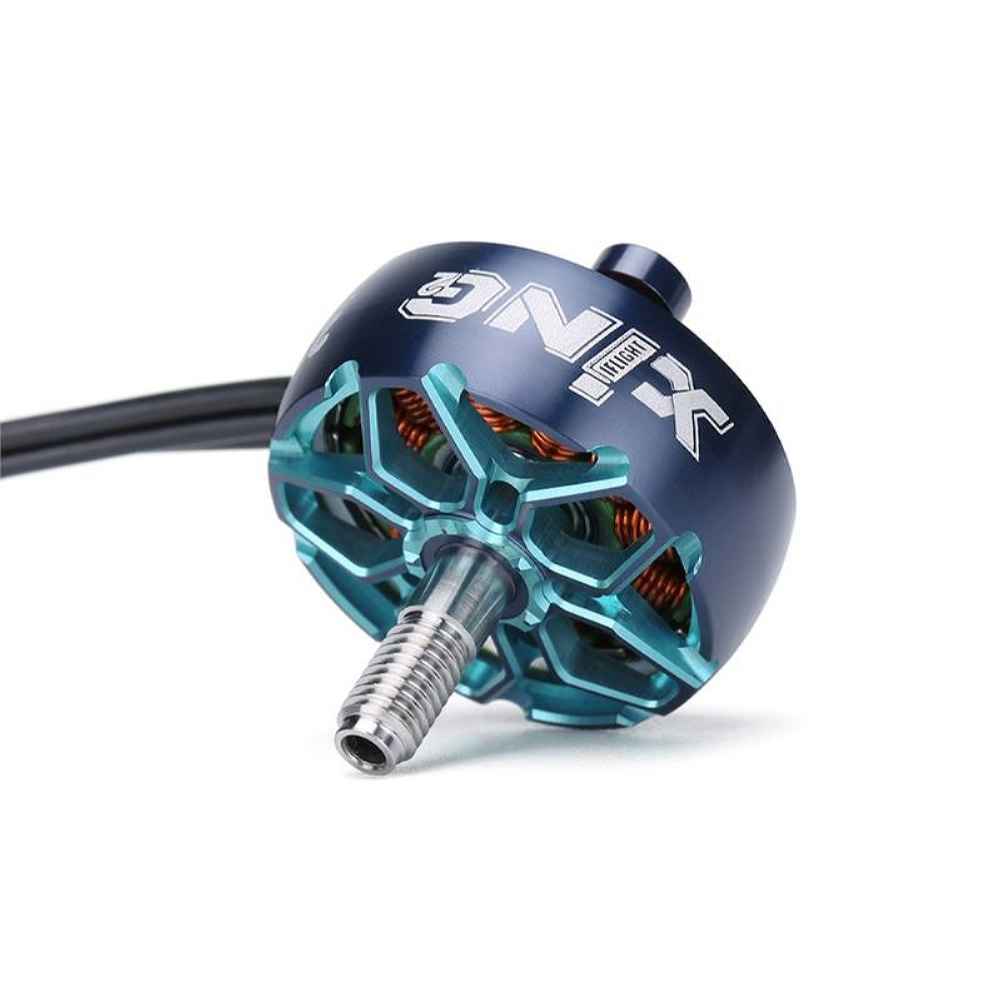

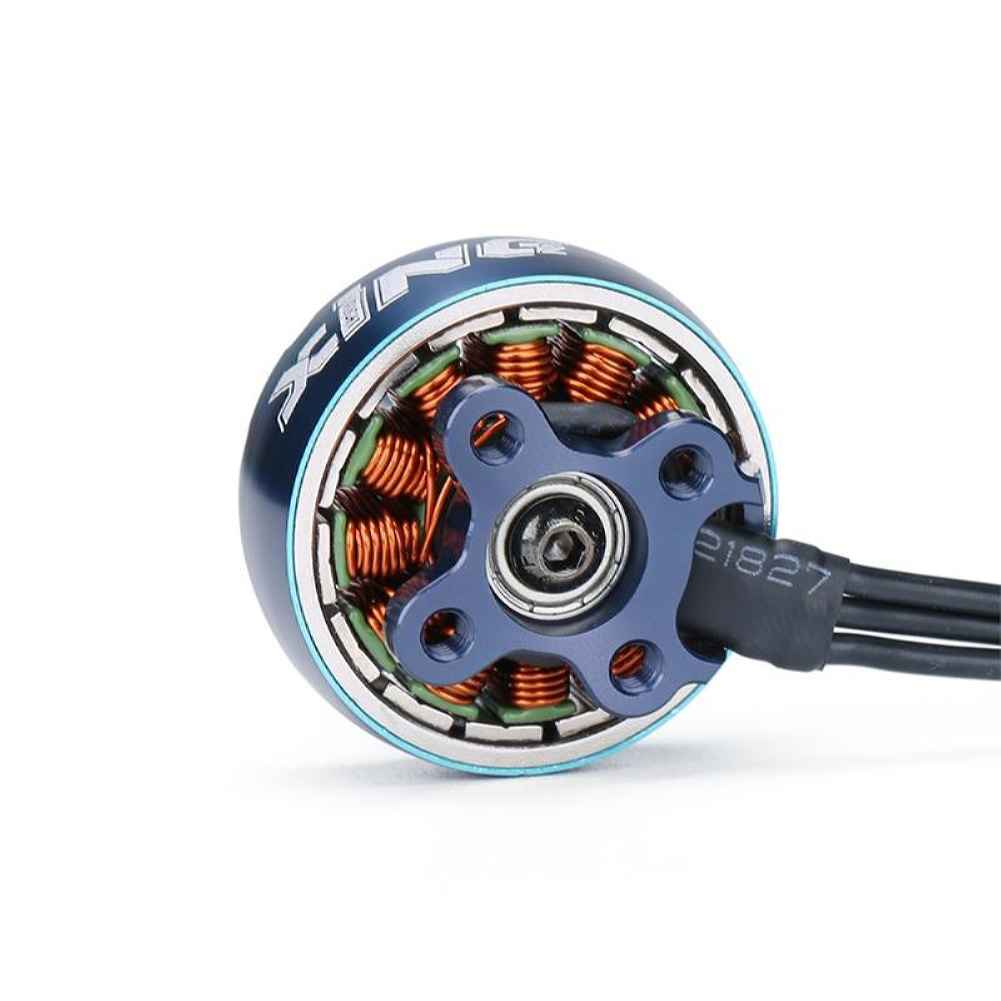

The iFlight XING2 2306 1755KV Brushless Motor is designed for high-performance FPV racing drones. Compatible with 5 to 6-inch RC drones, this motor offers a robust 5mm titanium alloy shaft and a crash-resistant 7075 aluminum bell. Its smooth operation is ensured by NSK 9x9x4 bearings, while the N52H curved arc magnets and XING O-ring bearing gap protection enhance durability. With a configuration of 12N14P, this motor is lightweight at around 31.6g with short wire, making it ideal for agile and responsive drone racing. The motor includes a 16x16mm mounting pattern and comes with motor wires protection.

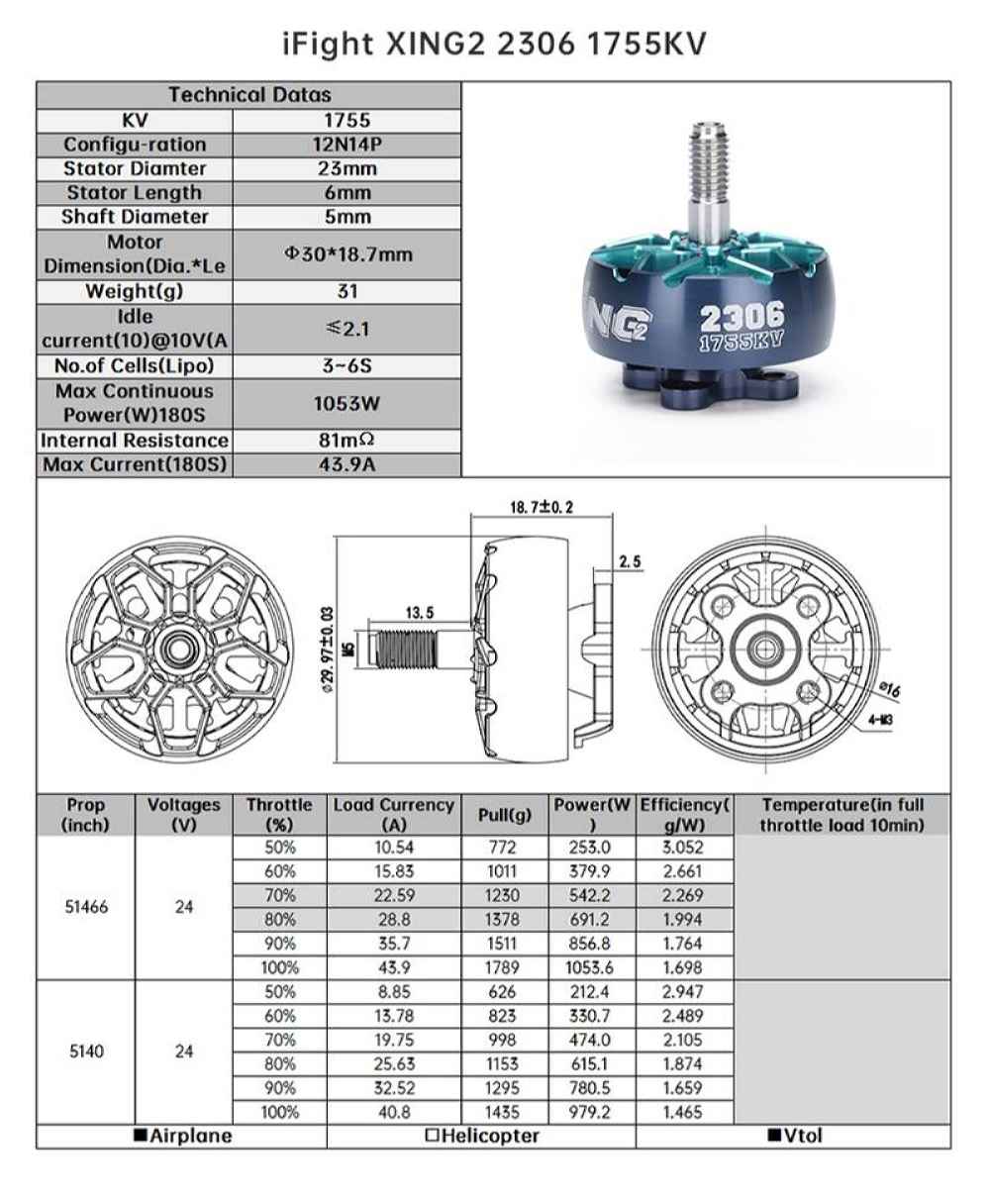

Specification
Model: XING2 2306
KV: 1755KV
Version: CW Screw Thread
Qunntity: 4 PCS
Input Voltage: 6S Lipo
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6mm

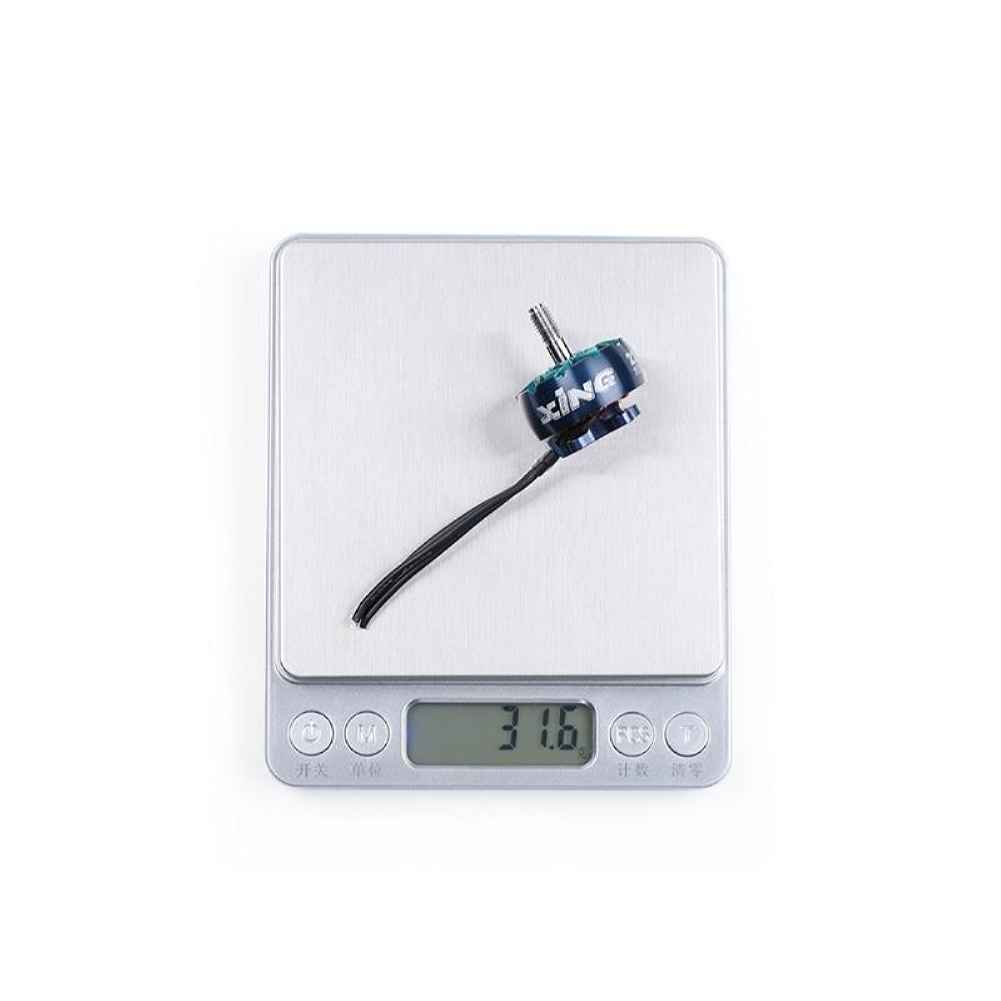

Weight: 31.6g with short wire
Wire length: 20AWG 160mm
Mounting pattern: 16*16mm
Weight: around 31.6g

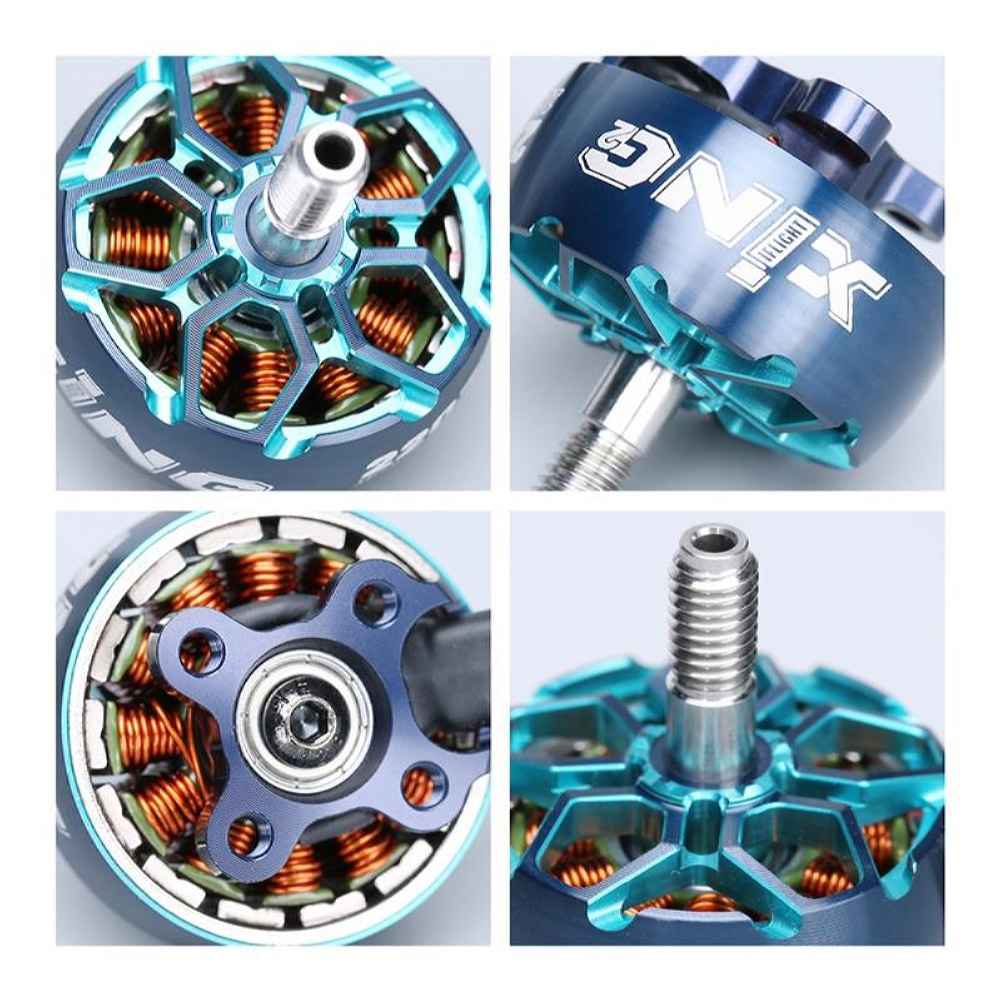

Features:
– 5mm titanium alloy shaft, our strongest prop shaft ever!
– Crash resistant 7075 aluminum bell
– Smooth and long-lasting NSK 9x9x4 bearings
– Center slotted N52H curved arc magnets
– XING O-ring bearing gap protection
– Motor wires protector
– Dynamically balanced

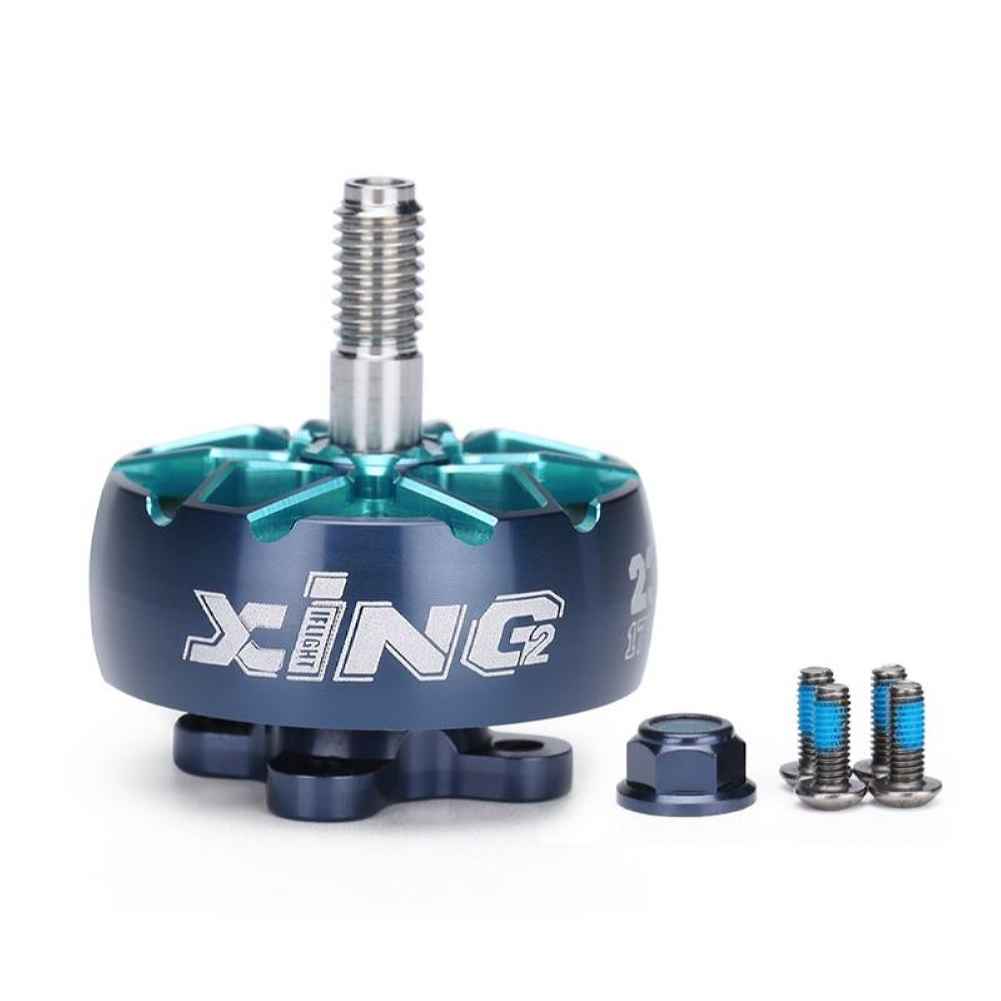

Package Included:
4 x XING2 2306 1755KV Motor
4 x Nuts
4 x Bag of Screws
