A2212 Brushless Motor 1000KV/1400KV/2200KV with 40A ESC, SG90 9g Servo, and 8060/6035 Propeller for RC Airplane Fixed Wing

Description

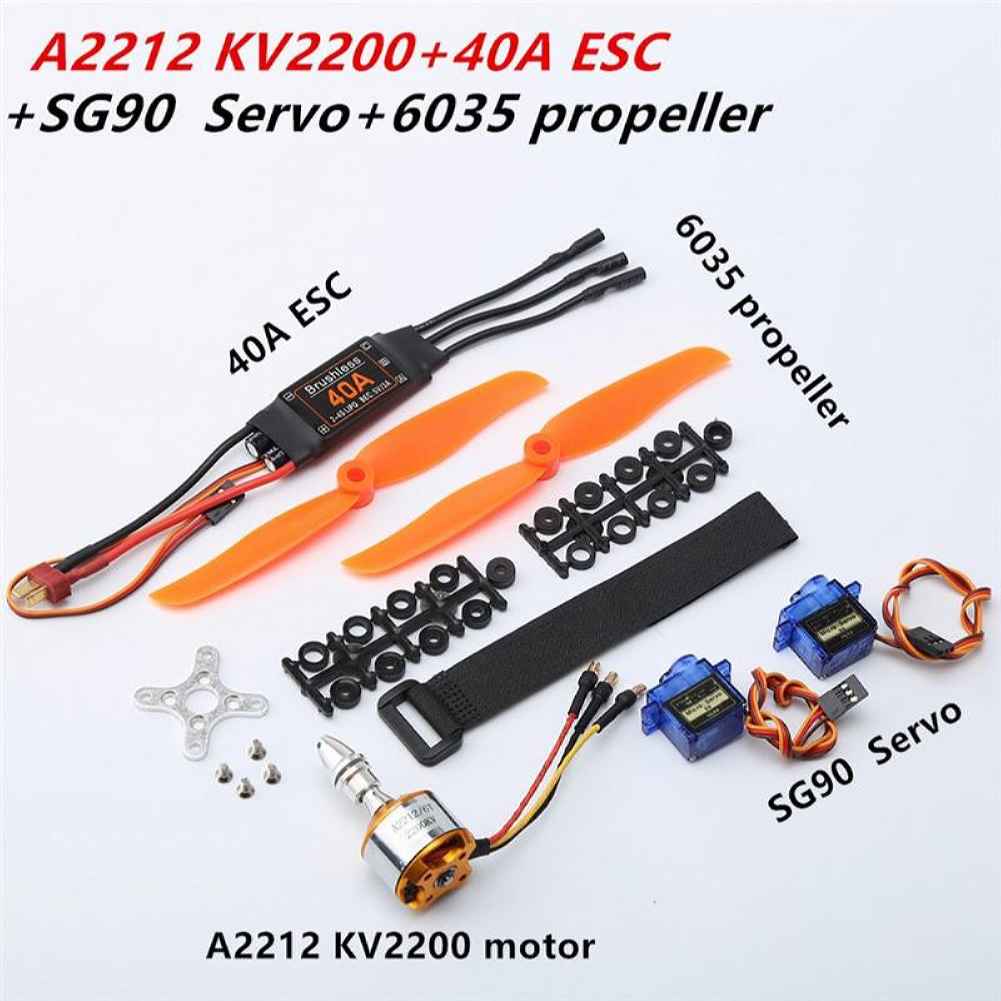

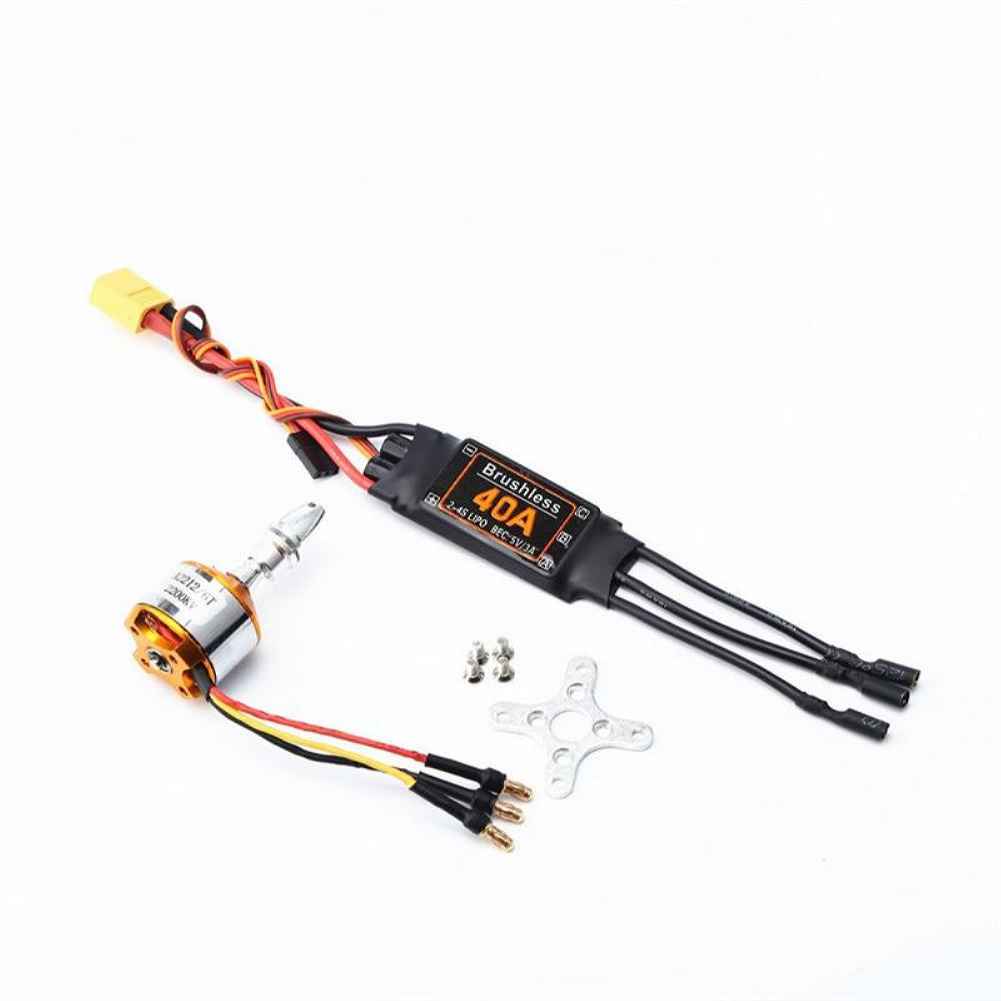

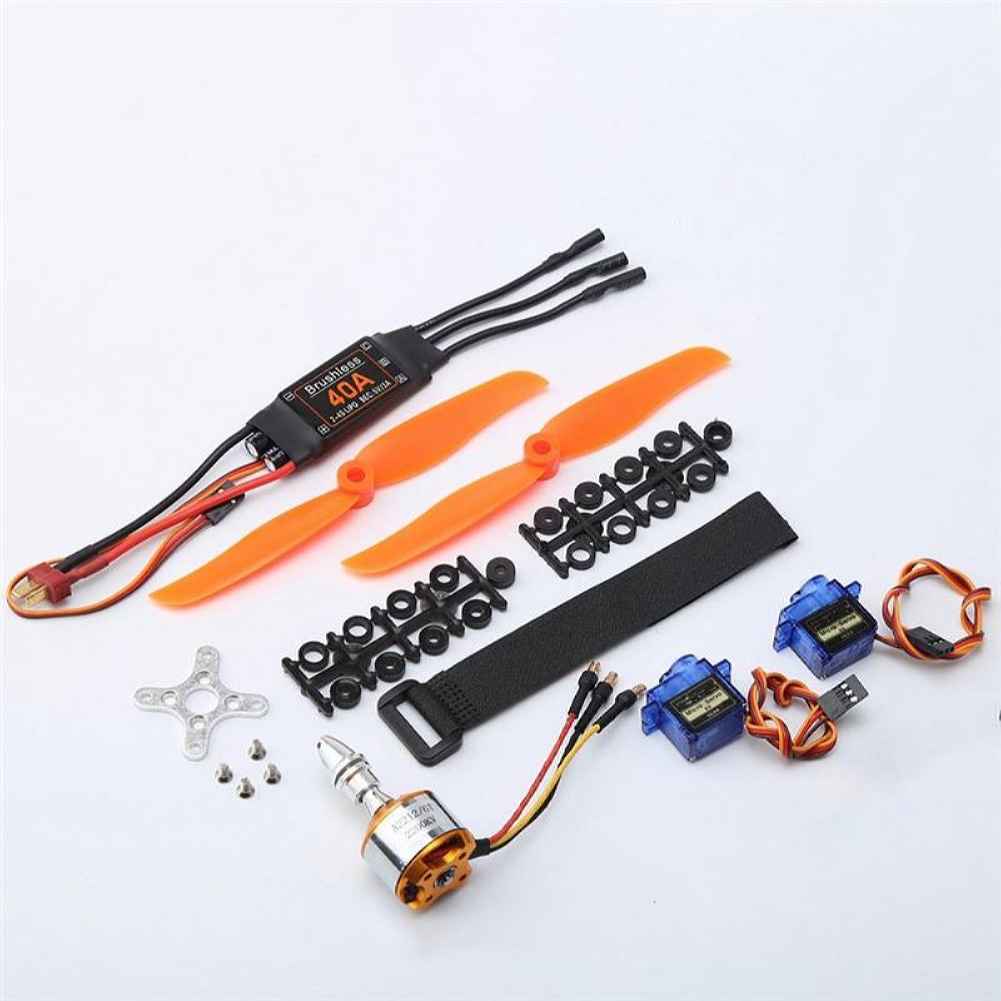

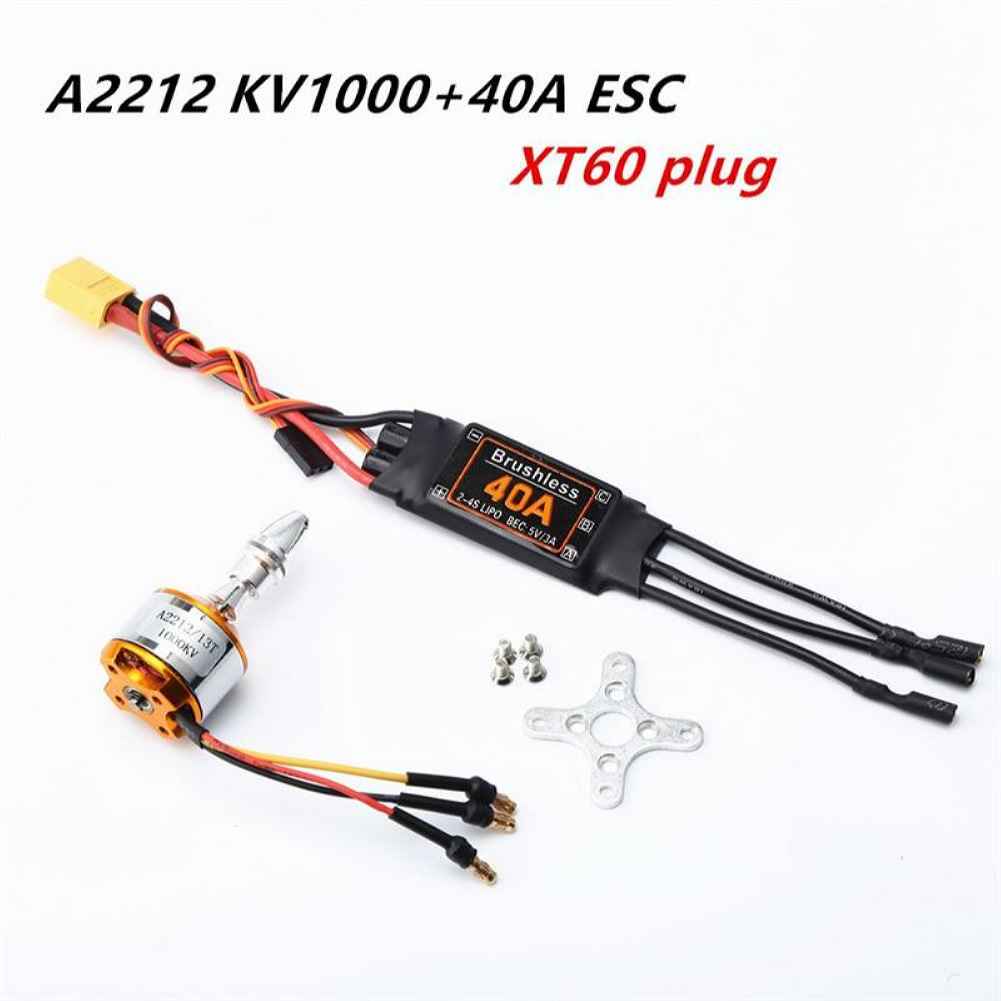

A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing

The A2212 Brushless Motor RC Power Combo System is designed for RC airplane fixed wings. It includes a 40A brushless ESC with a continuous current of 40A and a short-term current of 55A, compatible with 2-4 lithium batteries. The ESC features safety protection, throttle valve calibration, and user programmability. It supports various programming methods and is compatible with Lipo and NiMH batteries. The SG90 9g Servo is lightweight and powerful, suitable for beam robots, with a no-load speed of 0.12 seconds/60 degrees and a working voltage of 4.8V-6V. The A2212 2200KV motor offers a maximum power of 342W and is tested with 7×3/7×4 props.

A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing
Description:
Item: RC Power Combo System

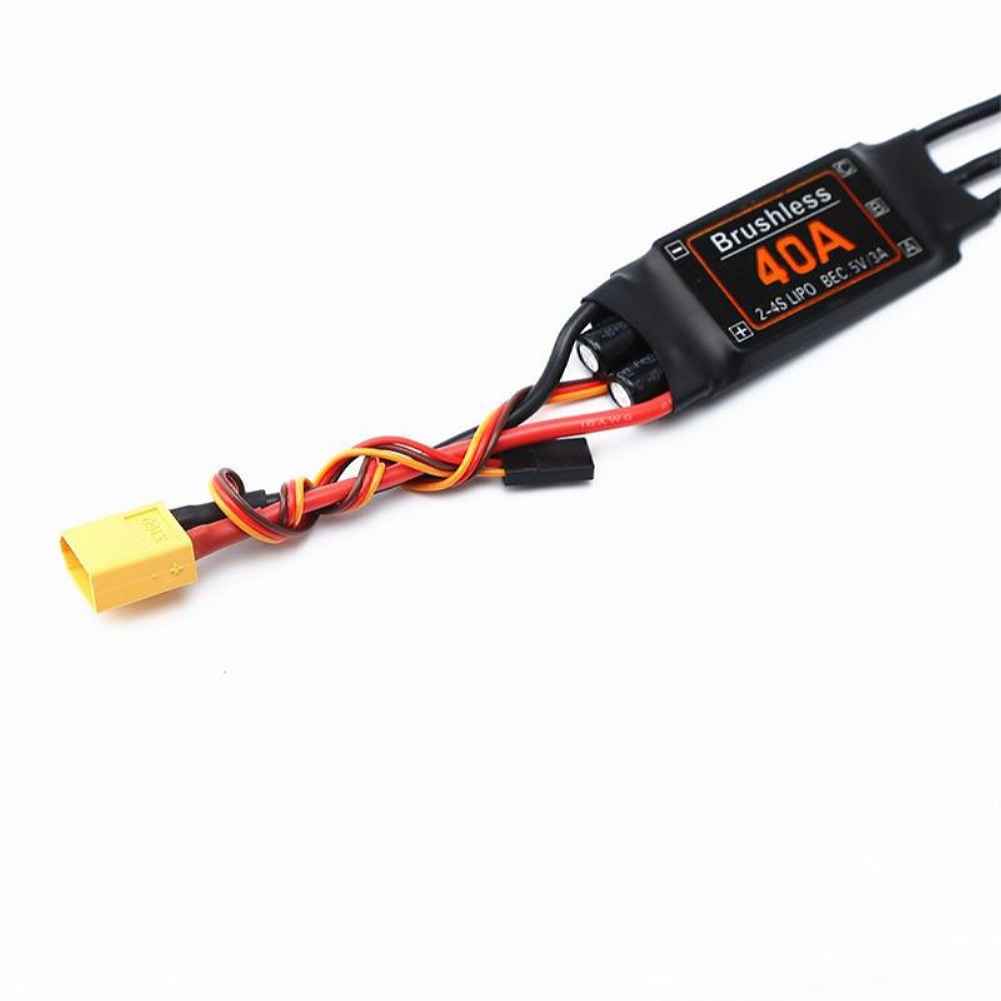

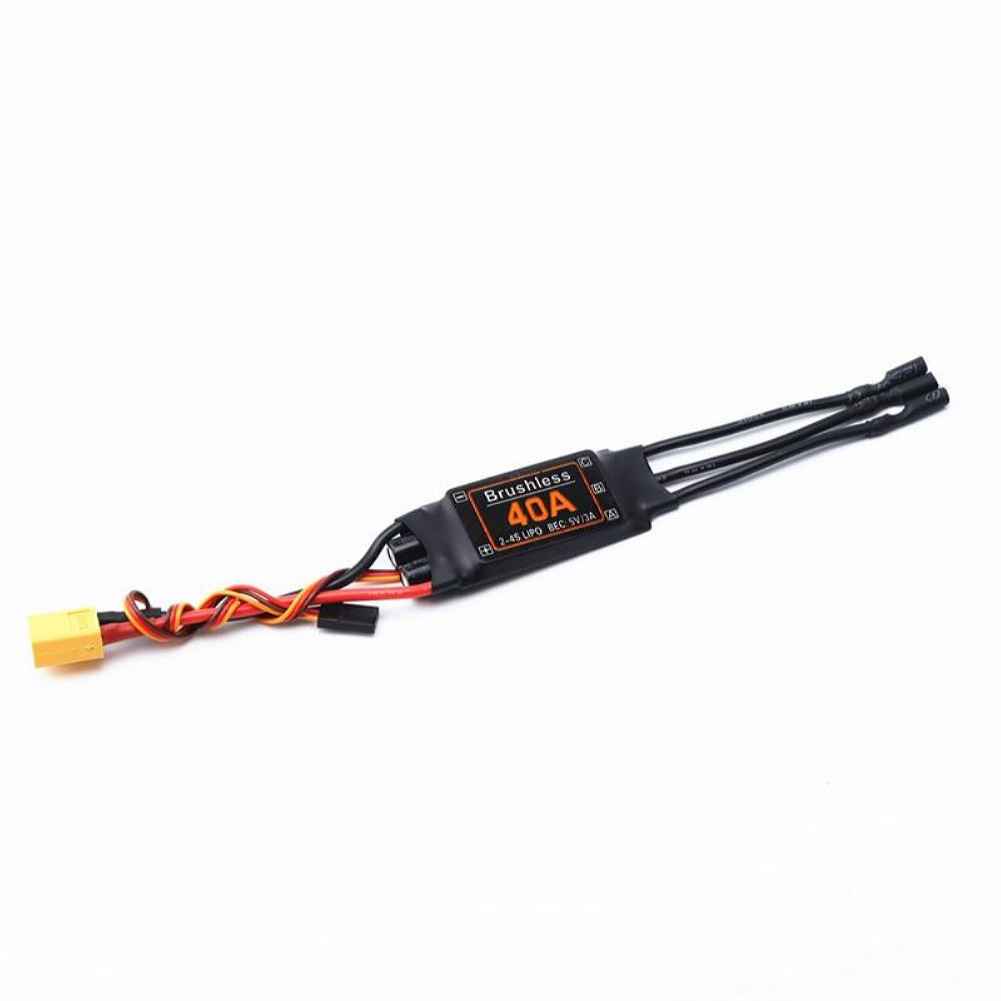

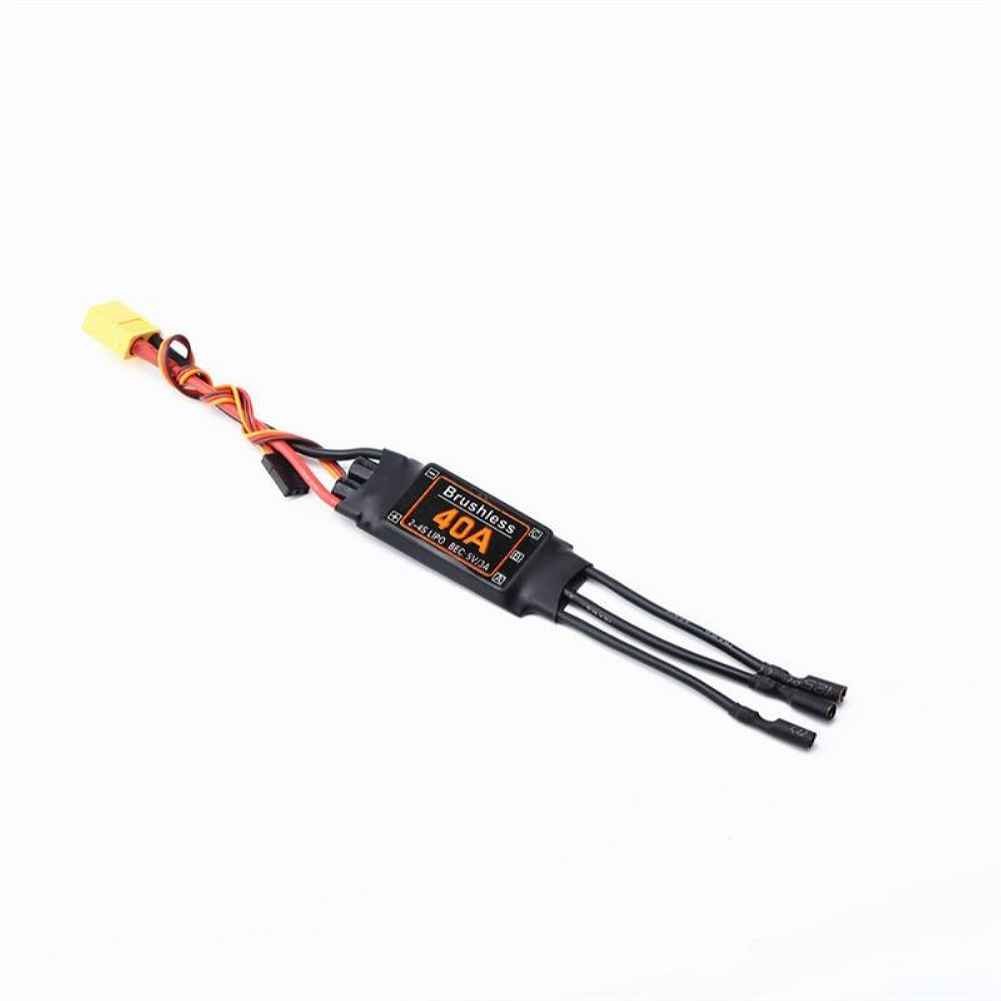

40A brushless ESC Specification:
Type: long, short
Current: 40A
Output capacity: continuous current 40A, short-term current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries (not included)
BEC output: 5V@3A (linear regulator mode-linear mode)
Maximum speed: 210000 rpm for 2-pole motors, 7000 rpm for 6-pole motors, 35000 rpm for 12-pole motors
Size: (approximately) 68x25x8mm
Features:
* Safety protection function: Regardless of the position of the throttle lever, the motor will not rotate after connecting the battery.
* Throttle valve calibration function: The throttle valve range can be calibrated to be compatible with different transmitters.
* User programmable.
* Support a variety of program methods: launch stick, LED program card. It is easy to carry out electronic stability control at home or in the flight field.
* Compatible with Lipo and NiMH batteries.
* The timing can be changed to suit different brushless motors.
* Full protection: low pressure cut-off protection/overheat protection/throttle signal loss protection.
Note:
1. Due to the difference of light and screen, the color of the item may be slightly different from the picture.
2. Due to manual measurement, please allow a difference of 0.5-2 cm.
SG90 9G Servo:
This is the most popular micro servo. Only 1.5 g/kg of torque. In terms of its size, it is quite powerful. Suitable for beam robots.
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No-load speed: 0.12 seconds/60 degrees (4.8 volts)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Working temperature: -30‵+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
Feature:
Translucent body
Lightweight
Less noise
A2212 2200kv Motor specifications:
KV: 2200
Ri (M次): 0.033
Battery: 2-3Li-Po
Maximum power: 342W
Test props: 7×3/7×4
Motor size: 27.5x38mm/1.08 inches x 1.5 inches
Shaft diameter: 3.17mm/0.12′
Pacakge included:
1x RC Power Combo System

Package Included:
1 x RC Power Combo System
