AEORC Mini Receiver with Integrated Brushless ESC, Compatible with S-FHSS DSMX/2 FRSKY-D16 ACCST-D16 Flysky AFHDA-2A

Description

AEORC RX148-E/RX148-TE/RX158-E/RX158-TE/RX448 S-FHSS DSMX/2 FRSKY-D16 ACCST-D16 Flysky AFHDA-2A Mini Receiver Integrated Brushless ESC

The AEORC Mini Receiver is designed for RC enthusiasts seeking precision and versatility. This compact receiver integrates a brushless ESC, offering a range of modes for different applications. The RX448 model features a built-in 15A 2-3S ESC and standard 6CH servo signal output, while the RX148-E/TE and RX158-E/TE models offer unique configurations with aileron double servo mode and automatic frequency matching. The lightweight design, with varying sizes and weights, ensures easy integration into your RC setup. Operating at different voltages, these receivers provide reliable performance without over-voltage protection. Ideal for hobbyists looking to enhance their radio-controlled models with a high-quality, multi-mode receiver.

AEORC RX148-E/RX148-TE/RX158-E/RX158-TE/RX448 S-FHSS DSMX/2 FRSKY-D16 ACCST-D16 Flysky AFHDA-2A Mini Receiver Integrated Brushless ESC
Specifications:
Brand: AEORC

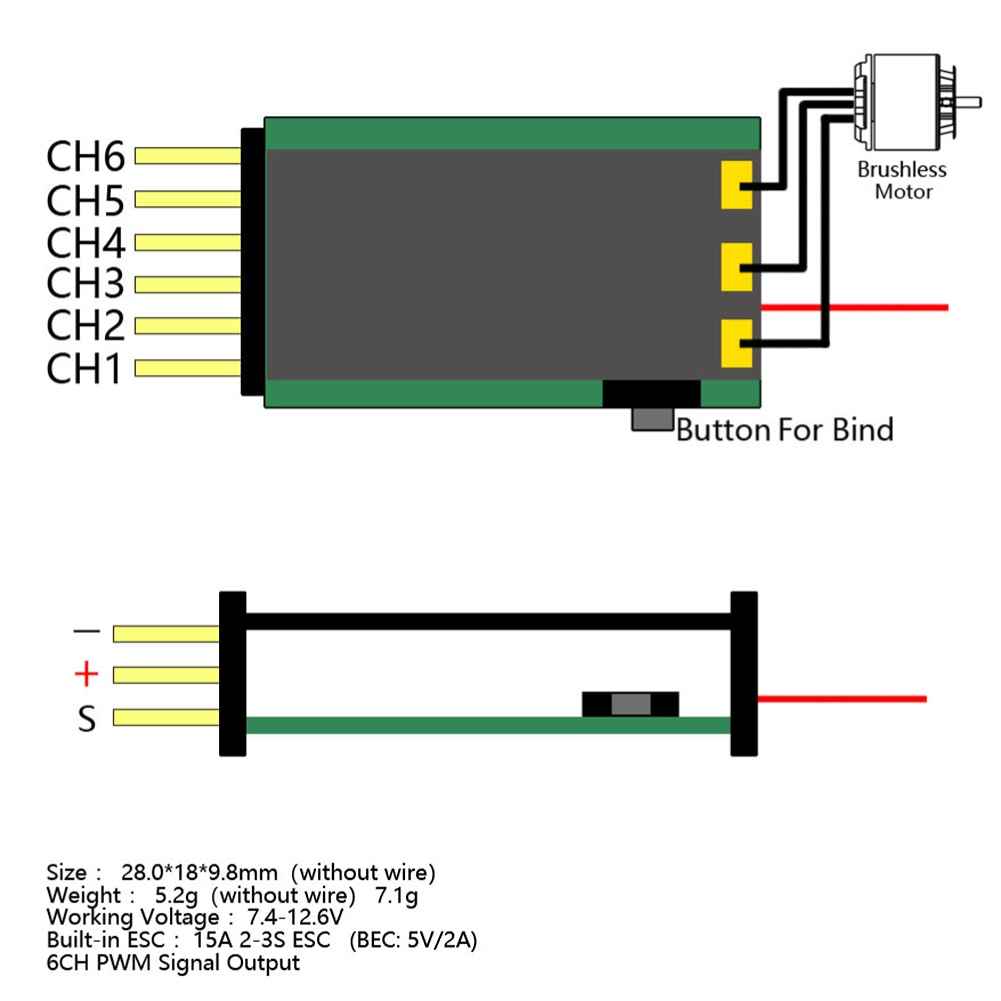

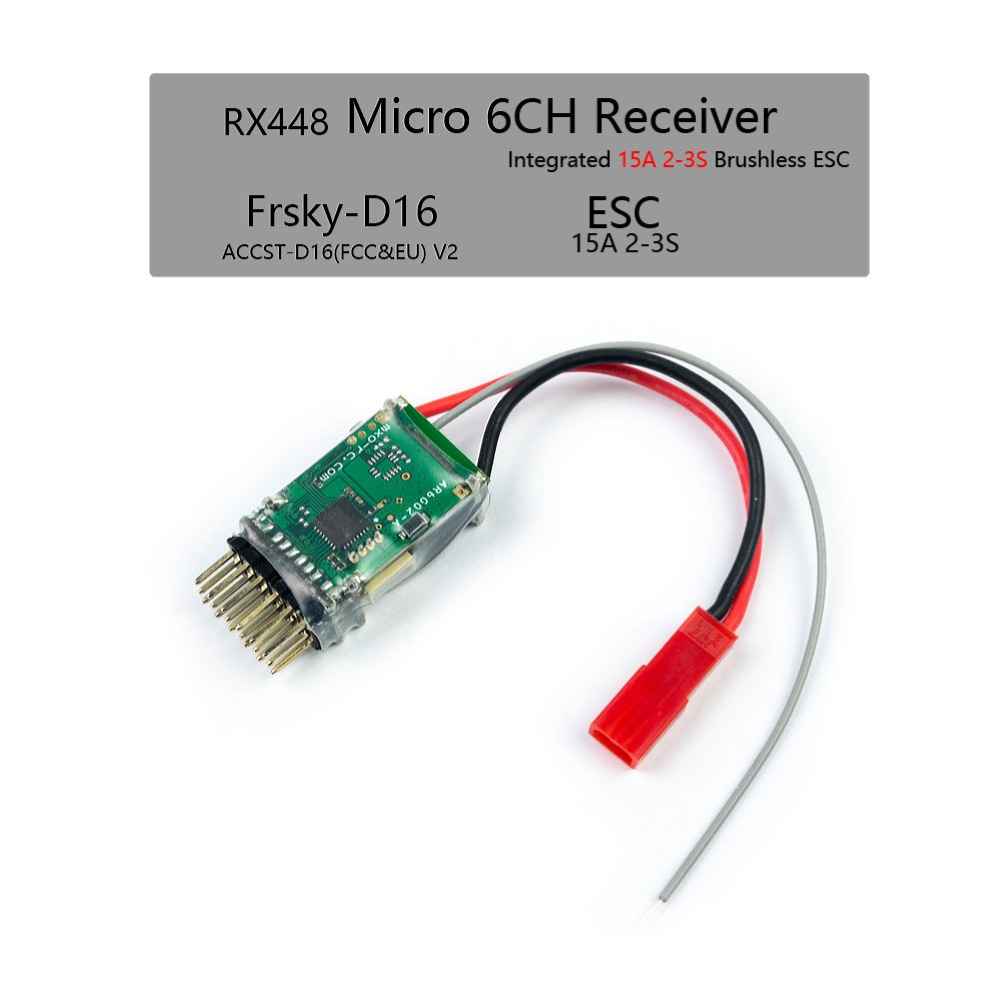

RX448:
Size: 28.0*18*9.8mm侈without wire佩
Weight: 5.2g侈without wire佩 7.1g侈with wire佩
Working voltage: 7.4-12.6V
Built-in ESC: 15A 2-3S ESC
BEC: 5V/2A
Over voltage protection券without 6CH servo signal output 侈standard servo plug佩

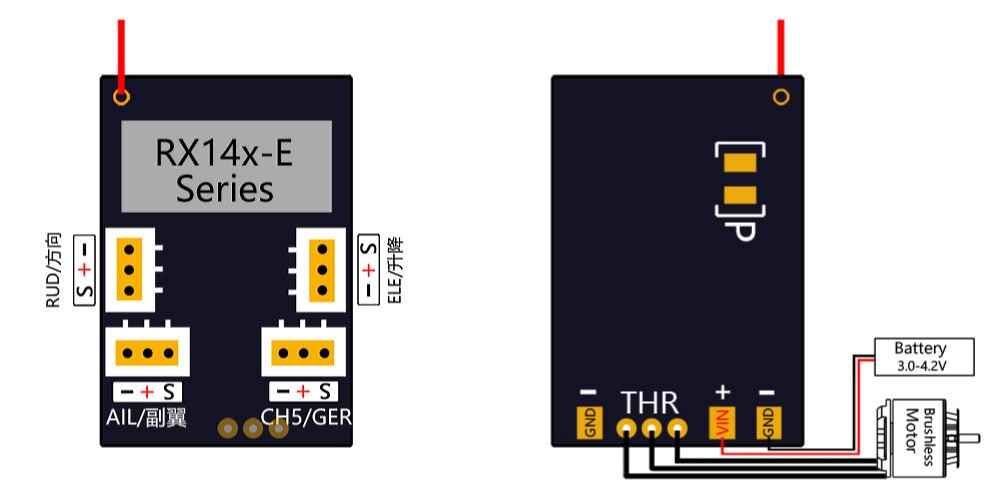

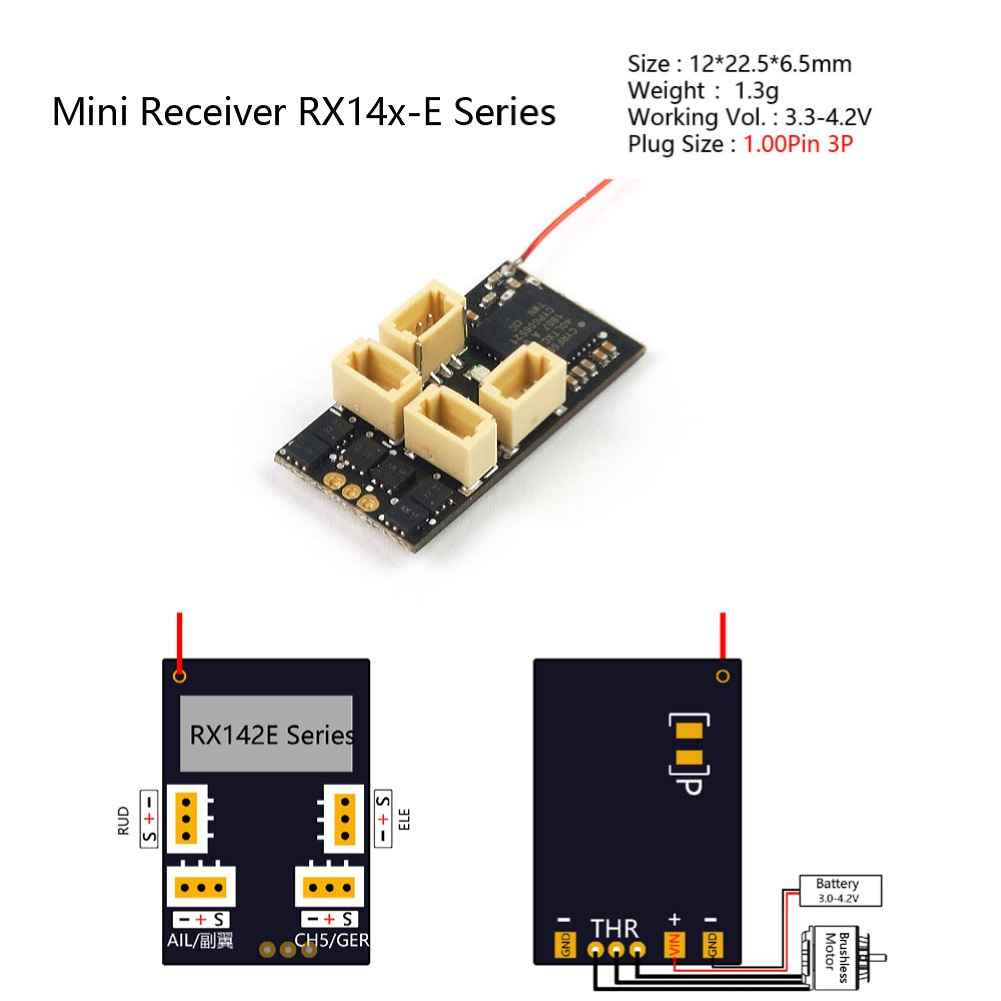

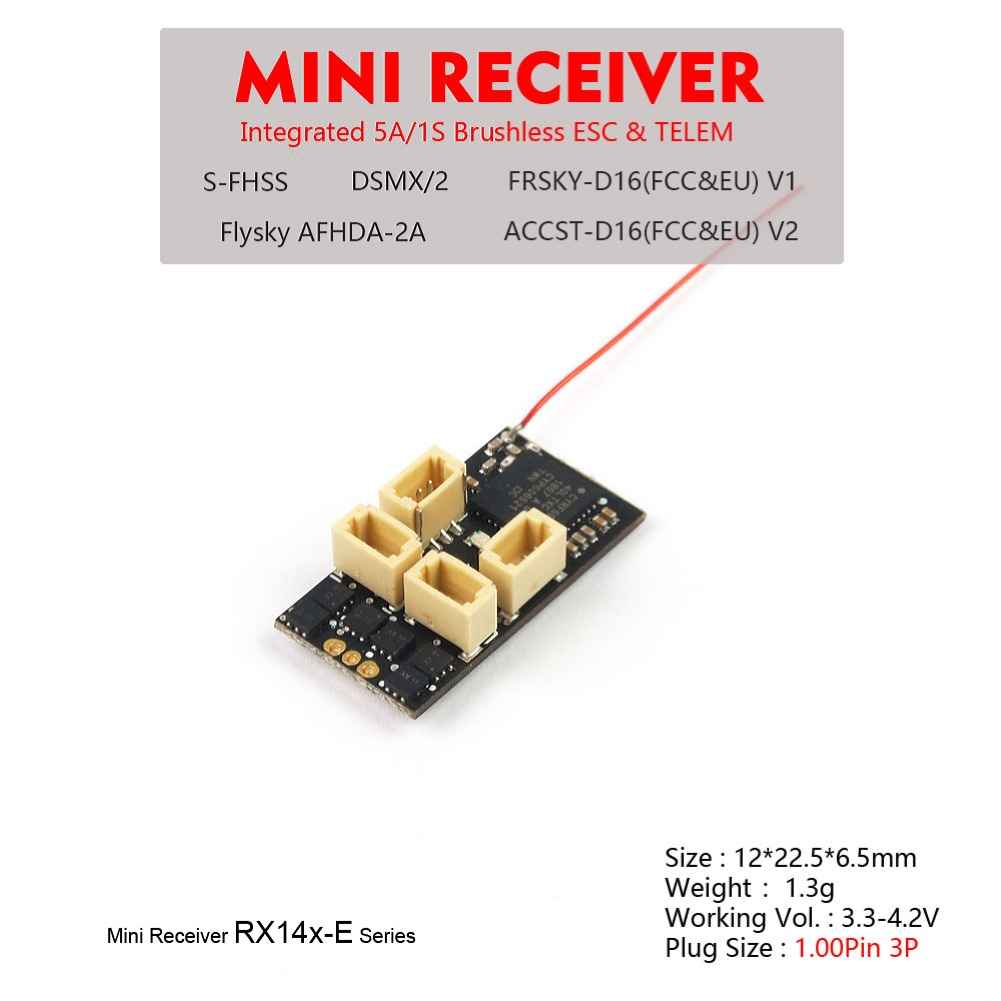

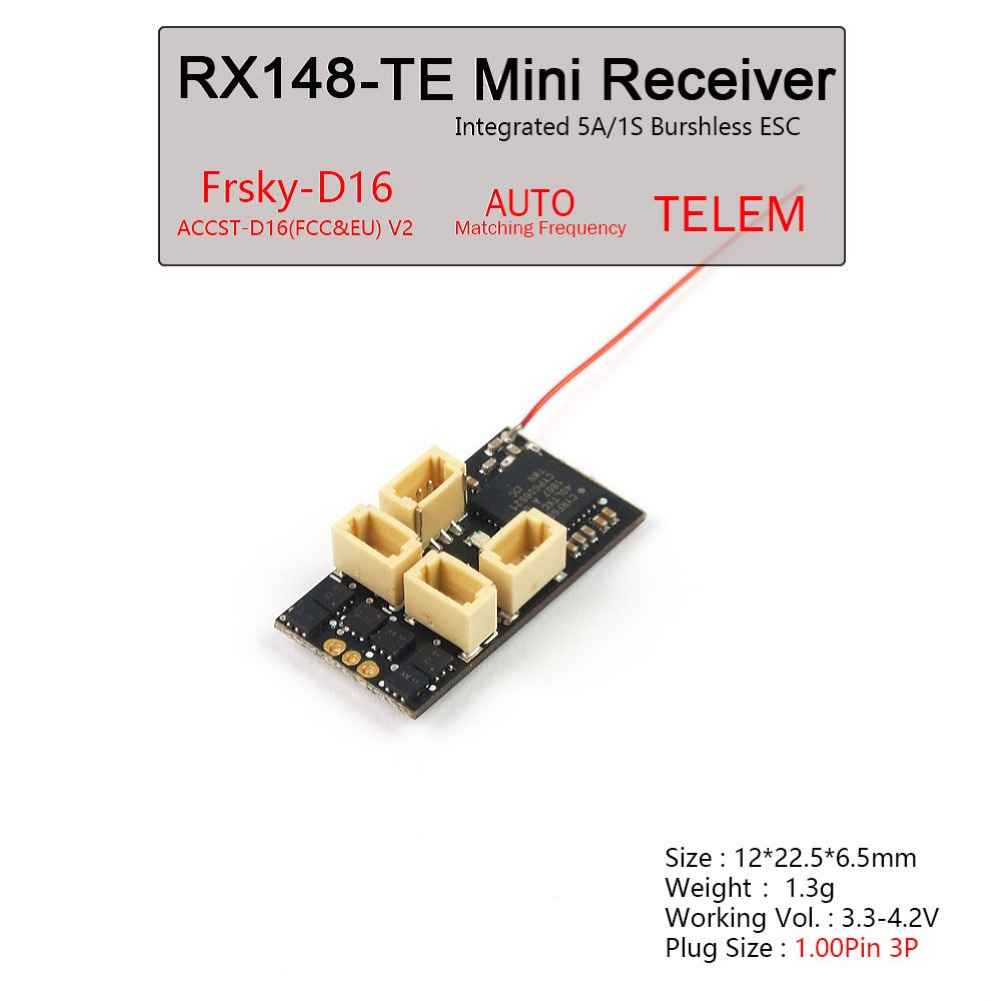

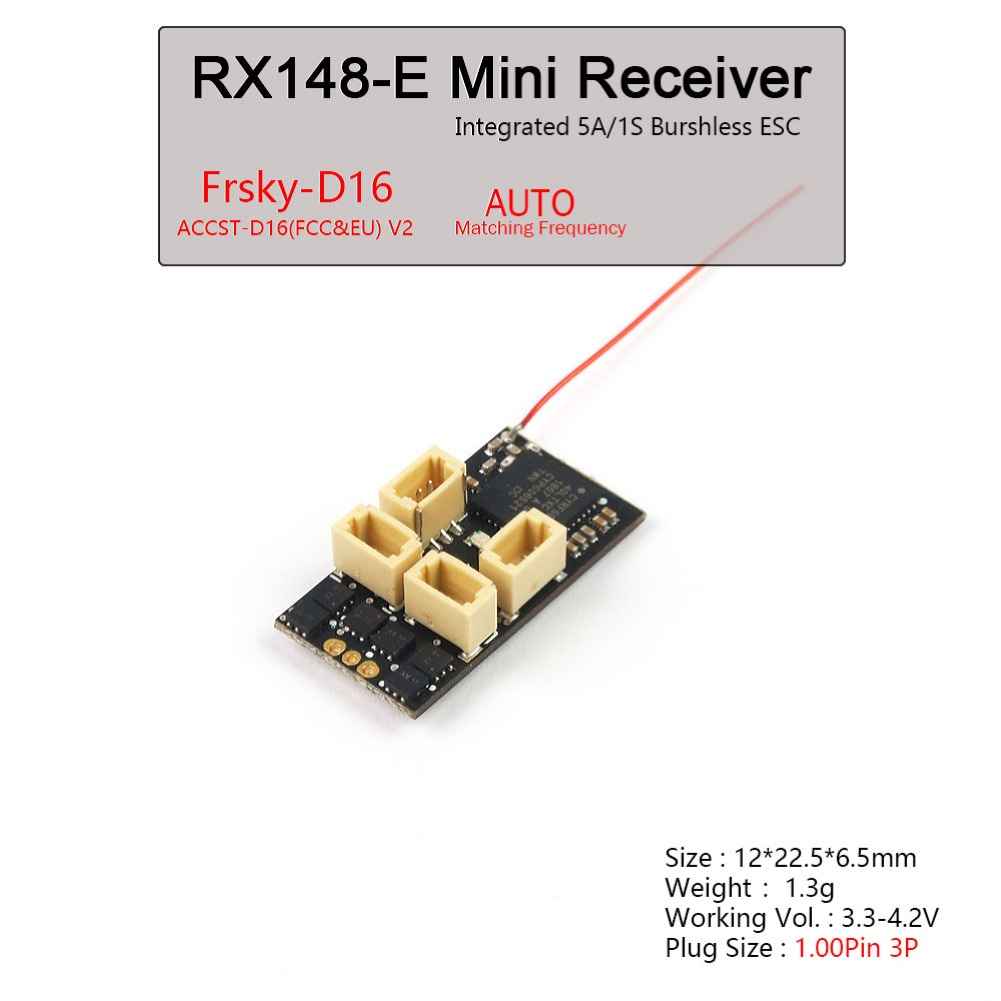

RX148-E/RX148-TE:
Size: 12.0*22.5*6.5mm
Weight: 1.3g(without wire)
Working Vol.: 3.3-4.2V
BEC: 5V buck circuit
Mode-1: Aileron double servo mode
Mode-2: 5A/1S Brushless ESC
Mode-3: automatic frequency matching
Mode-4: TELEM (Specific version)
Plug Size: 1.00Pin 3P

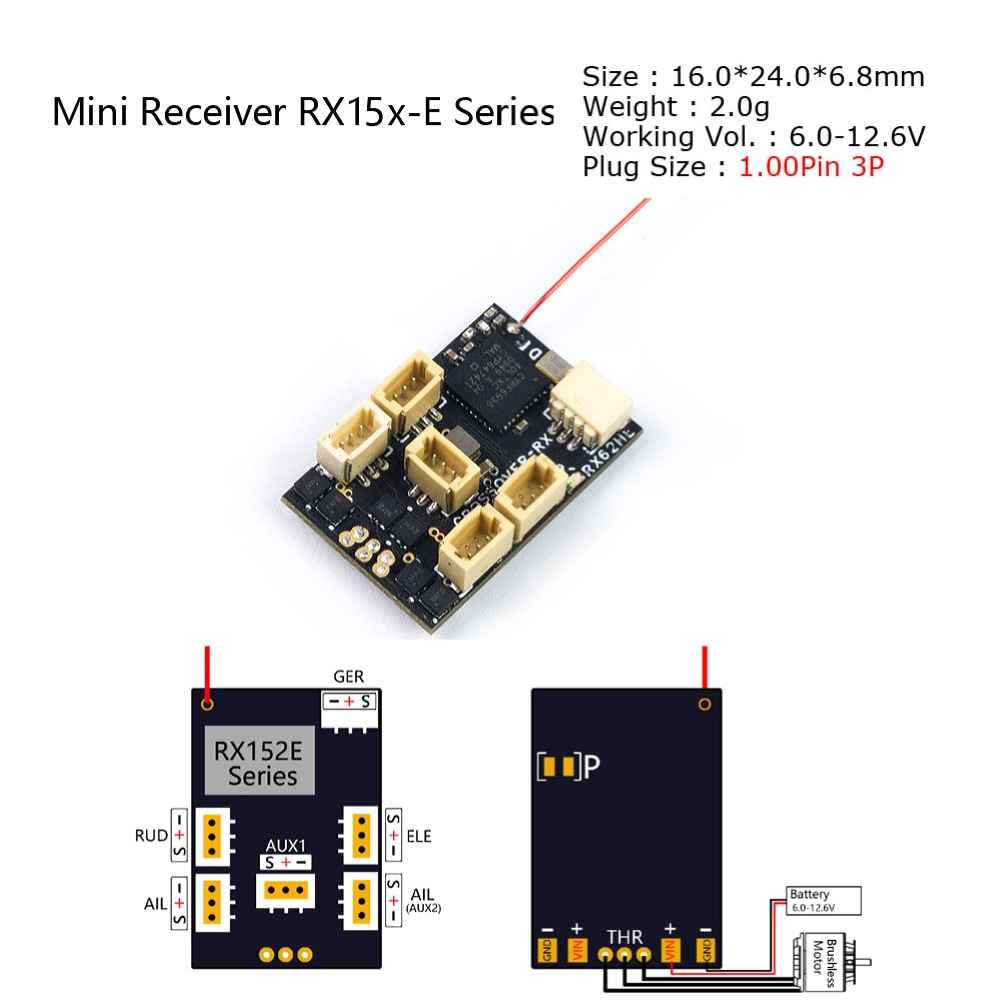

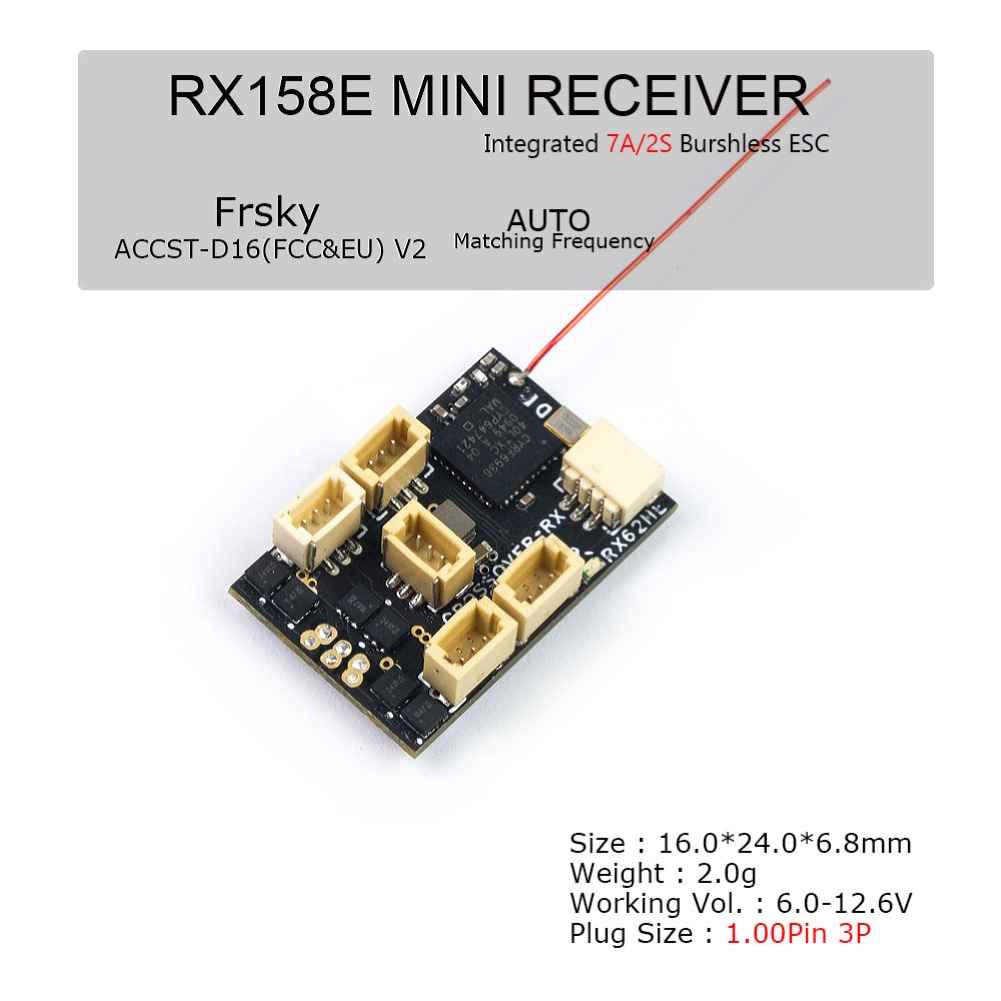

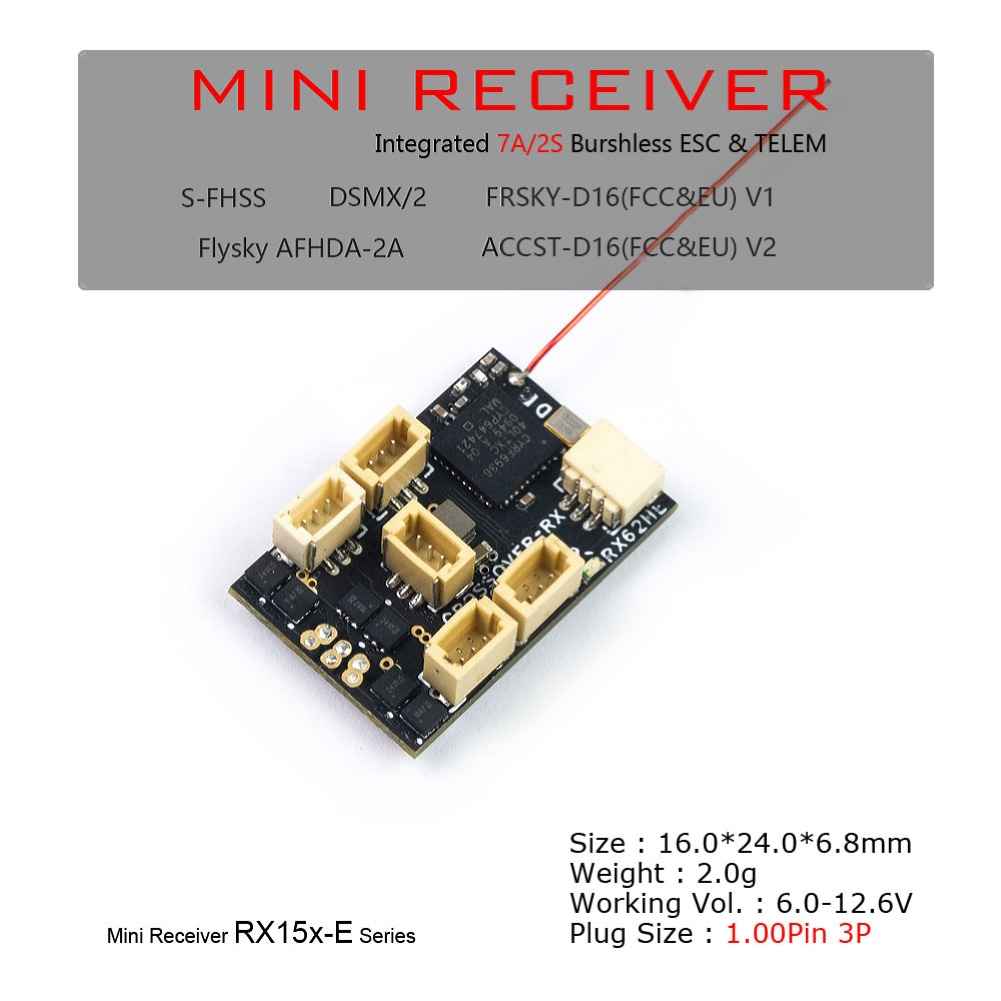

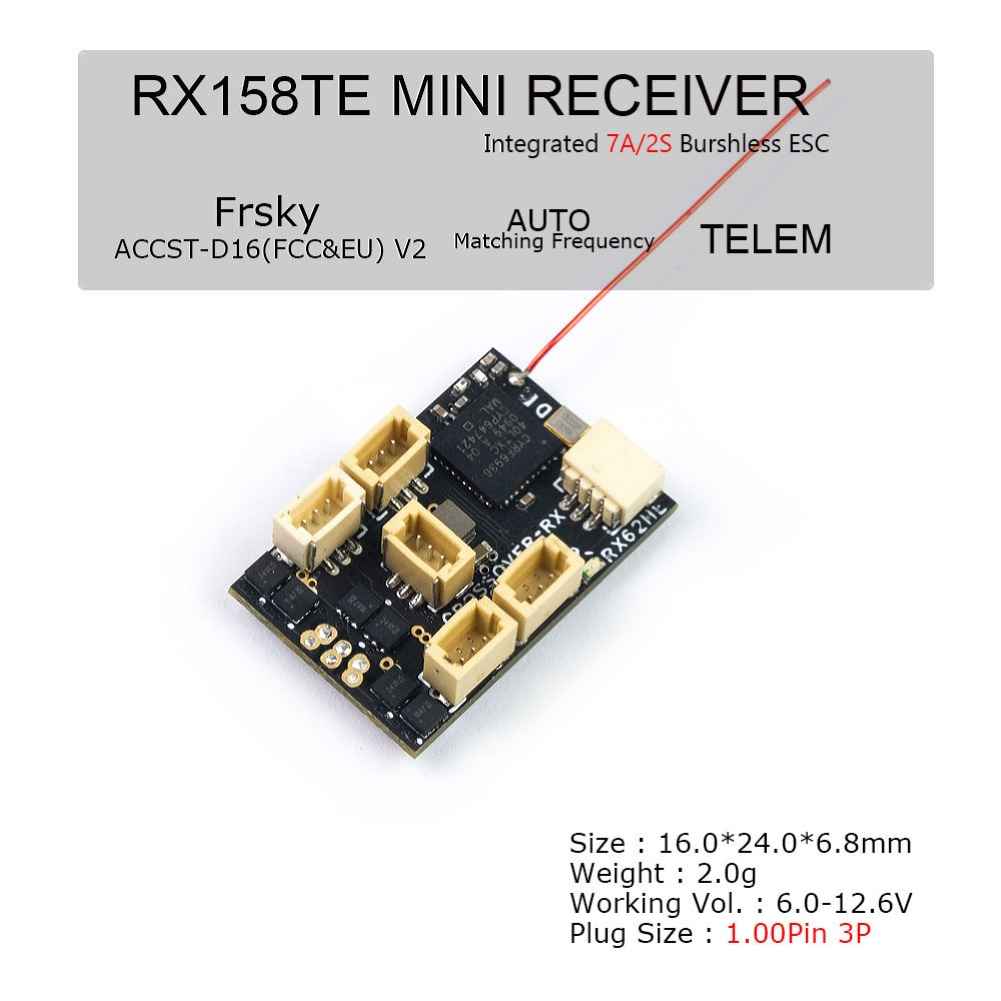

RX158-E/RX158-TE:
Size: 16.0*24.0*6.8mm
Weight: 2.0g(without wire)
Working Vol.: 6.0-12.6V
BEC: 3.9V buck circuit
Mode-1: Aileron double servo mode
Mode-2: 7A/2S Brushless ESC
Mode-3: automatic frequency matching
Mode-4: TELEM (Specific version)
Plug Size: 1.00Pin 3P

Package Included:
1 x AEORC Mini Receiver
