Amass AM-1015B Anti-Slip T Plug Connector Pair for RC Lipo Battery, Black, Male & Female
Price range: $7.00 through $31.60
- High-quality brass and gold-plated materials for superior conductivity
- PA insulation with UL94 V0 flame retardancy for enhanced safety
- Supports up to 25A/50A current with low internal resistance
- Suitable for temperatures from -20‵C to 120‵C
- Recommended for 1000 connection cycles with 12AWG cables
You May Also Like
Description

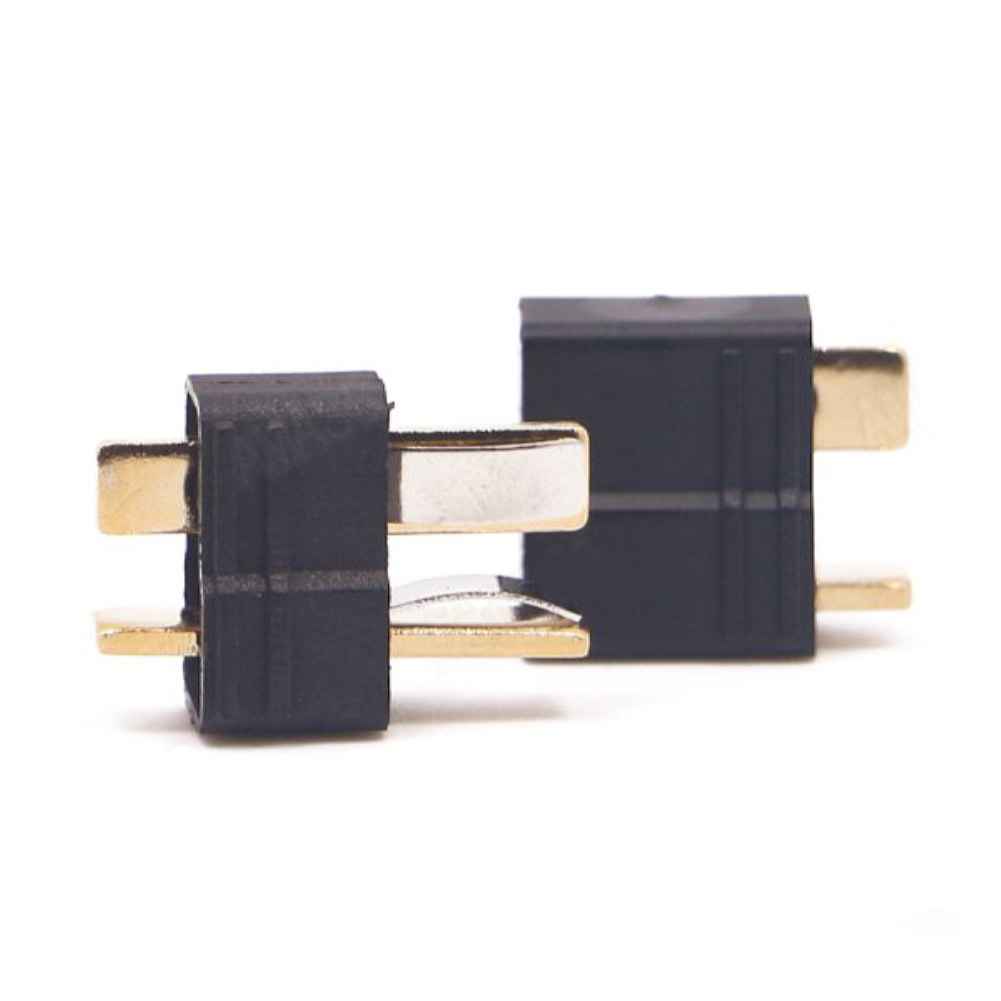

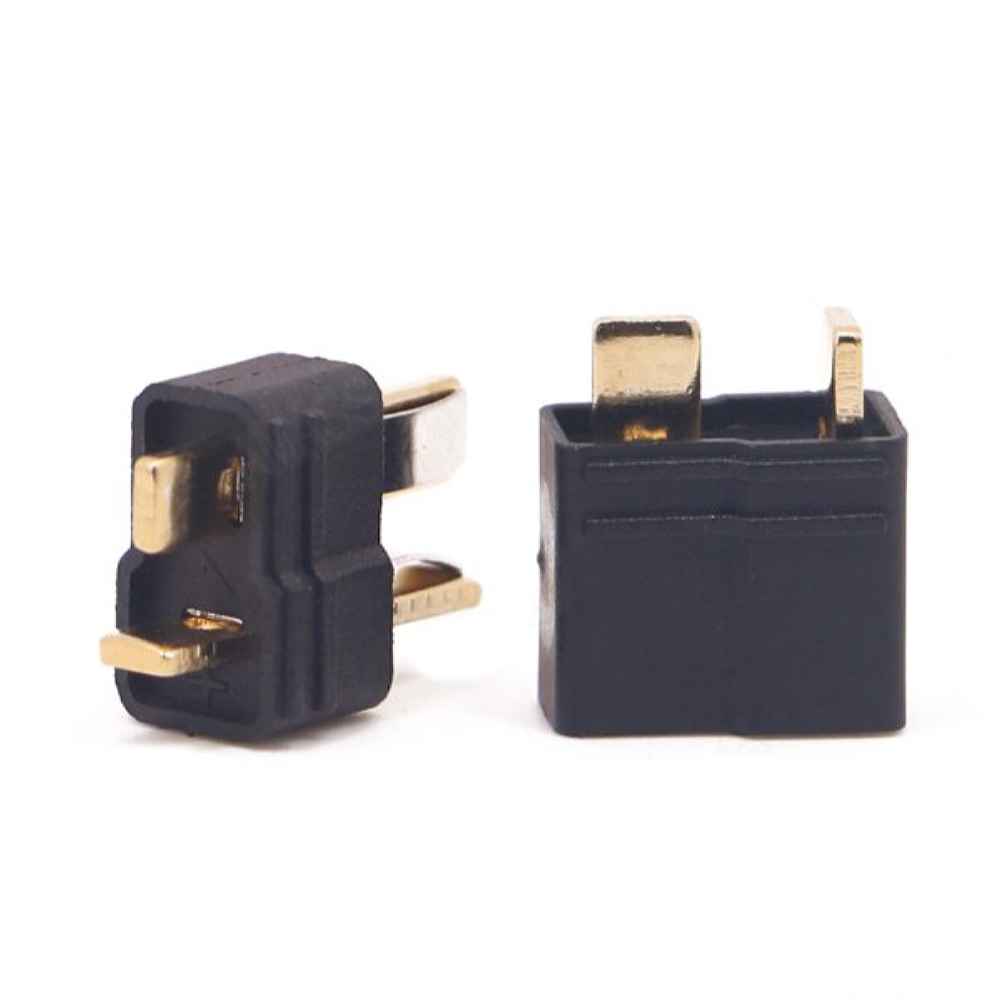

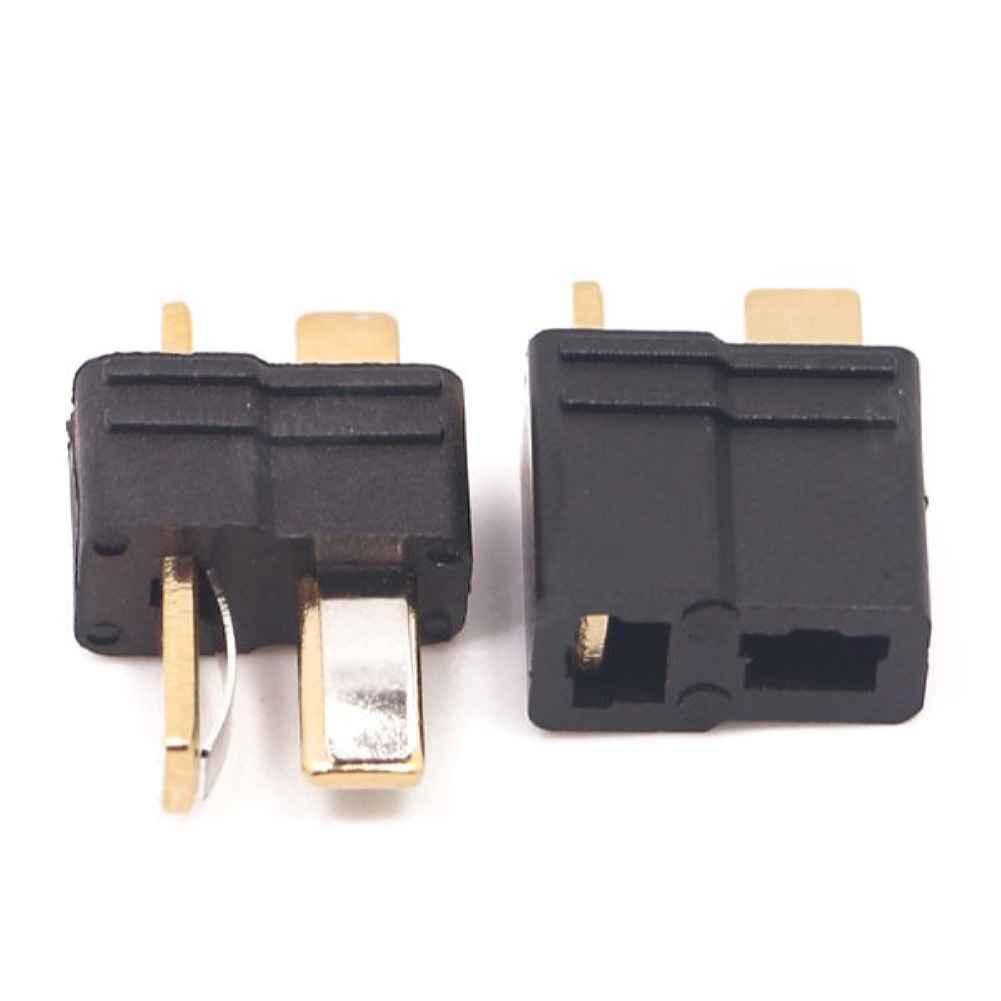

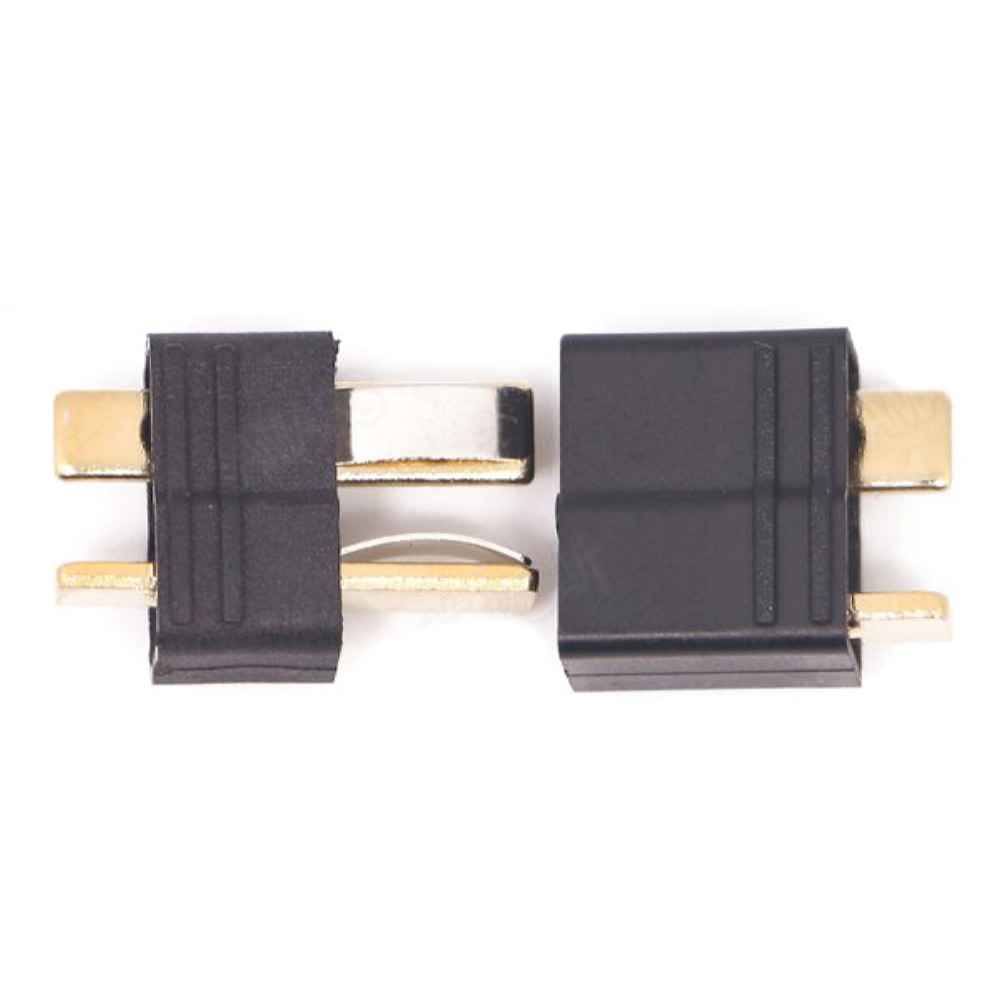

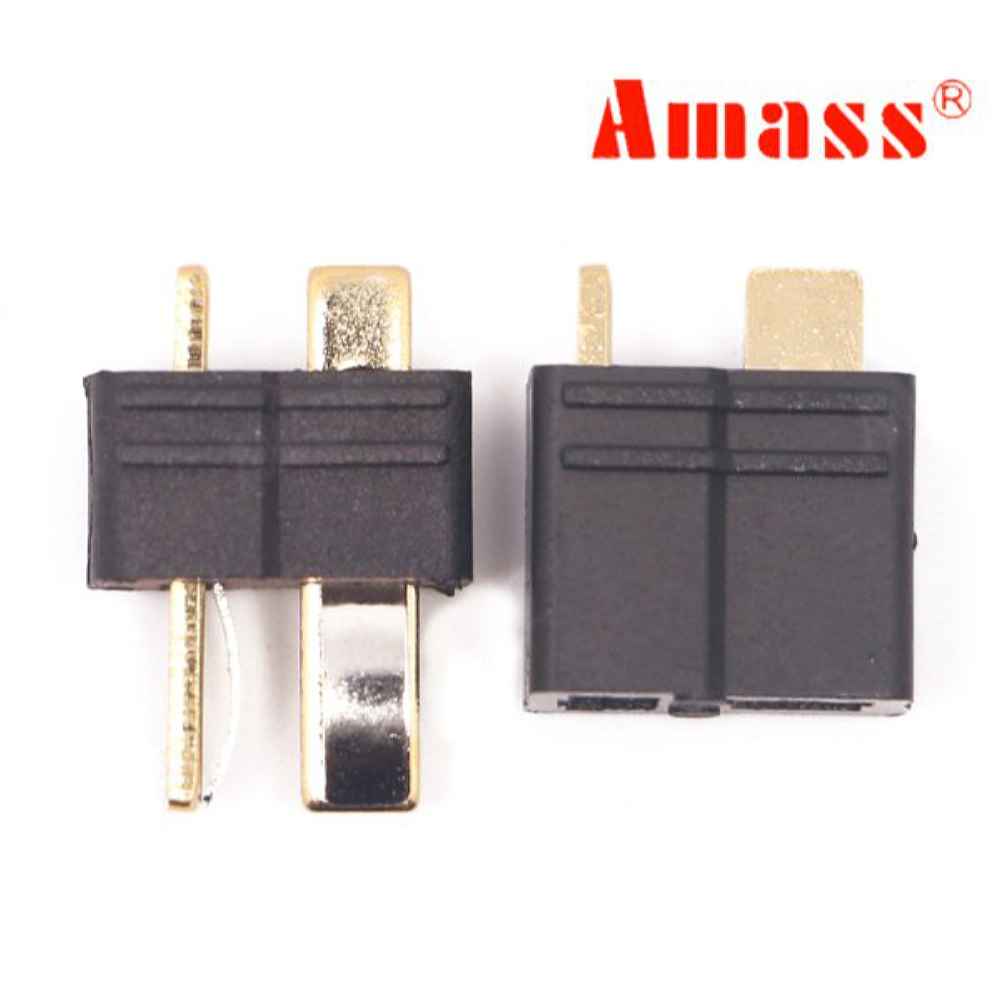

Amass AM-1015B Anti-Slip Black T Plug Connector Male & Female 1 Pair for RC Lipo Battery
The Amass AM-1015B Anti-Slip T Plug Connector is expertly designed for RC Lipo batteries, ensuring reliable and efficient connections. Constructed with brass and gold-plated materials, these connectors offer excellent conductivity and durability. The insulation is made from PA material, providing a high level of safety with a UL94 V0 flame retardancy rating. With a low internal resistance of 0.45m次, these connectors support a maximum current capacity of 25A/50A. They are suitable for use in a wide temperature range from -20～C to 120～C and are recommended for up to 1000 connection cycles. The suggested cable specification is 12AWG, ensuring optimal performance.
Description:Brand Name: AmassItem Name: AM-1015B T plug connectorBody Material: Brass and gold-platedInsulation Material: PAInternal Resistance: 0.45m棒Max. RC/MC: 25A/50AWeight: About 5g/pairTemperature Resistance: -20‵C~120‵CRecommend Use: 1000 timesFR Level: UL94 V0Recommend Cable Spec.: 12AWG
Package Included:

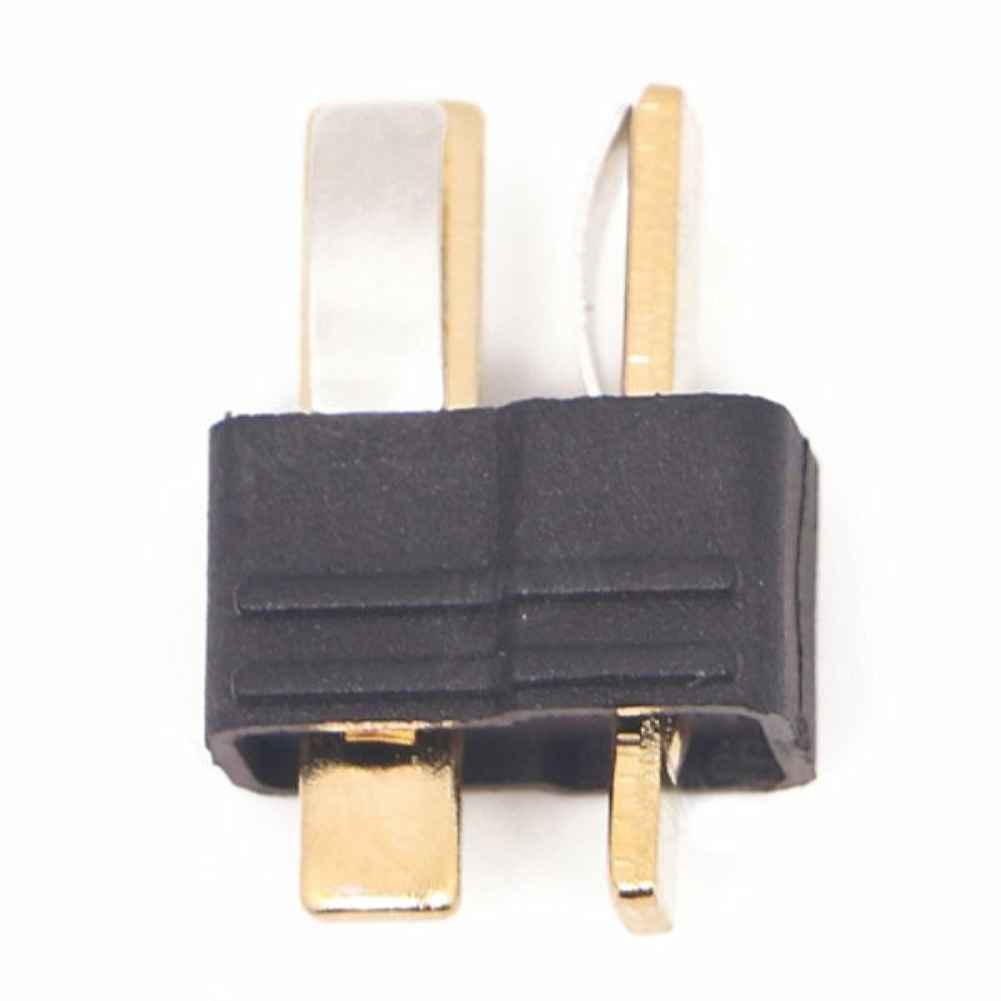

1 x Amass AM-1015B Male Connector

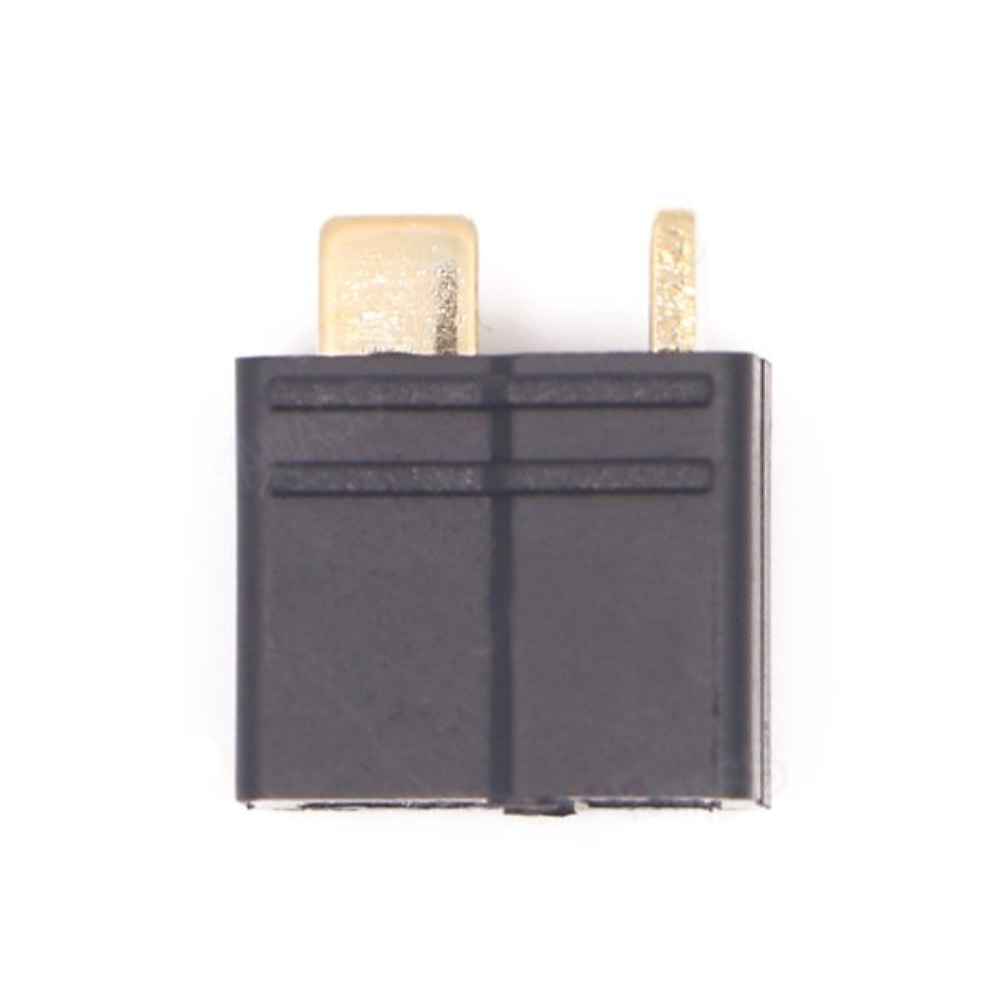

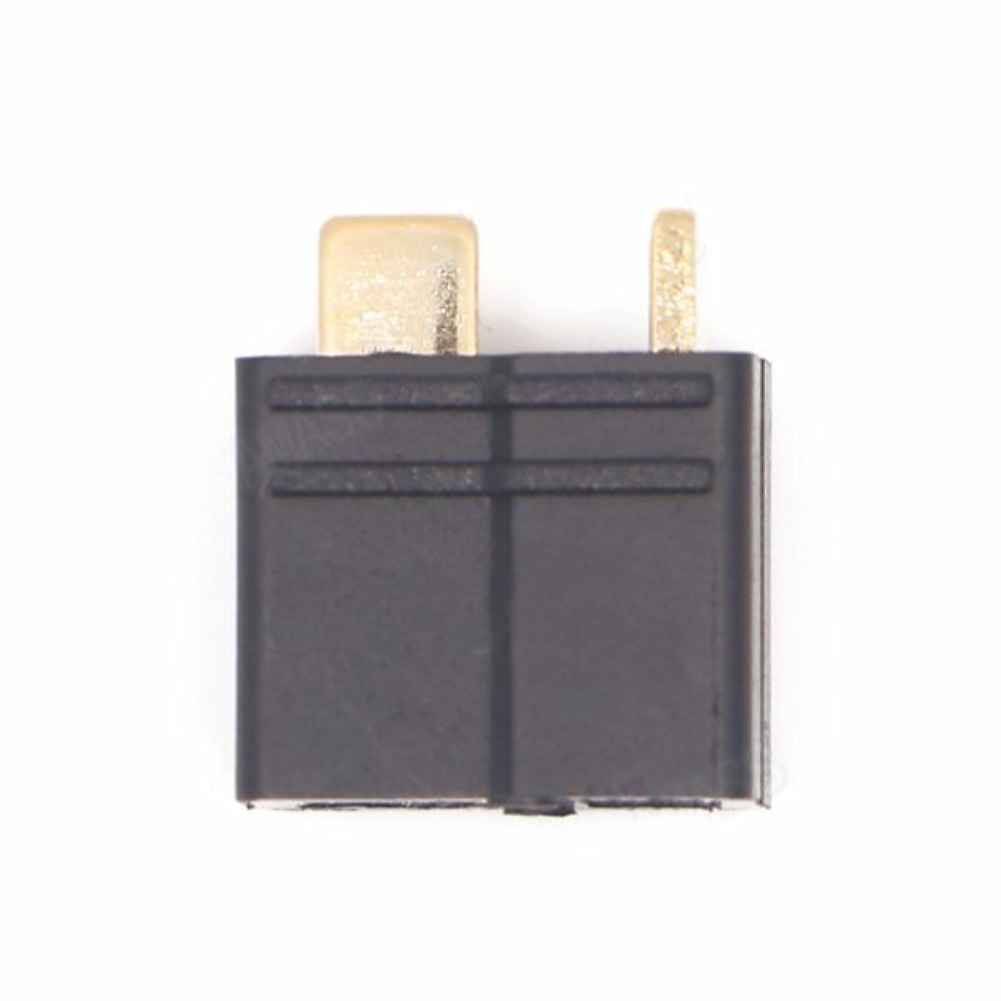

1 x Amass AM-1015B Female Connector
