BAYCK ELRS 2.4GHz 5CH PWM Receiver for FPV RC Drone and Fixed Wing Aircraft
Original price was: $20.00.$15.40Current price is: $15.40.
- Compatible with FPV RC drones and fixed-wing aircraft
- Features SX1281+ESP8285 chip for reliable performance
- Supports PWM and CRSF output protocols
- Lightweight design at 4.7g with antenna
- Operates on 4-10V input voltage
You May Also Like
Description

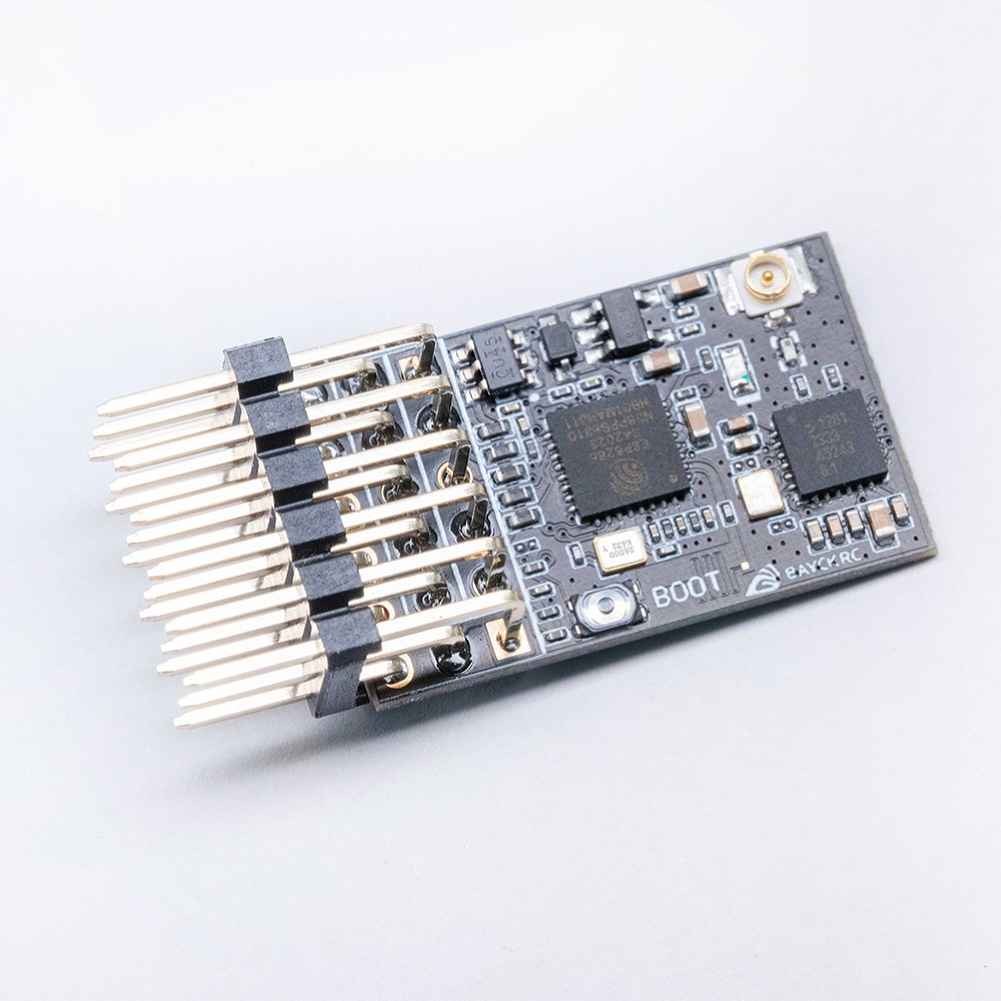

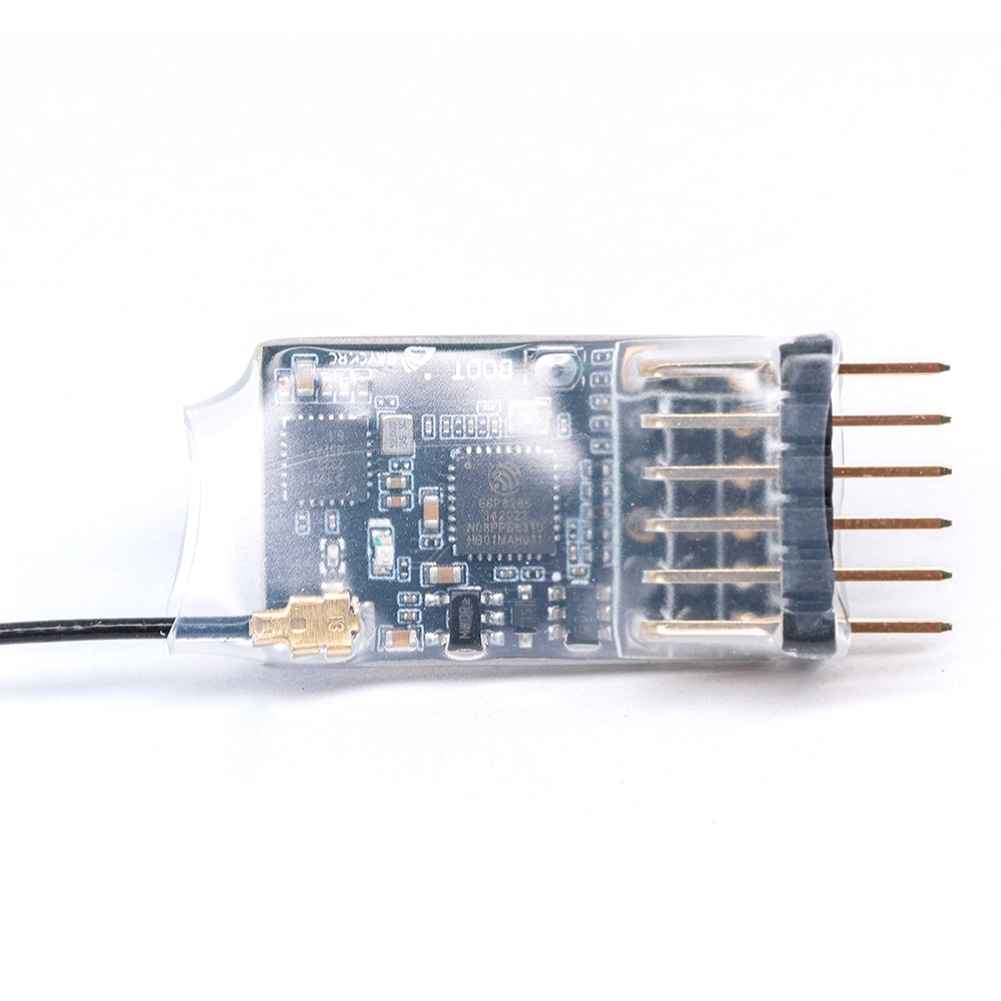

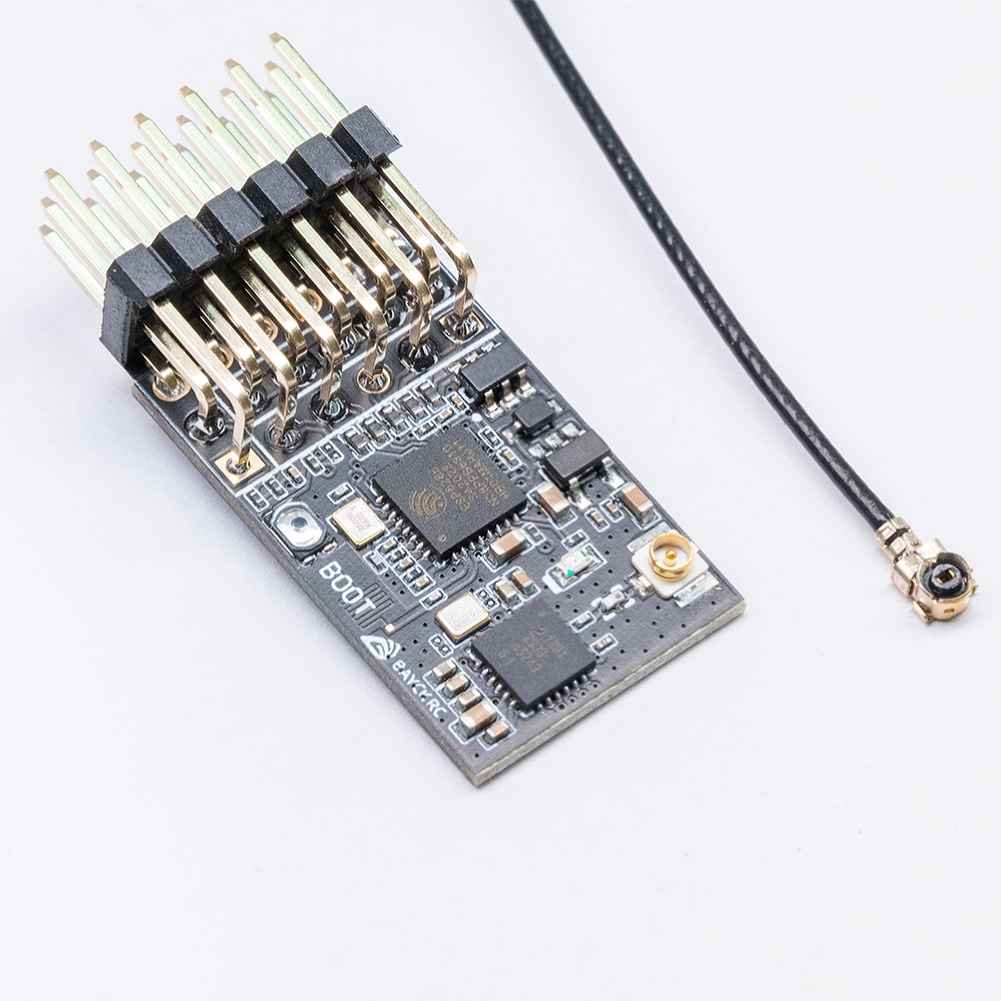

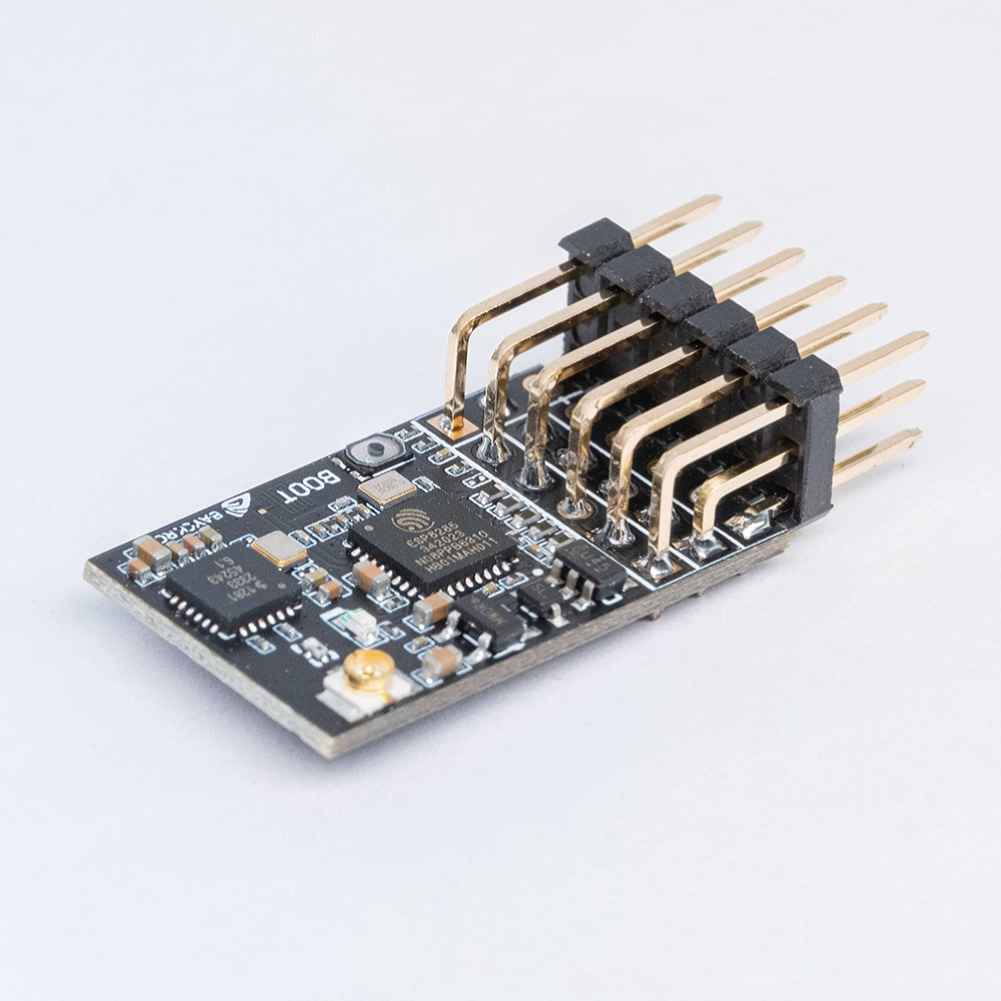

BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone
The BAYCK ELRS 2.4GHz 5CH PWM Receiver is designed for FPV RC drones and fixed-wing aircraft, offering reliable performance with a frequency of 2.4GHz. This receiver, model BK-2.4G-5CH, features a SX1281+ESP8285 chip and supports both PWM and CRSF output protocols. It operates with a telemetry power of 12dbm and supports a maximum voltage of 34V backhaul with firmware version 3.0.0 or above. The receiver is lightweight at 4.7g, including the antenna, and has a compact PCB size of 15.5mm x 25.5mm. It operates efficiently with a power consumption of 45mA in a connected state and 85mA during WIFI upgrades.
BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone
Specification:
Brand: BAYCK
Model: BK-2.4G-5CH
Frequency: 2.4Ghz
Chip: SX1281+ESP8285
Telemetry power: 12dbm
PCB color: black
RF connector: IPEX1
Input voltage: 4-10V

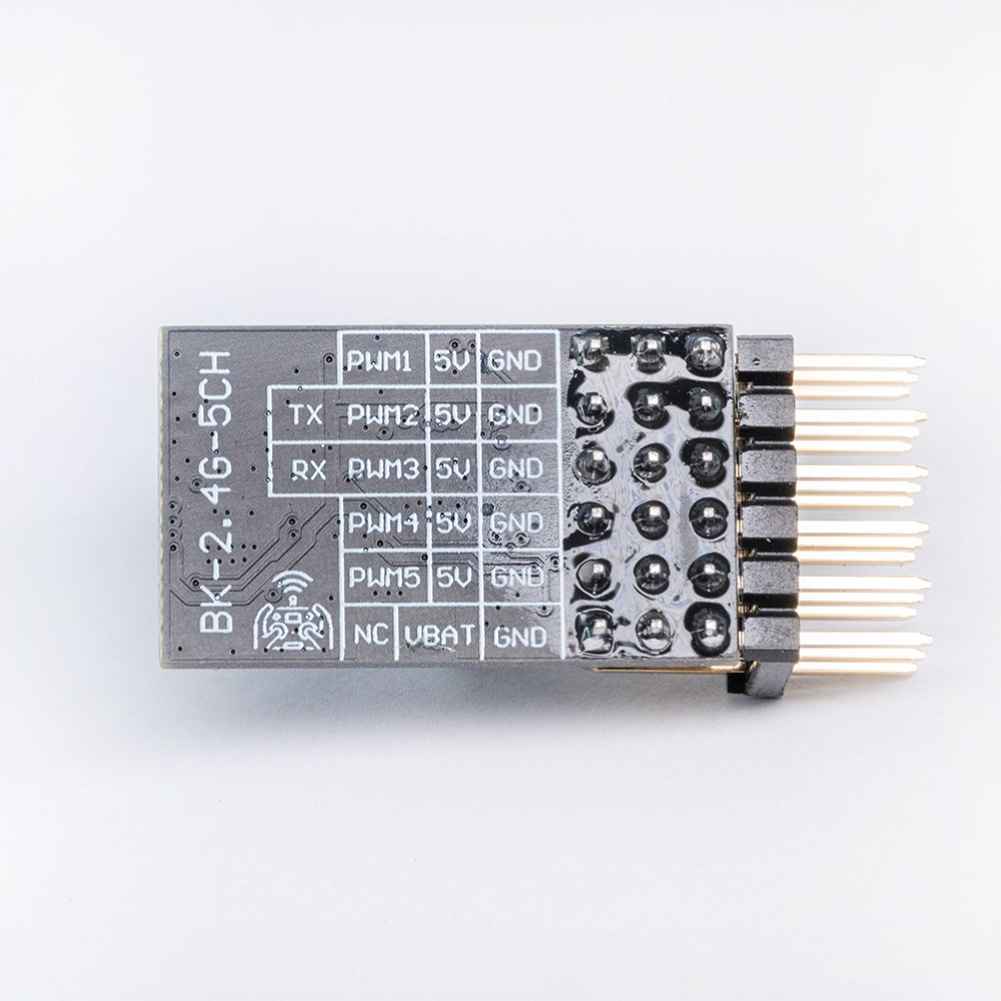

PWM channel: 5 channels
Supports a maximum voltage of 34V backhaul (requires firmware version 3.0.0 and above)
Receiver output protocol: PWM or CRSF
Power consumption: 45mA@5V (connected state), 85mA@5V (WIFI upgrade state)
Weight: 4.7g (receiver plus antenna)

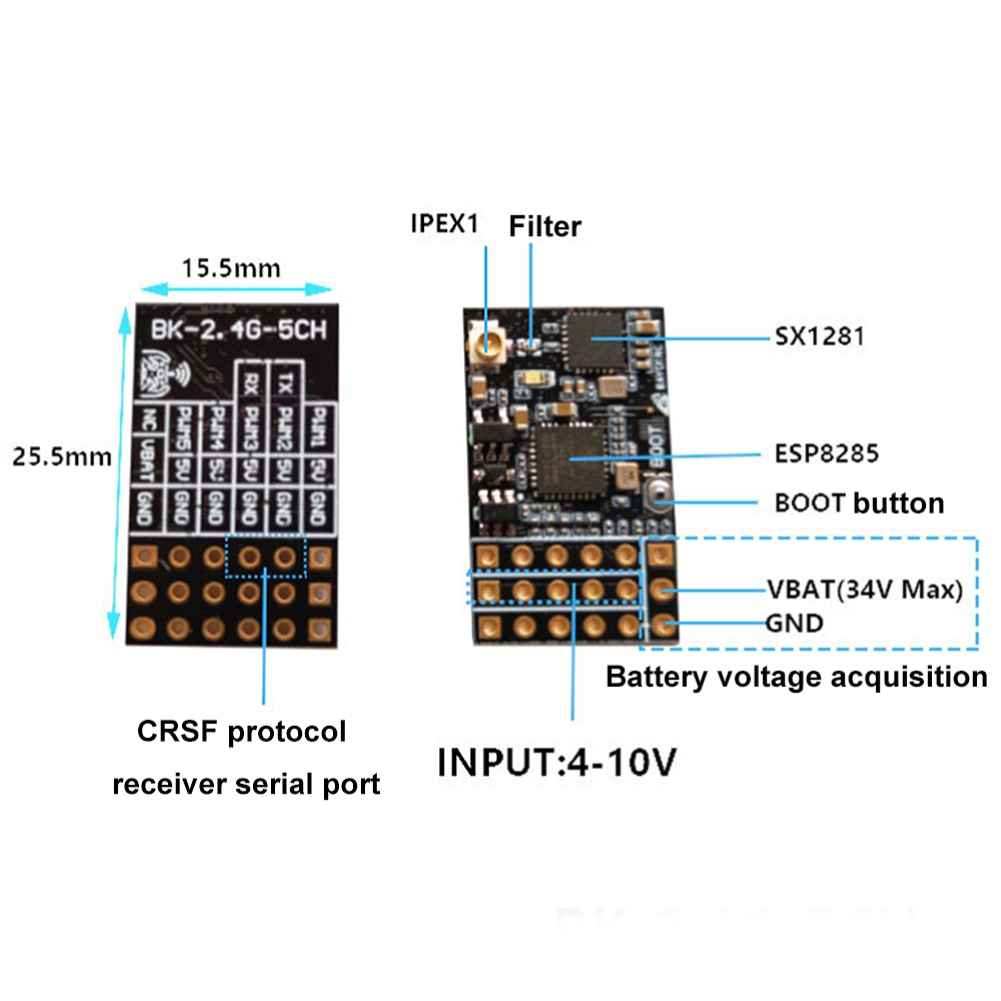

PCB size: 15.5mm*25.5mm
Package Included:

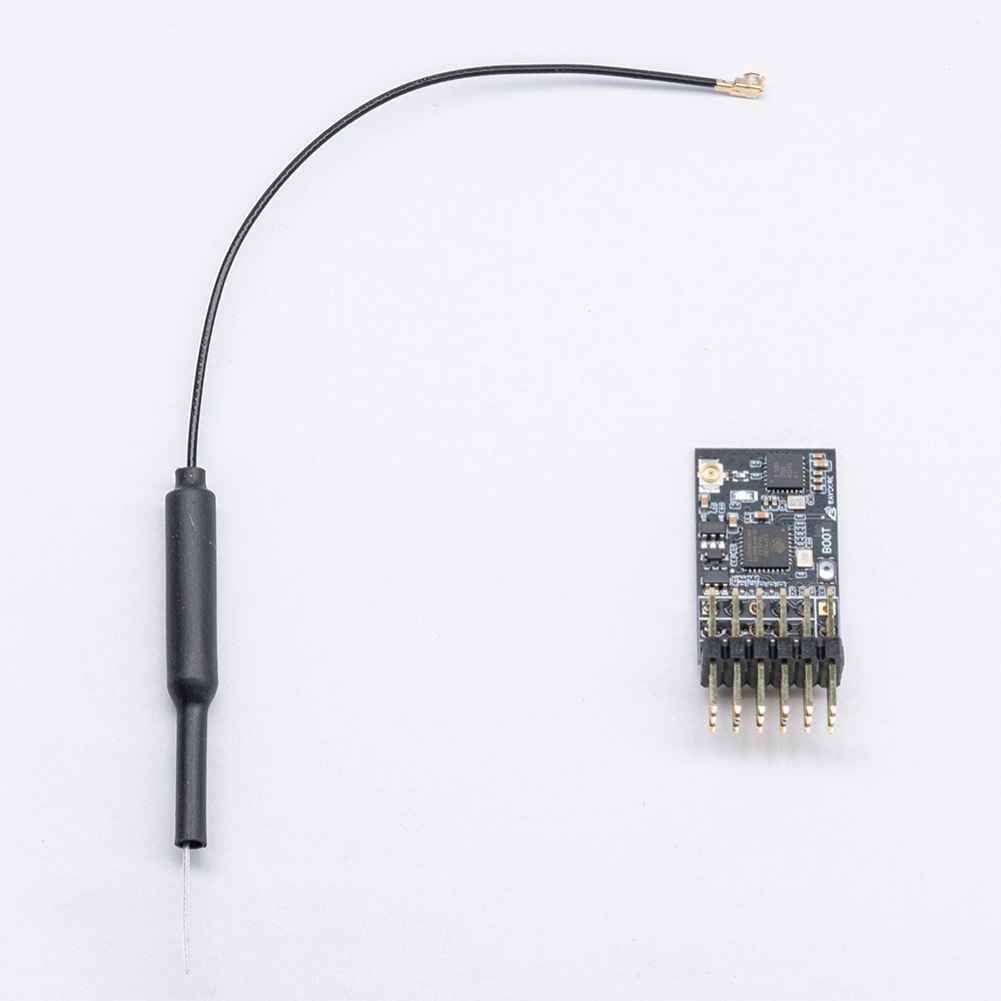

1x Nano Receiver
1x Antenna
