BAYCK ExpressLRS 2.4GHz/915MHz Nano Receiver with T Type Antenna for FPV Racer Drone
Price range: $15.38 through $17.88
- Dual RF frequencies: 2.4GHz and 915MHz
- ESP8285 MCU chip for reliable performance
- Minimum refresh rate of 25Hz, maximum 500Hz
- Compact size: 11mm x 18mm x 3mm
- Lightweight design: 4g and 6g options
You May Also Like
Description
BAYCK ExpressLRS ELRS 2.4GHz/915MHz Nano Receiver T Type Antenna for FPV Racer Drone

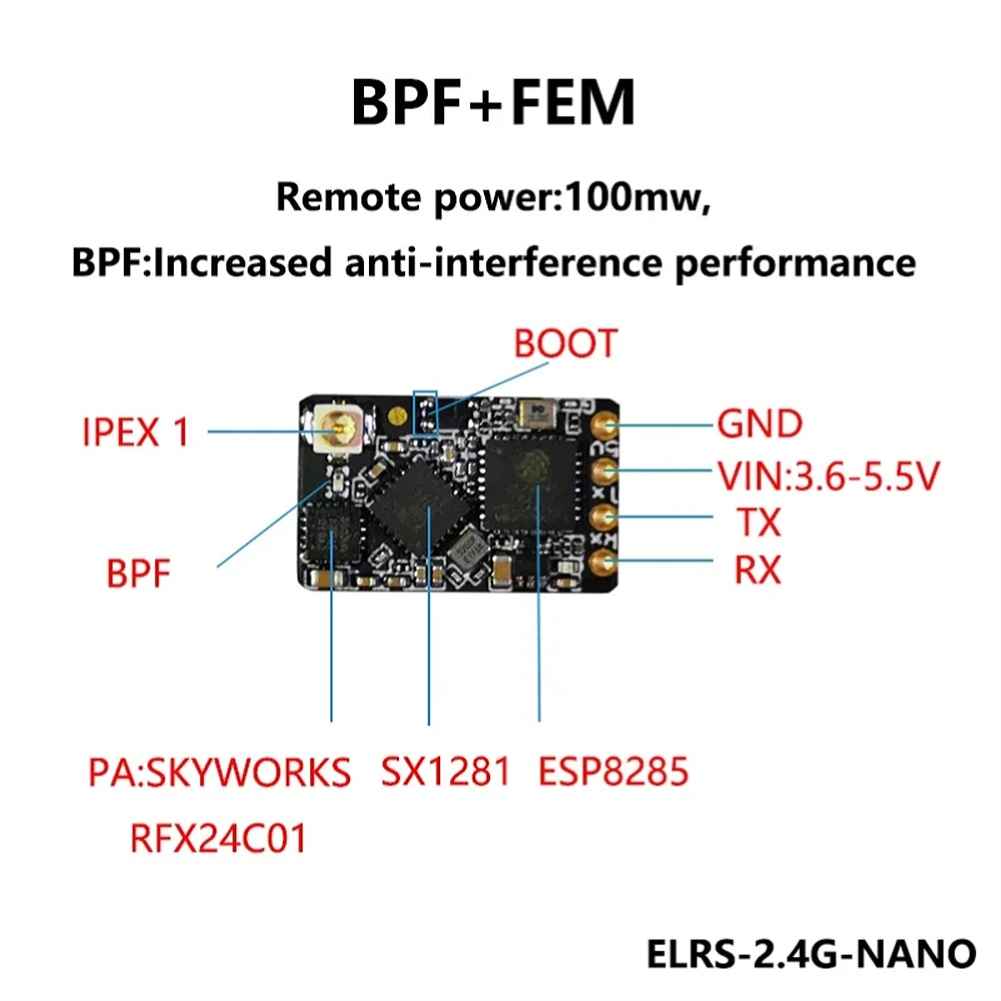

The BAYCK ExpressLRS Nano Receiver is designed for FPV racer drones, offering dual RF frequencies of 2.4GHz and 915MHz. Featuring the ESP8285 MCU chip and SX1281/SX1276 IC, this receiver ensures efficient performance with a minimum refresh rate of 25Hz and a maximum of 500Hz. Available in black and blue, the receiver is lightweight at 4g and 6g respectively, and compact in size at 11mm x 18mm x 3mm. It supports an input voltage of 3.6-5.5V and comes with an IPEX 1 connector. The firmware versions are BETAFPV Nano 2400 RX 2.2.0 and BETAFPV 900 RX 2.2.0, providing reliable performance for your drone racing needs.
BAYCK ExpressLRS ELRS 2.4GHz/915MHz Nano Receiver T Type Antenna for FPV Racer Drone
Specification:
Brand: BAYCK
Model: ELRS 2.4G NANO
RF Frequency: 2.4 GHz
IC: SX1281
Chip: ESP8285 MCU
Minimum Refresh Rate: 25Hz
Maximum Refresh Rate: 500Hz
Color: Black
Connector: IPEX 1
Antenna Type: Long Antenna / Short Antenna
Input Voltage: 3.6-5.5V
Weight: 4g (only the receiver)

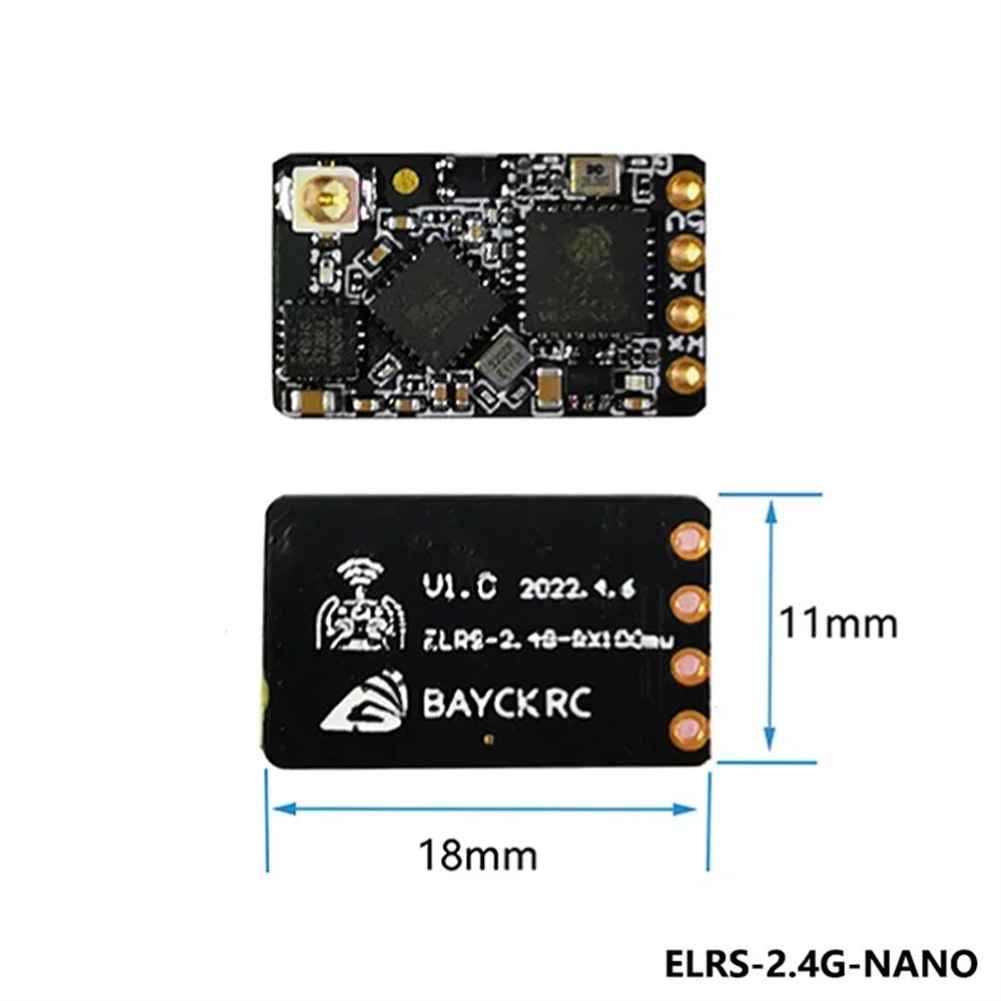

Size: 11mm * 18mm * 3mm
Firmware: BETAFPV Nano 2400 RX 2.2.0

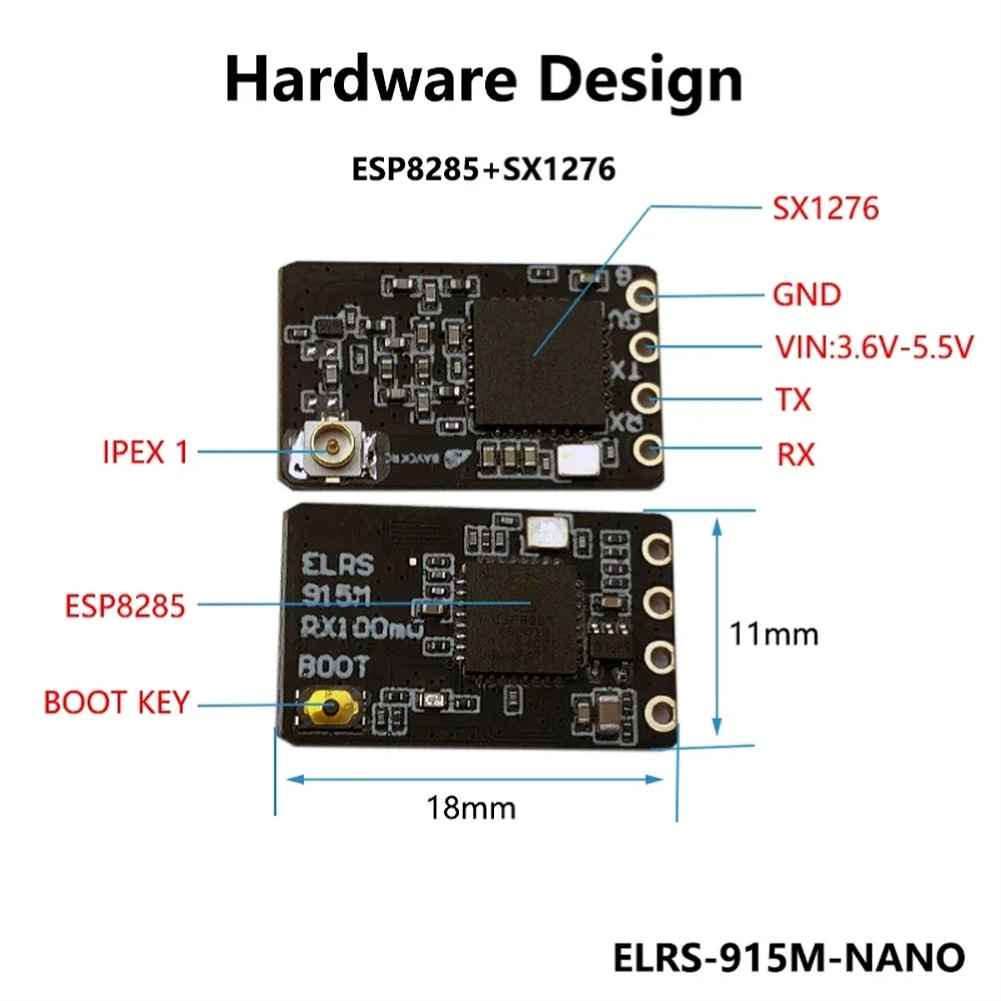

Model: ELRS 915M NANO
RF Frequency: 915MHz
Chip: ESP8285 MCU
IC: SX1276
Minimum Refresh Rate: 25Hz
Maximum Refresh Rate: 500Hz
Color: Blue
Connector: IPEX 1
Input Power: 3.6-5.5V
Weight: 6g (only receiver)
Size: 11mm * 18mm * 3mm
Firmware: BETAFPV 900 RX 2.2.0

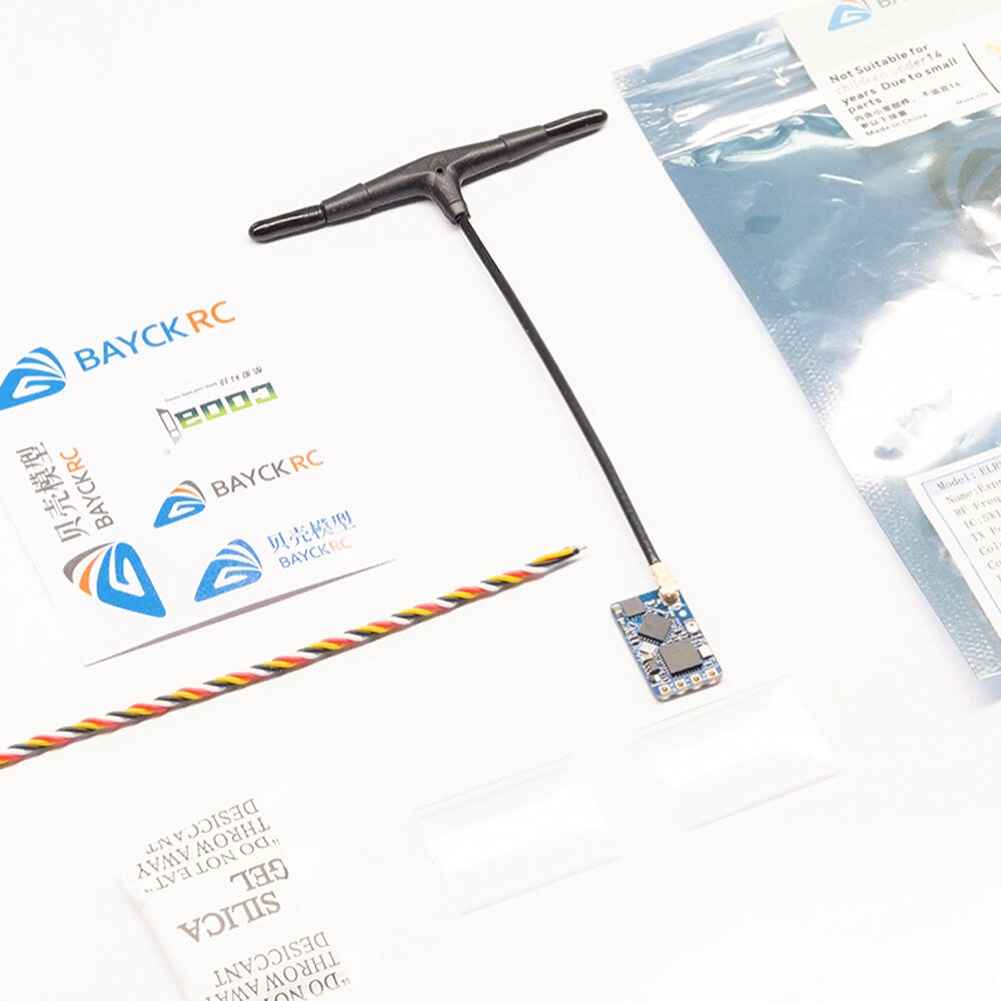

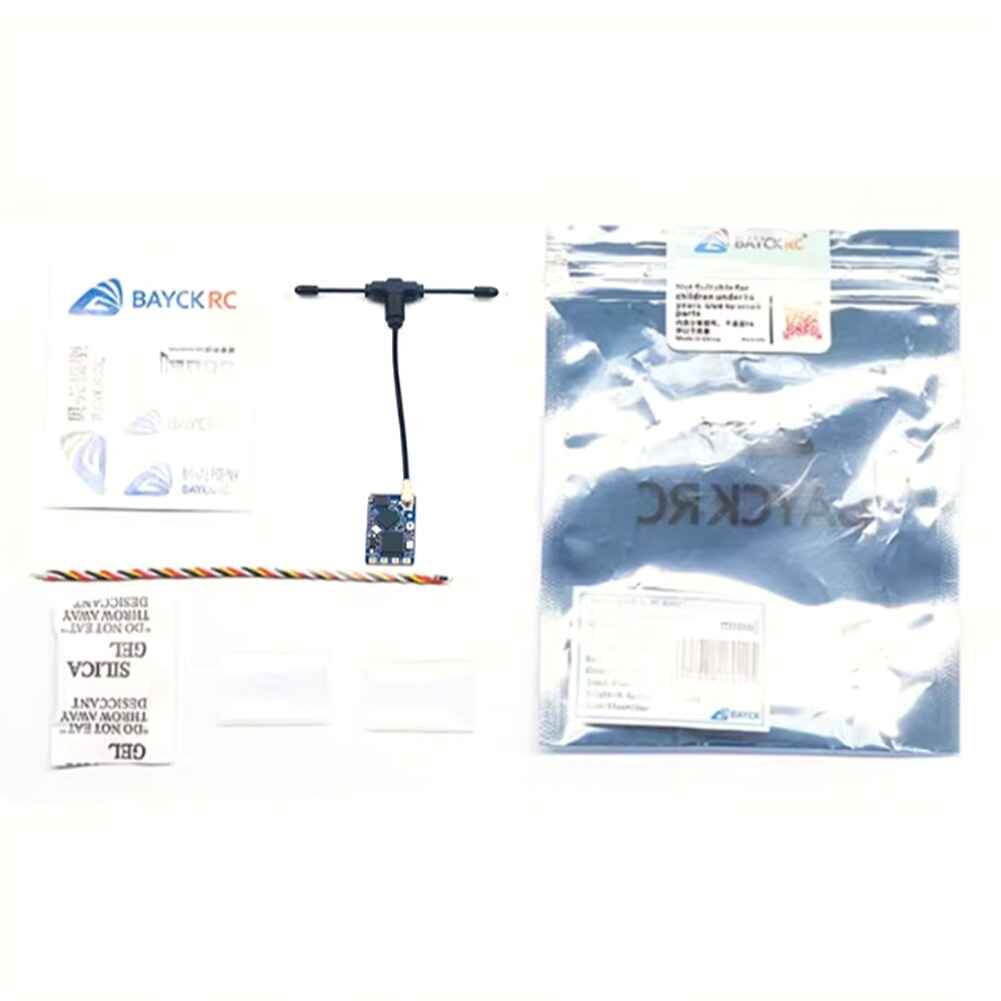

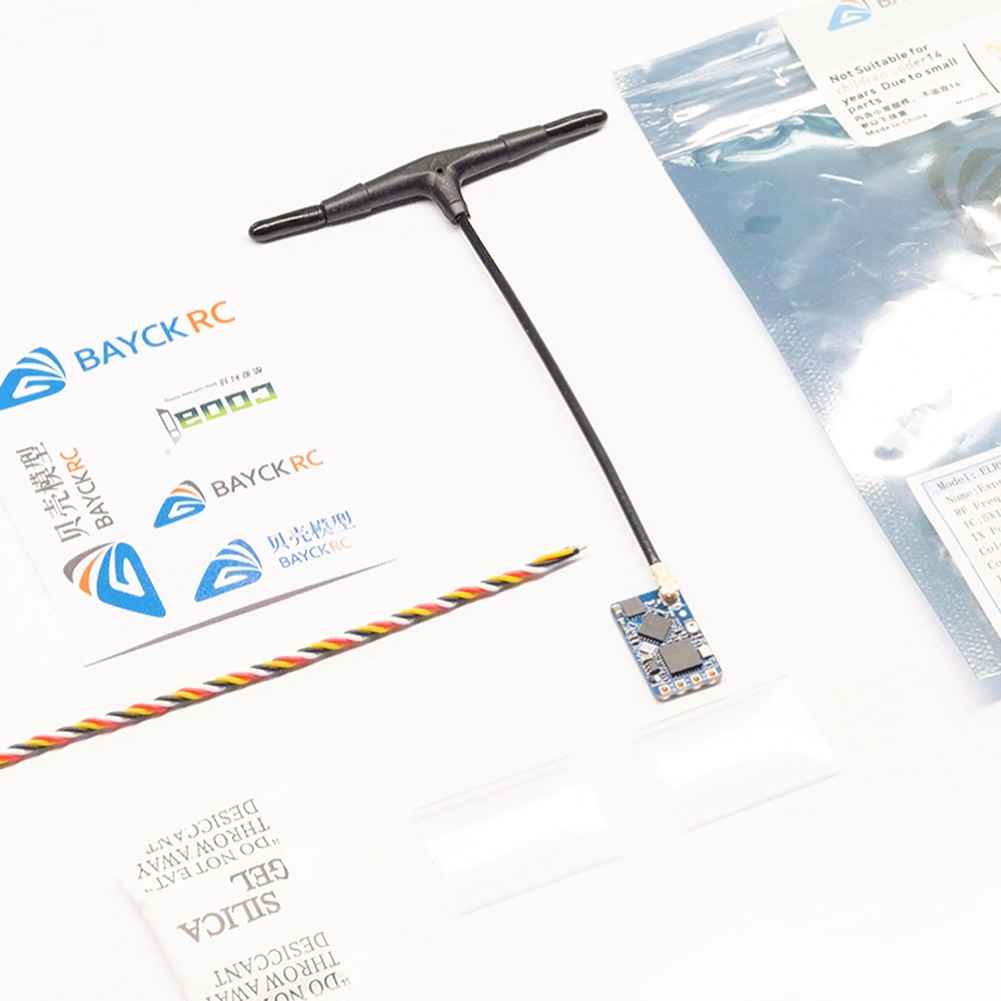

Package Included:
1 x BAYCK ELRS 2.4GHz/915MHz Nano Receiver
