BAYCKRC 900/2400 Dual Band Gemini RX ExpressLRS Receiver for FPV Drones, 900MHz/2.4GHz, LR1121 Transceiver
Price range: $47.98 through $53.38
- Dual Band 900MHz/2.4GHz compatibility
- LR1121 transceiver with +100mW output
- Supports sub-GHz and 2.4GHz LoRa modes
- Lightweight at 1.8g without antenna
- Compatible with ELRS433/868/900 ranges
You May Also Like
Description

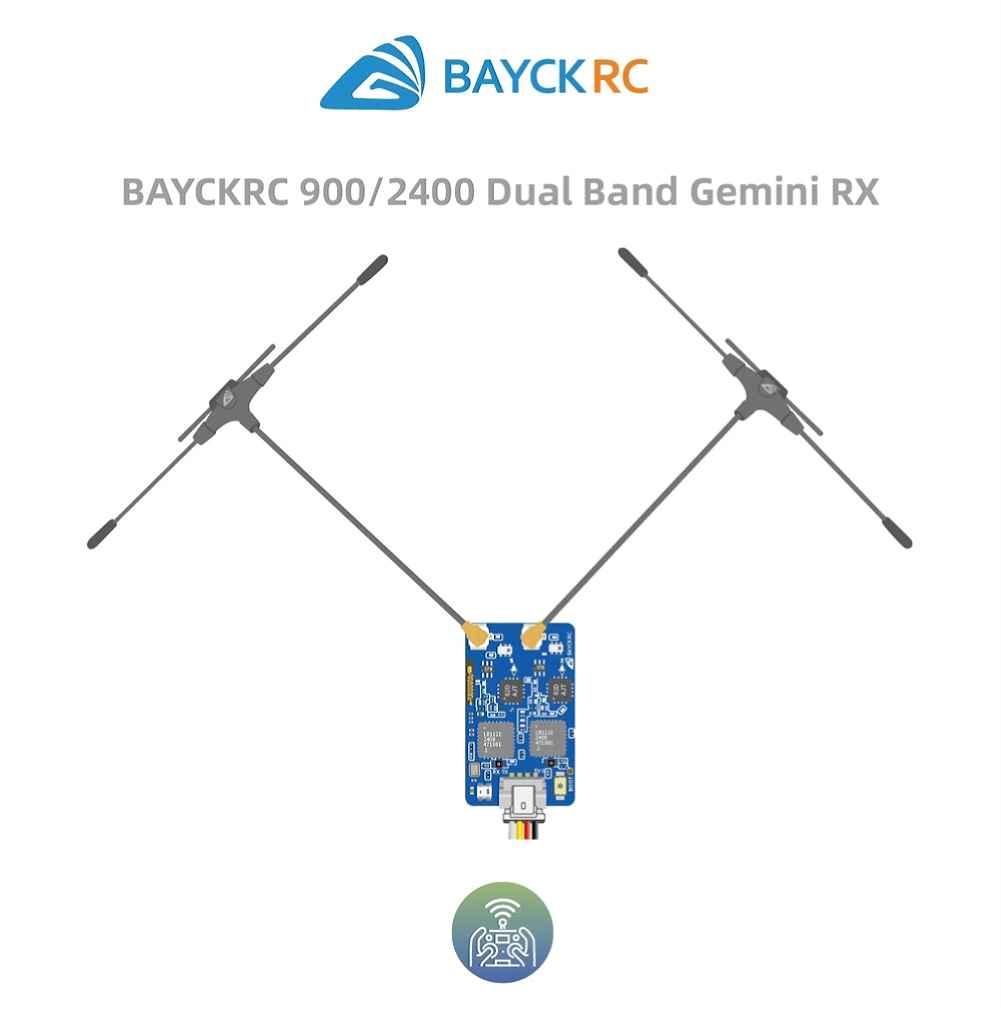

BAYCKRC 900/2400 900MHz/2.4GHz Dual Band Gemini RX ExpressLRS Receiver for FPV Racer Drone
The BAYCKRC 900/2400 Dual Band Gemini RX ExpressLRS Receiver is a high-performance wireless remote control system designed for FPV racer drones. Developed from the ExpressLRS open-source project, it features the LR1121 transceiver, supporting both 900MHz and 2.4GHz frequencies. This receiver offers a +100mW output capability, compatible with ELRS433/868/900 ranges and 2.4GHz LoRa modes. However, it does not support FLRC mode or 2.4GHz D and F modes. With an input power range of 3.6V-5.5V and a lightweight design of just 1.8g, it includes T-Type RF antennas and IPEX 1 connectors, making it an ideal choice for advanced drone enthusiasts.
BAYCKRC 900/2400 900MHz/2.4GHz Dual Band Gemini RX ExpressLRS Receiver for FPV Racer Drone
Description:

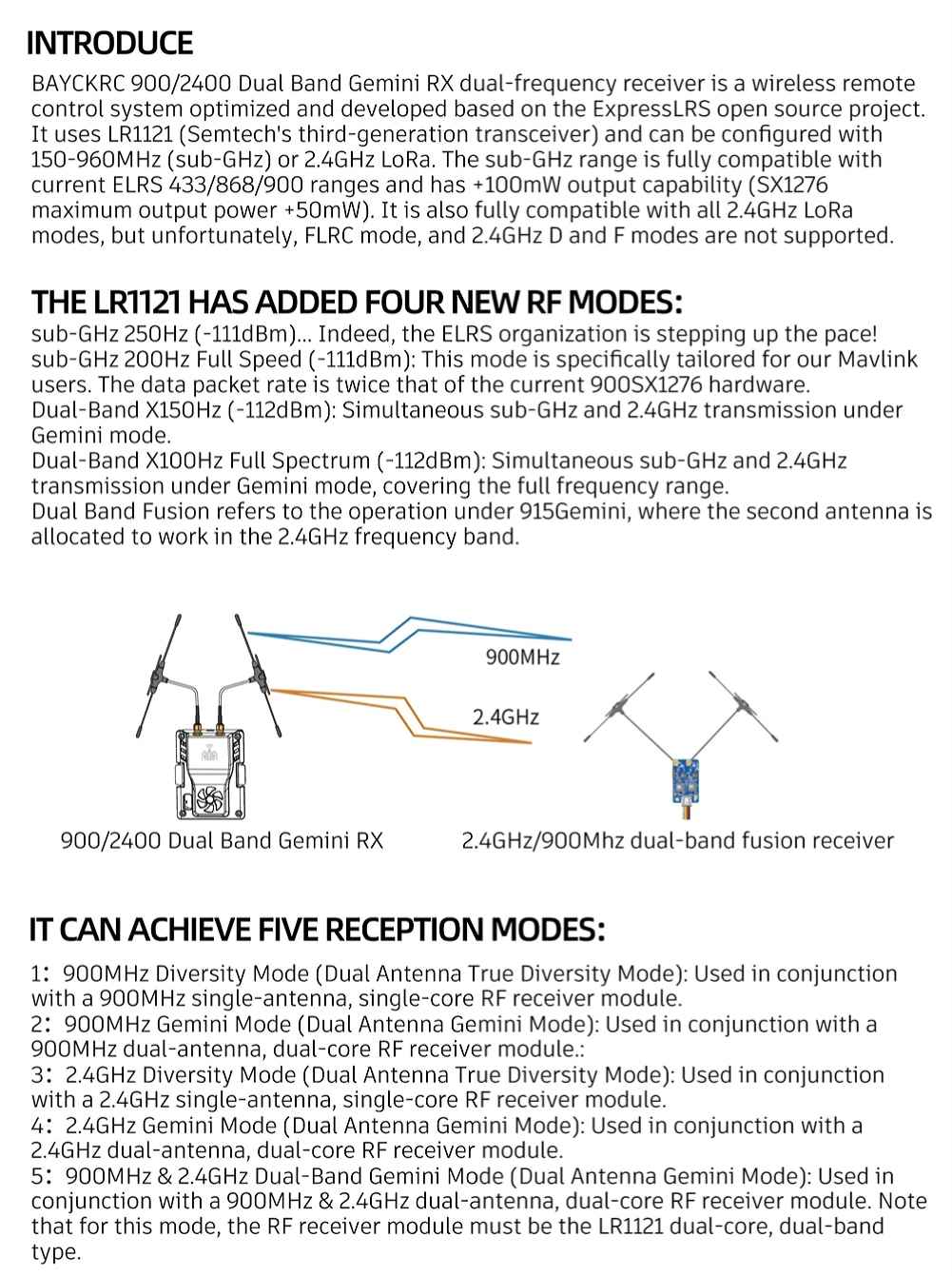

BAYCKRC 900/2400 Dual Band Gemini RX dual-frequency receiver is a wireless remote control system optimized and developed based on the ExpressLRS open source project. It uses LR1121 (Semtech’s third-generation transceiver) and can be configured with 150-960MHz (sub-GHz) or 2.4GHz LoRa. The sub-GHz range is fully compatible with the current ELRS433/868/900 range and has a +100mW output capability (SX1276 maximum output power +50mW). It is also fully compatible with all 2.4GHz LoRa modes, but unfortunately, does not support FLRC mode, and 2.4GHz D and F modes.

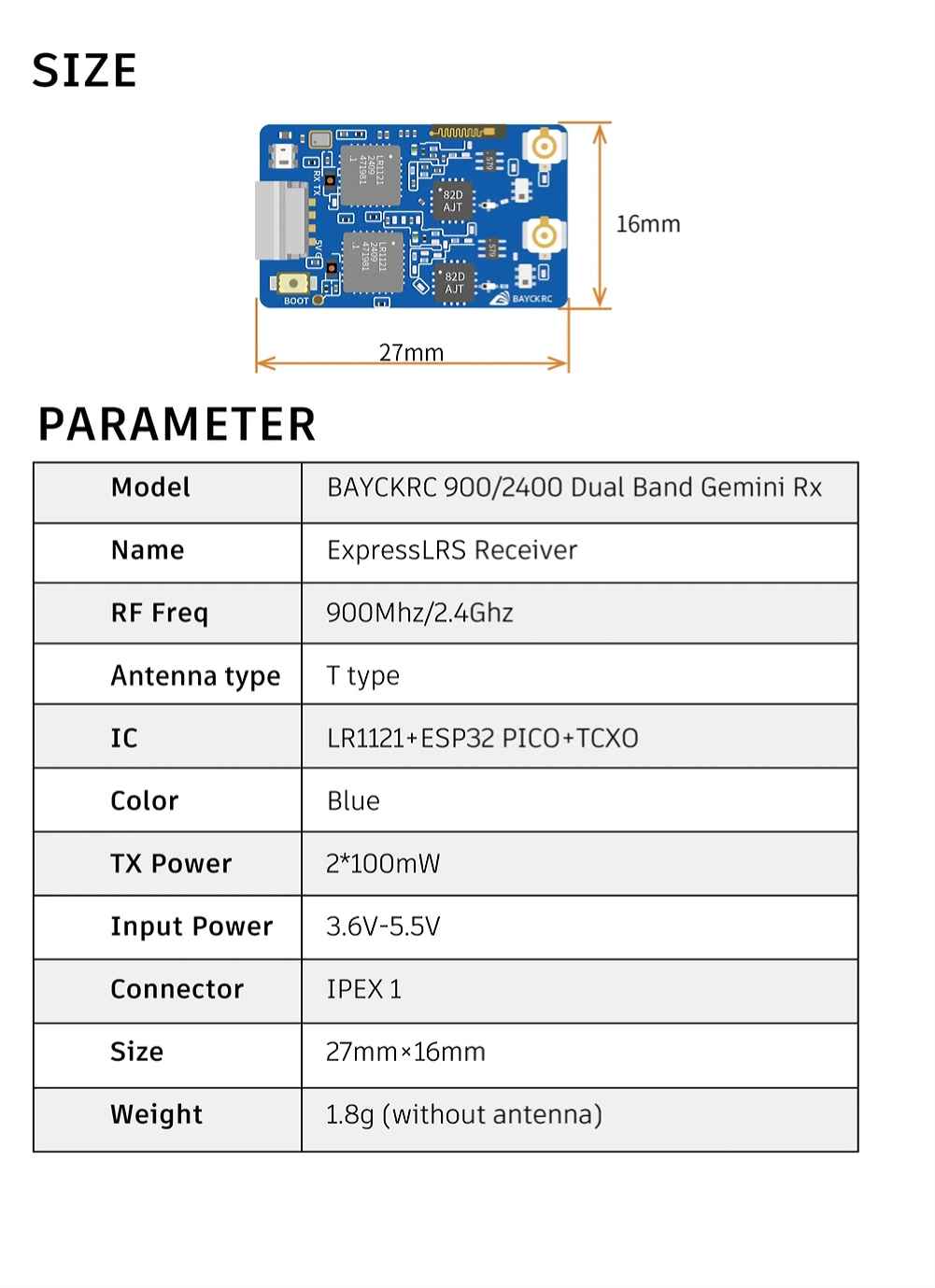

Specification:
Model: BAYCKRC 900/2400 Dual Band Gemini RX
Name: ExpressLRS Receiver
Antenna Feeder Length券80mm/120mm
Freq: 900Mhz/2.4GhzRF
Antenna Type: T Type
IC: LR1121+ESP32 PICO+TCXO
TX Power: 2*100mW
Color/PCB: Blue
Connector: IPEX 1
Input Power: 3.6V-5.5V
Weight: 1.8g(without antenna)
Size: 27mm*16mm
Package Included:
2x 80mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
2x 120mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
1x 80mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
1x 120mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
