BAYCKRC C3 Dual Band 915MHz/2.4GHz 1W Gemini Transmitter RF Module for FPV Racing Drone, Single Antenna Nano Bay

Description

BAYCKRC C3 915Mhz/2.4GHz Dual Band 1W Gemini Transmitter RF Module Single Antenna Nano Bay for FPV Racing Drone

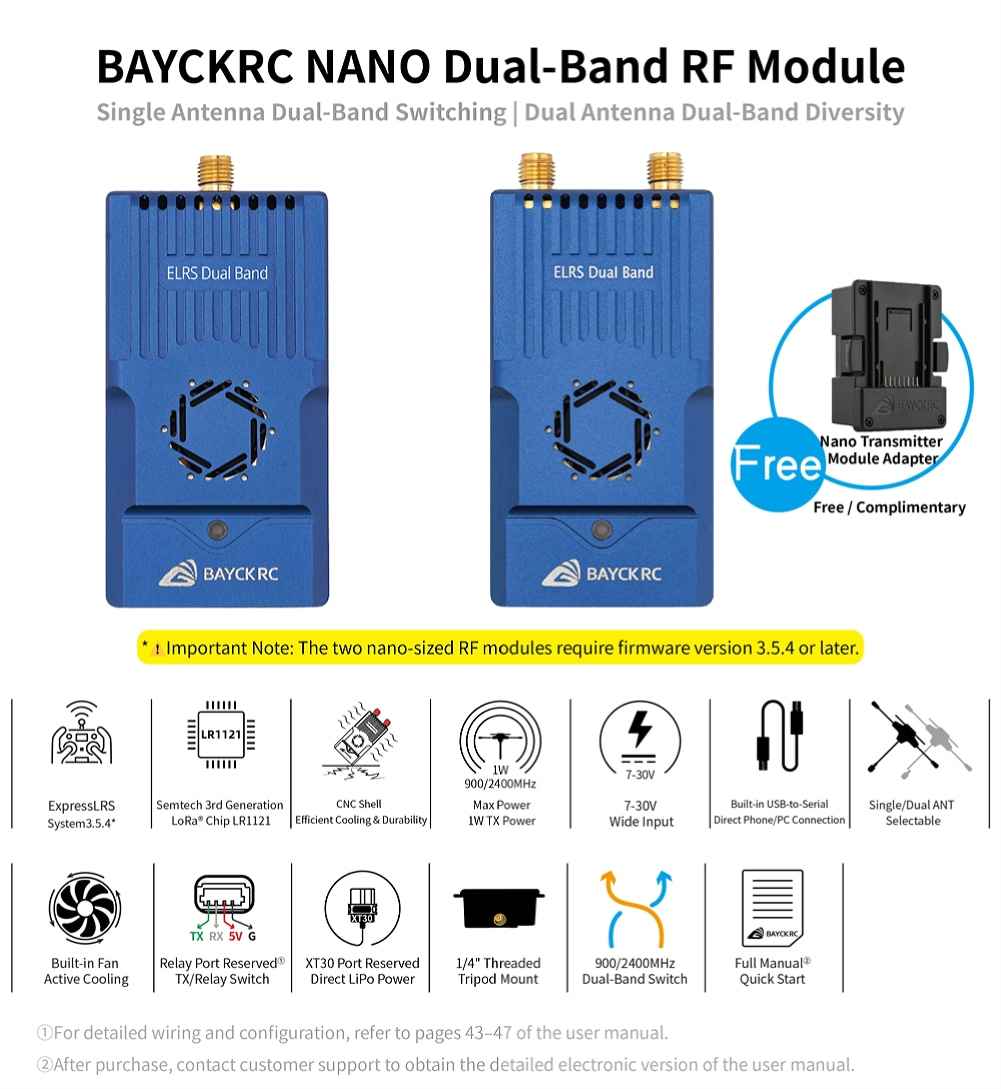

The BAYCKRC C3 Dual Band Transmitter RF Module is designed for FPV racing drones, providing seamless connectivity with its 915MHz and 2.4GHz frequencies. This compact module features a single antenna and offers a maximum power output of 1W at 868MHz/915MHz and 2400MHz. It supports a wide input voltage range from 7 to 30V DC, making it versatile for various setups. The module is compatible with NANO/JR Bay, though an adapter box is required. It also includes a backpack feature and supports USB and WIFI upgrades through a Type-C port. Weighing just 51g, the transmitter is lightweight and measures 37 x 69 x 21mm, making it easy to integrate into your drone setup.

BAYCKRC C3 915Mhz/2.4GHz Dual Band 1W Gemini Transmitter RF Module Single Antenna Nano Bay for FPV Racing Drone

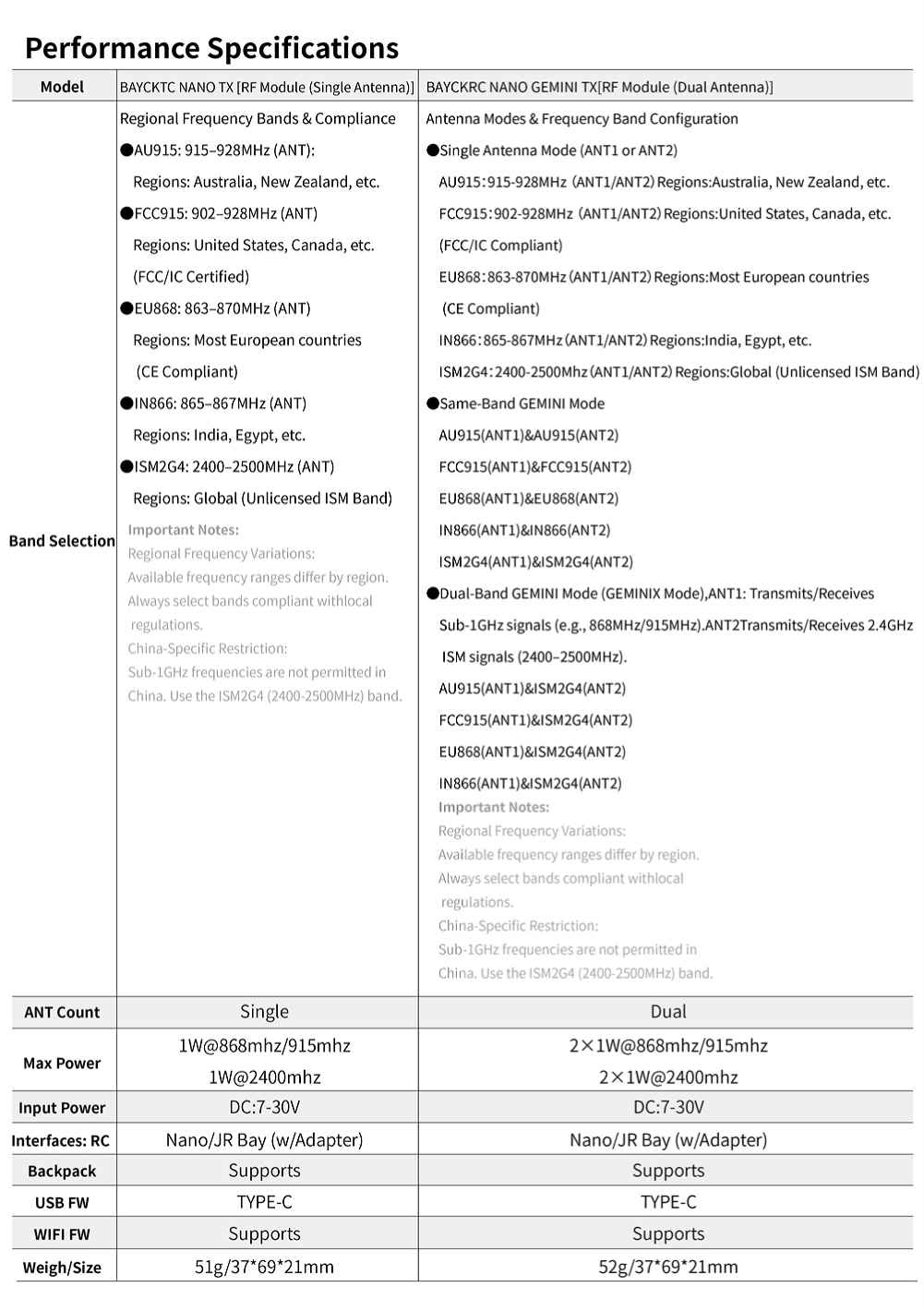

Specification:
Brand: BAYCKRC
Model: C3 915 2.4G Dual Band Nano 1W TX
Number of Antennas: Single
Maximum Power:
1W@868mhz/915mhz
1W@2400mhz
Input Voltage: DC:7-30V
Applicable RC: NANO/JR Bay (Adapter box required)
Backpack: Supported
USB Upgrade Port: TYPE-C
WIFI Upgrade: Supported

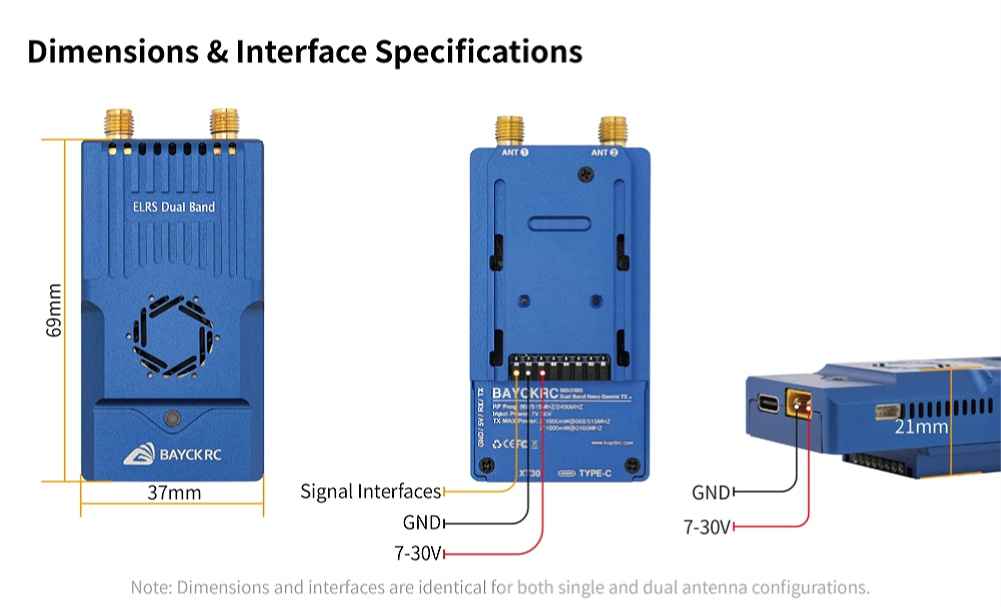

Weight/Size: 51g/37*69*21mm

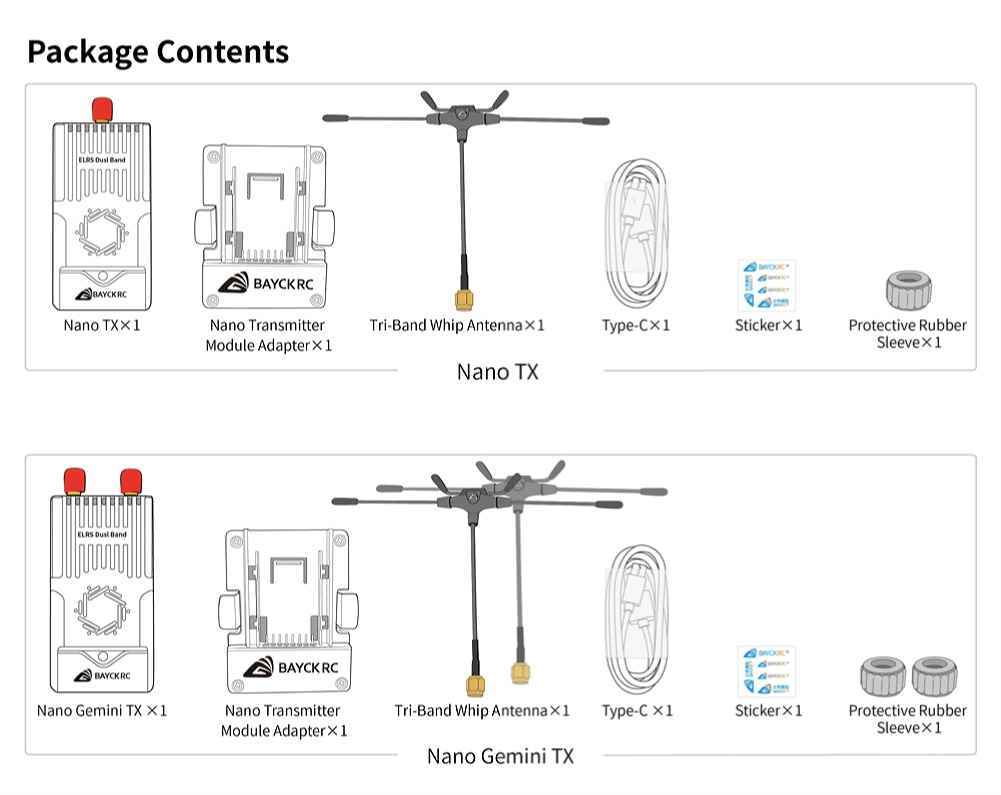

Package Included:
1 x Nano TX

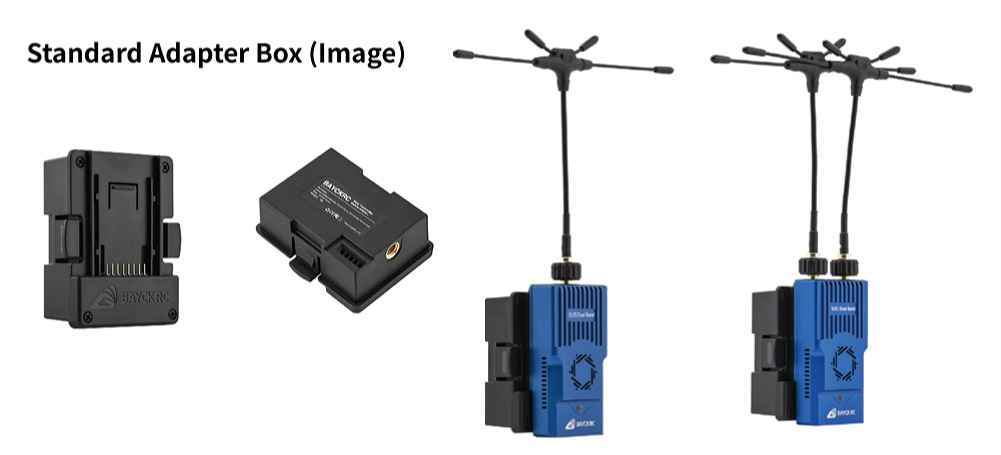

1 x Nano Transmitter Module Adapter

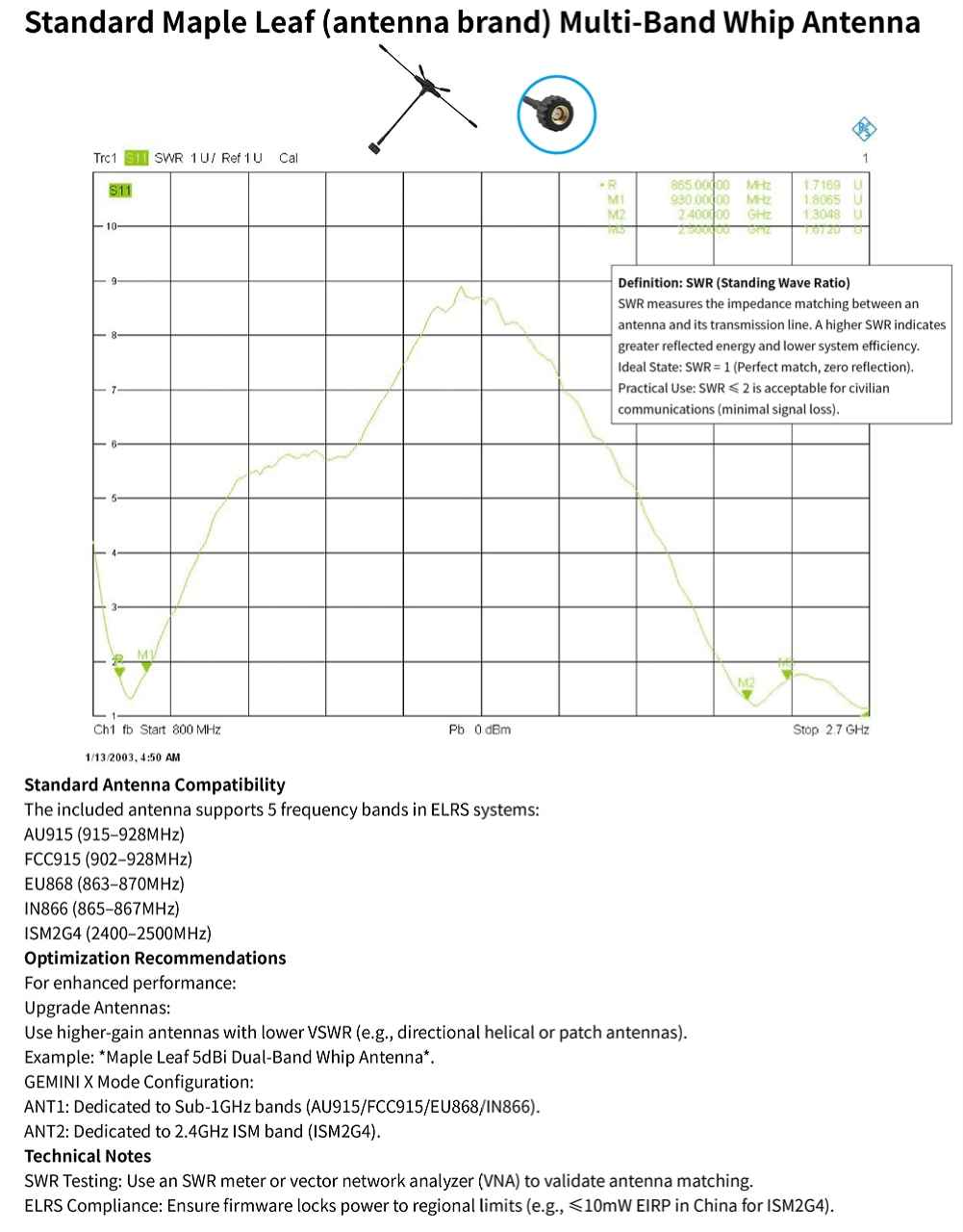

1 x Tri-Band Whip Antenna
1 x Type-C Cable
1 x Sticker Set
1 x Protective Rubber Sleeve
