BAYCKRC C3 Dual Band Nano RX ELRS Receiver 868Mhz/900Mhz/2.4Ghz for FPV Racing Long Range Drone

Description

BAYCKRC C3 900/2400 868Mhz/900Mhz/2.4Ghz Dual Band Nano RX Open Source ELRS Receiver TCXO for FPV Racing Long Range Drone

The BAYCKRC C3 Dual Band Nano RX is an advanced receiver designed for FPV racing and long-range drone flights. Built on the ExpressLRS open-source system, it features Semtech’s LR1121 wireless communication chip, enabling seamless frequency switching between 868Mhz, 900Mhz, and 2.4Ghz with a 100mw return power. The receiver incorporates a temperature compensated crystal oscillator (TCXO) to maintain frequency stability under varying temperatures. Compact in size at 11x18mm, it is lightweight at just 0.8g, making it ideal for high-performance drone applications.

BAYCKRC C3 900/2400 868Mhz/900Mhz/2.4Ghz Dual Band Nano RX Open Source ELRS Receiver TCXO for FPV Racing Long Range Drone
Description:
BAYCKRC C3 900/2400 Dual Band Nano RX is based on the ExpressLRS open source system and uses Semtech’s third-generation wireless communication chip LR1121, which realizes single-antenna 868Mhz/900Mhz/2.4Ghz frequency switching and 100mw return power at three frequencies. We also use a temperature compensated crystal oscillator (TCXO) through precise temperature compensation technology to effectively solve the frequency drift problem of the crystal oscillator under different temperature conditions, and achieve these on the 11*18mm small volume nano.

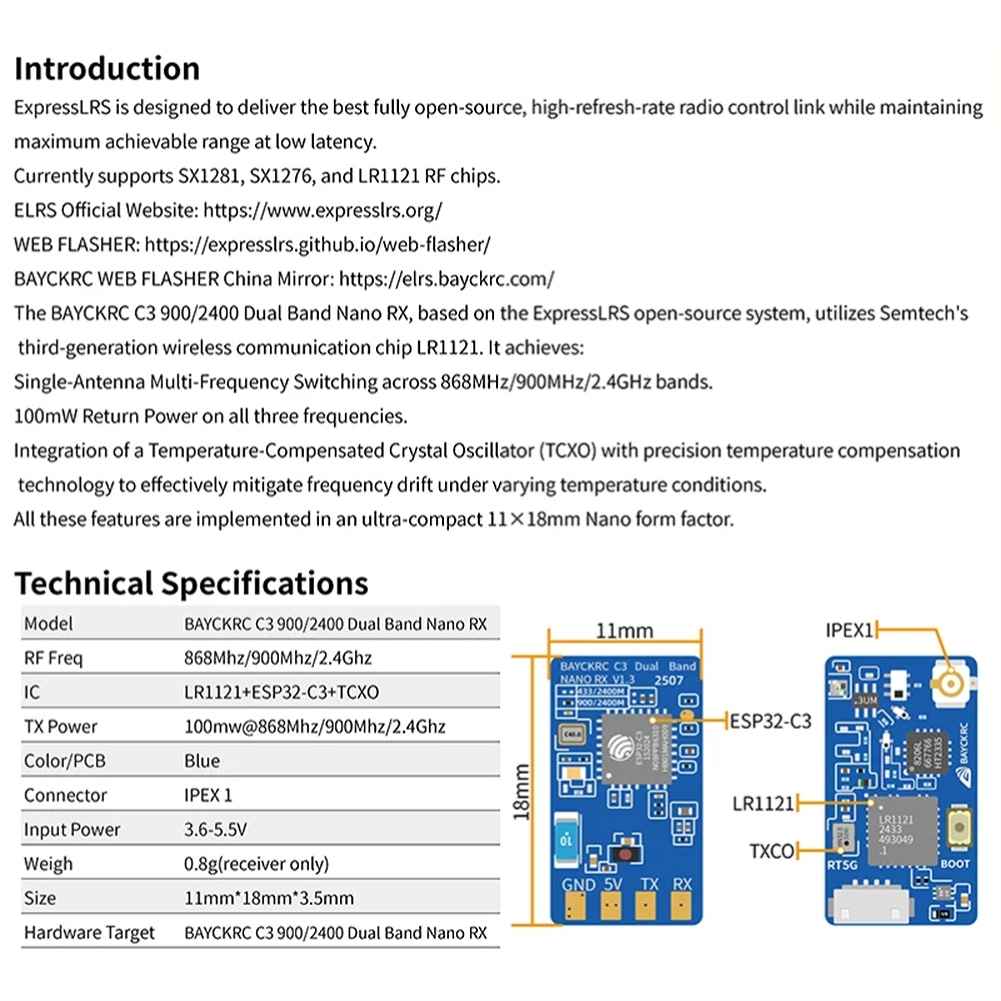

Specifications:
Brand: BAYCKRC

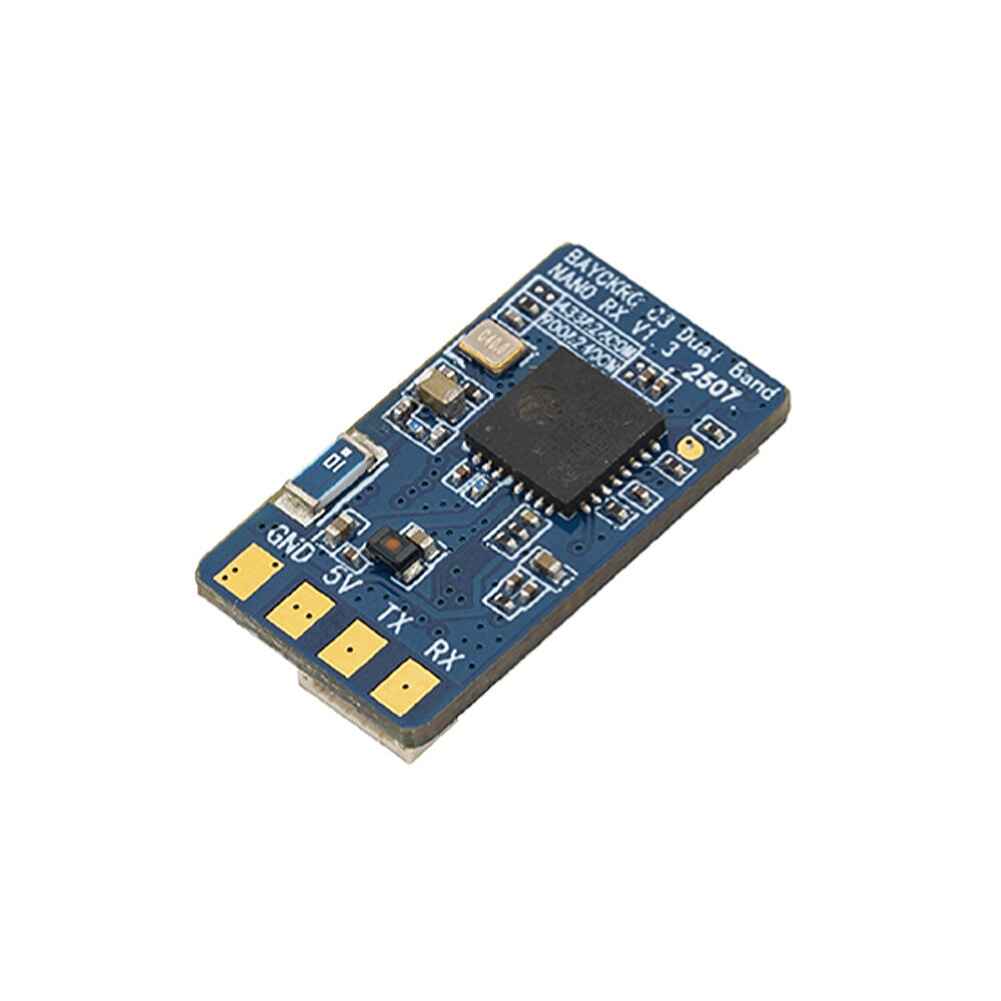

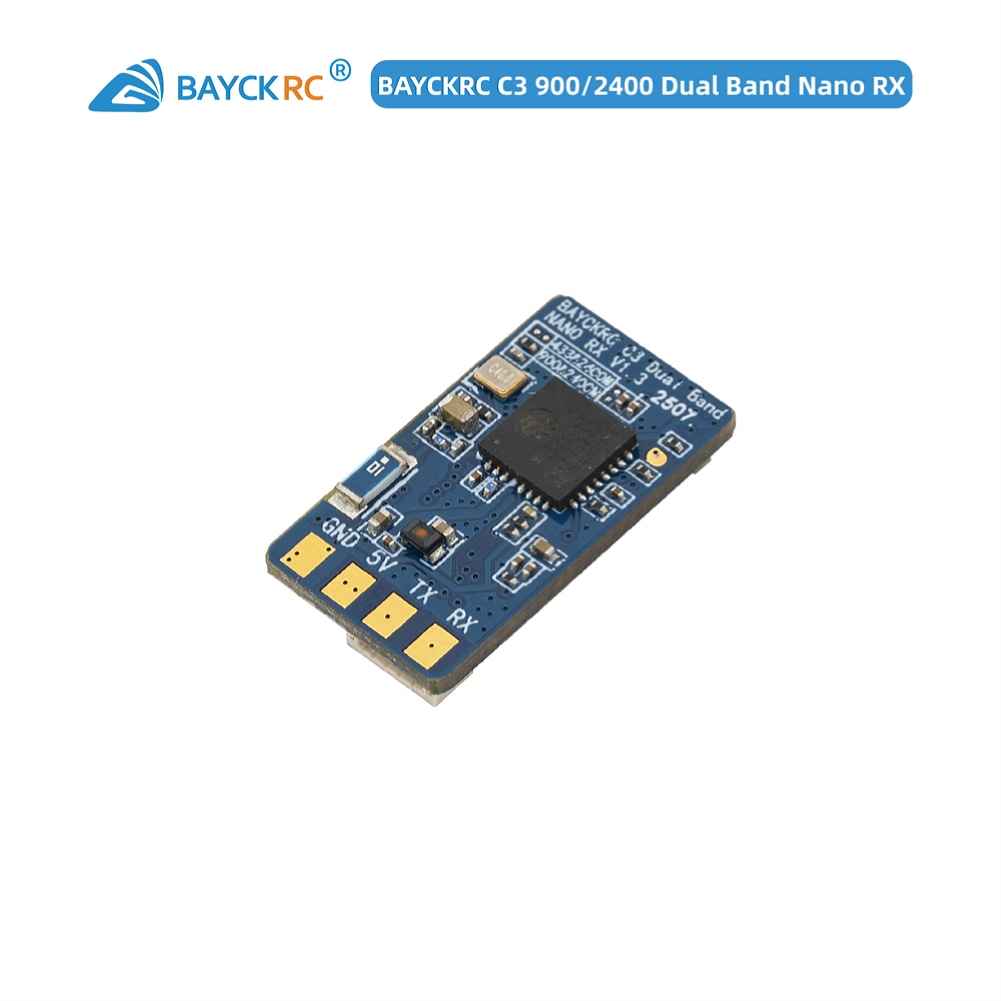

Model: C3 900/2400 Dual Band Nano RX
Frequency: 868Mhz/900Mhz/2.4Ghz
Chip: LR1121+ESP32-C3+TCXO
Return Power: 100mw@868Mhz/900Mhz/2.4Ghz
PCB Color: blue
RF Connector: IPEX1
Power Supply: 3.6-5.5V
Weight: 0.8g (receiver only)

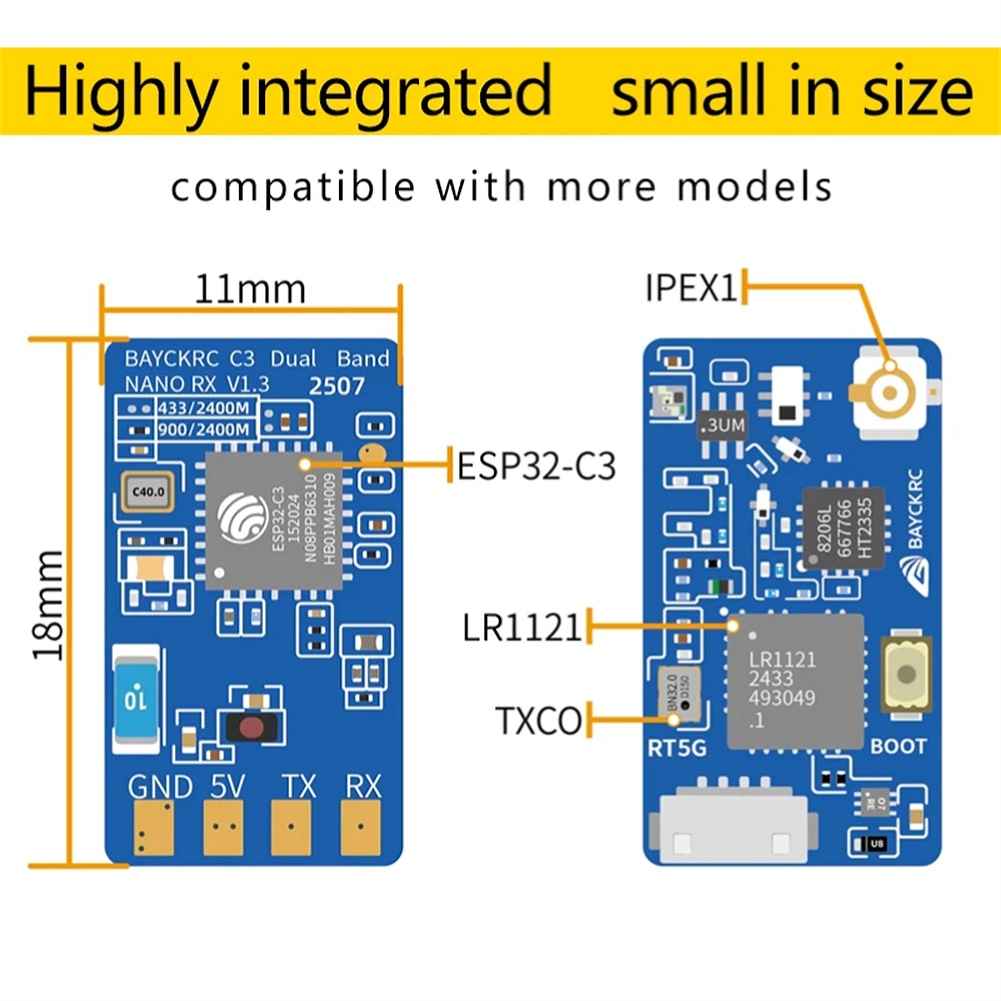

Size: 11mm*18mm*3.5mm (without antenna)

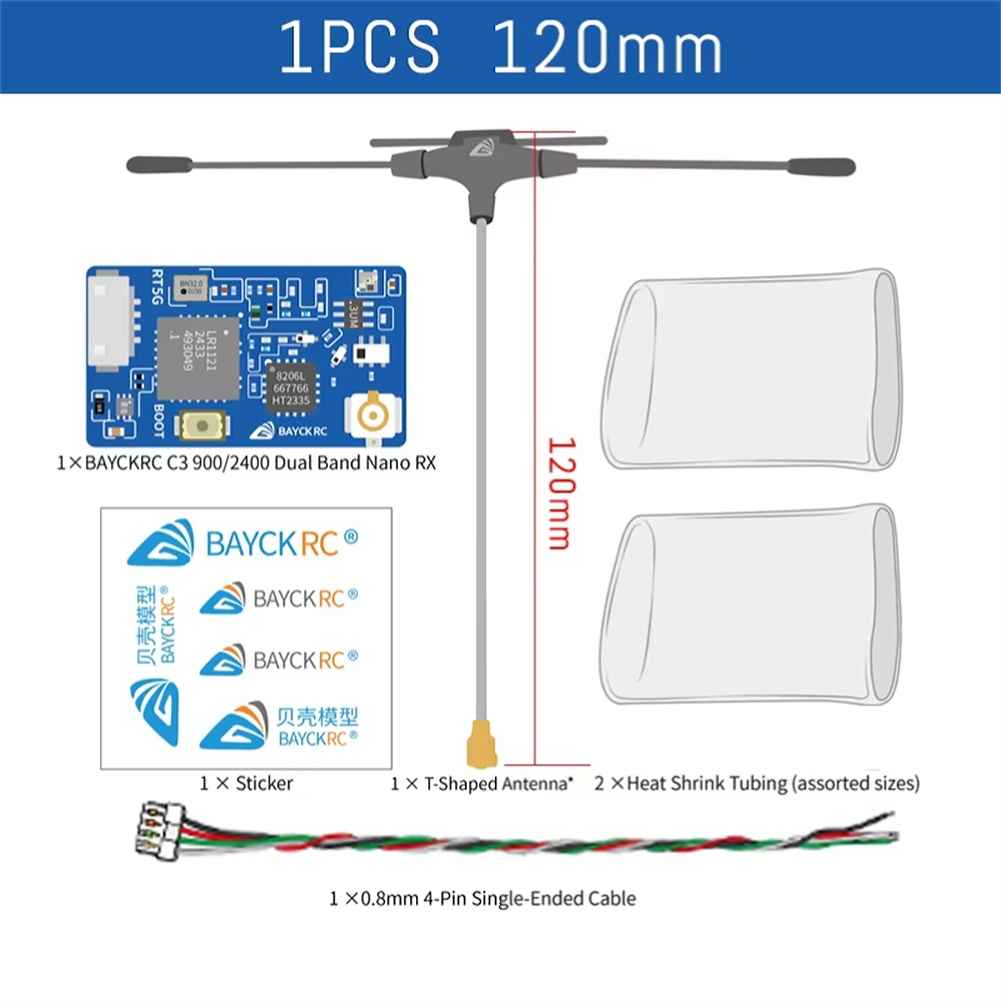

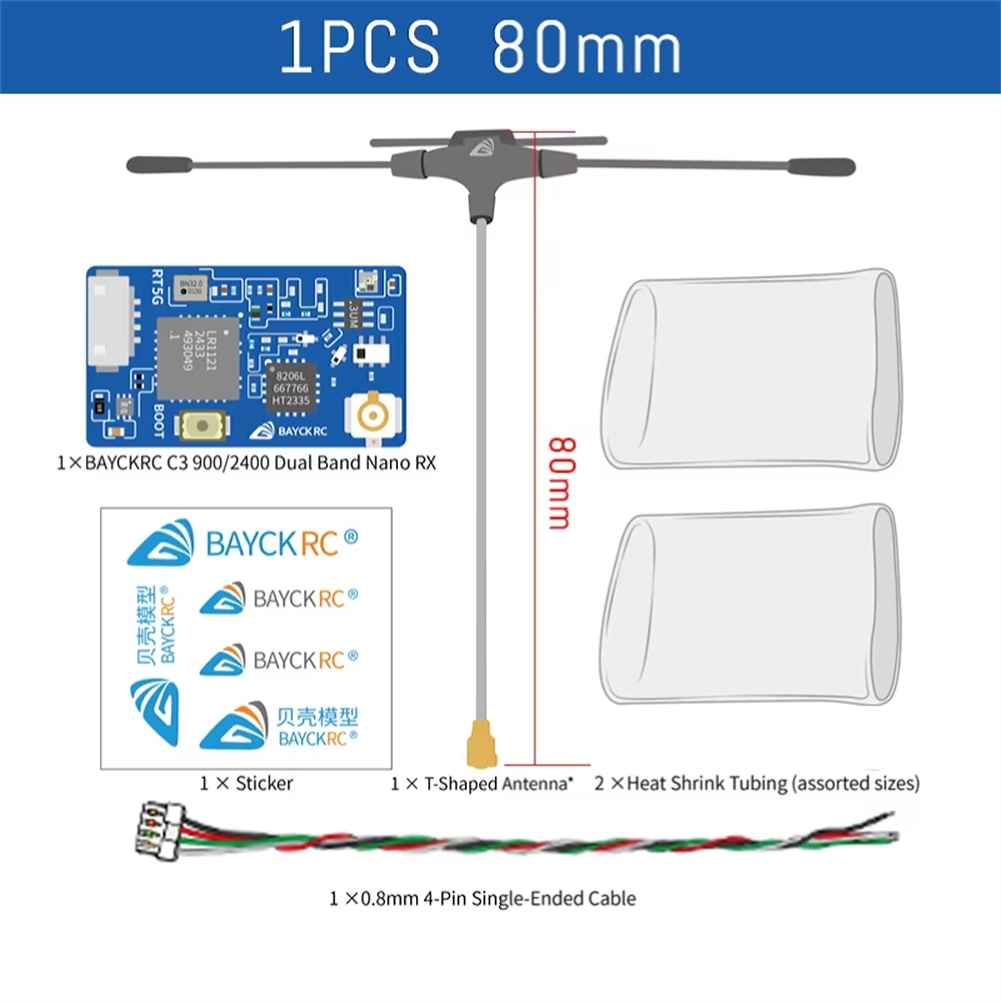

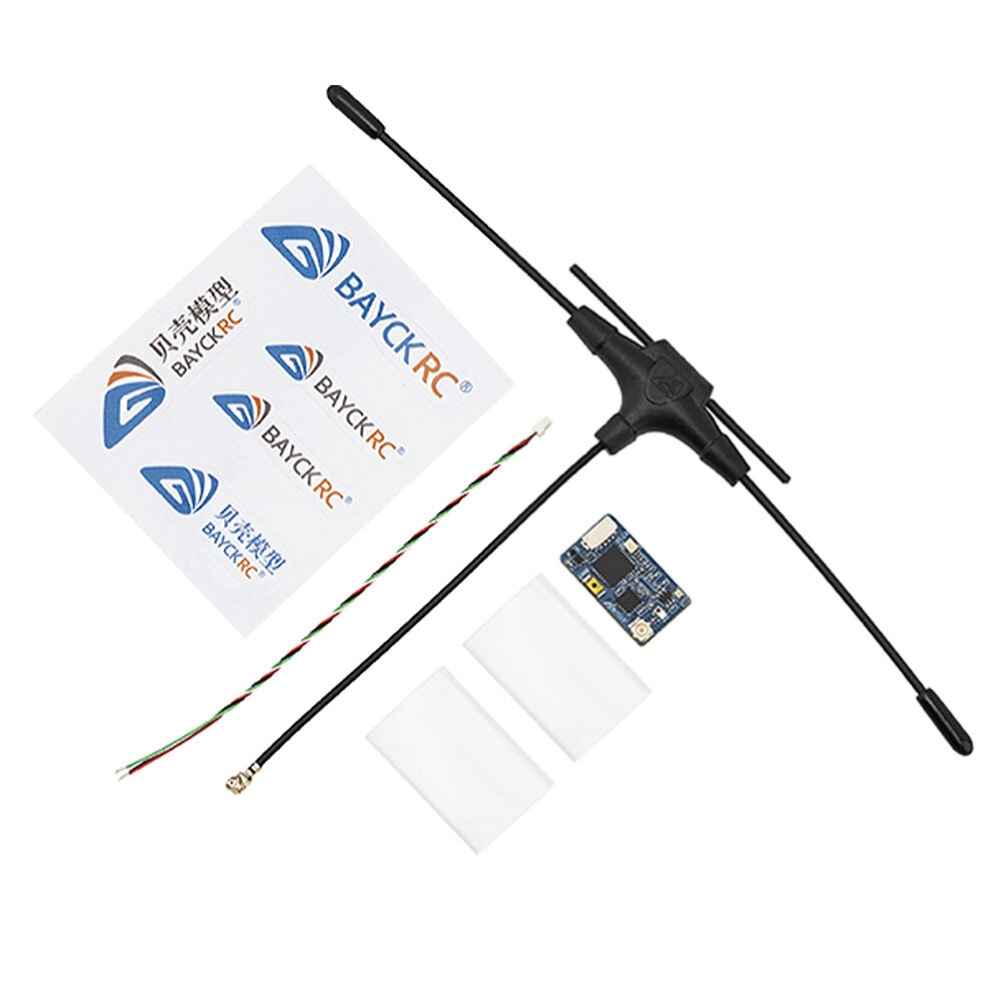

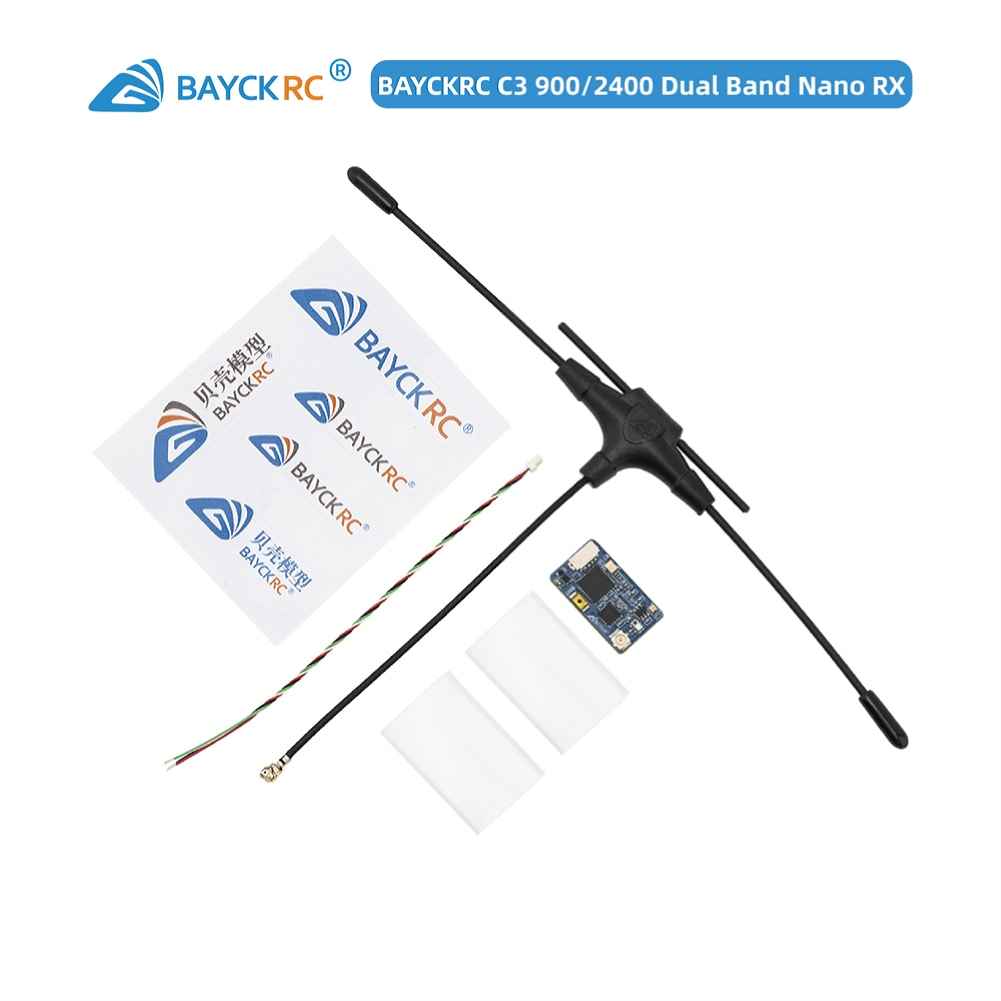

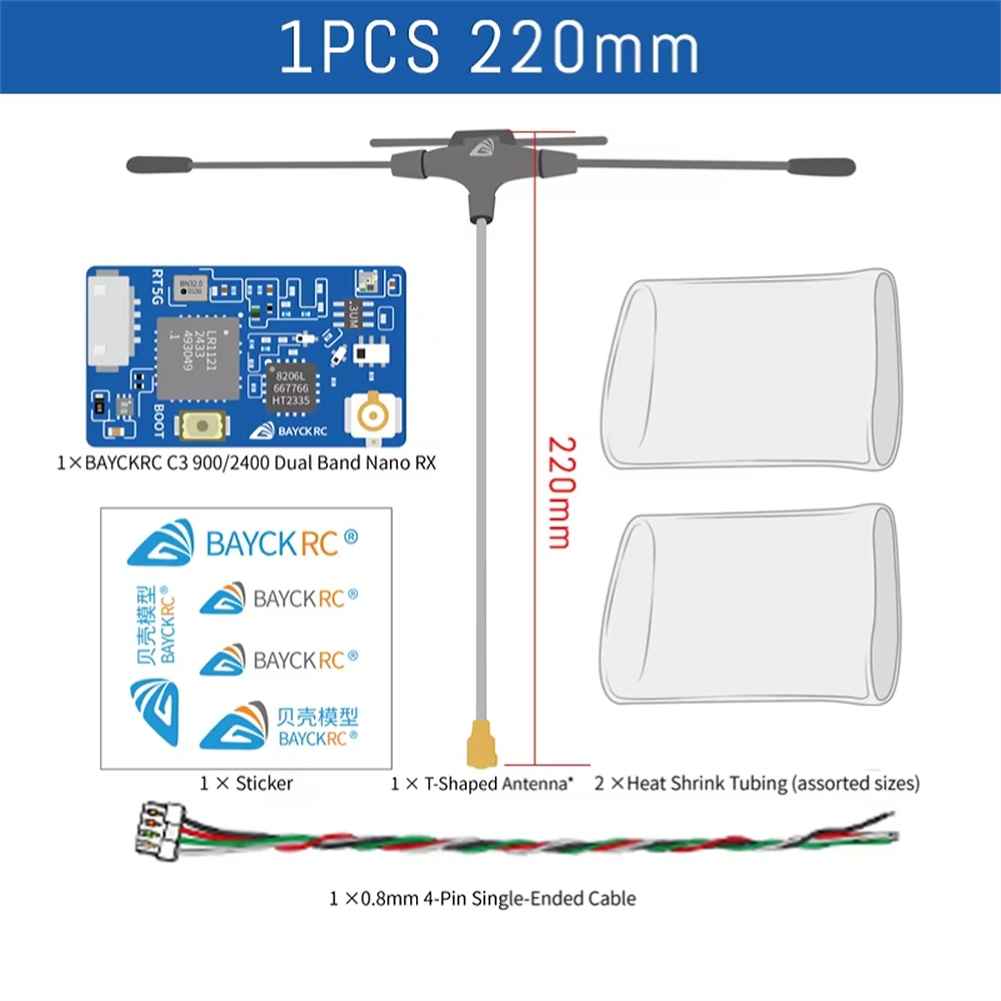

Package Included:
1 x BAYCKRC C3 900/2400 Dual Band Nano RX

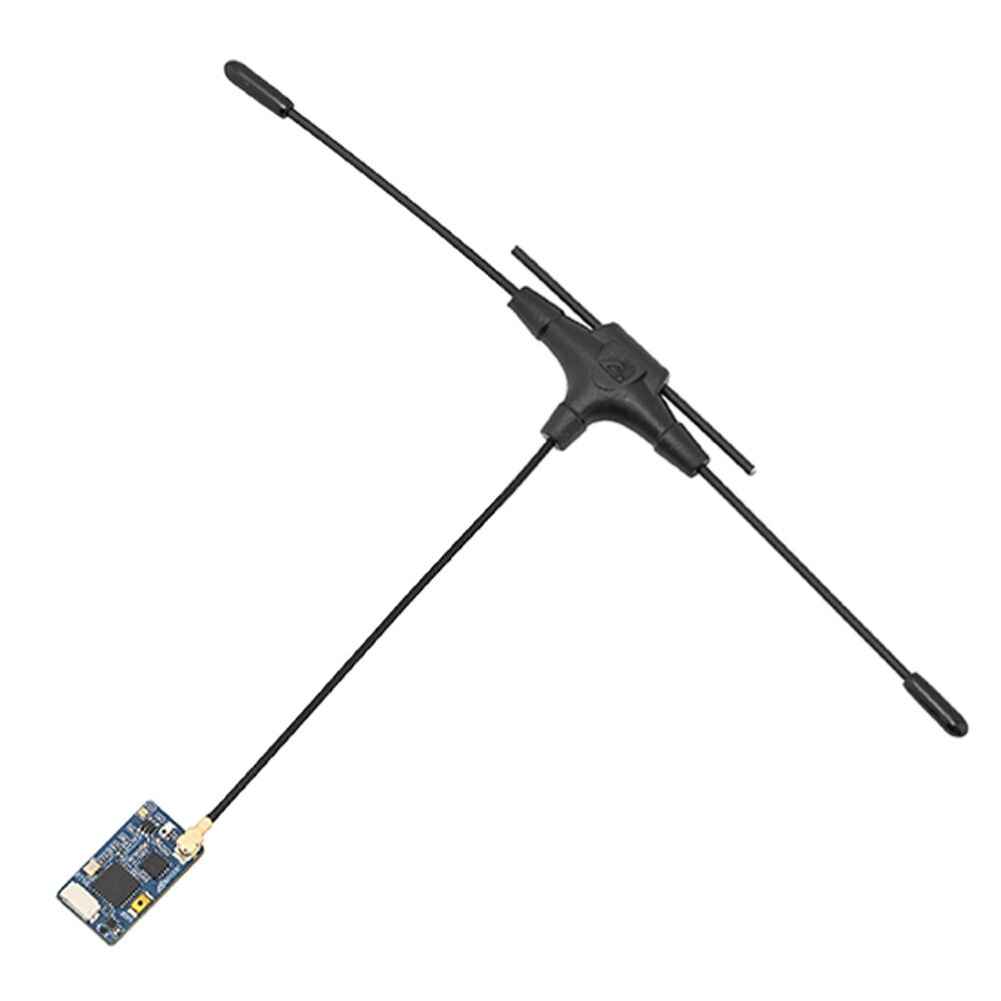

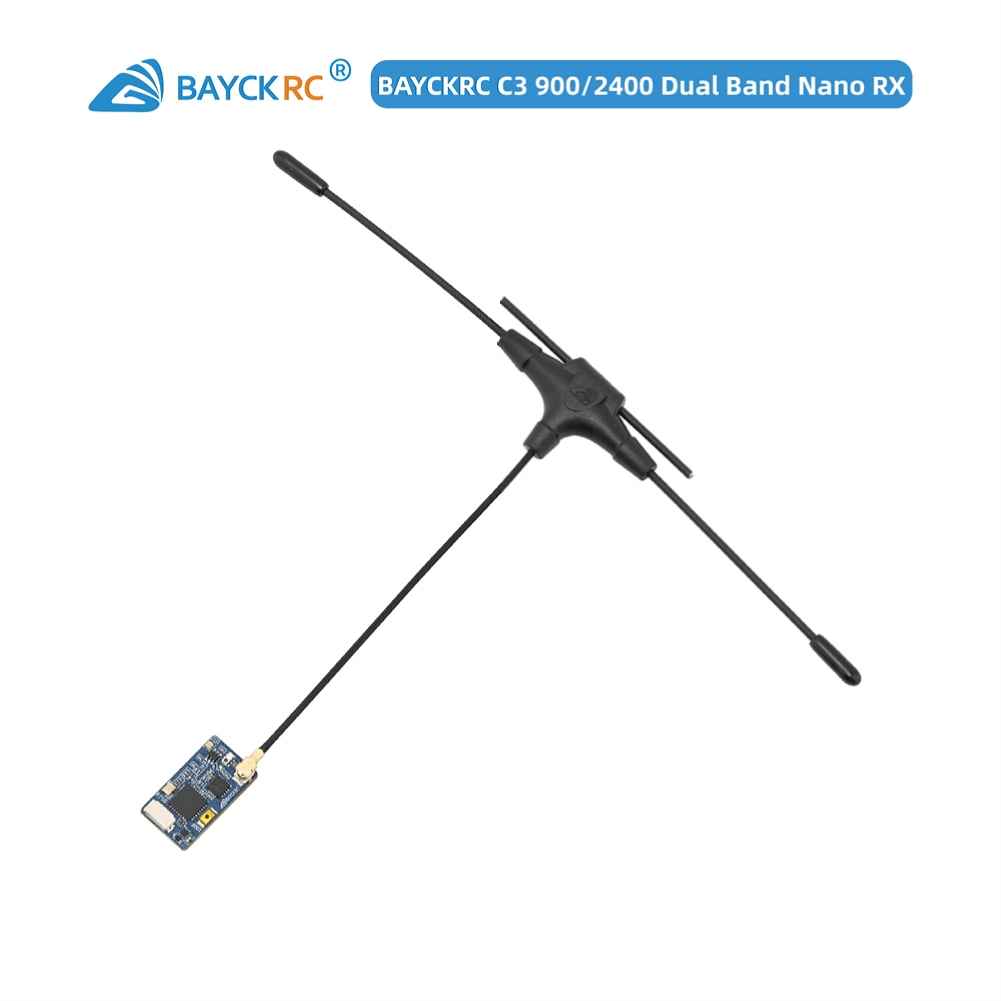

1 x T-Type Antenna
2 x Heat Shrink Tubes
1 x 0.8mm 4PIN Connector Cable
1 x Sticker Sheet
