BETAFPV CYCLONE EP1/EP2/NANO 2400RX 2.4GHz/915MHz ExpressLRS Receiver, 100mW, Long Range, FPV Racing Drone Compatible
Price range: $17.80 through $18.90
- High-performance ExpressLRS receiver for FPV racing drones
- Supports 2.4GHz and 915MHz frequencies
- Compact and lightweight design for easy drone integration
- Compatible with CRSF (Beatflight) working agreements
- Rapid receive refresh rate up to 500Hz
You May Also Like
Description
CYCLONE EP1/EP2/NANO 2400RX 2.4GHz/915MHz ExpressLRS ELRS RX 100mW Mini Long Range Receiver For FPV Racing Drone
The BETAFPV CYCLONE EP1/EP2/NANO 2400RX is a high-performance ExpressLRS receiver designed for FPV racing drones. Operating on 2.4GHz and 915MHz frequencies, this mini long-range receiver supports a peak gain of 3.7dB and a working voltage of 4-5.5V. It features a rapid receive refresh rate of up to 500Hz and a minimum of 25Hz, ensuring reliable and fast communication. The compact design, with dimensions as small as 17mm x 10.5mm x 3mm, and lightweight construction, makes it a perfect choice for drone enthusiasts. The receiver comes with an IPEX1 antenna interface and is compatible with CRSF (Beatflight) working agreements, ensuring seamless integration with your drone setup.
CYCLONE EP1/EP2/NANO 2400RX 2.4GHz/915MHz ExpressLRS ELRS RX 100mW Mini Long Range Receiver For FPV Racing Drone
Specifications:
NANO 2400RX
Name: BETAFPV 2400RX
Type: ISM
Antenna Interface: IPEX1
MCU: ESP8285
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 4-5.5v
Weight: 0.65gram
Dimension: 17mm*10.5mm*3mm
Peak gain: 3.7dB
Working Agreement: CRSF(Beatflight)

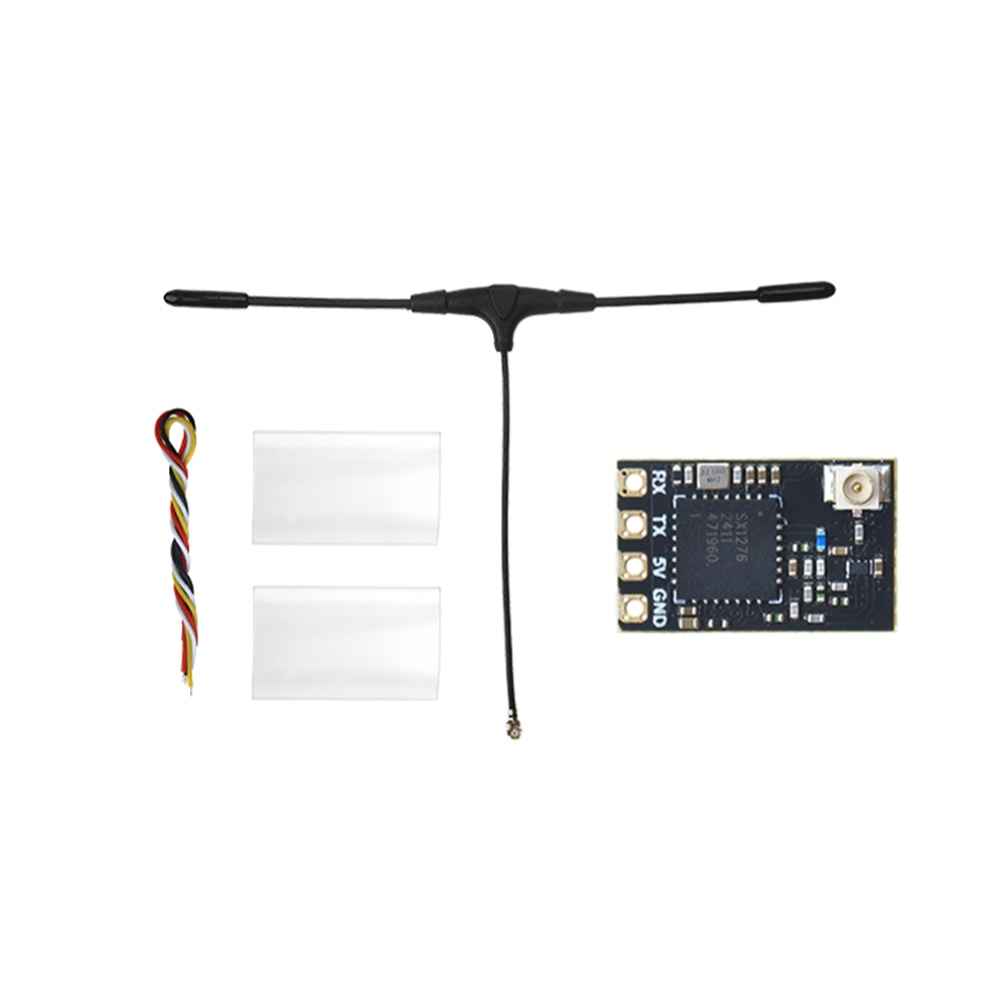

Package Included:
1x NANO 2400RX Receiver
1x Dipole T-type Antenna
4x 30# Connecting Wire (Black, Red, White, Yellow)
1x Heat Shrink Tube
1x EP1 2400RX Receiver
1x EP2 2400RX Receiver

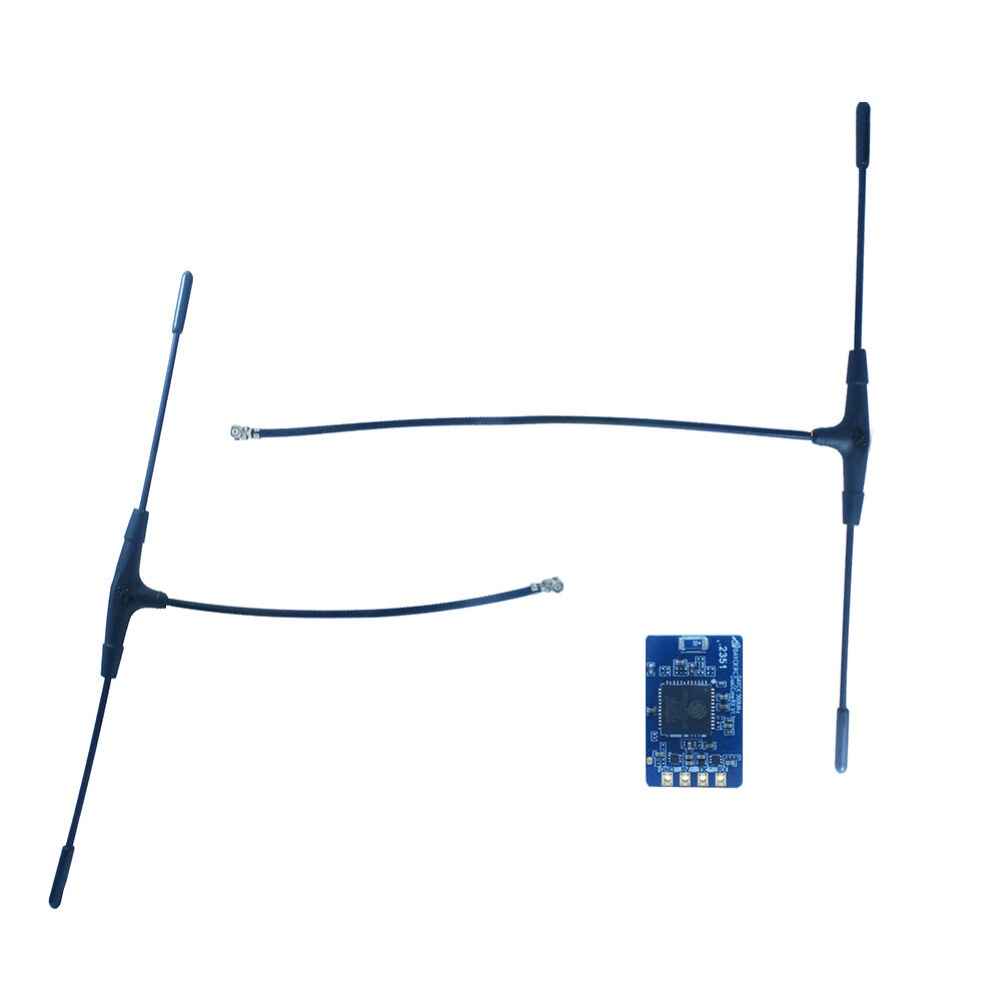

1x ELRS 915MHZ Receiver
2x Heat Shrink Tube
