CM703 2.4G 7CH RC Receiver with PPM Output for JR and Spektrum Transmitters

Description

CM703 2.4G 7CH RC Receiver With PPM Output For RC Drones

The CM703 RC Receiver is designed for RC drone enthusiasts, offering a 2.4G band and 7 channels for seamless control. It operates on a voltage range of 3.3V to 9.6V and features a compact design with dimensions of 47 x 24 x 14 mm. Weighing just 10g, it ensures minimal impact on your drone’s weight. The receiver supports PPM output, making it compatible with RC multicopters. With a tested range of 800 meters using a JR DSX9, it provides a strong and reliable connection. It is compatible with JR and Spektrum DSMX/DSM2 transmitters and includes features like Model Match and Servo Sync for enhanced performance.

Description:

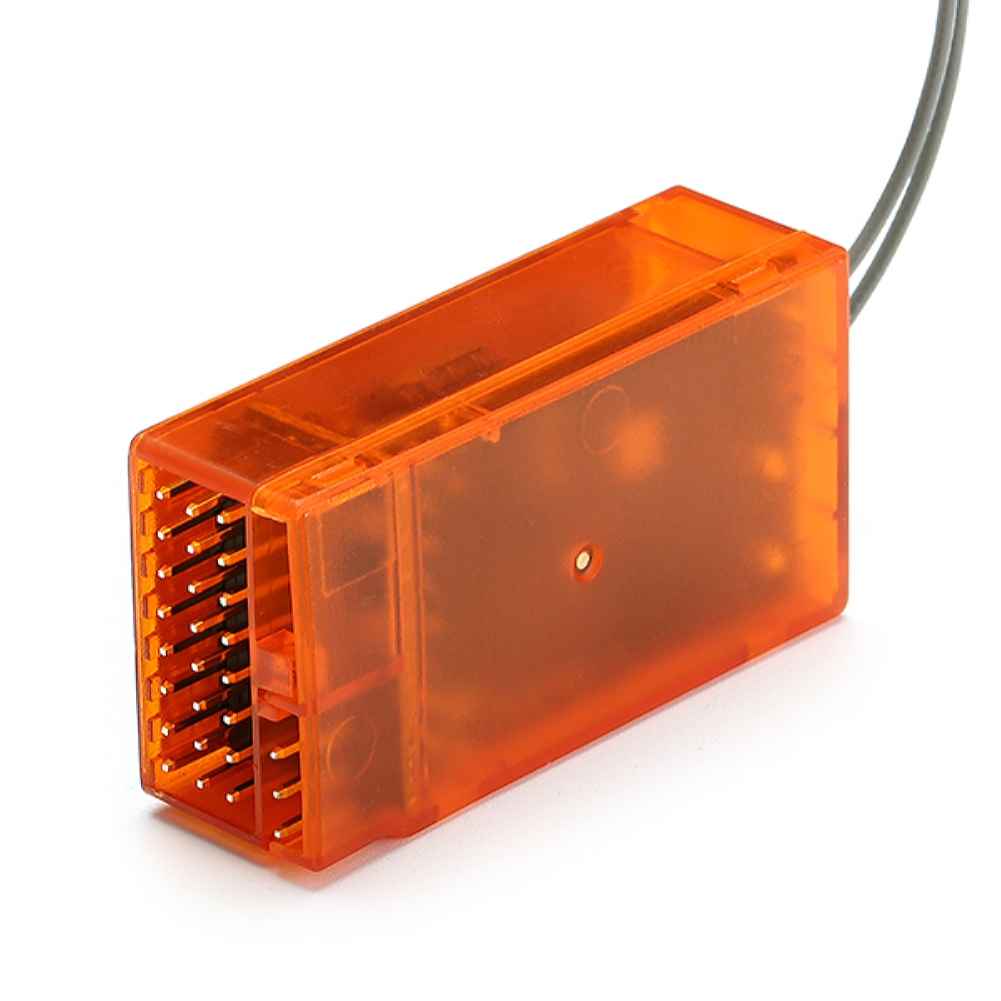

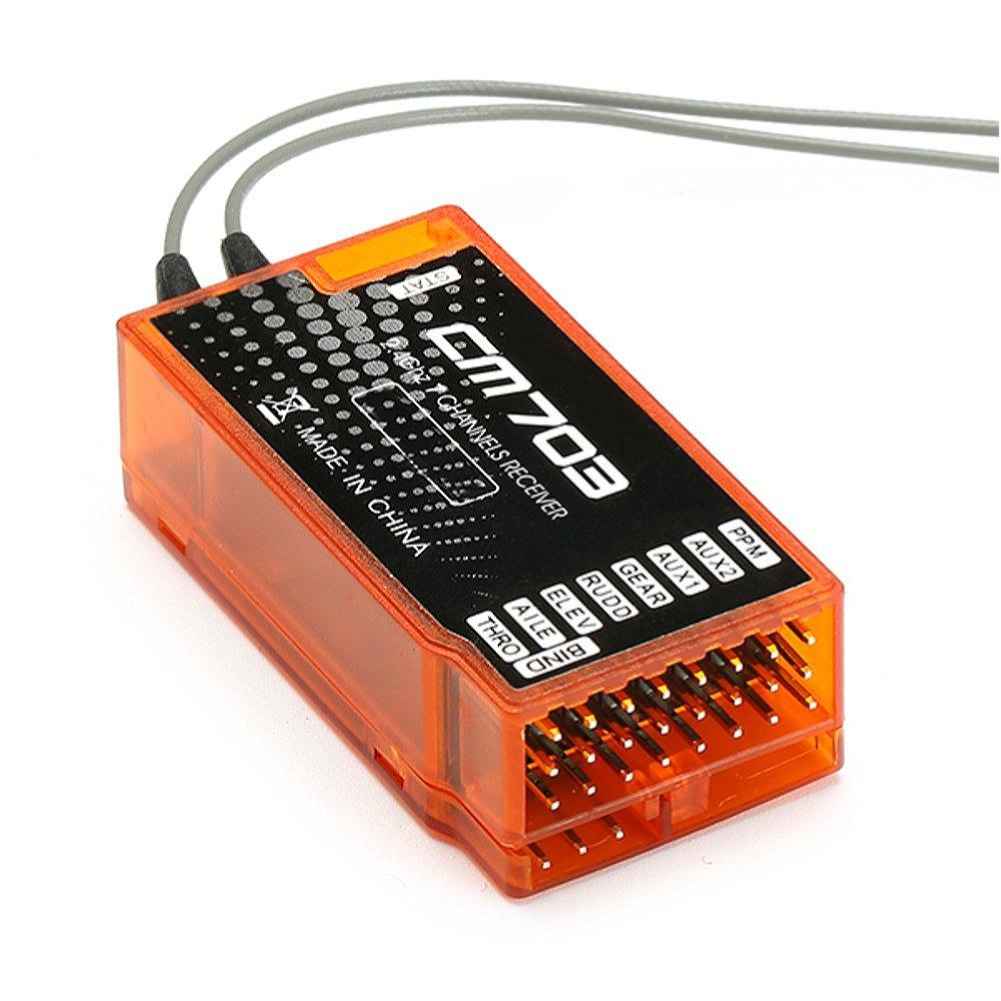

Item Name: CM703 Receiver
Band: 2.4G
Channel: 7
Operating Voltage: 3.3V-9.6V
Modulation: for DSM2/DSMX
Dimensions: 47 x 24×14 mm
Weight: 10g (4.8g Naked)
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
Antenna Length Main RX: 13.5cm (2)
Expected Range: 800m (tested with JR DSX9)
PPM Output: Yes (support RC multicopters)
Compatible Transmitter: for JR and Spektrum DSMX DSM2 transmitter
Feature:

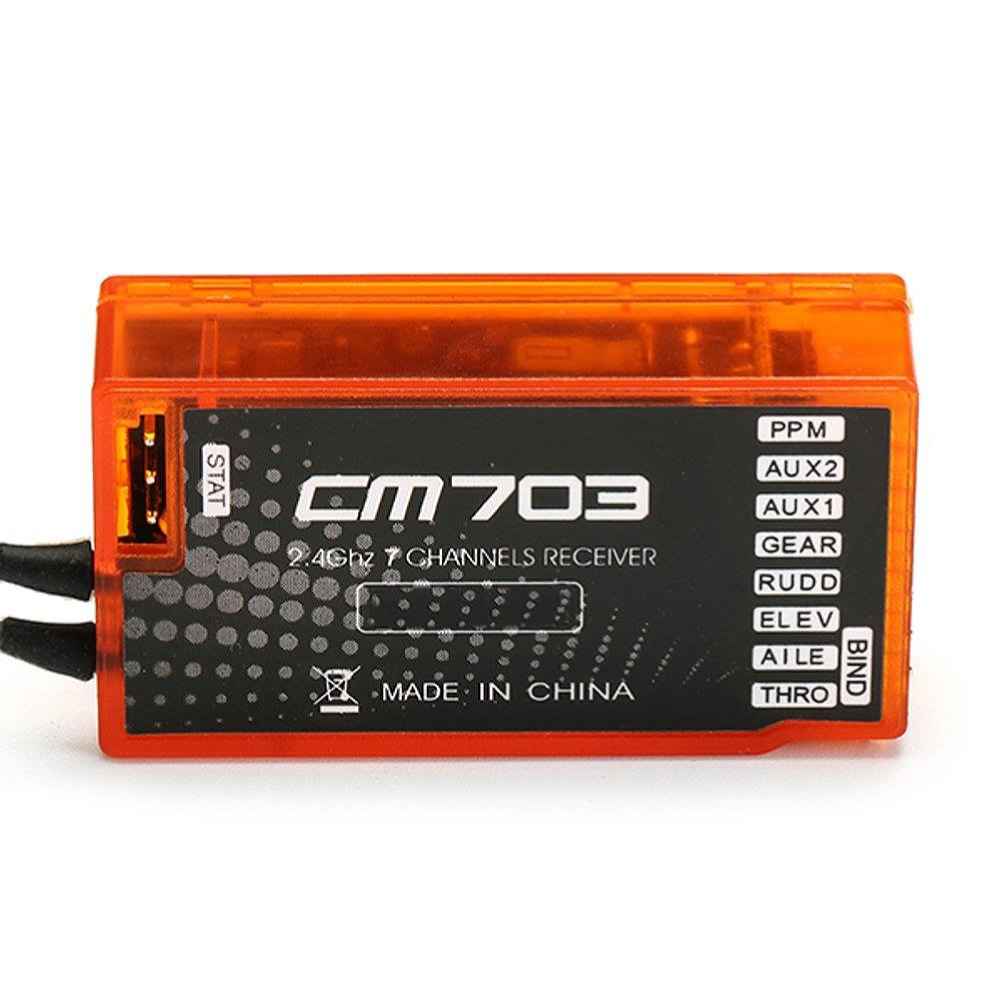

7 channels with PPM Output
3dbi gain antenna,15dbi gain amplifier.
Stronger anti-interference ability and farther control range.
Patent pending Model Match prevents flying a model using the wrong model memory (feature does not work with module systems)
Servo Sync (feature does not work with module systems)
Preset failsafe system
Quick Connect
Compatibility (Spectrum and JR DSM2 /DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11
Notes:
1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product.
2) This is not an black market Spektrum product.

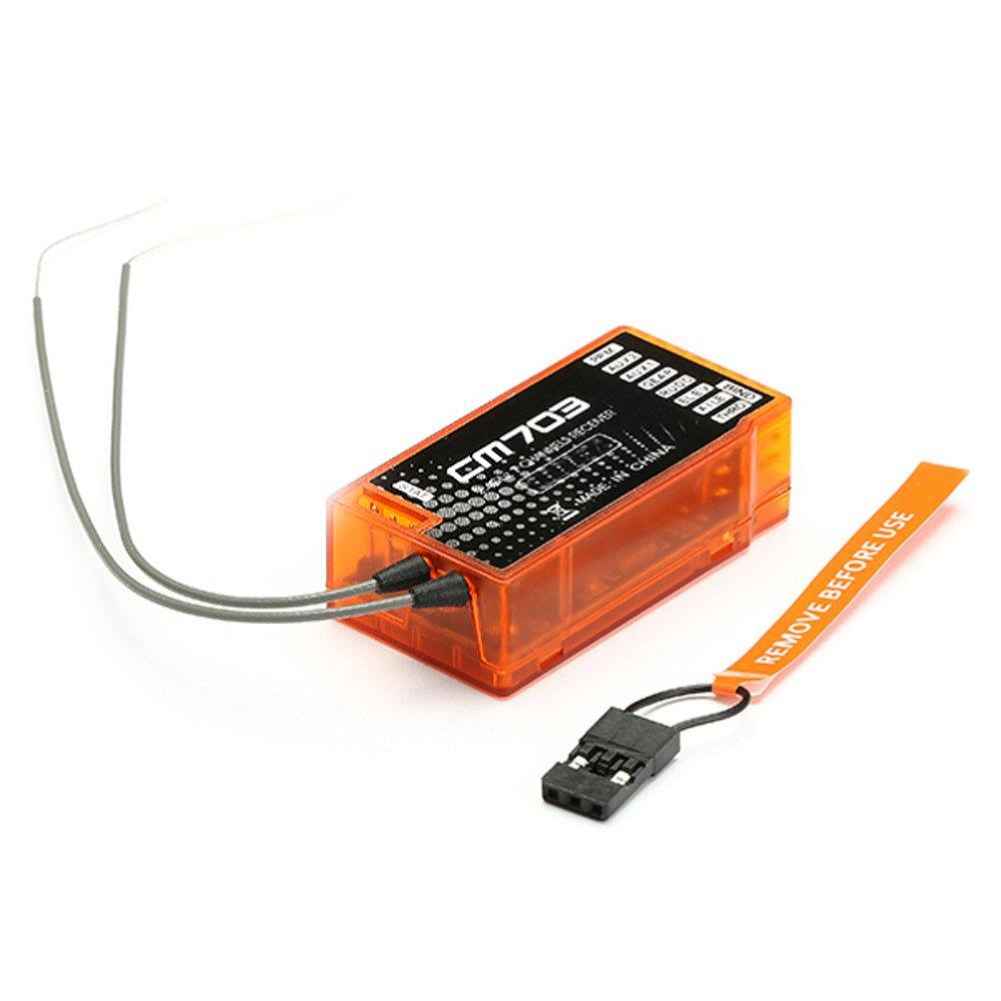

3) Only one bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed
English Manual,Click Here

Package Included:
1 x CM703 receiver
