CYCLONE ELRS 2.4GHz 7CH PWM RX Receiver, CRSF Protocol, for RC FPV Racing Drones

Description

CYCLONE ELRS 2.4GHz 7CH PWM RX Receiver CRSF Protocol for RC FPV Racing Drones

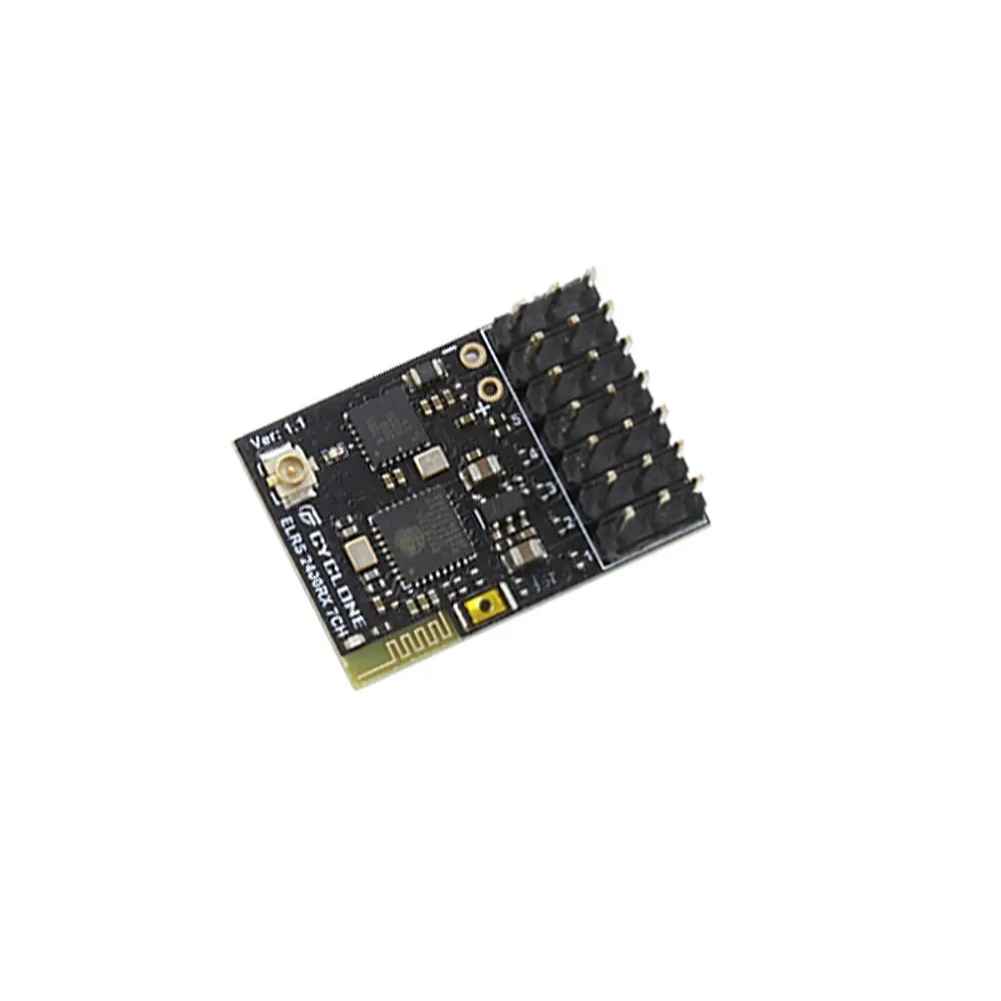

The CYCLONE ELRS 2.4GHz 7CH PWM RX Receiver is designed for RC FPV racing drones, offering a seamless CRSF protocol experience. Featuring an ESP8285 microcontroller and SX1280/SX1281 RF chip, this receiver supports 7-channel full-scale operation with a switchable PWM/CRSF mode. The receiver’s compact circuit board measures 18.5mm by 26mm and weighs just 3.5g. It operates efficiently within a 4 to 6 V working voltage range. The factory firmware version is ExpressLRS V3.2, and users are advised to update if using a version below 3.0. The receiver allows easy Wi-Fi network setup for configuration without requiring a firmware reset.

CYCLONE ELRS 2.4GHz 7CH PWM RX Receiver CRSF Protocol for RC FPV Racing Drone
Description:
Item: ELRS 2.4G PWM7 RX
Firmware Name: DIY_2400_RX_PWMPEXAntenna: IPEX MHF+T antenna/copper tube antennaMicrocontroller chip: ESP8285RF chip: SX1280/SX1281Return power: 12.5dbm/17mWFirmware version: ExpressLRS V3.2Circuit board size: 18.5mm * 26mmWeight: 3.5gNumber of channels: 7CHWorking voltage: 4~6 VProtocol: PWM/CRSF switchable
7-channel full scale ELRS 2.4G receiverSwitchable CRSF bus mode without firmware reset
Note: Factory firmware 3.2.0. If your tuner firmware is lower than version 3.0, it is recommended to update to 3.2.0. You can use 7 PWM full scale channels, while 2. x only has 4 full scale channels
PWM 6CH/7CH CRSF switching does not require firmware reset, and can be easily switched as follows
1. Turn on the receiver WI-FI network,
1) Activate receiver WI-FI using the transmitter Lua menu when connected to the high-frequency head
2) If the high-frequency head is not connected, power on and wait for one minute, and the receiver will automatically enter WI-FI
2. Computer or mobile search for WIFI
WIFI hotspot name: ExpressLRS RX
Connection password (note all lowercase passwords): expresslrs
3. Browser Open http://10.0.0.1/hardware.html.
4. Enter the ELRS hardware configuration page to import the hardware configuration file (note: do not modify it yourself until you fully understand the meaning of each parameter).
5. Import the configuration file we provide, PWM 7CH or CRSF, then click the button at the bottom of the page and wait for the receiver to restart itself.
Information:https://pan.baidu.com/s/1AakcfkzCgXW3d56nPv2j-Apwd=1234

Package Included:
1 x ELRS 2.4G PWM7 RX Receiver

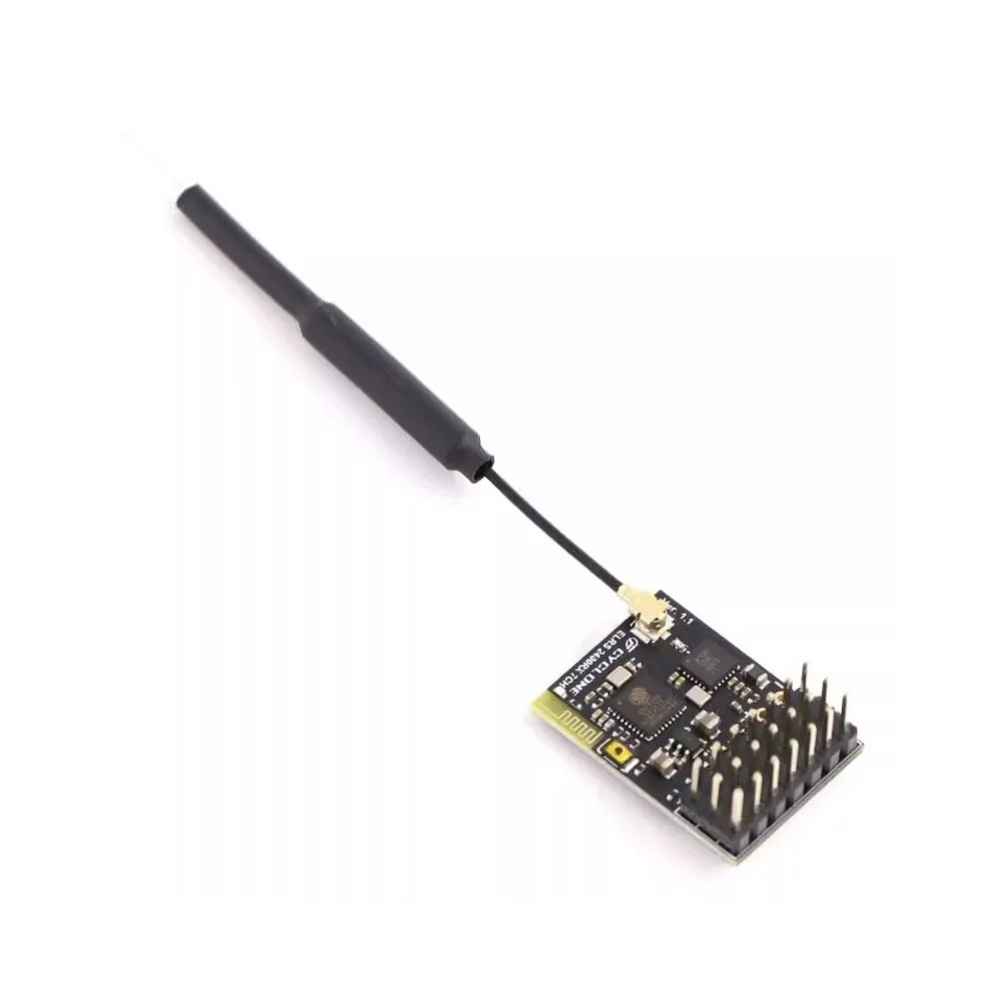

1 x Copper tube antenna
1 x Even level sub T-shaped antenna
