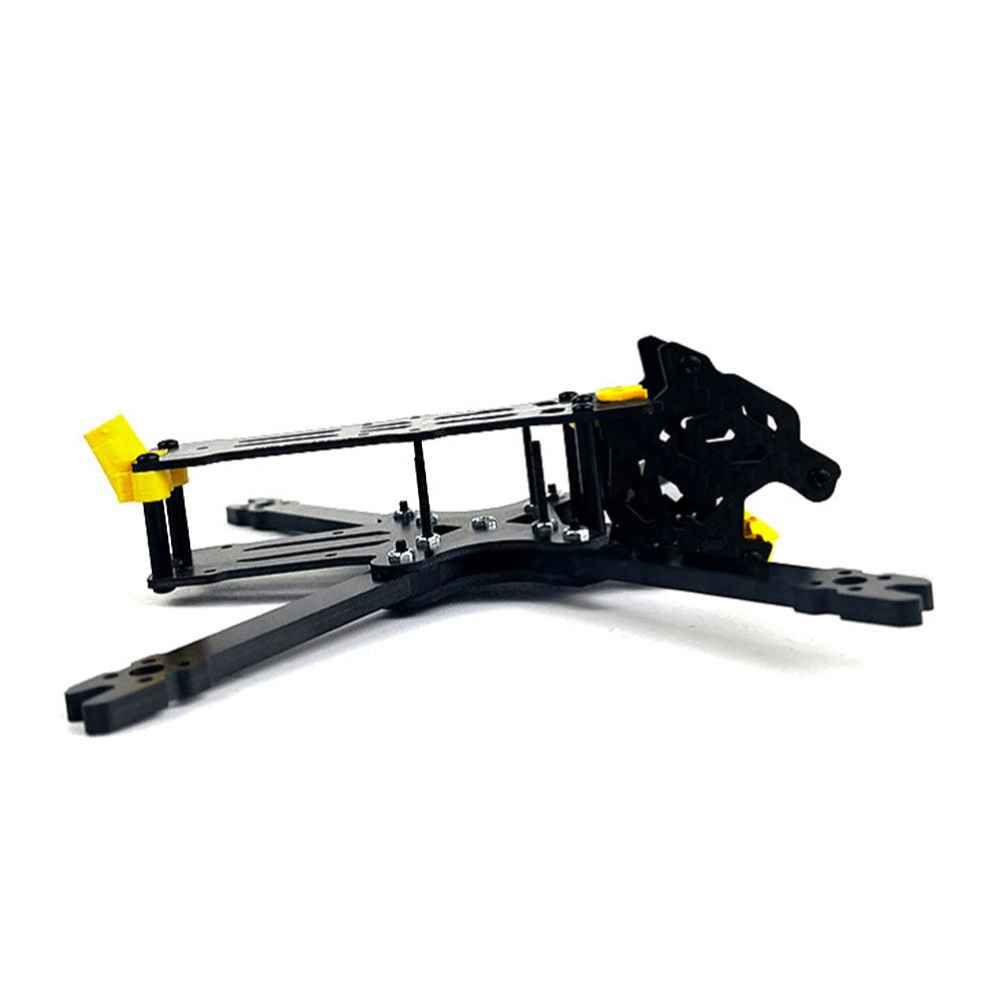

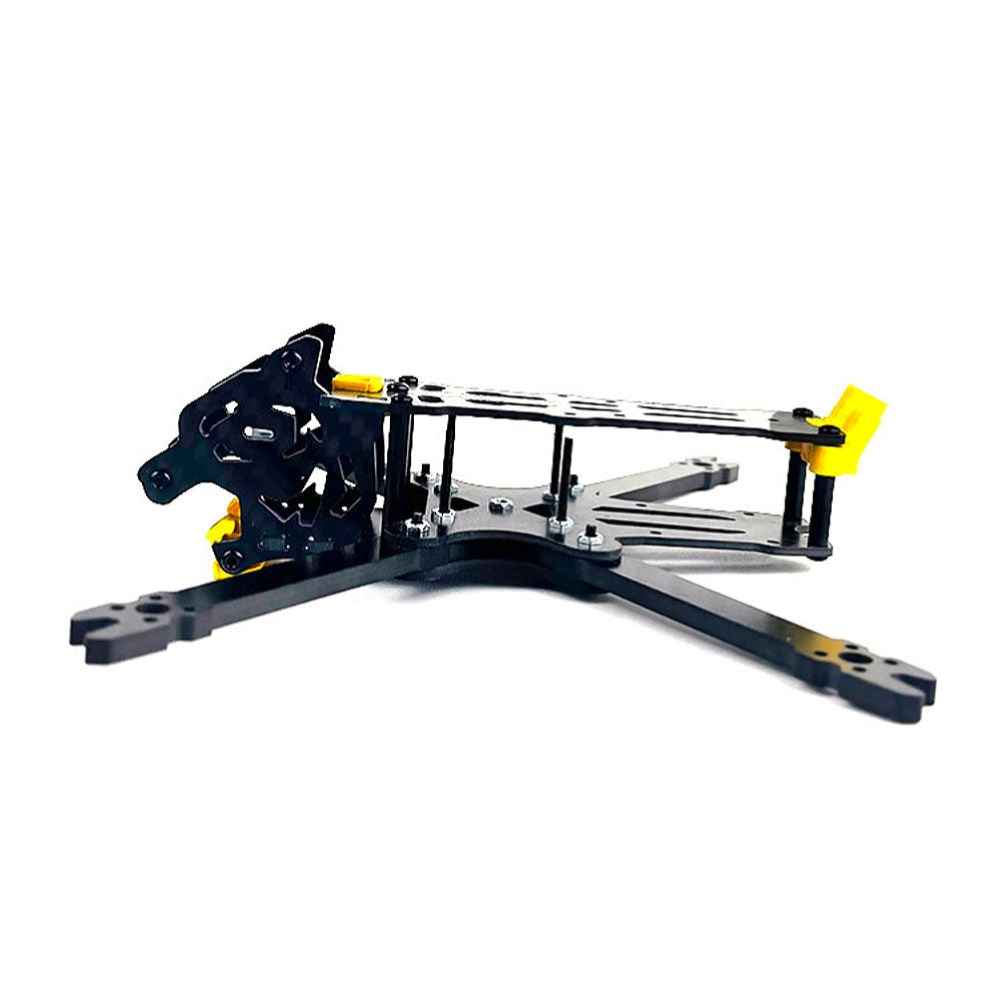

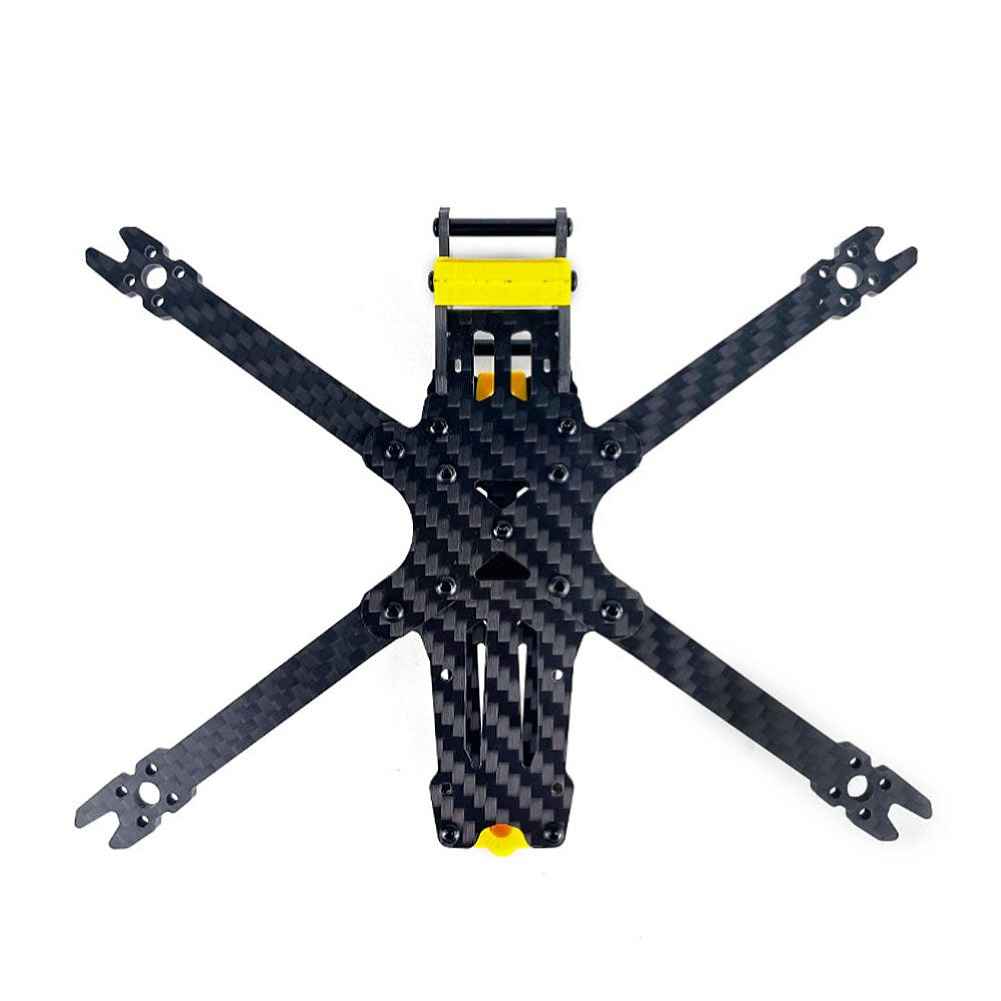

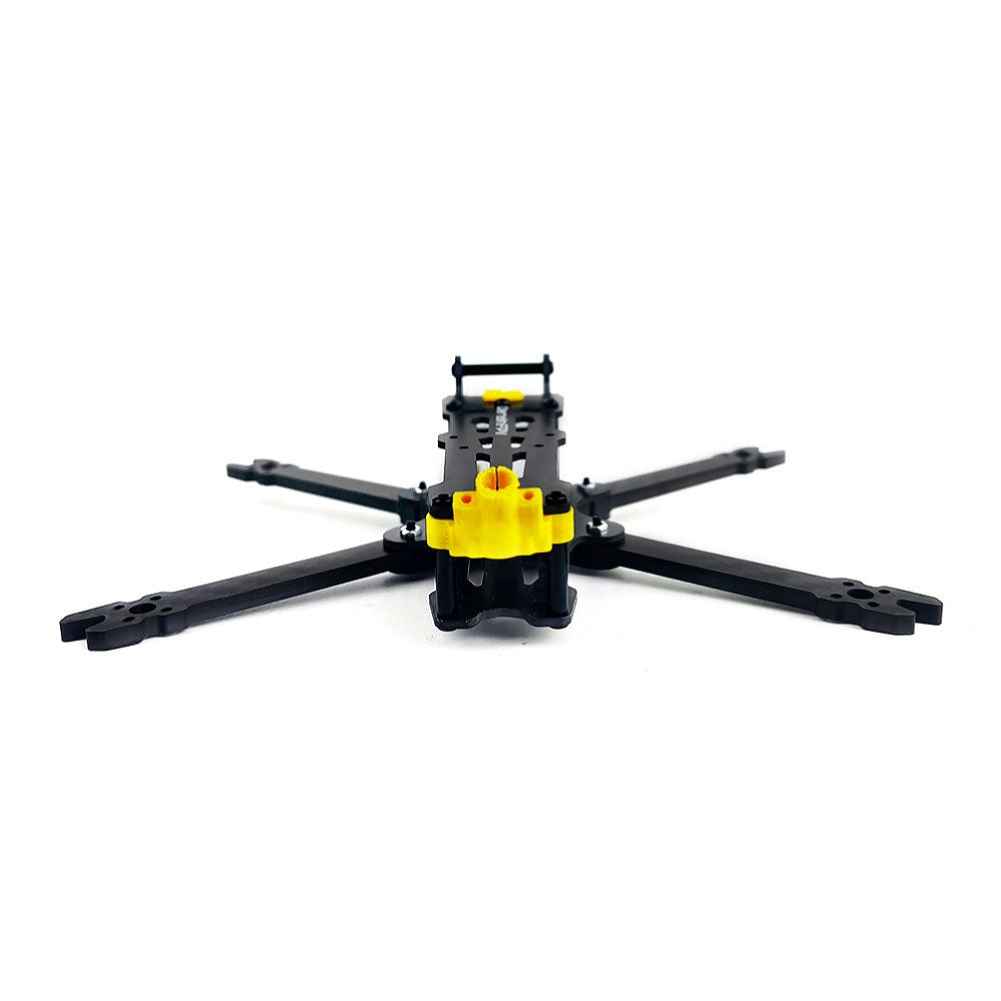

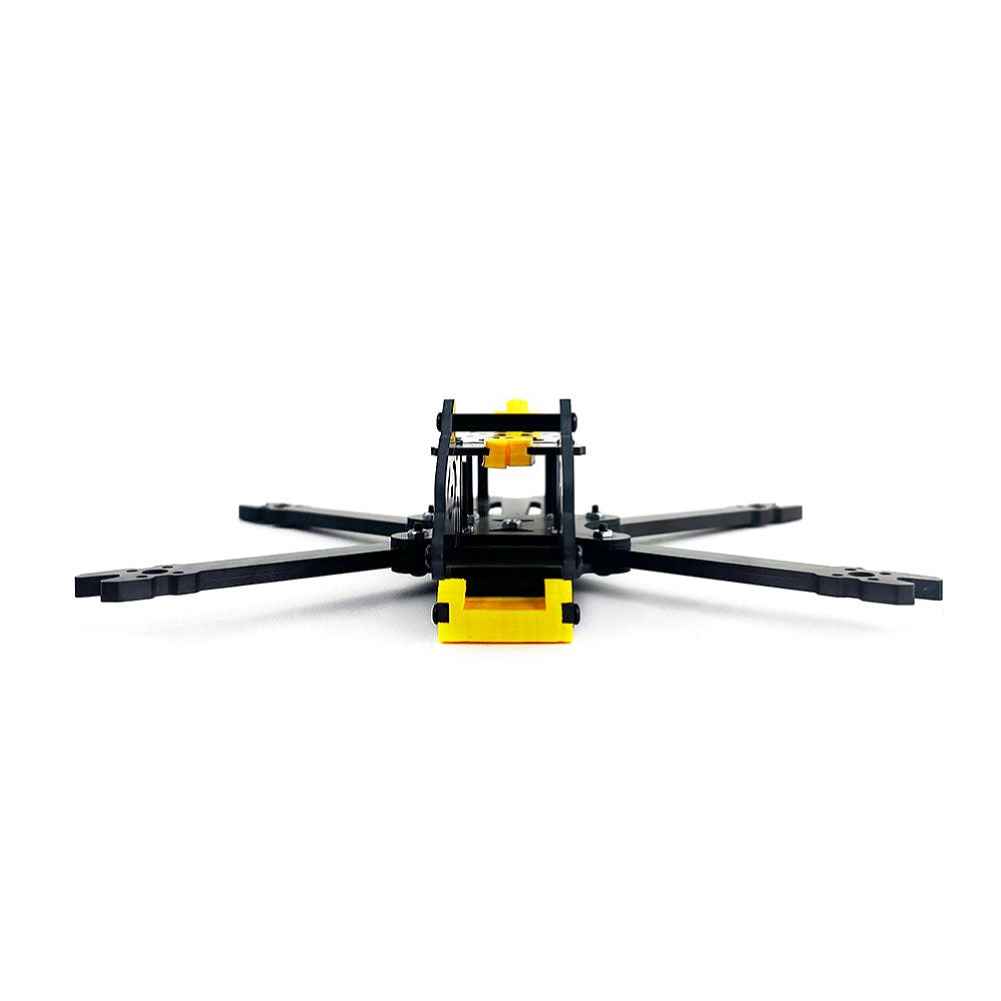

DarwinFPV BabyApe II 156mm Wheelbase 3.5 Inch Freestyle Frame Kit for RC Drone FPV Racing

Description

DarwinFPV BabyApe Spare Part 156mm Wheelbase 3.5 Inch Freestyle Frame Kit for RC Drone FPV Racing

The DarwinFPV BabyApe II Frame Kit is a high-quality spare part designed for FPV drone racing enthusiasts. This 156mm wheelbase frame kit is crafted with precision, featuring a robust 3.5-inch arm plate and a lightweight construction at just 46.7g. It requires assembly by the buyer, offering a hands-on building experience. The frame supports 14xx-18xx motors and 3.5-inch propellers, making it ideal for freestyle racing. With dedicated mounting holes for FC and VTX, along with a camera spacing of 19mm, this frame kit ensures excellent compatibility and performance for your DarwinFPV BabyApe II drone.

Notice: Comes unassembled. Need build by buyers.
Specification:
♂Brand: DarwinFPV
♂Model: BabyApe II
♂Item Name: 156mm Wheelbase 3.5 Inch Empty Frame Kit
♂Wheelbase: 156mm
♂Side Plate : 2.0mm
♂Top Plate: 1.5mm
♂Middle Plate: 1.5mm
♂Bottom Plate: 2.0mm
♂Arm Plate: 3.5mm
♂FC mounting holes: 20mmx20mm
♂VTX mounting holes: 28mmx15mm/20mm x 20mm
♂Motor mounting holes: 9mmx9mm
♂Camera spacing: 19mm
♂Weight: 46.7g
♂Support Propeller: 3.5 inch
♂ Support motorsㄩ14xx-18xx
♂ Application: Original Replace Frame for Darwinfpv BabyApe II FPV Drone
Packing list:
1 x Top Plate
1 x Bottom Plate
1 X Middle Plate
4 X Arms
2 x Camera Side Plate
1 x Battery Anti-skid Pad
2 x battery cable tie10 x 170mm
1 x bag of Screws

Package Included:
1 x Top Plate
1 x Bottom Plate
1 x Middle Plate
4 x Arms
2 x Camera Side Plate
1 x Battery Anti-skid Pad
2 x Battery Cable Tie
10 x 170mm
1 x Bag of Screws
