DC 5V PWM Signal Controller Remote Control Mini Relay Switch for FPV RC Drone Airplane Model Accessories

Description

DC 5V PWM Signal Controller Remote Control Mini Relay Model Switch Universal Electronic Switch for FPV RC Drone Airplane Model Accessories DIY

The DC 5V PWM Signal Controller is a versatile remote control mini relay switch designed for FPV RC drone and airplane model enthusiasts. Unlike field effect tube switches, this relay switch establishes a direct physical line connection, making it adaptable to higher DC voltages and compatible with AC. The motherboard measures 29 x 9 x 8 mm, while the white relay itself measures 10 x 6.5 x 5.4 mm. The relay coil consumes approximately 140mW of power. This electronic switch features a PWM control mechanism, connecting the normally open terminal and the common terminal when the input voltage exceeds 1700us. Additionally, solder joints allow for a 3-second delay setting for automatic disconnection.

DC 5V PWM Signal Controller Remote Control Mini Relay Model Switch Universal Electronic Switch for FPV RC Drone Airplane Model Accessories DIY
This product is PWM controlled relay switch, different from the field effect tube, it is directly established physical line connection, so can adapt to higher DC voltage, but also can connect to AC.
Description:
Item: PWM Relay Switch

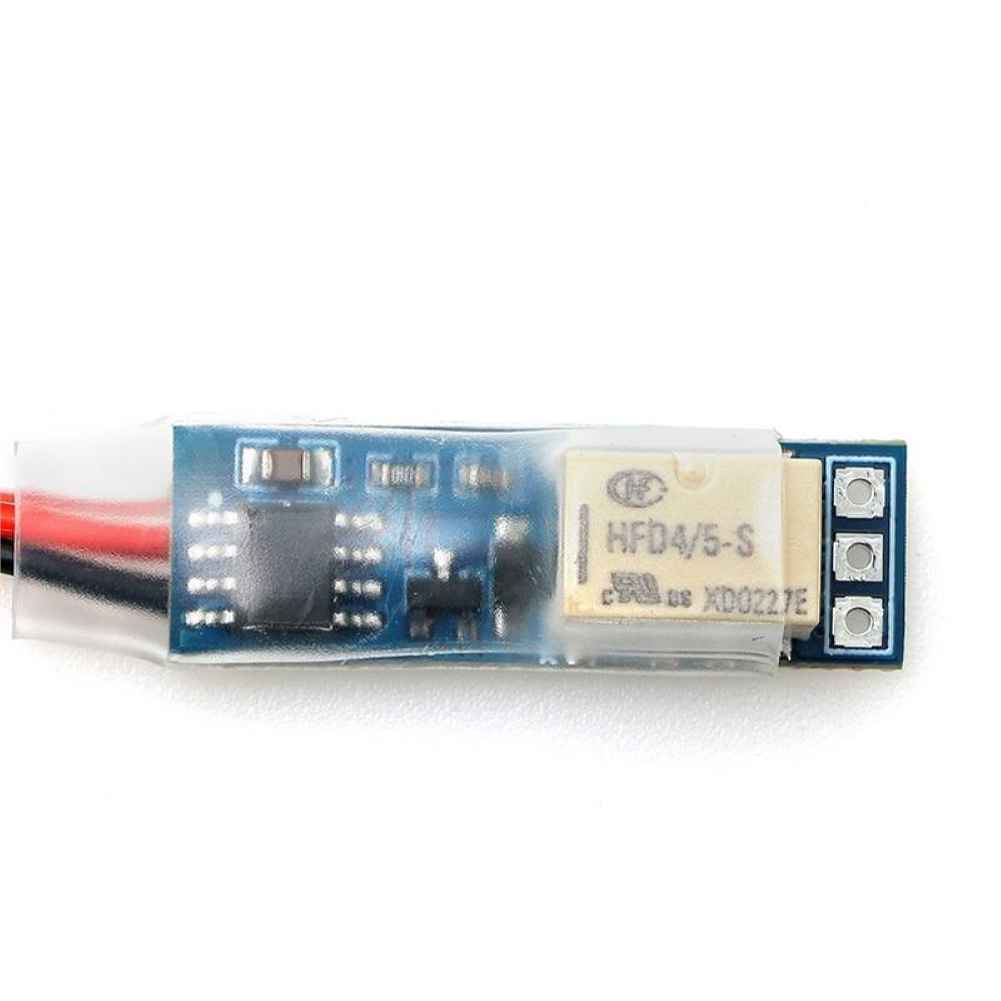

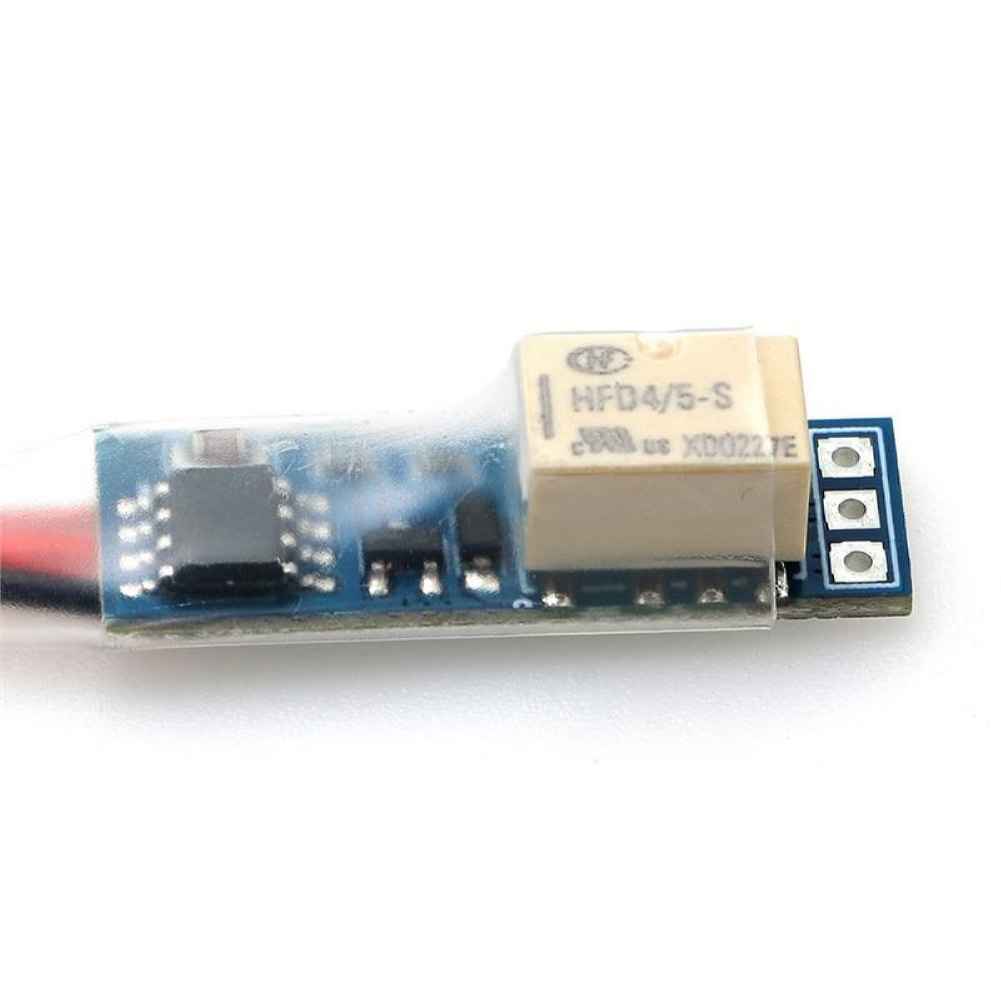

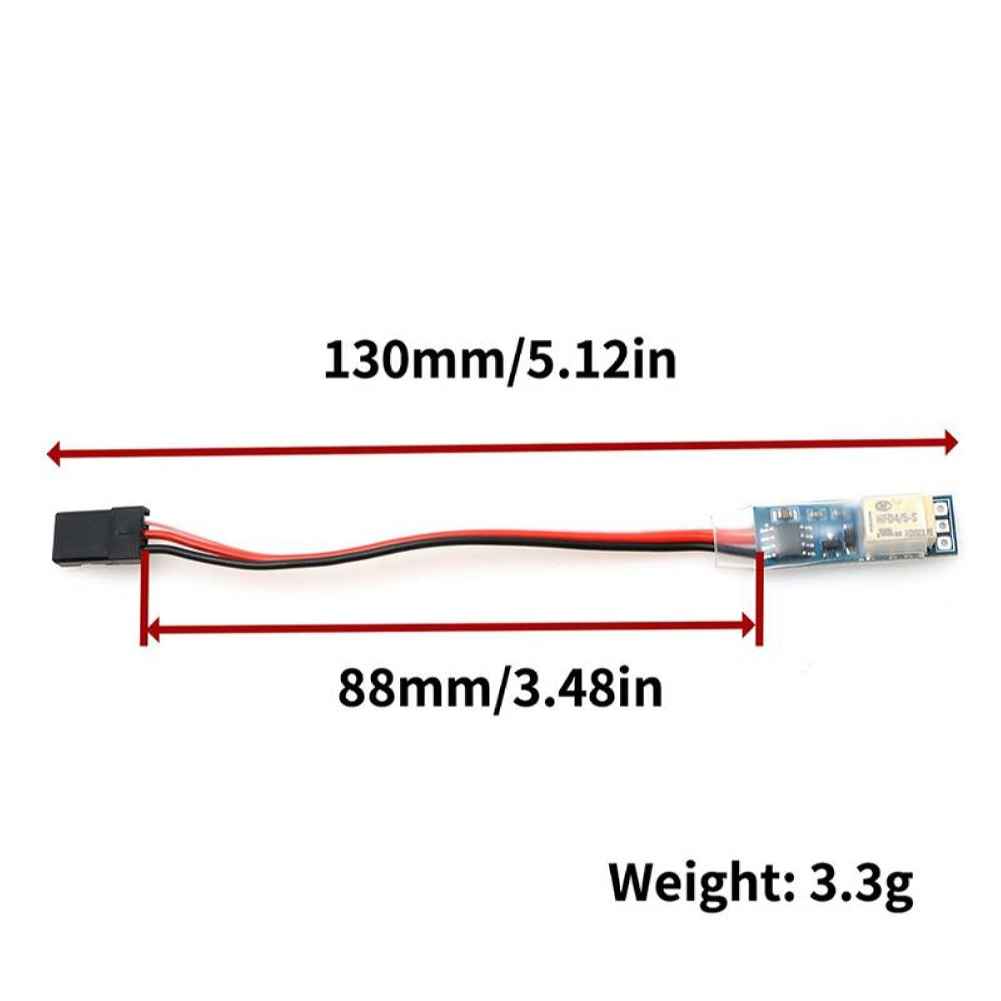

Motherboard size: length width height 29 x 9 x 8 mmWhite Relay size only: 10 x 6.5 x 5.4 (mm)The power consumption of the relay coil is about 140mWColor: As ShownMaterial: composite material

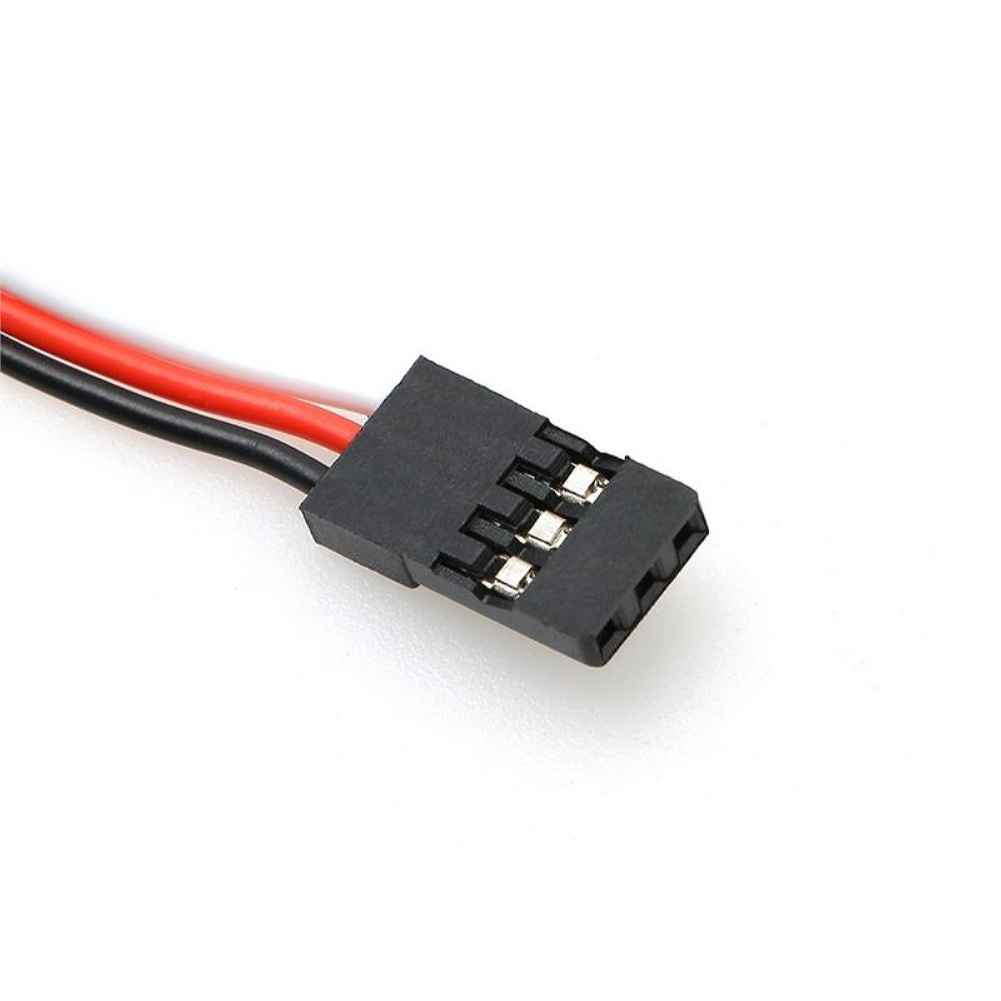

Control Terminal:- Input voltage 5v (connect receiver).

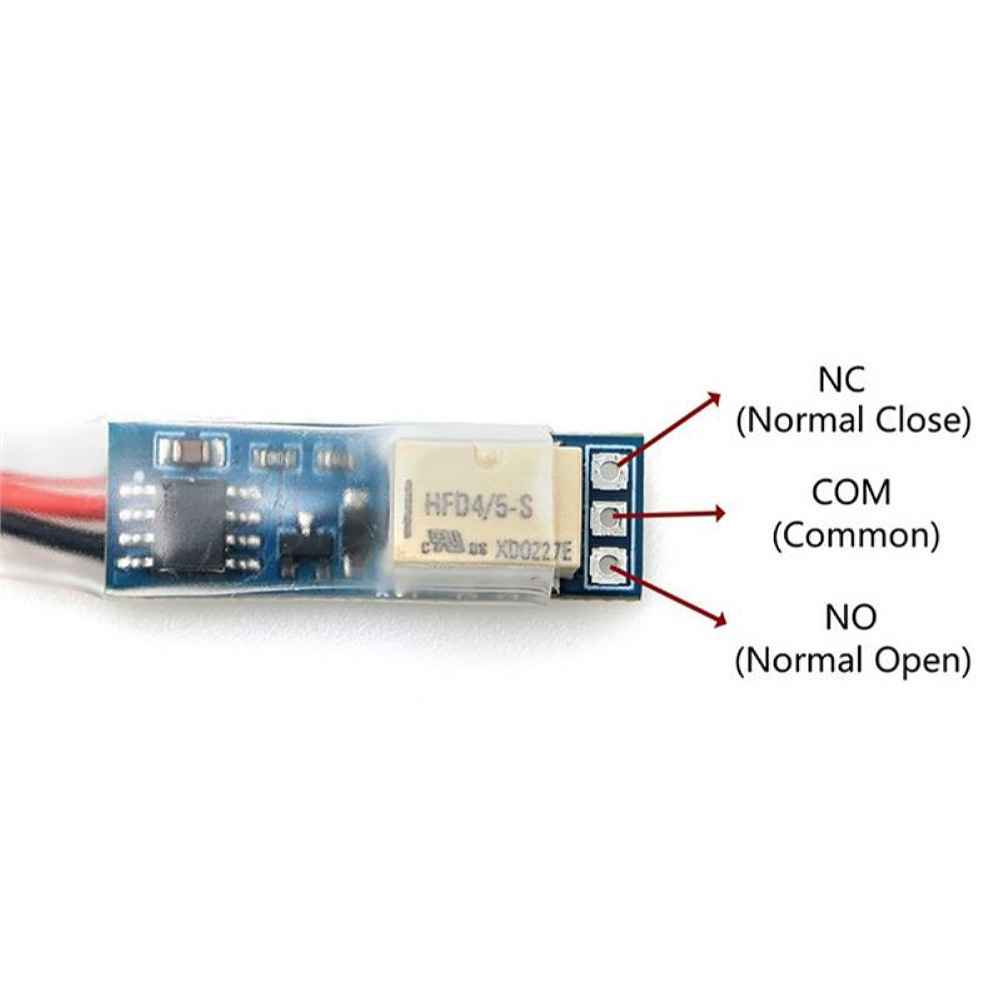

– PWM control: When high (>1700us), the normally open terminal and the common terminal are connected.
(at the same time, the normally closed terminal and the common terminal are disconnected).
(It means that except when >1750us, the normally closed terminal and the public terminal are connected at other times).

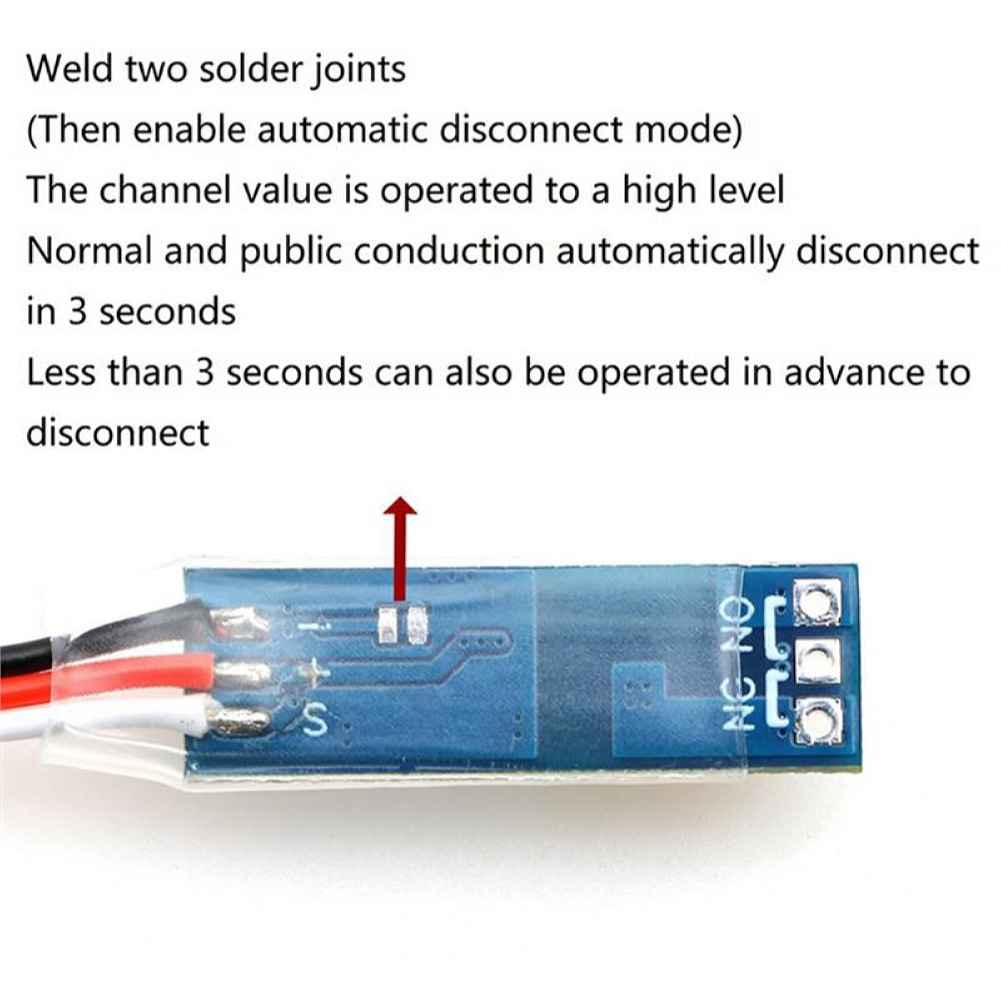

– There are solder joints can be set to delay 3 seconds, automatically disconnect.

Package Included:
1 x PWM Relay Switch
