DIY Mini-Z Car 30A Bidirectional Brushed ESC with Brake, 4-8V, Compatible with 2S Li-ion

Description

DIY Mini-Z Car Bidirectional 30A Miniature Brushed ESC With Brake

The DIY Mini-Z Car Bidirectional 30A Miniature Brushed ESC with Brake is designed for hobbyists building mosquito or mini-Z cars. It operates on a voltage range of 4 to 8V and is compatible with 2S Li-ion batteries (7.4V). This ESC features a forward electric current of 30A with an instant peak value of 40A, and a backward current of 20A with a braking value of 40A. It includes a UBEC output with a voltage of 5.7V and a current of 1A, suitable for the receiver and steering servo. The compact size of 25 x 23 x 5mm and lightweight design of 13g (including wires) make it easy to install. The ESC requires fine adjustment of the throttle’s TH TRIM for optimal performance.

DIY Mini-Z Car Bidirectional 30A Miniature Brushed ESC With Brake
Description:
It’s bidirectional 30A miniature brushed ESC with brake for DIY mosquito/mini-z car.You can also find other parts in banggood.
voltage:4~8V
suitable battery type:2S Li-ion(7.4V)(not included)
electric current:go forward:30A
instant peak value:40A
go backward:20A
braking value:40A
UBEC output:voltage5.7V electric current 1A.(for receiver and steering SERVO)
size:25 x 23 x 5mm
weight:13g(wire included)
plug type:JST(with switch)

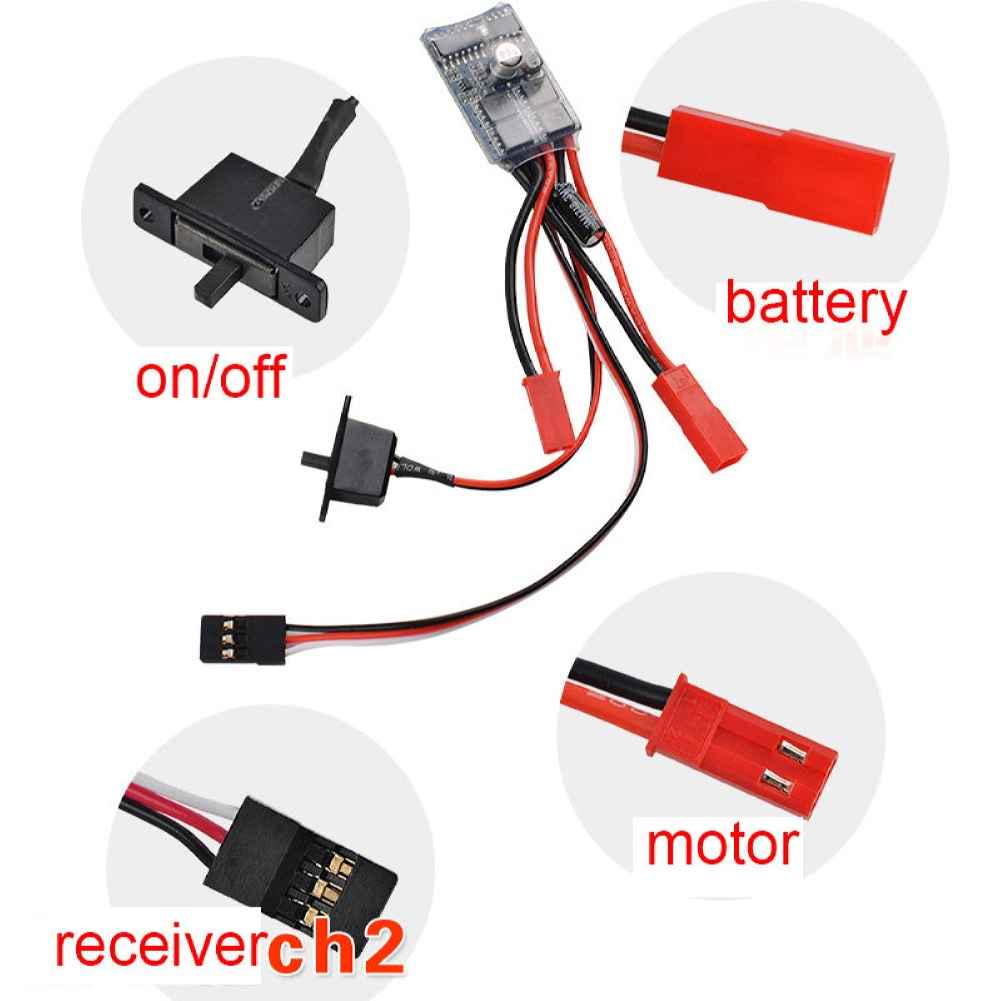

connecting rod:short red(positive) and black(negative)——battery
long red and black(positive or negative is random)——motor
black red and white three-one line——ch2 of receiver
How to adjust
The ESC is setted in median interval,so new controller requires fine adjustment to make the ESC light out,then it’s the right place.Its throttle’s fine adjustment is TH TRIM.

Package Included:
1 x 30A miniature brushed ESC
