Dual Port Pocket Servo Tester with Anti-Reverse Connection and Power Indicator Light, 3-8V Voltage Range

Description

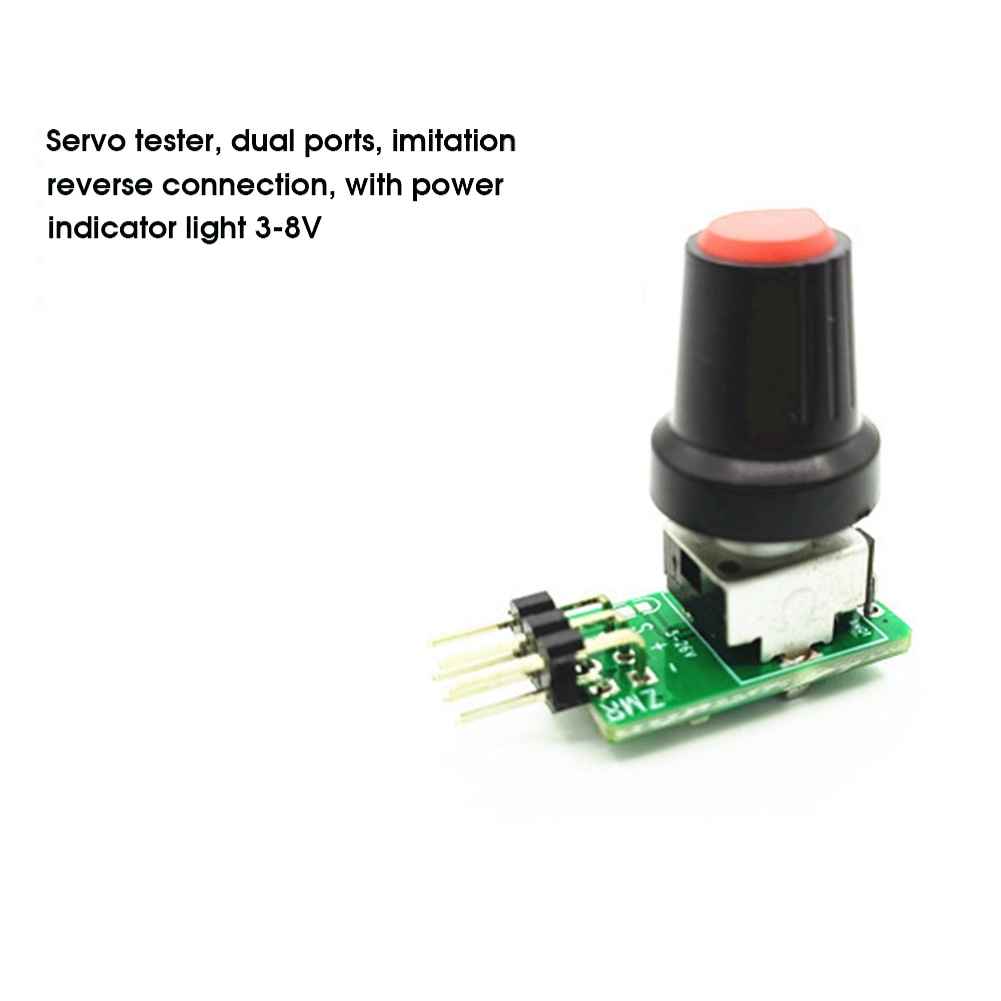

3-8V Dual Port Anti-reverse Connection With Power-on Indicator Light Pocket Servo Tester

The Pocket Servo Tester is engineered for precise control and testing of servos with a voltage range of 3-8V. Compact in design, this tester measures just 25x15mm and weighs a mere 4g, making it incredibly portable. It features a dual port design with two identical signal ports for seamless power supply and testing. The tester outputs a 1000-2000us50HzPWM signal, which can be modified to 500-2500us for 180-degree rotating servos. Built-in reverse connection protection ensures safe operation, while the power-on indicator light provides a clear connection status. Ideal for high voltage servos powered by 2S Lithium batteries, this servo tester is a versatile tool for hobbyists and professionals alike.

Specifications:
Name: Servo Tester
Voltage: 3-8V
Size: 25â„…15mm
Weight: 4g
Features:

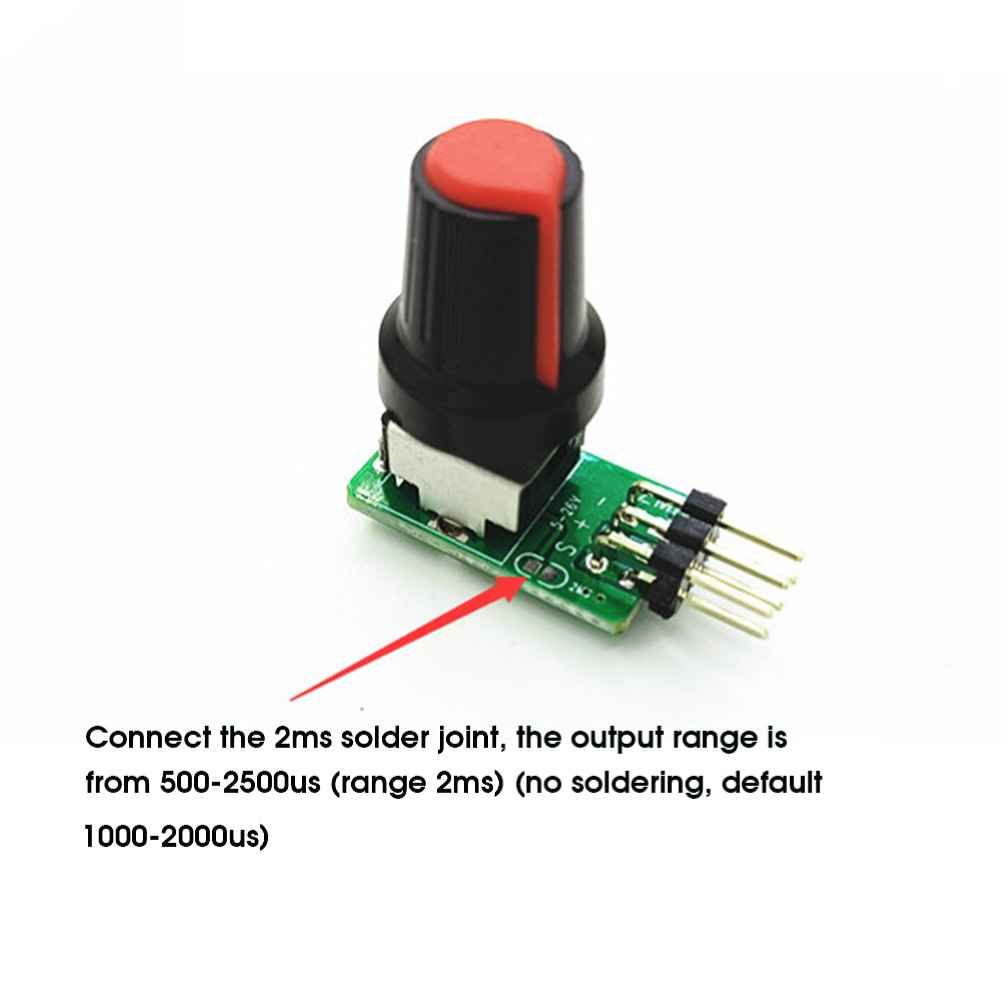

Unlike common servo controls, this tester provides a more compatible output of 1000-2000us50HzPWM signal with general remotes. By soldering, output can be modified to 500-2500us that can drive 180-degree rotating servos.
Equipped with two identical signal ports in a dual row pin structure, this servo tester provides the convenience for power supply and testing.
Mades for high voltage servos (2S Lithium battery), this servo tester supports a wide voltage range of 3-8V. (Do not use 2S power supply for 5V servos)
Built-in power reverse connection protection ensures the safe use of the device.
Includes a power indicator light that glows through the casing to indicate connection status.

Package Included:
1 x Pocket Servo Tester
