ELRS 2.4GHz NANO RC Receiver with T Antenna for FPV Racer Drone, Low Latency, High Range

Description

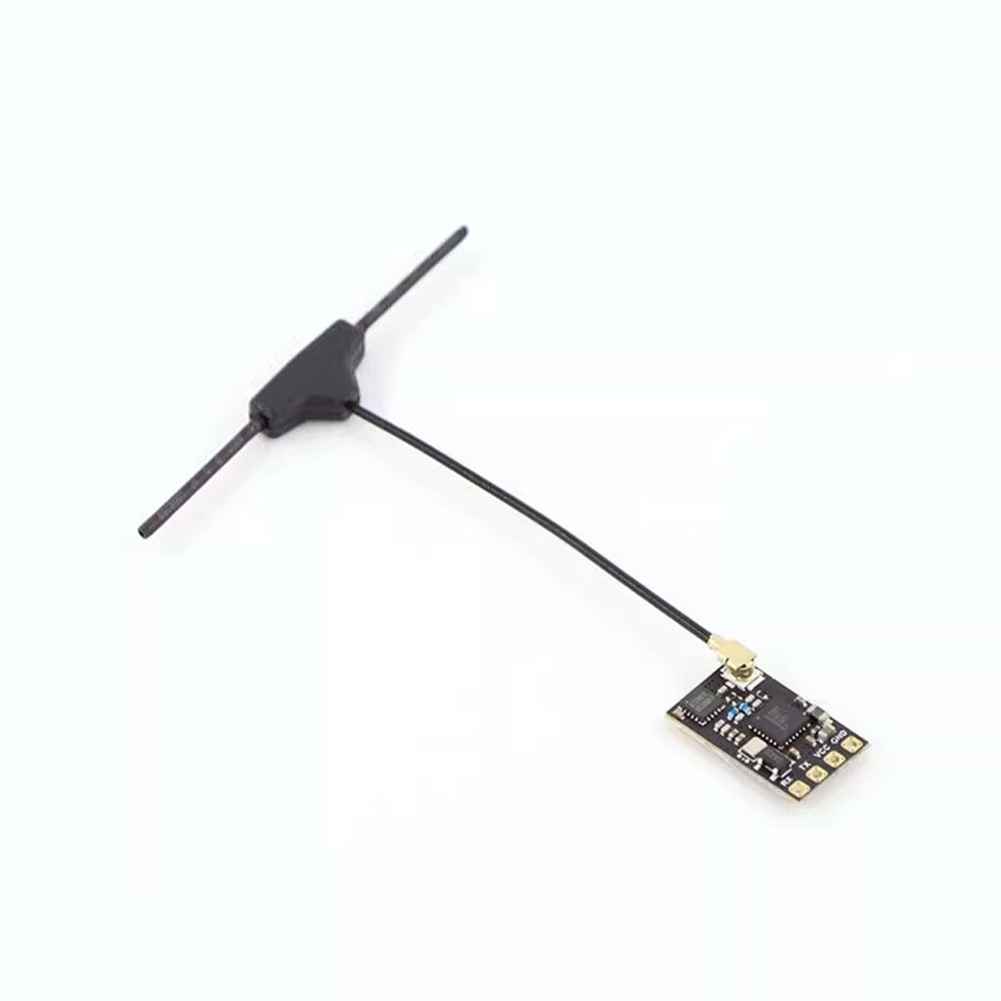

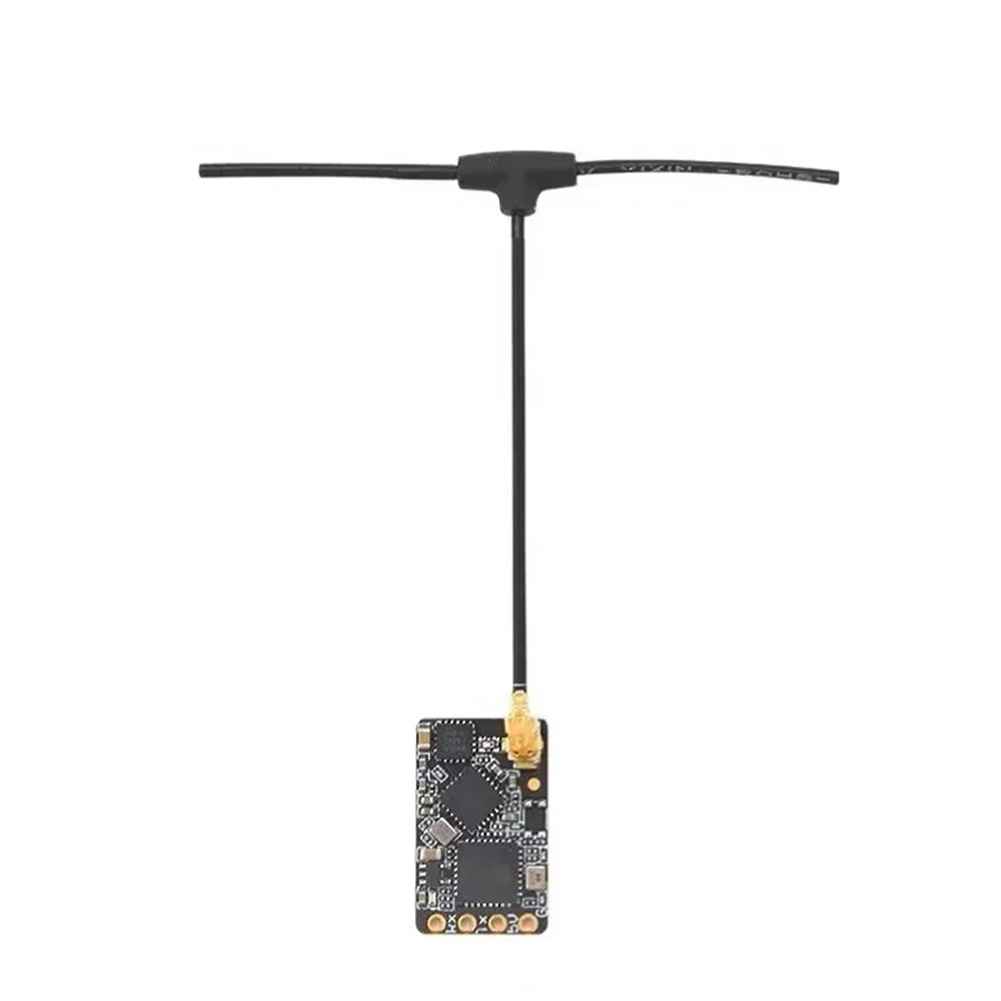

ELRS 2.4GHz NANO RC Receiver With T Antenna for RC FPV Racer Drone

The ELRS 2.4GHz NANO RC Receiver with T Antenna is designed for FPV Racer Drones, offering an exceptional open-source radio control link. It operates at both 900 MHz and 2.4 GHz frequencies, ensuring maximum range and low latency. This receiver features a compact design with a size of 11mm by 18mm and weighs only 0.4g, making it ideal for lightweight drone builds. Powered by the BETAFPV Nano 2400 RX 2.2.0 firmware, it operates efficiently at an input power of 3.6-5.5V. The receiver includes an IPEX 1 connector and transmits at 100mW, providing robust performance for your drone racing needs.

ELRS 2.4GHz NANO RC Receiver With T Antenna for RC FPV Racer Drone
Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency. Vast support of hardware in both 900 Mhz and 2.4 GHz frequencies.

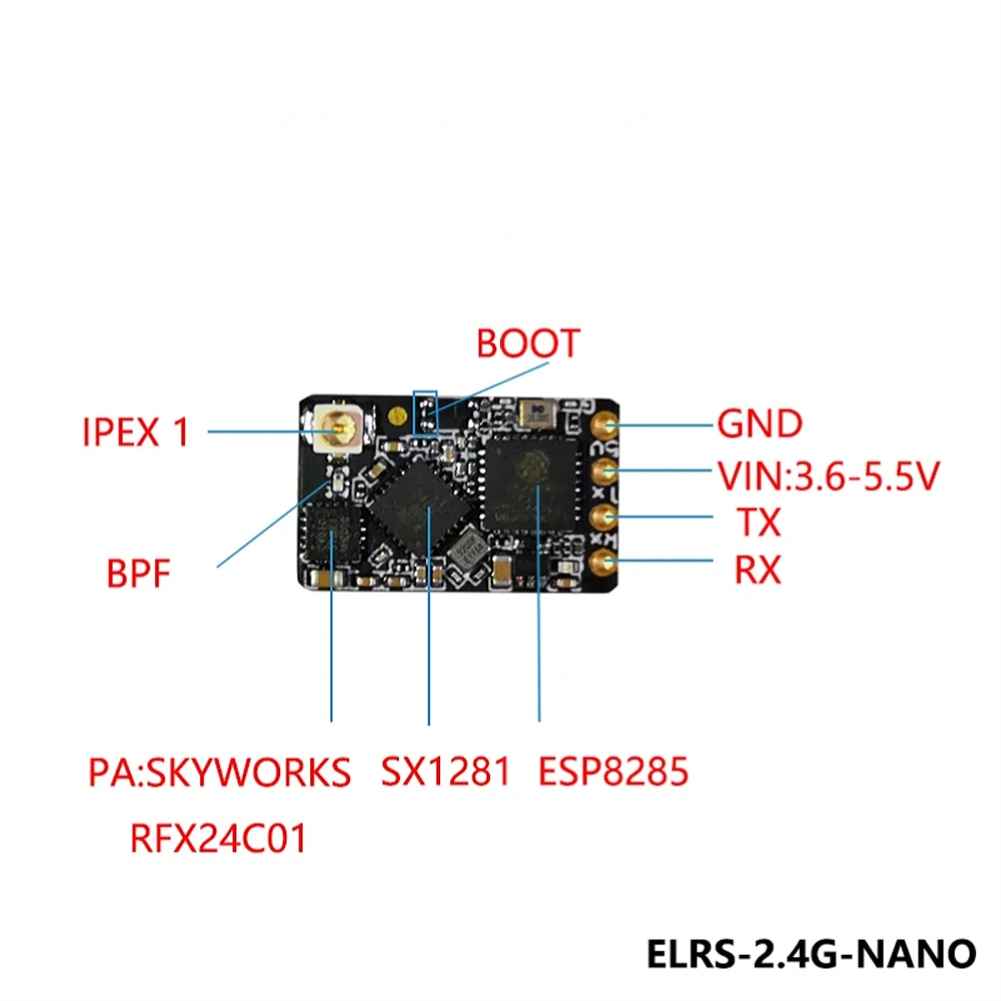

Specification:
Model: ELRS 2.4G NANO
RF Freq: 2.4Ghz
IC: SX1281+ESP8285
TX Power: 100mW
Color: Black
Connector: IPEX 1
Input Power: 3.6-5.5V
Firmware: BETAFPV Nano 2400 RX 2.2.0
Weight: 0.4g(receiver only)
Size: 11mm*18mm

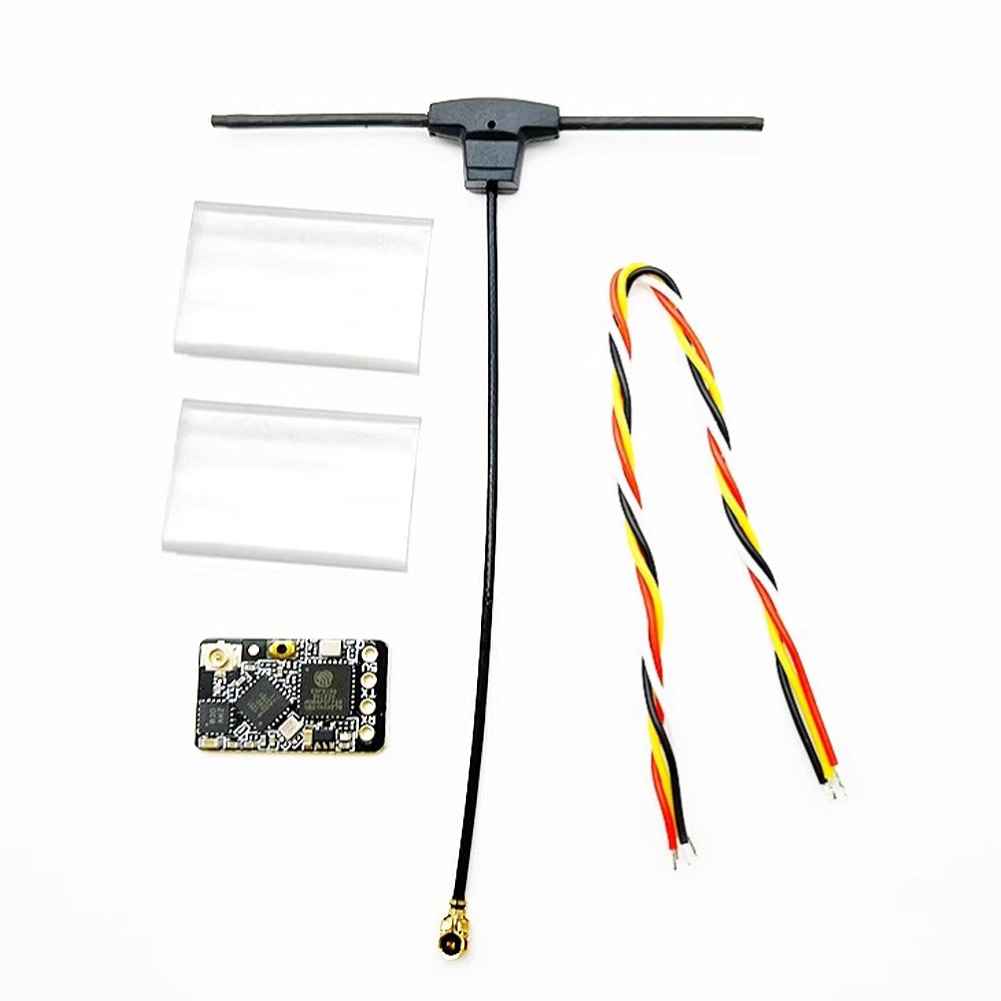

Package Included:
1x Nano Receiver
1x T Antenna
1x Heat Shrink Tube
