EMAX ES3054 17g Metal Gear Digital Servo for RC Airplane, 3.5kg Torque, 0.13sec Speed, ES3154 Upgrade

Description

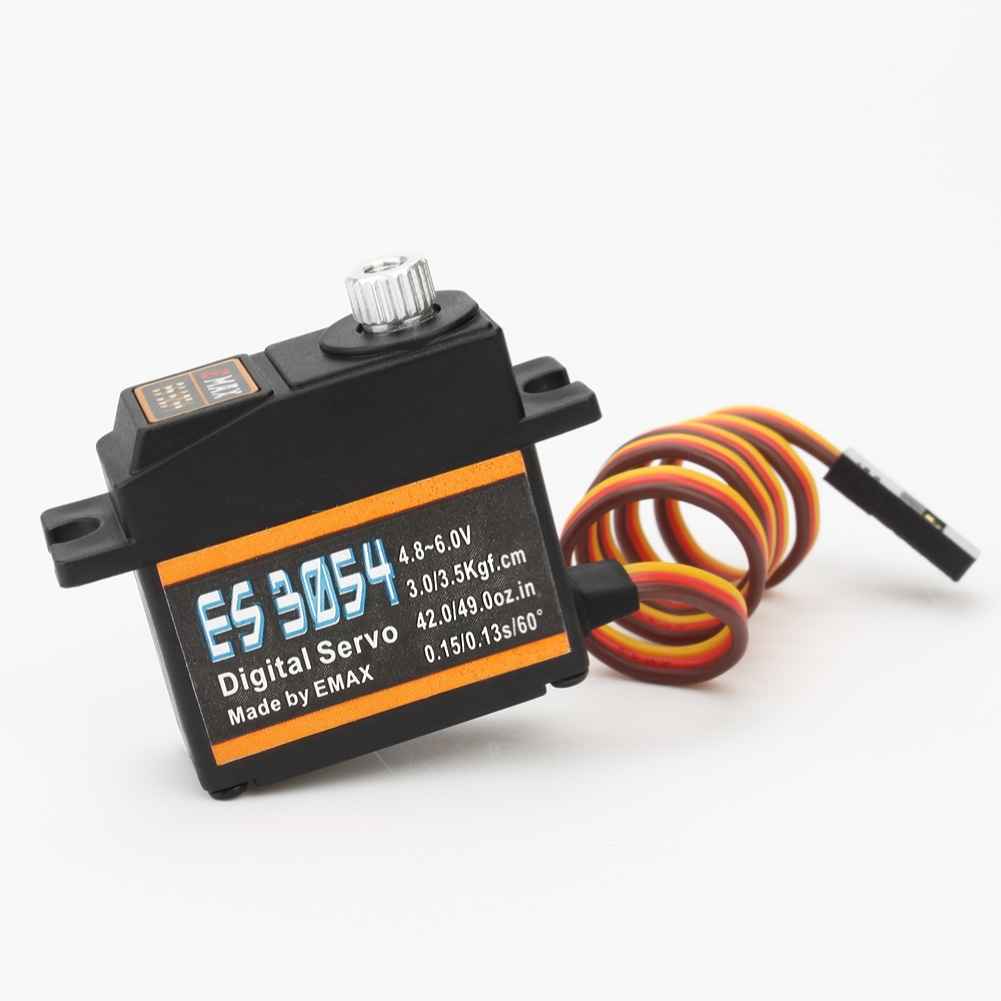

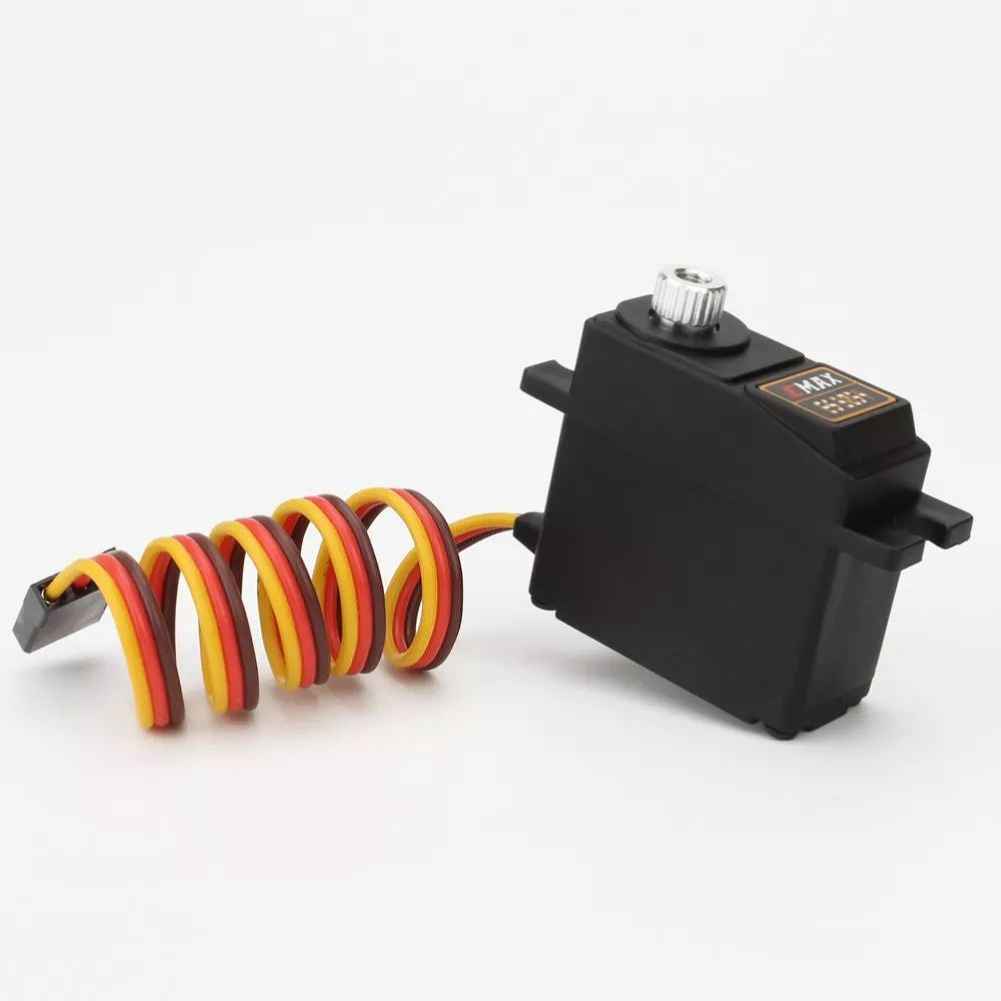

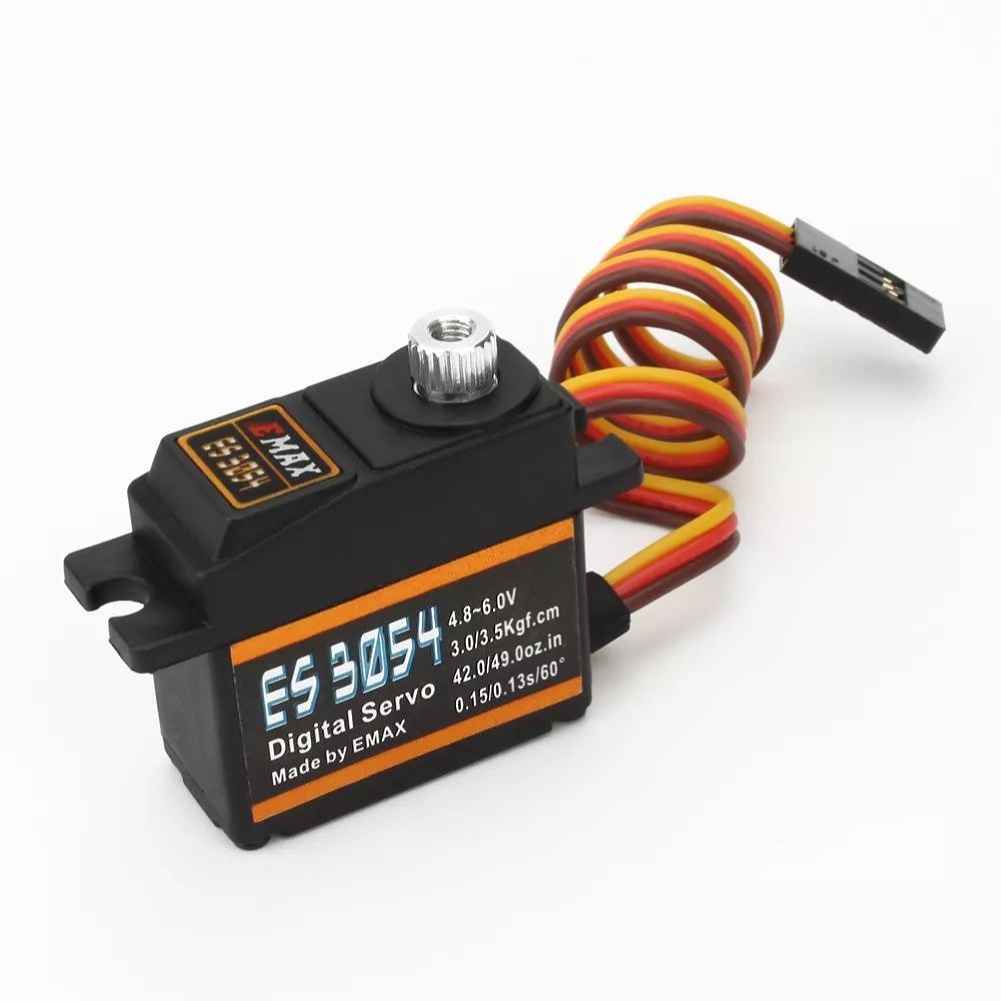

Emax ES3054 17g 3.5kg 0.13sec Metal Gear Digital Servo For RC Airplane (ES3154 Upgraded Version)

The EMAX ES3054 is a high-performance 17g metal gear digital servo, designed specifically for RC airplanes. Featuring an upgraded version of the ES3154, it delivers a stall torque of 3.5kg.cm at 6.0V and operates at a maximum speed of 0.13 sec/60～ at no load. With an operating voltage range of 4.8V to 6.0V, this servo ensures reliable performance. It includes a FUT and JR compatible plug and a 23T flower head. The servo’s dimensions of 28.45×13.00×31.10mm and lightweight design make it an ideal choice for hobbyists seeking precision and durability.

Emax ES3054 17g 3.5kg 0.13sec Metal Gear Digital Servo For RC Airplane
Specifications:

Brand Name

EMAX

Item Name

ES3054

Operating Voltage

4.8V – 6.0V

STD Direction

Counter Clockwise / Pulse Traveling 1500 to 1900 è­™ sec

Stall Torque

4.8V

3kg.cm Max

Operating Speed

4.8V

0.15 sec/60‵ at no load

Stall Torque

6.0V

3.5kg.cm Max

Operating Speed

6.0V

0.13 sec/60‵ at no load

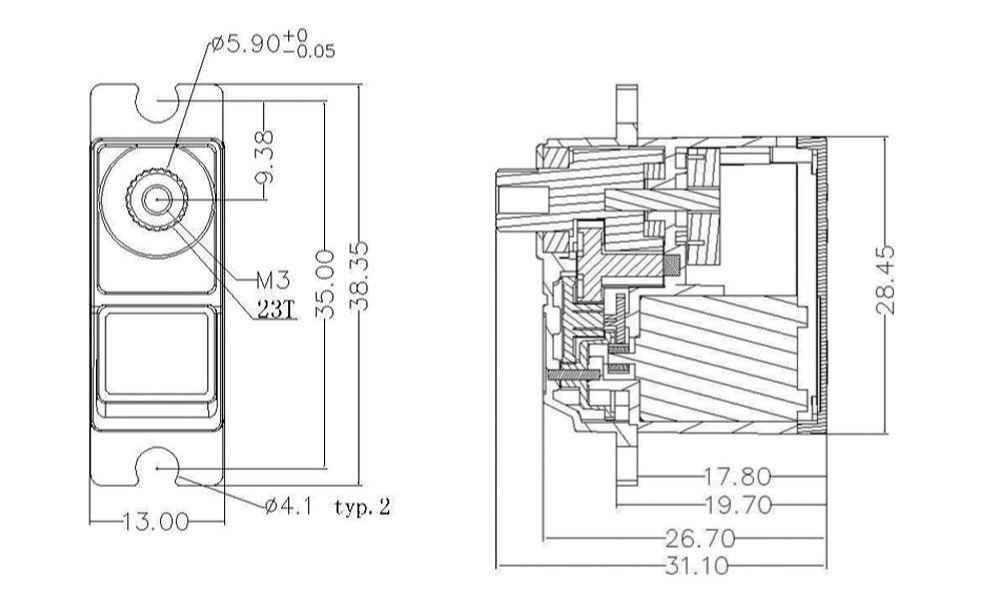

Size

28.45×13.00×31.10mm

Weight

17g

Plug Available

FUT;JR

Flower Head

23T

Maximum Travel

145‵呼10‵ (700-2300譙 sec)

Others

Bearing; Metal; Digital

Note: This is the upgraded version of ES3154.

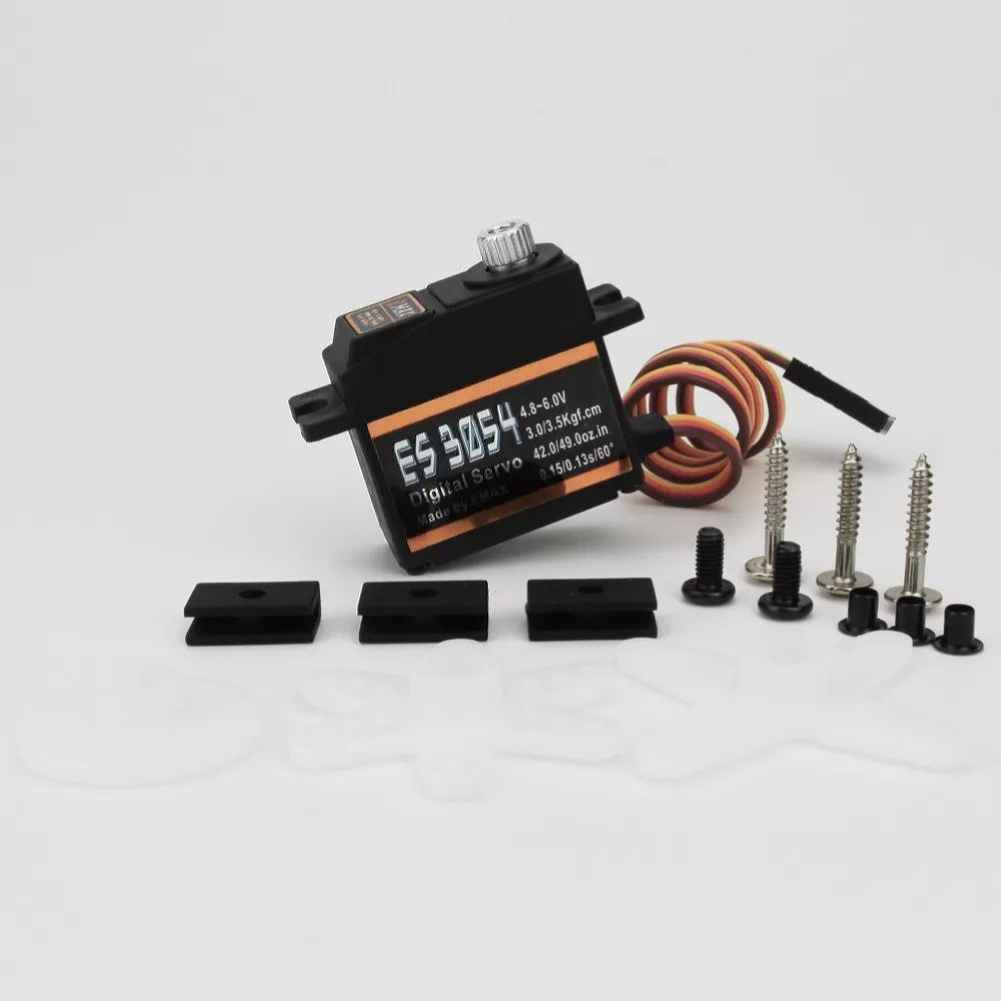

Package Included:
1 x EMAX ES3054 17g Servo
