6PCS Emax ES9251 Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model
The Emax ES9251II Digital Servo is a high-performance micro servo designed for RC model enthusiasts. Operating at a voltage range of 4.8V to 6.0V, it offers swift response times with speeds of 0.09 sec/60掳 at 4.8V and 0.08 sec/60掳 at 6.0V. With a stall torque of up to 0.3kg.cm at 6.0V, this servo is ideal for RC airplanes, helicopters, and aircraft. It features a combination of one metal gear and five plastic gears, ensuring durability and precision. The servo is lightweight, weighing only 3g, and operates efficiently with a maximum current of 140mA at 6.0V. Its compact size, along with a JR connector and 180mm wire length, makes it easy to integrate into various RC models.
Description:
Brand: Emax
Item: ES9251II Digital Servo
Operating Voltage: 4.8V~6.0V
Operating Speed (at no load): 0.09 sec/60~(4.8v), 0.08 sec/60~(6.0v)
Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)
Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)
Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)
Idle Current: 2.2mA
Storage Temperature Range: -20 C~70’C
Operating Temperature Range: -10C~60C
Size: 25.49*8.25*20.25mm
Weight: 3.0㊣0.5g

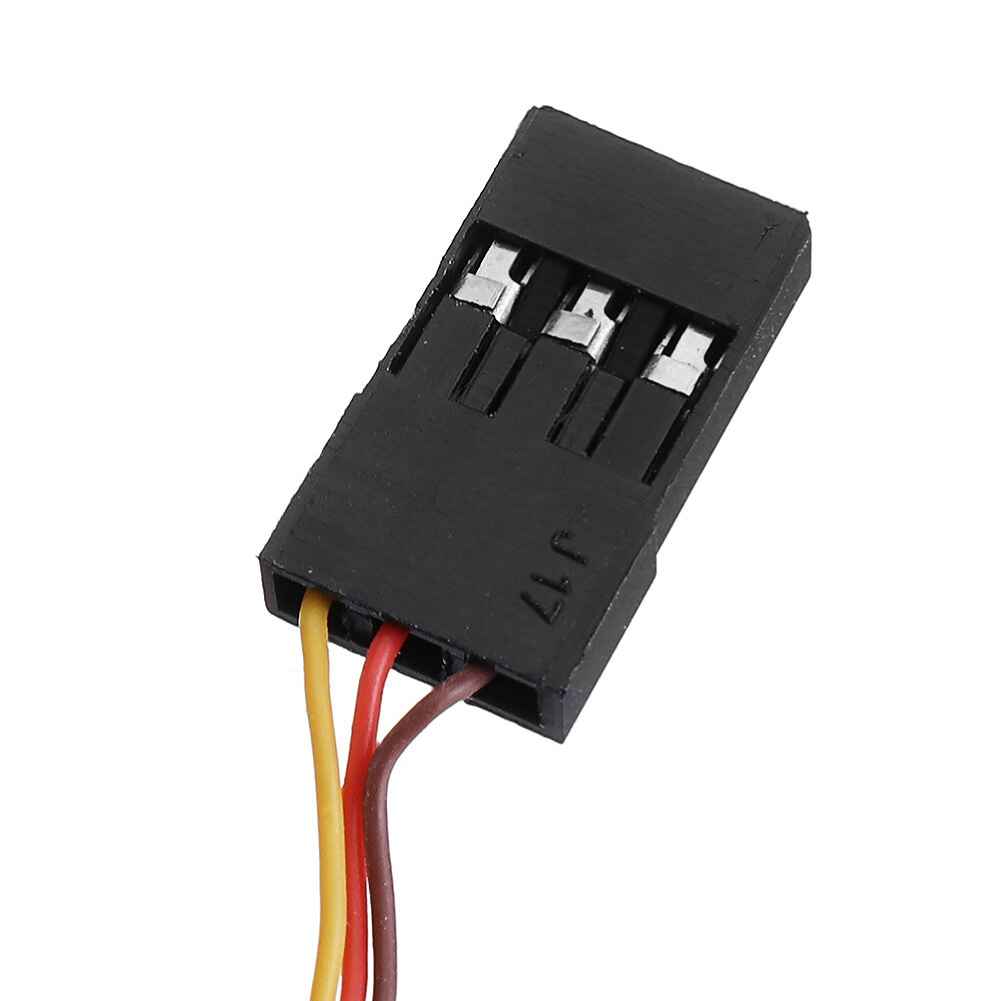

Connector Wire Gauge: JR
Connector Wire Length: 180㊣8mm
Flower Head: 15T
Bearing: NO
Gear Type: 1 metal gear + 5 plastic gear
Extreme Angle: 360~
Control System:PWM
Operating Travel: 90~㊣10~ (when 1000-2000 米sec)
Neutral Position: 1500 ç±³ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 ç±³ sec
Pulse Width Range: 700- 2300 ç±³ sec
Maximum Travel: 145~㊣10~ (700-2300米 sec )
Usage:For RC Airplane,RC Aircraft, RC Helicopter
English Manual, Click Here
Package Included:

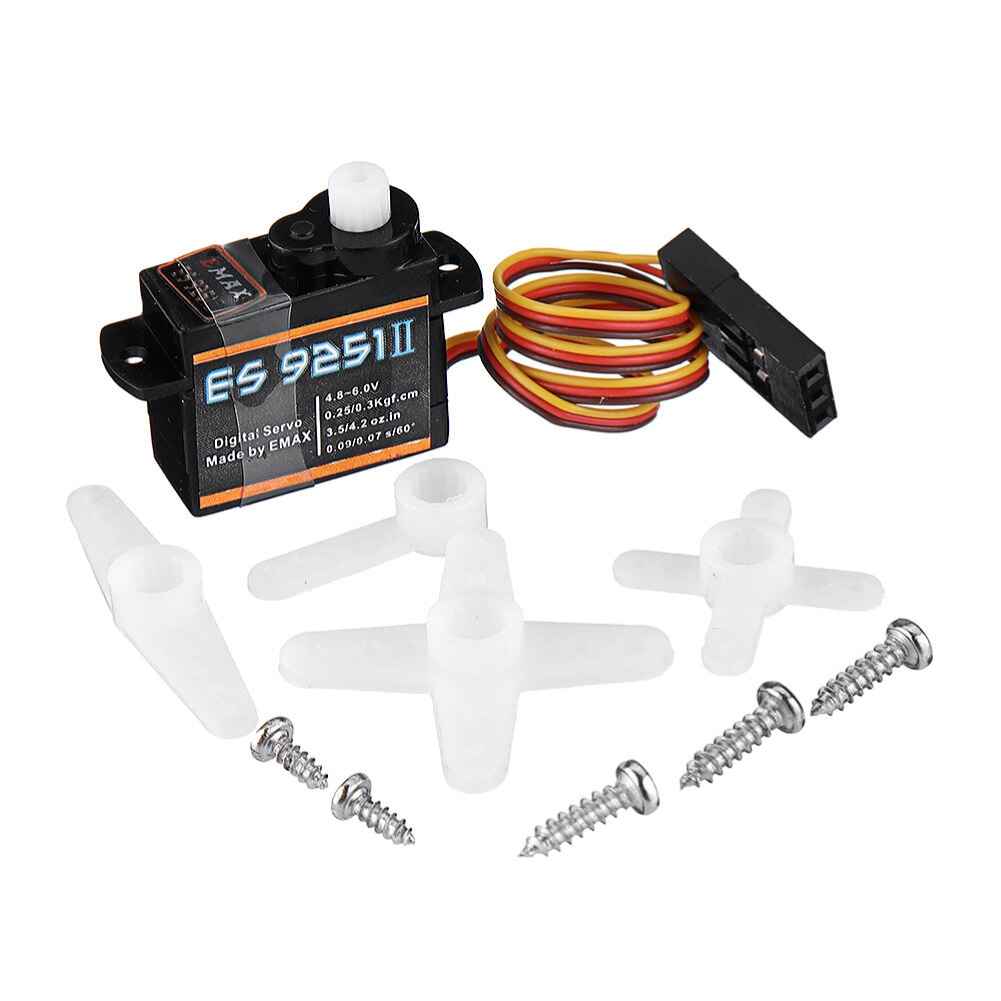

6 x ES9251II Digital Servo
