Flipsky FS75100 FOC 75V 100A Single ESC for Electric Skateboards, Scooters, and Ebikes – Speed Controller with USB and Hall Sensor Adapter

Description

Flipsky 75100 FOC 75V 100A Single ESC For Electric Skateboard Scooter Ebike Speed Controller Parts

The Flipsky FS75100 ESC is a high-performance speed controller designed for electric skateboards, scooters, and ebikes. It supports a voltage range of 14-84V (4-20S) and a continuous current of 100A, with a maximum current of 120A. Equipped with TOOL3.0 firmware, it offers a control interface through USB, CAN, and UART ports. This ESC features FOC mode for sinusoidal control, a BEC of 5V@1A, and is programmable for customized settings. It supports various sensors, including ABI, HALL, AS5047, and AS5048A. With overheat and overcurrent protection, it ensures reliable performance. The package includes a USB cable and a Hall Sensor Adapter for easy setup.

Specification:
Brand:Flipsky
Item Name:FS75100 ESC
Voltage:14-84V (4-20S)
Continuous Current:100A
Max Current:120A
Firmware:TOOL3.0(firmware5.2), firmware upload not available
ERPM:150000

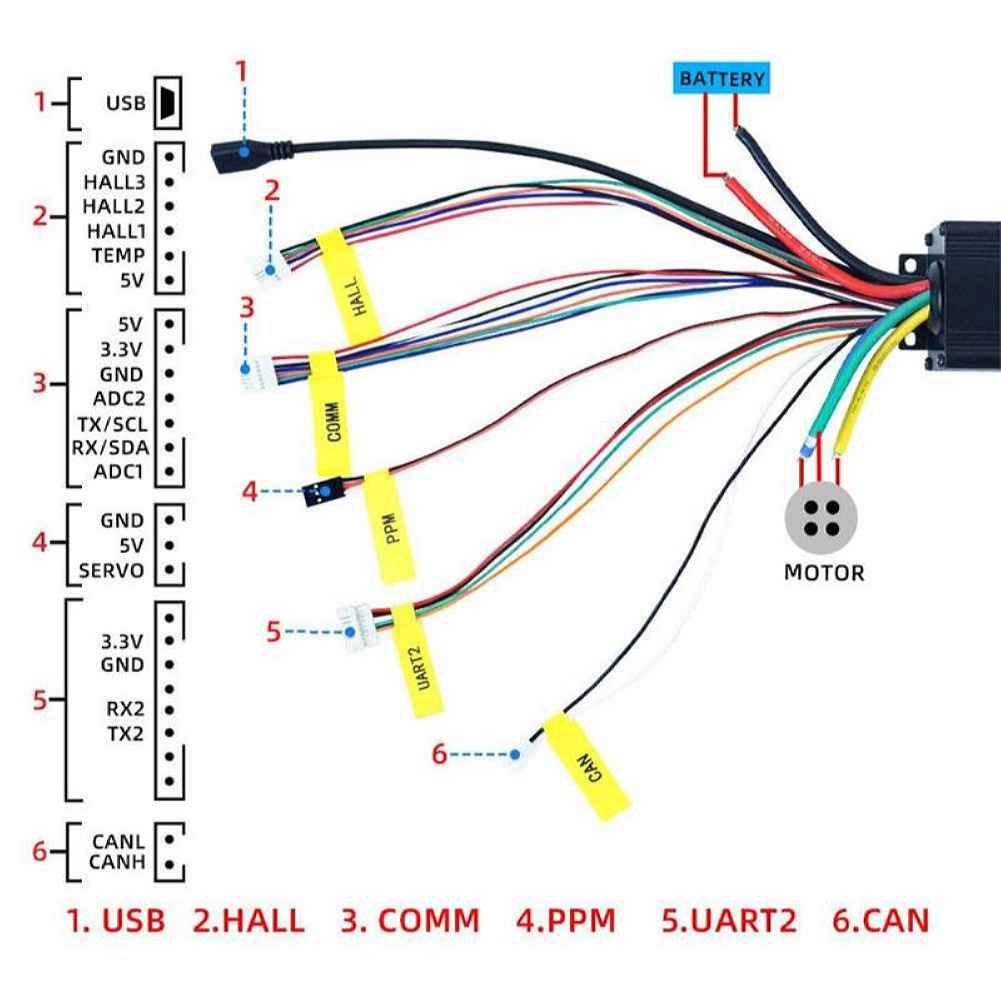

Control Interface Ports:USB,CAN,UART
BEC:5V@1A
Modes:FOC (sinusoidal)
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size:12AWG
Size:L85mm*W50.7mm*H33.8mm
Programmable:Yes
Regenerative Capacity:Yes
Feature:
Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
Programmable via tool with overheat and overcurrent protection.

Package Included:
1 x FS75100 1 x USB Cable 1 x Hall Sensor Adapter (6pins) 1 x Manual
