Flipsky Antispark Switch Pro V3.0 with Aluminum PCB for Electric Skateboards, EBikes, Scooters, and RC Cars

Description

Flipsky Antispark Switch Pro with Aluminum PCB V3.0 for Electric Skateboard /EBike /Scooter/Robots RC Car Models Parts

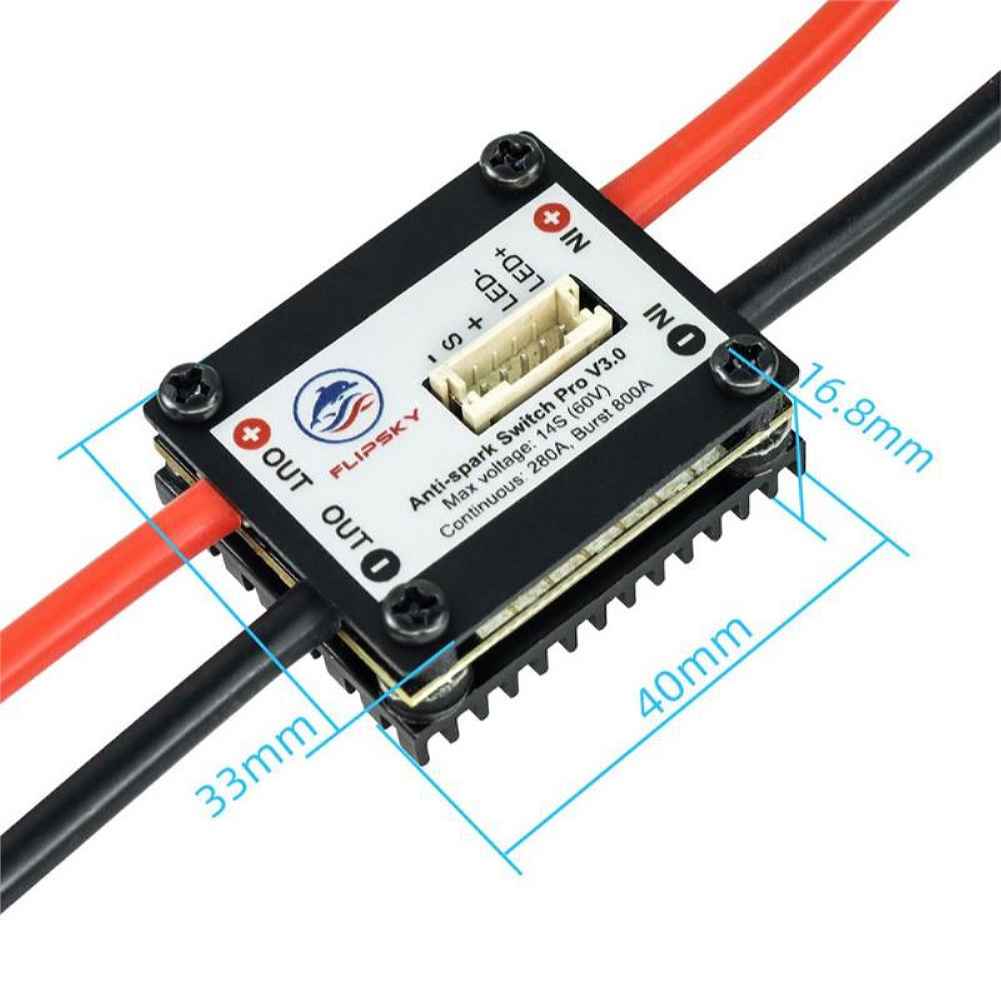

The Flipsky Antispark Switch Pro V3.0 is designed for electric skateboards, e-bikes, scooters, and RC car models. Constructed with a durable aluminum PCB, this switch ensures reliable performance. It features a voltage range of 12V-60V and supports a maximum current of 200A, with a continuous current of 60A and a theoretical burst current of 800A. The switch is equipped with a 16mm LED button and requires the button to be connected before powering on. With a compact size of about 40mm x 33mm x 16.8mm, this switch is an essential component for your electric vehicle projects.

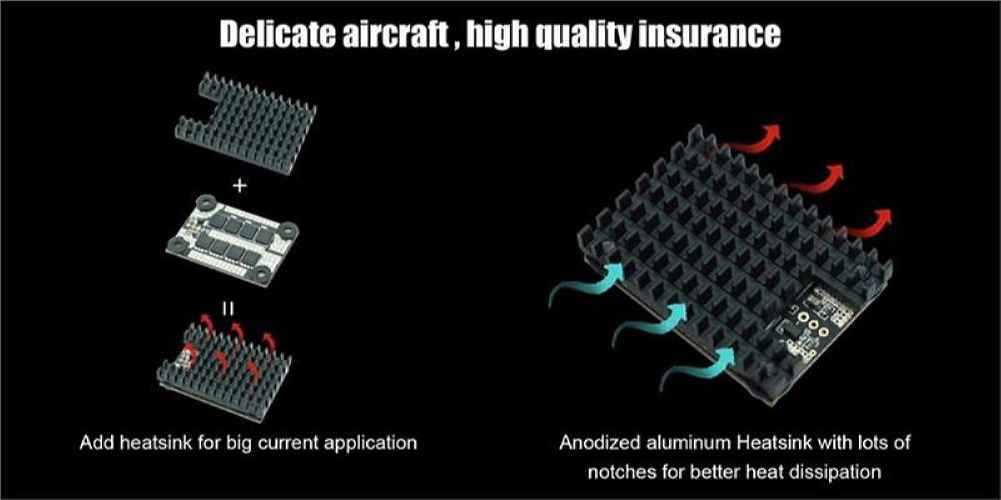

Description:Item Brand:FlipskyItem Name:Anti spark switch proMaterial:MetalColor:BlackProduct Size:About 40*33*16.8mmCompatible Model:Electric Skateboard /Ebike/ Scooter/Robots RC Car Vehicles ModelsSpec:V3.0Mosfets:HYG015N10NS1TALED Button Diameter:16mmVoltage Range:3S-14S (12V-60V)Max Current:200A(It is better to increase bigger heat sink)Continuous Current:60ABurst Current 800A(theoretical current)PCB Thickness:6 layer*3oz copper=18oz copperPro V3.0 Dimensions(with heatsink and heat shrink):42.2mm*33mm*26.6mm(12AWG Wire)With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire)Reminder:The the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.

Package Included:
1 x Antispark Switch Pro
