Flipsky Single 6.7 PRO ESC 70A Mini Speed Controller for Electric Skateboard, Scooter, Ebike, RC Models

Description

Flipsky Single 6.7 PRO ESC 70A Mini for Electric Skateboard Scooter Ebike RC Models Speed Controller Parts

The Flipsky Single 6.7 PRO ESC 70A Mini is a versatile speed controller designed for electric skateboards, scooters, ebikes, and RC models. Constructed with durable metal, this ESC operates on a voltage range of 14-60V, with a safe voltage recommendation of 4-12s and a maximum peak of 60V. It supports a continuous current of 70A and a pulse current of 200A. The ESC is equipped with a variety of communication methods, including PPM, ADC, NRF, and UART, and features multiple communication ports such as USB, CAN, UART, SPI, and IIC. It also supports several sensors like ABI, HALL, AS5047, and AS5048A, and offers control modes for current, duty cycle, speed, and position.

Description:
Item Brand:Flipsky
Item Name:ESC
Material:Metal
Color:As shown

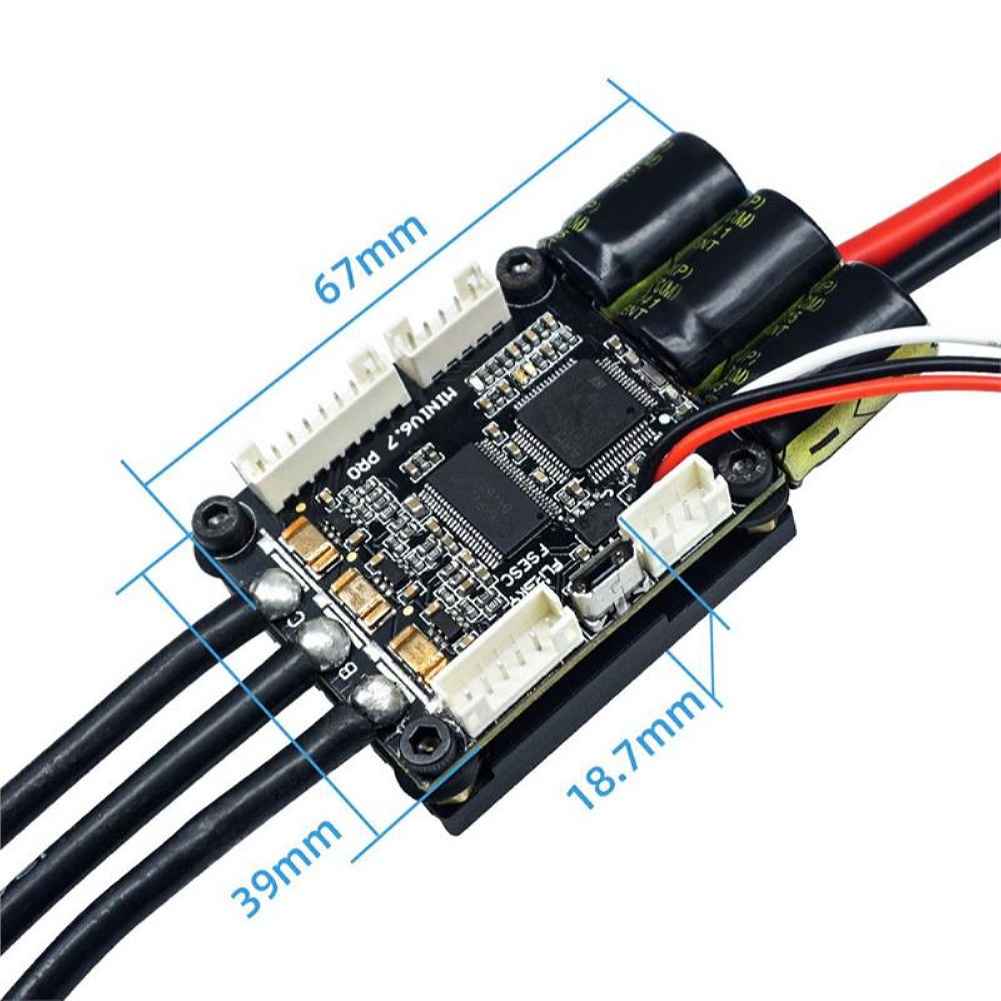

Product Size:67*39*18.7mm
Product Weight:About 100g
Compatible Models:For Electric Skateboard Scooter Ebike RC Models
Specification:
Voltage:14-60V(safe voltage is 4-12s,the peak of voltage cannot exceed 60V)
Continuous Current:70A
Pulse Current:200A
EPRM:150000
Motor Cable:12 AWG
Power Cable:12 AWG
Communication Method:PPM,ADC,NRF,UART

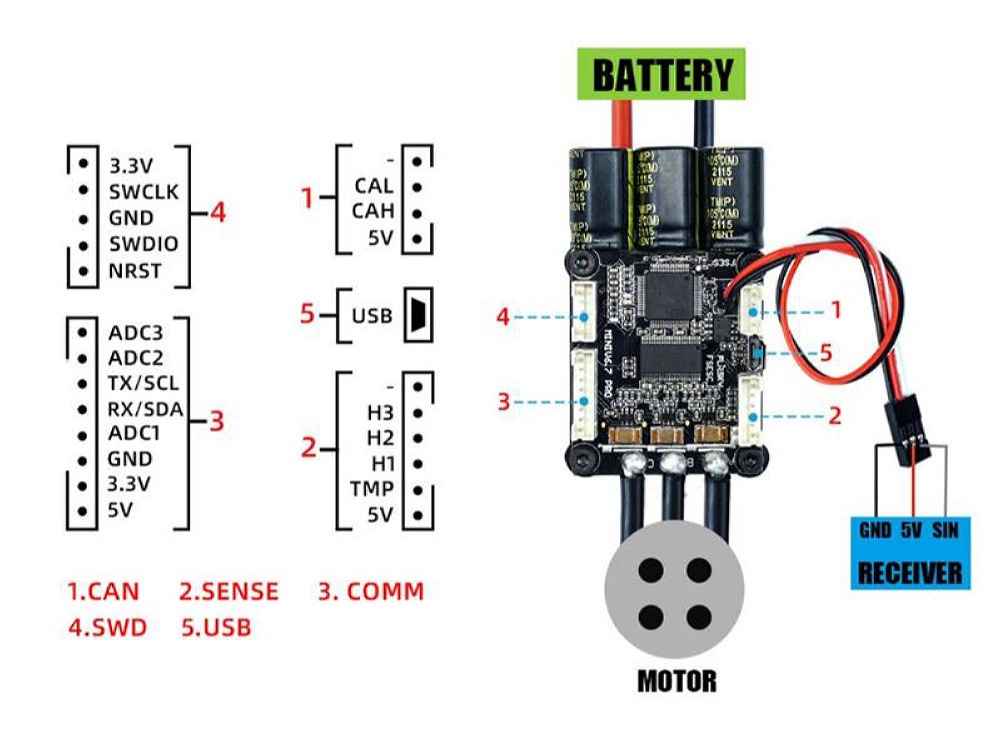

Communication Port:USB,CAN,UART,SPI,IIC,
Sensor Support:ABI,HALL,AS5047,AS5048A
Controller Mode:Support current, duty cycle, speed and position control modes

Package Included:
1 x 6.7 PRO ESC
