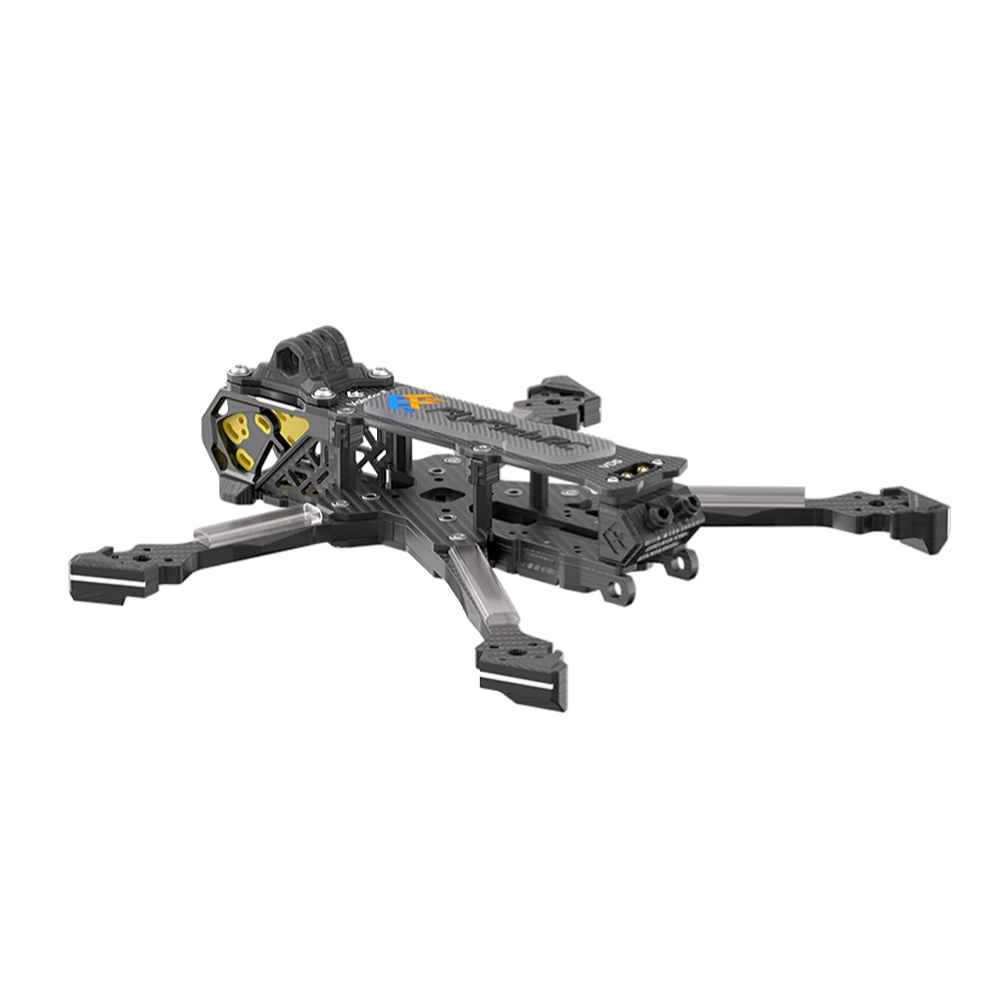

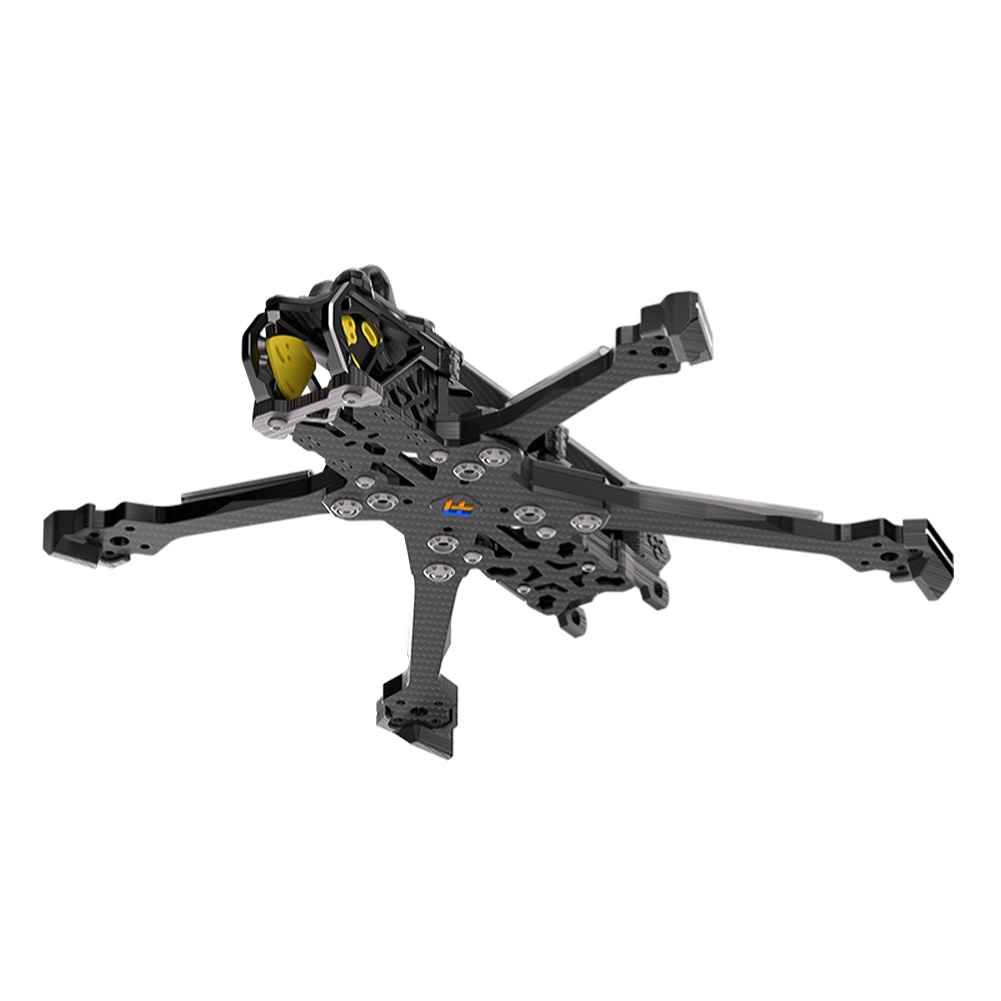

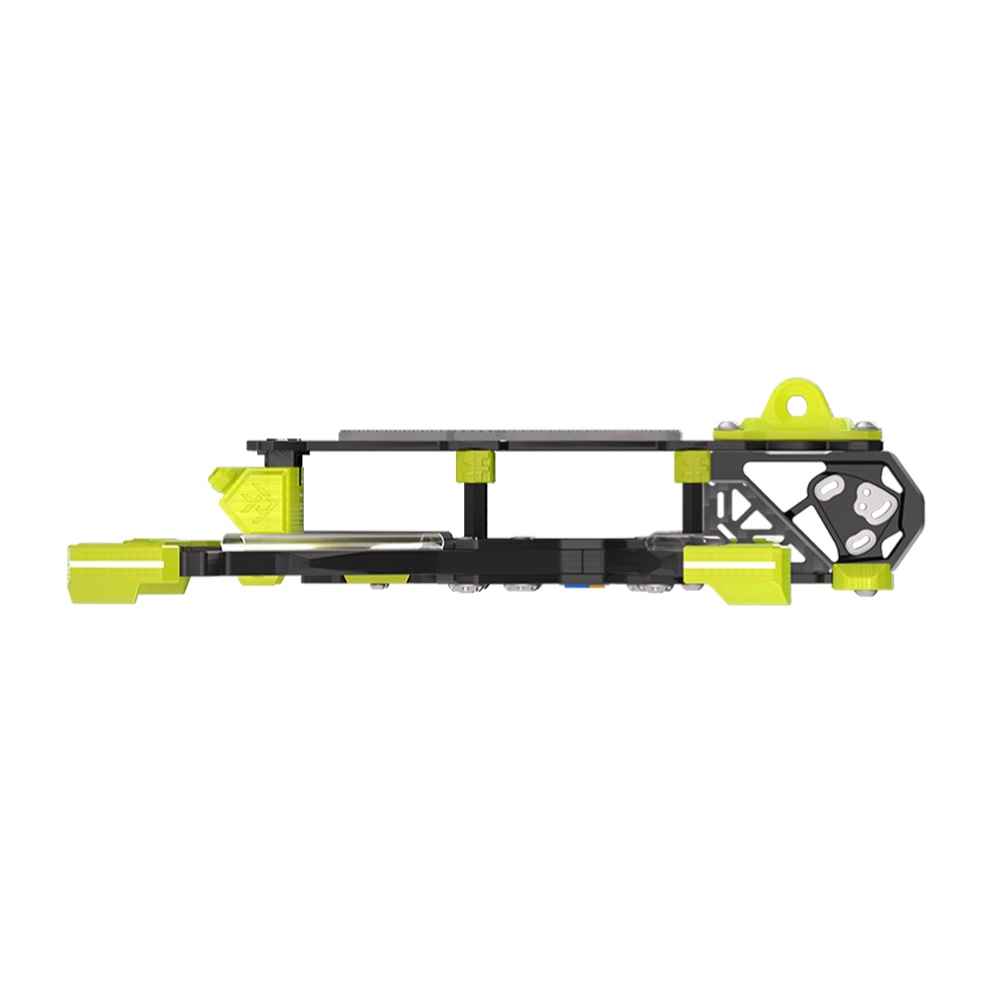

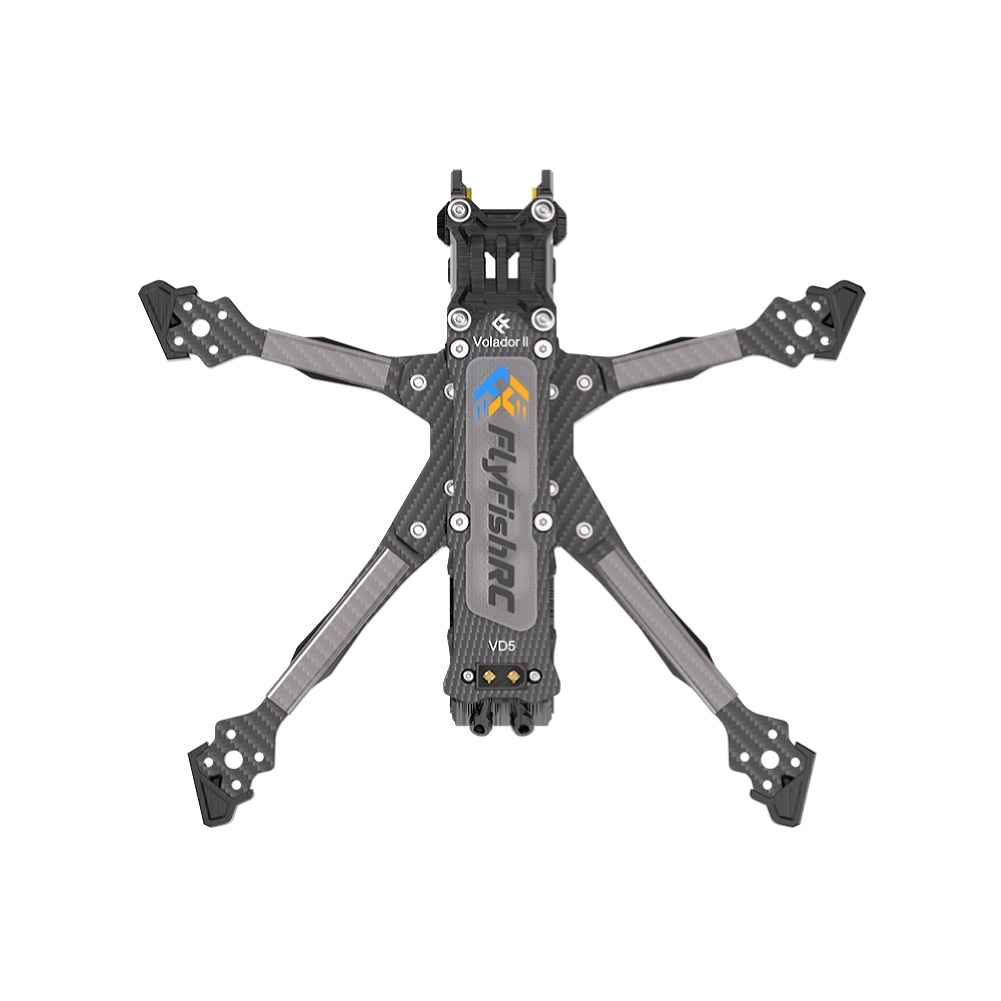

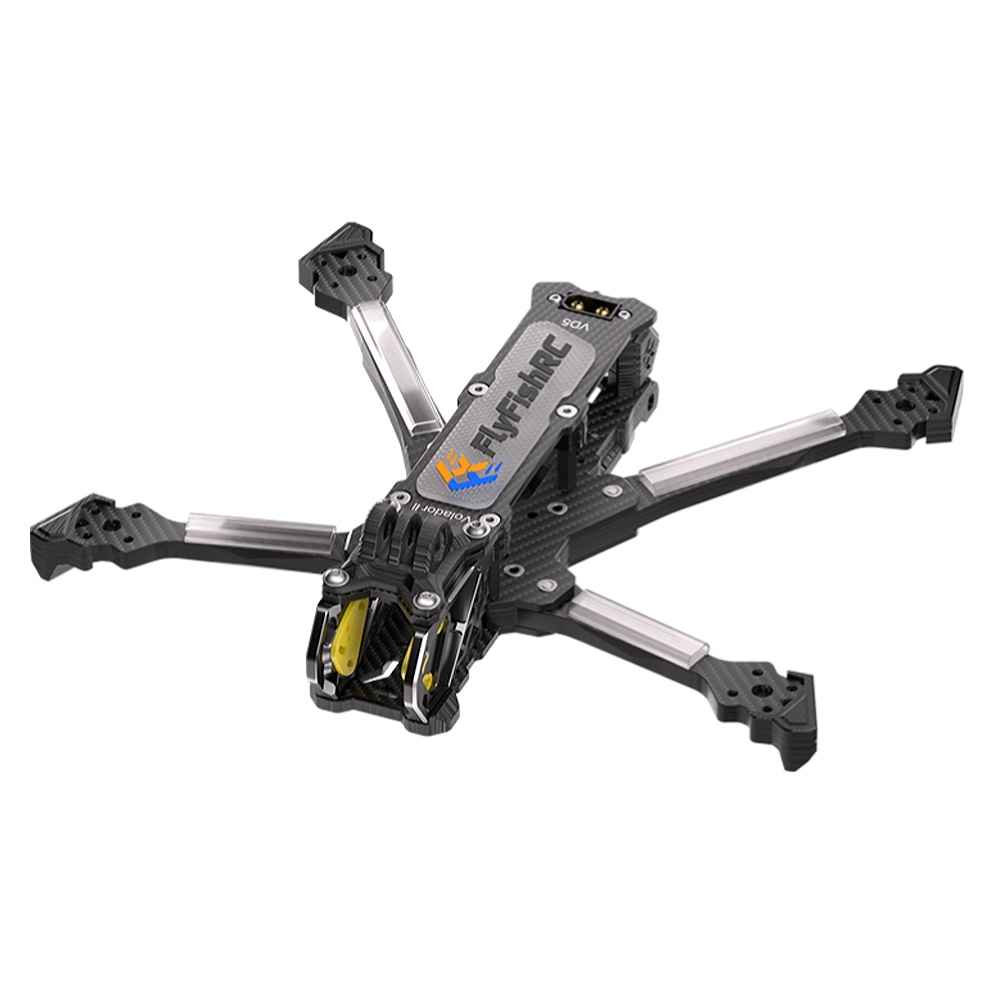

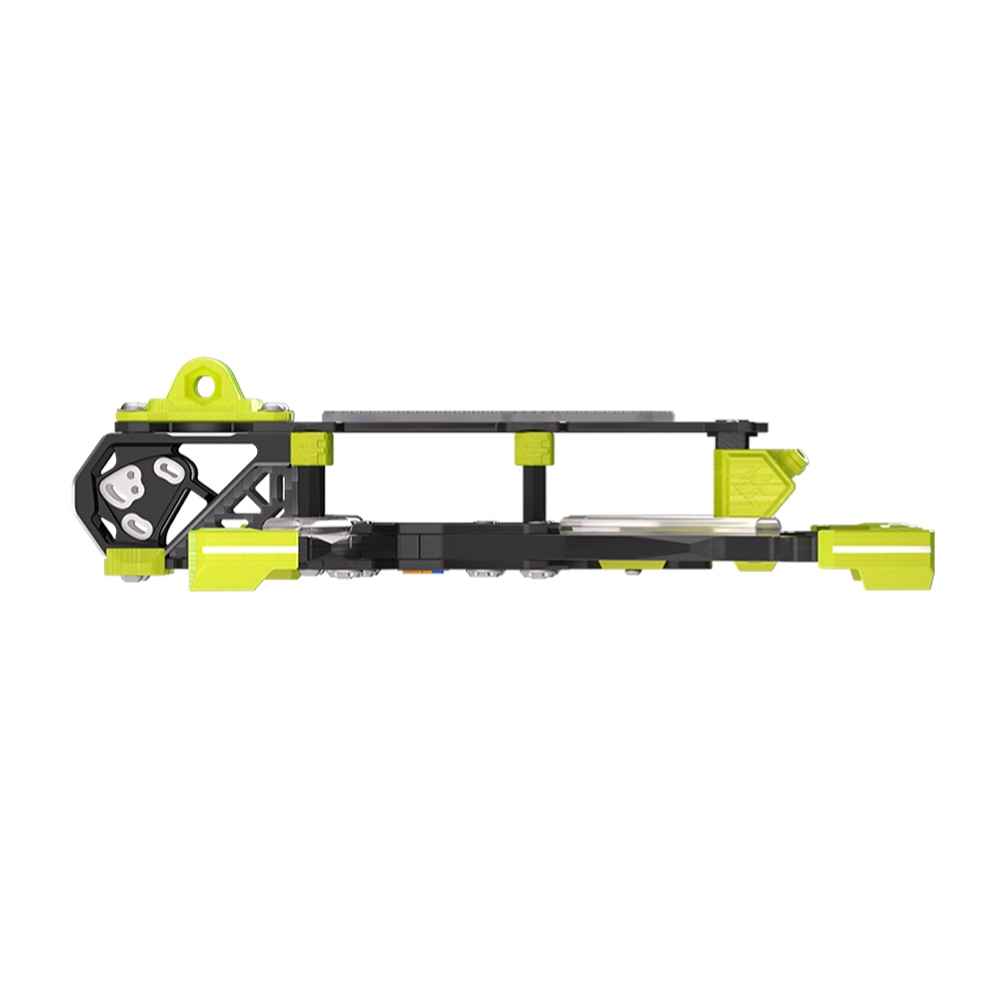

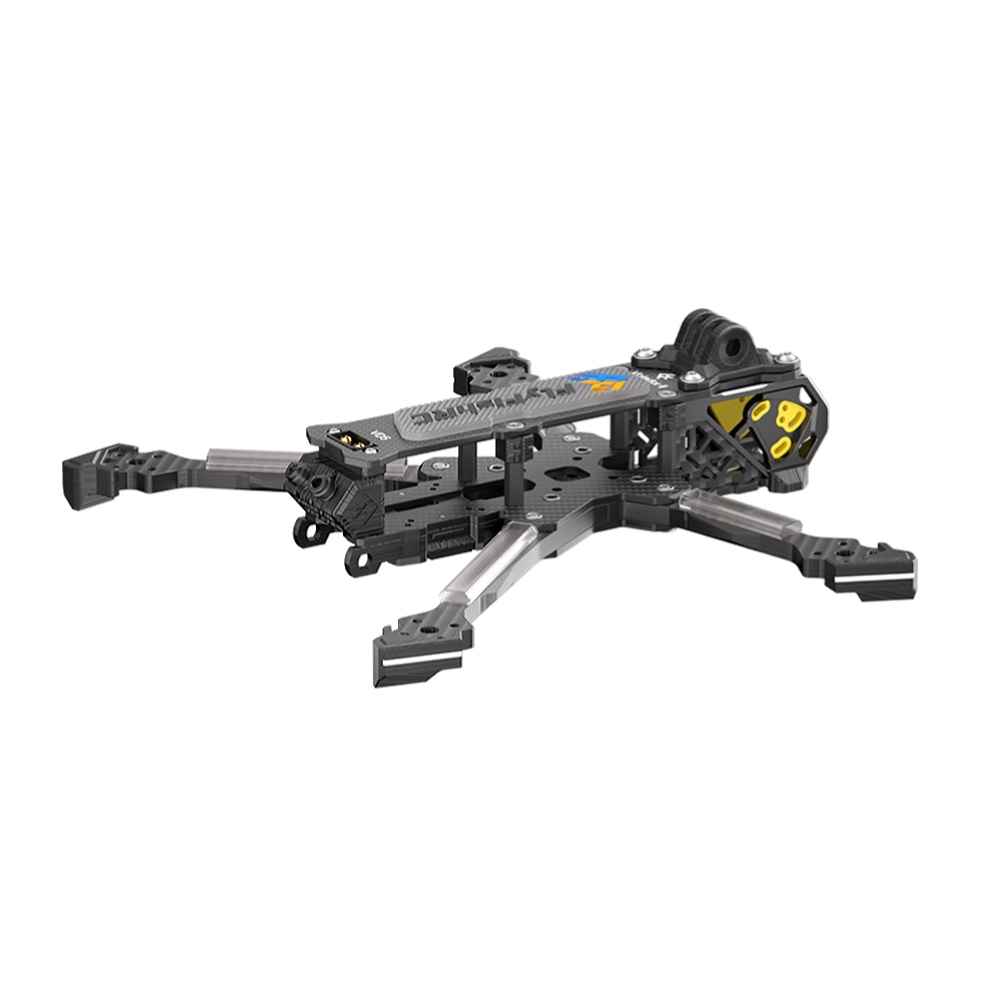

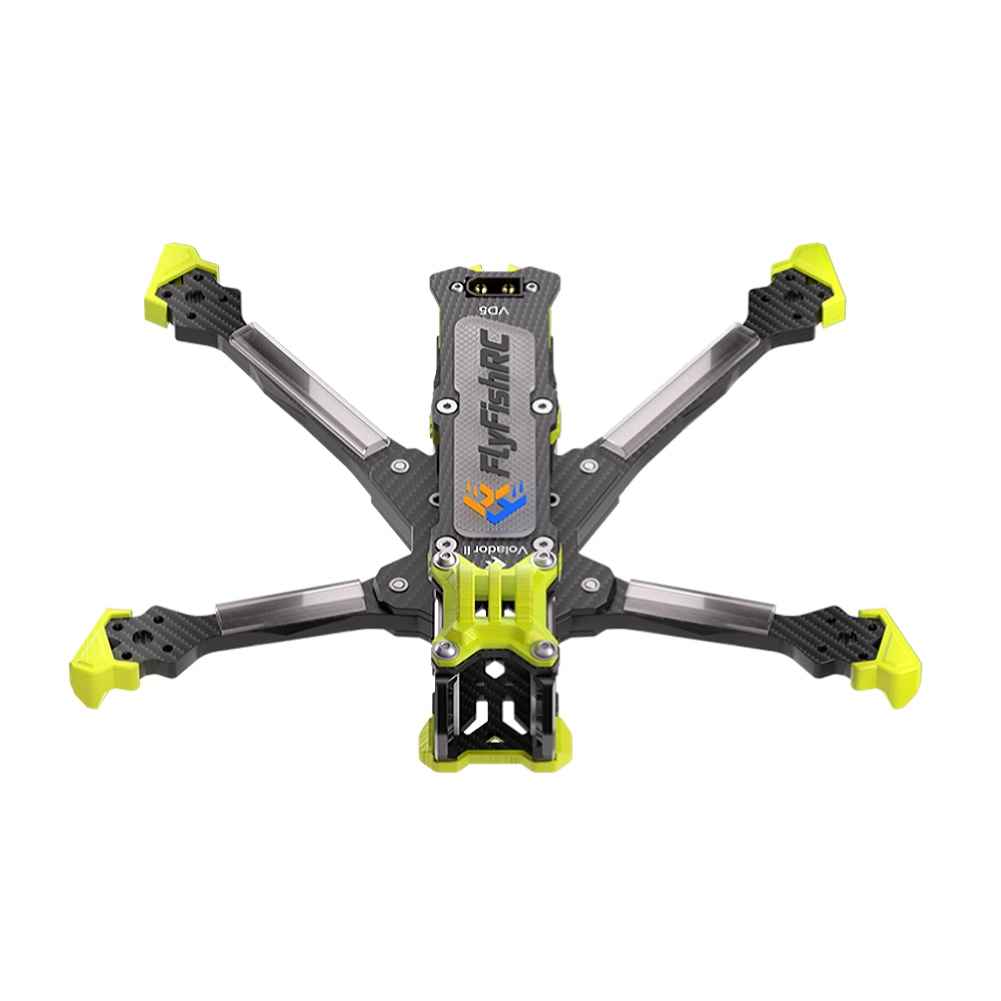

FlyfishRC Volador II VD5 V2 225mm 5-Inch T700 Carbon Fiber Frame Kit for DJI O4 Air Unit, RC FPV Racing Drone

Description

FlyfishRC Volador II VD5 V2 225mm Wheelbase 5 Inch T700 Carbon Fiber Frame Kit Support DJI O4 Air Unit for DIY RC FPV Racing Drone

Introducing the FlyfishRC Volador II VD5 V2, a 225mm wheelbase frame kit designed for FPV racing drones. This updated version incorporates valuable feedback from users, enhancing its compatibility and ease of assembly. The frame features a Deadcat style configuration, eliminating propeller obstruction in view, and supports both analog and HD systems. Crafted from high-strength T700 carbon fiber and CNC aluminum, it offers durability and a sleek appearance. The integrated XT60 connector enhances safety, while silicone shock-absorbing camera plates ensure clear video capture. With high-quality TPU parts and innovative anti-slip battery pads, this frame kit promises a clean and organized build, satisfying even the most meticulous pilots.

Description:We are pleased to announce the second version of our 5 Inch frame, Volador II. Thanks to the numerous suggestions and feedback (special shoutout to Ryan Harell and Kai Lin) from V1 users and testers, weã„™ve made many optimizations in the V2 version to better suit the needs of pilots.The Volador II Frame maintains high compatibility and a simple construction design, equipped with the necessary accessories for easy, convenient, and organized assembly.The Volador II VX Frame comes in the Squashed X configuration for maximum control, while the Volador II VD Frame features the popular Deadcat style configuration with no props in view. It is compatible with a variety of analog and HD systems on the market, and the independently detachable arm and tight-fitting structure design minimize frame resonance. The high-quality TPU parts are cleverly designed for a more integrated and neat installation. We guarantee, that pilots with the Obsessive-Compulsive Disorder of any degree will be highly satisfied as Volador II is the only frame on the market that allows users to have the cleanest looking builds possible.We have also designed a silicone shock-absorbing camera plate insert specifically for the DJI O4 Air Unit camera installation, thatã„™ll eliminate any possible jello in your DVR, while also being compatible with 19mm/20mm format cameras.The frame is made of high-strength CNC aluminum alloy parts and highest quality T700 carbon fiber sheets, with a super smooth surface and uniform chamfered edges. Say no to damaged cables and battery straps. And, well, it just looks aesthetically more pleasing, doesnã„™t it
The redesigned battery pad with an added grid has now an even better anti-slip effect and is using a stronger adhesive. The XT60 connector integrated at the tail of the frame eliminates the probability of the power lead getting damaged by props in a crash, while allowing easy, single hand plugging of the battery.The frame comes with all the accessories needed for analog and HD builds, and is equipped with hardware with Loctite threadlocking agent for an additional reliability. The tight structure design fully minimizes resonance.Great efforts have been made on the TPU parts. They fit the frame perfectly, improve the overall durability of the frame, look very smooth and, oh my, the Tropical Mix Set is just out of this world! This is something we take a lot of pride in!
Features:
– High-end T700 carbon fiber.
– Tight structure design minimizes resonance.
– The new CNC aluminum camera plates effectively protect the camera.
– The silicone shock-absorbers for the O4 AU eliminate jello.
– Integrated XT60 connector for safety and reliability.
– High-quality TPU parts.
– Innovative anti-slip battery pads.
– New motor wire protection tubes.
– Compatible with both 19/20mm cameras.
– Equipped with all accessories needed for analog and HD builds.
– 12.9-grade strength hardware with Loctite threadlocker pre-applied.
– High electronics compatibility.
Specifications:
Brand: FlyfishRC
Model: Volador II
Item Name: 5 Inch DC-Type Frame Kit

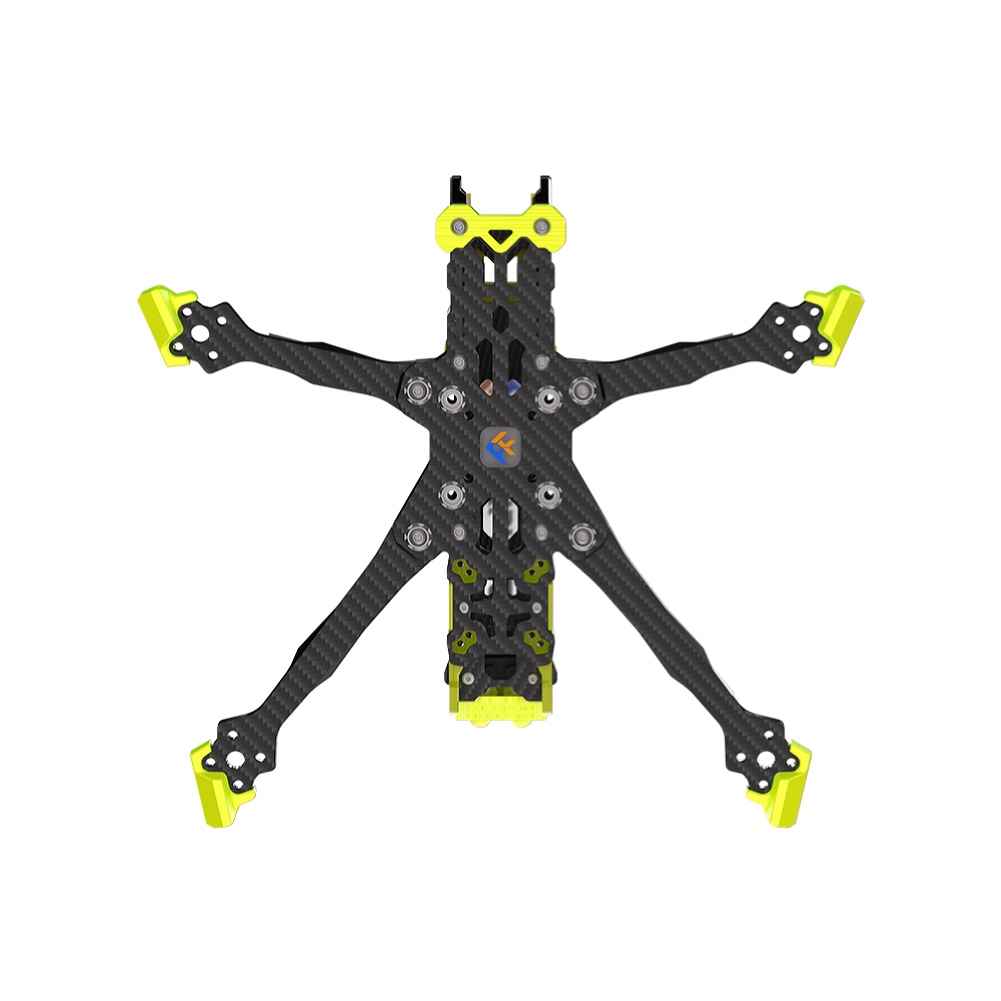

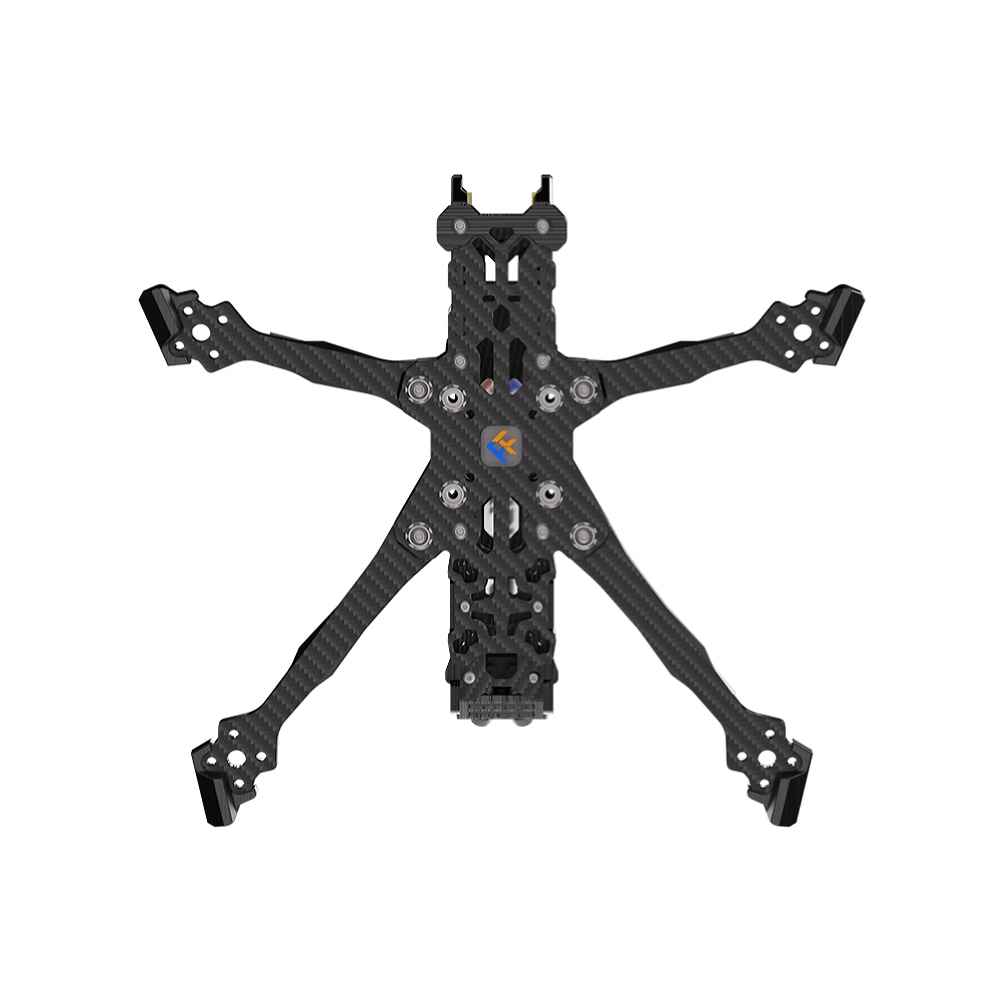

Color: Yellow/Black(Optional)
Wheelbase: 225mm
Arm Thickness: 6mm
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Keystone Thickness:5mm
Side Plate Thickness:2mm
CNC Side Plate Thickness:5mm
Propeller Size: 5~5.1 inch
Material: T700 carbon plate
FPV Cam Spacing: 19mm/20mm
Weight: 186.4g(with TPU parts)
Total Dimensions:190mm*136mm
Stack Mounting Holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX Mounting Holes: 20mm*20mm/25.5mm*25.5mm(M2)
Recommend Parts ( NOT Included):FC & ESC: 30.5×30.5mm Flashhobby F405 F4Brushless Motor: EMAX ECO II 2306 1900KV 3-6S 2400KV 3-4S Brushless MotorPropeller: iFlight Nazgul F5 5.1Inch 3-blade 5mm Hole CW CCW Propeller VTX & Camera: DJI O4 Air Unit
Lipo Battery: CNHL Black Series V2.0 6S 22.2V 1300mAh 130C LiPo Battery

Package Included:
1 x Volador II VD5 Frame Kit
