Flywoo GOKU GN405 Nano HD V3 F4 Flight Controller with ELRS 2.4g RX & 20A 2-4S ESC Stack for Hexacopter FPV Racing Drone

Description

16mm*16mm Flywoo GOKU HEX GN405 Nano HD V3 F4 Flight Controller with TXCO ELRS 2.4g RX & 20A 2-4S ESC Stack for Hexacopter FPV Racing Drone

The Flywoo GOKU GN405 Nano HD V3 Flight Controller has been meticulously upgraded for hexacopter enthusiasts. This compact controller integrates a USB-C universal port, compatible with mainstream data cables, and supports the DJI O3 interface for high-quality digital transmission. Equipped with a TCXO ELRS high-precision receiver, it is perfect for micro drones. The controller features six UART ports and is compatible with both QUAD and HEX drones. It offers three ESC models, including the 20A (HEX) plug-and-play ESC, ensuring versatility and fun in your FPV racing drone experience. The controller also includes a built-in barometer and a 16MB black box for enhanced performance tracking.

Notice: This product is suitable for hexacopter.
Description
The Flywoo F405 NANO has been completely upgraded! We have further minimized and integrated the FC layout based on the original design. The new Flywoo GOKU GN405 Nano FC V3 w ELRS 2.4g is compact and features a USB-C universal port that is compatible with current mainstream data cables. It also supports the DJI O3 interface, allowing compatibility with high-quality digital transmission modules. Additionally, it has a complete set of six UART ports. Importantly, this flight controller is equipped with a TCXO ELRS high-precision receiver, making it an ideal solution for space-saving in micro drones. This flight controller is compatible with both QUAD and HEX drones, and users can switch between different ESC models. The latest three ESC models include: the 20A (QUAD) plug-and-play ESC, the 20A (HEX) plug-and-play ESC, and the high-performance 35A (QUAD) ESC. These options meet your compatibility needs for different drones, ensuring you have fun during your flights!

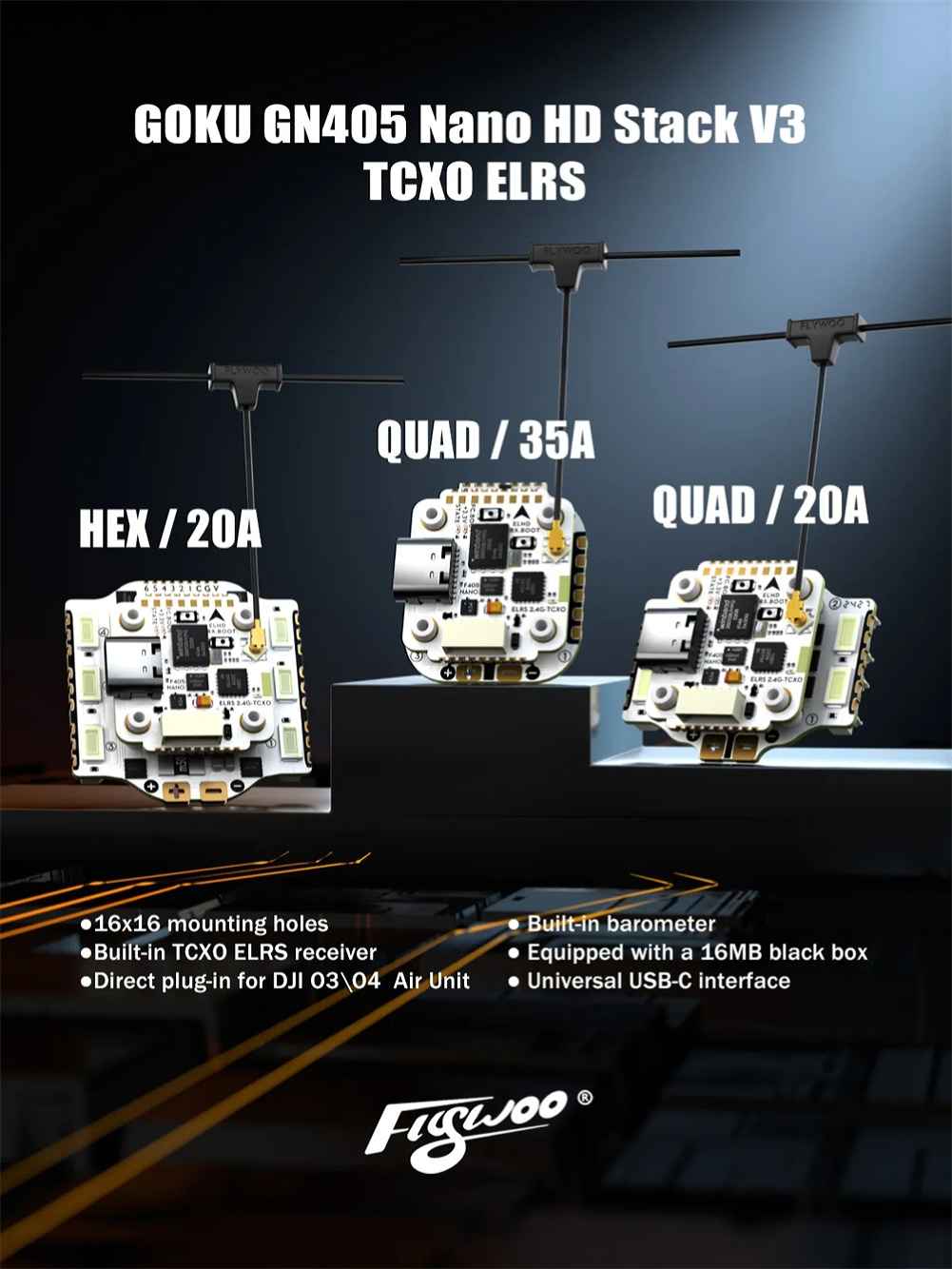

Highlights
– 16×16 mounting holes with a compact design
– Built-in TCXO ELRS receiver
– Direct plug-in for DJI O3O4 Air Unit
– FC/ESC pin header interface, compatible with QUAD/HEX
– Built-in barometer
– Equipped with a 16MB black box
– Universal USB-C interface
Specifications券
Brand: Flywoo
Model: GOKU
Item Name: GN405 V3 Nano HD F4 FC 20A ESC

Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16×16

MCU

STM32F405 BGA

GYRO:

ICM-42688P(SPI)

OSD

NO

Barometer

DP310

Black Box

16MB

USB Port Type

Type-C

IMU(Gyro)

ICM42688P

UARTS

(1,2,3,4,5,6)

Input Voltage

7.4V – 24V / 2 – 6S lipo

BEC

5V 2A / 3.3V 0.5A

Size

25mm x 23mm x 8mm

Hole Position

M2 16X16mm

Weight

3g (FC), 9.4g (FC+20AHEX)

GOKU HEX BS 6-IN-1 20A ESC w/ LED V3 16×16

ESC MCU

BB21F16G

POWER LED

NO

Continuous current

20A

Input

2-4s lipo

Supports

PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Size

33沁35mm board,16mm mounting holes (M3)

Weight

6.4g

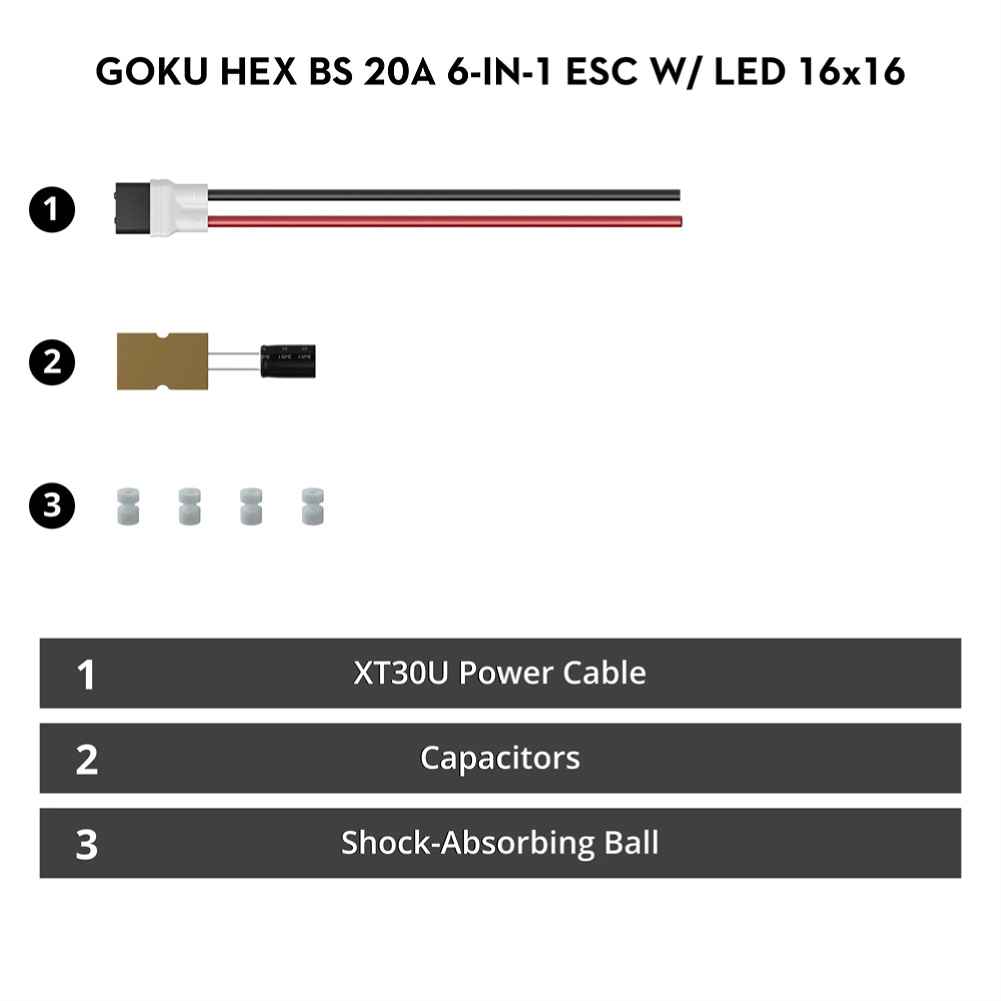

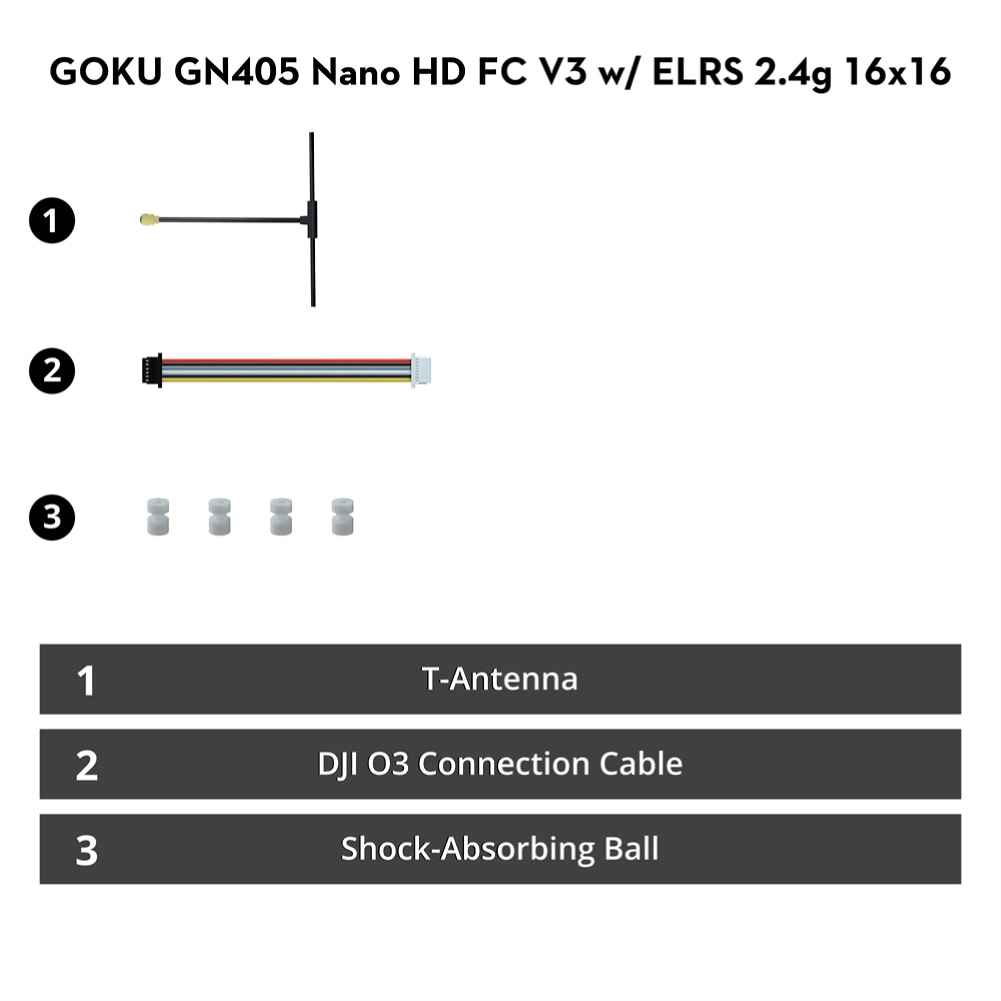

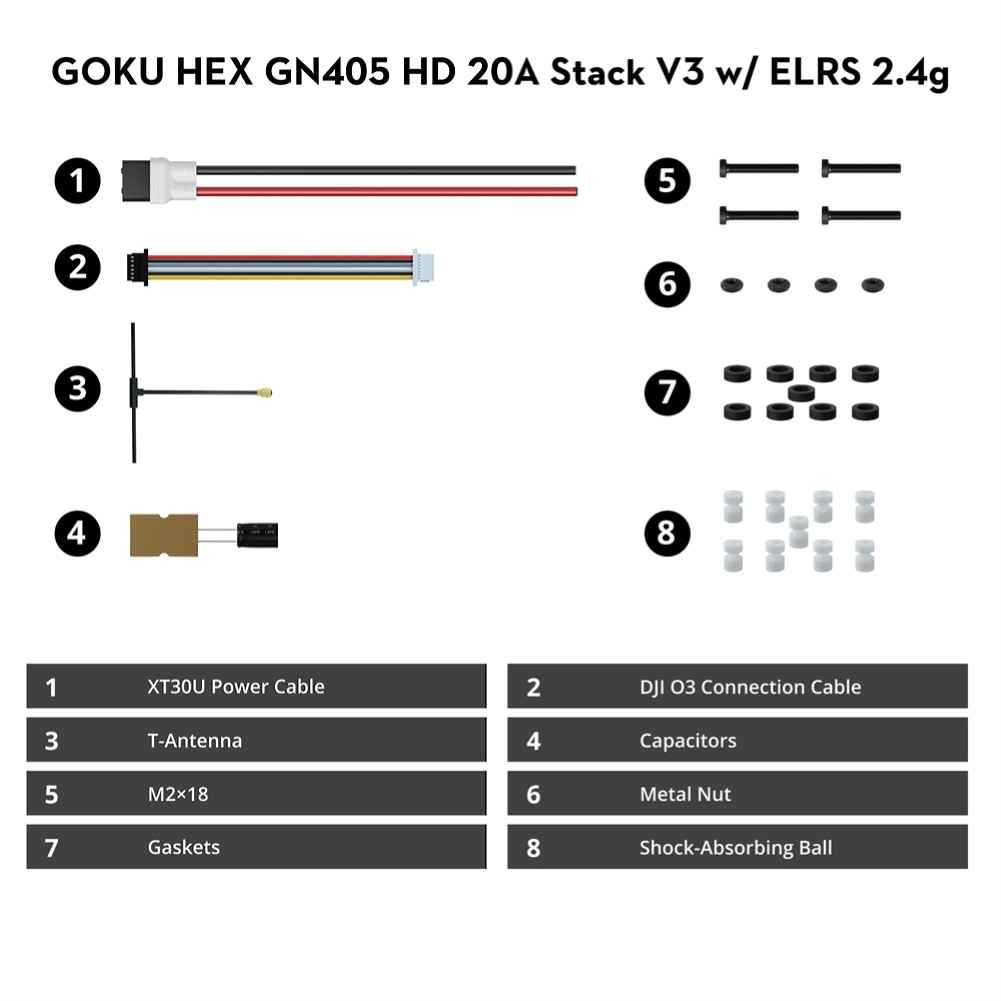

Package Included:
1x GOKU HEX GN405 Nano HD 20A Stack V3
1x XT30U Power Cable
1x T-Antenna
4x M2?18
9x Gaskets
1x DJI O3 Connection Cable
1x Capacitors
4x Metal Nut
9x Shock-Absorbing Ball
1x GOKU GN405 Nano HD FC V3 w/ TCXO ELRS
1x GOKU HEX BS 6-IN-1 20A ESC V3
