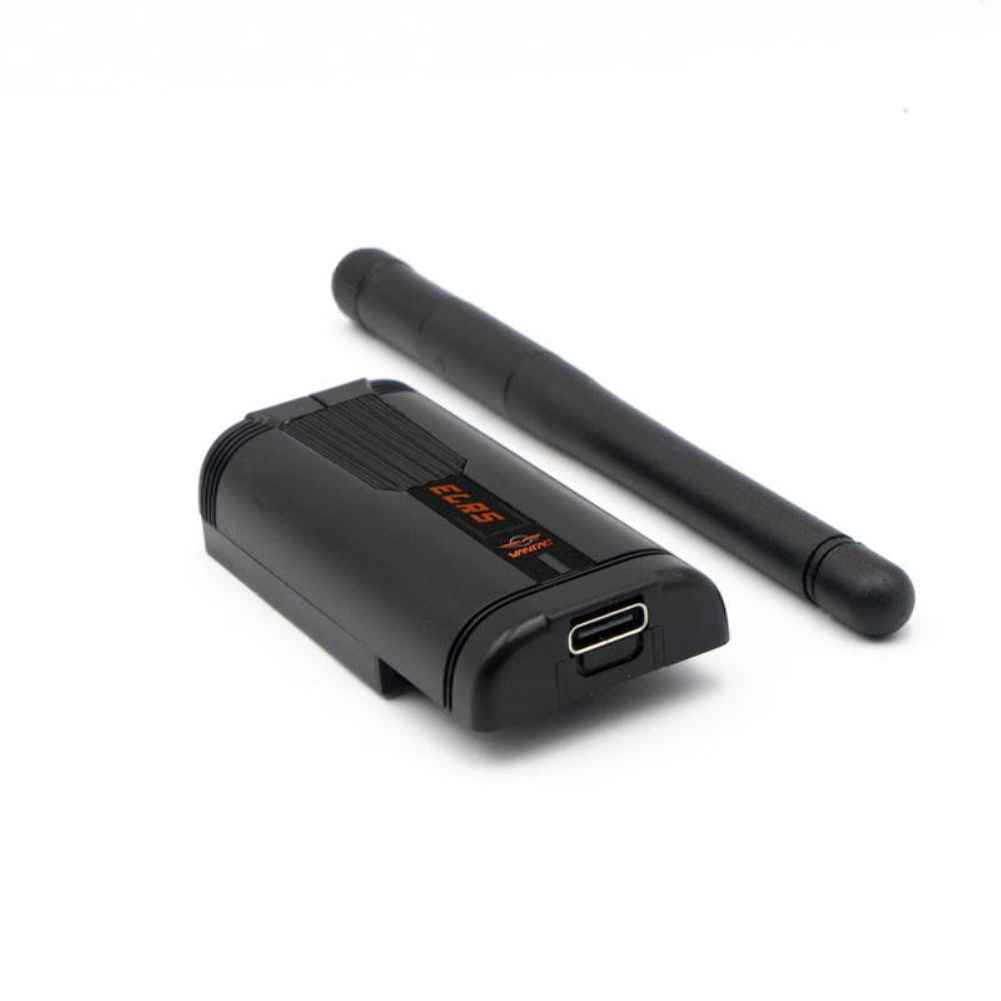

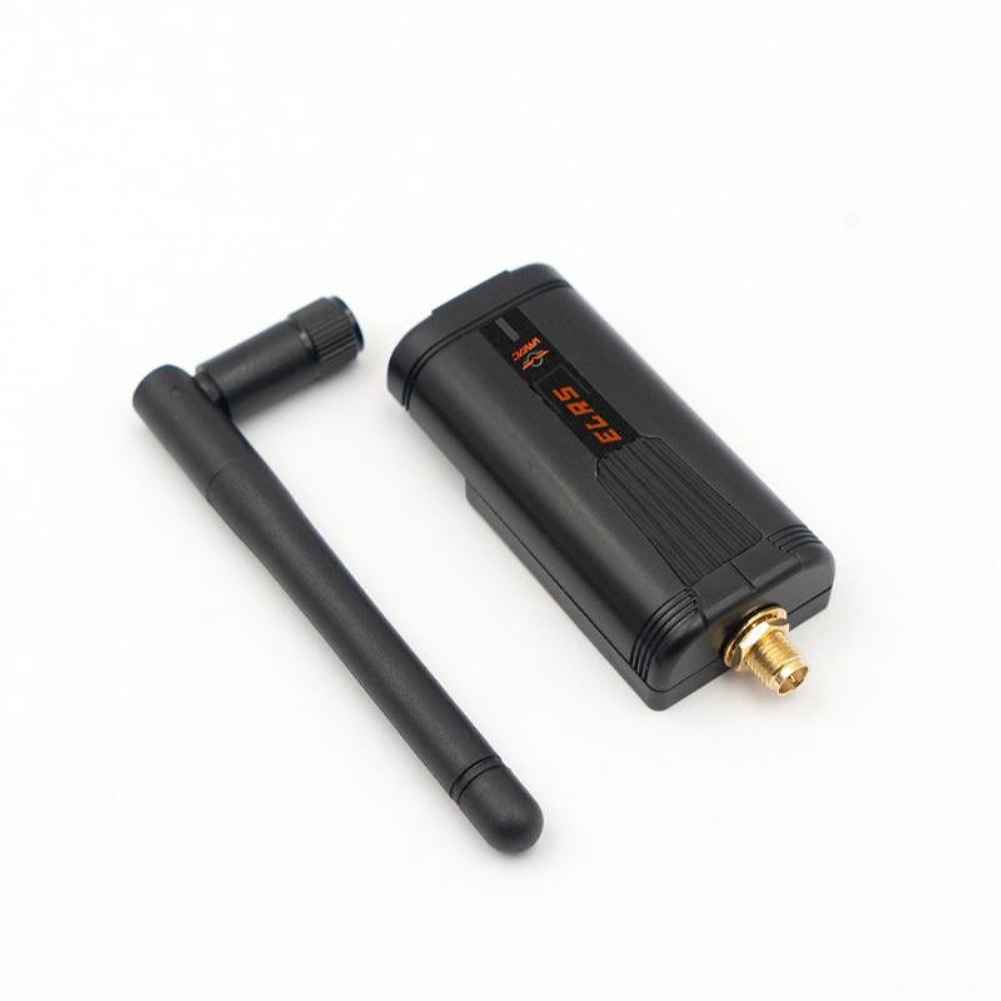

FrSky VANTAC ExpressLRS 2.4GHz 915MHz/868MHz Long Range Micro TX Module for RC Drone
Price range: $44.21 through $47.51
- High-performance 2.4GHz transmitter for RC drones
- Built-in Wi-Fi for easy firmware upgrades
- Compatible with lite-style module bay transmitters
- Adjustable RF output power and packet refresh rates
- Lightweight design, weighing only 20g
You May Also Like
Description
FrSky VANTAC ExpressLRS ELRS 2.4GHz 915MHz/868MHz Long Range Micro TX Module for RC Drone
The FrSky VANTAC ExpressLRS ELRS Micro TX Module is a high-performance 2.4GHz transmitter designed for RC drone enthusiasts. Based on the ExpressLRS open-source project, this module excels in speed, latency, and range, making it an ideal choice for long-range applications. It features a convenient built-in Wi-Fi module for easy, wire-free firmware upgrades. Compatible with radio transmitters with a lite-style module bay, the VANTAC ExpressLRS is compact and lightweight, weighing only 20g. It operates on a frequency range of 2.4GHz/900MHz/868MHz, with adjustable RF output power and various packet refresh rates, enhancing its versatility and adaptability.
FrSky VANTAC ExpressLRS ELRS 2.4GHz 915MHz/868MHz Long Range Micro TX Module for RC Drone
OVERVIEW:
Vantac ExpressLRS Lite TX Module is a 2.4G transmitter module based on the ExpressLRS open-source project.
ExpressLRS 2.4G aims to achieve comprehensive performance in both speeds, latency, and range. Additionally, a convenient feature of this module is the built-in WI-FI module that brings the wire-free connection to upgrade the firmware. Vantac ExpressLRS Lite TX Module is compatible with radio transmitter which has the lite-style module bay.
Specification:
Brand Name: FrSky
Item Name: VANTAC ELRS TX Module
Dimension: 62.4mm â„… 30mmâ„…14.5mm (Lâ„…Wâ„…H)
Weight: 20g
Input voltage: 5-12V
USB port: Type-C
RGB LED
Operating Current: 100mA@7.2V
RF Operating Frequency: 2.4GHz/900MHz/868MHz
With ELRS firmware
Packet refresh rate: 25Hz/50Hz/150Hz/250Hz/500Hz (2.4GHz)
Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz)
RF output power: 100mW/250mW/500mW (915MHz/868MHz)
RF output power: 10mW/25mW/50mW/100mW/250mW/500mW (2.4GHz)
Frequency bands: 2.4GHz/915MHz FCC/868MHz EU
Note:
The 2.4ghz antenna is not same as 868/915mhz version
Package Included:
1 x VANTAC ELRS TX Module
1 x Antenna
