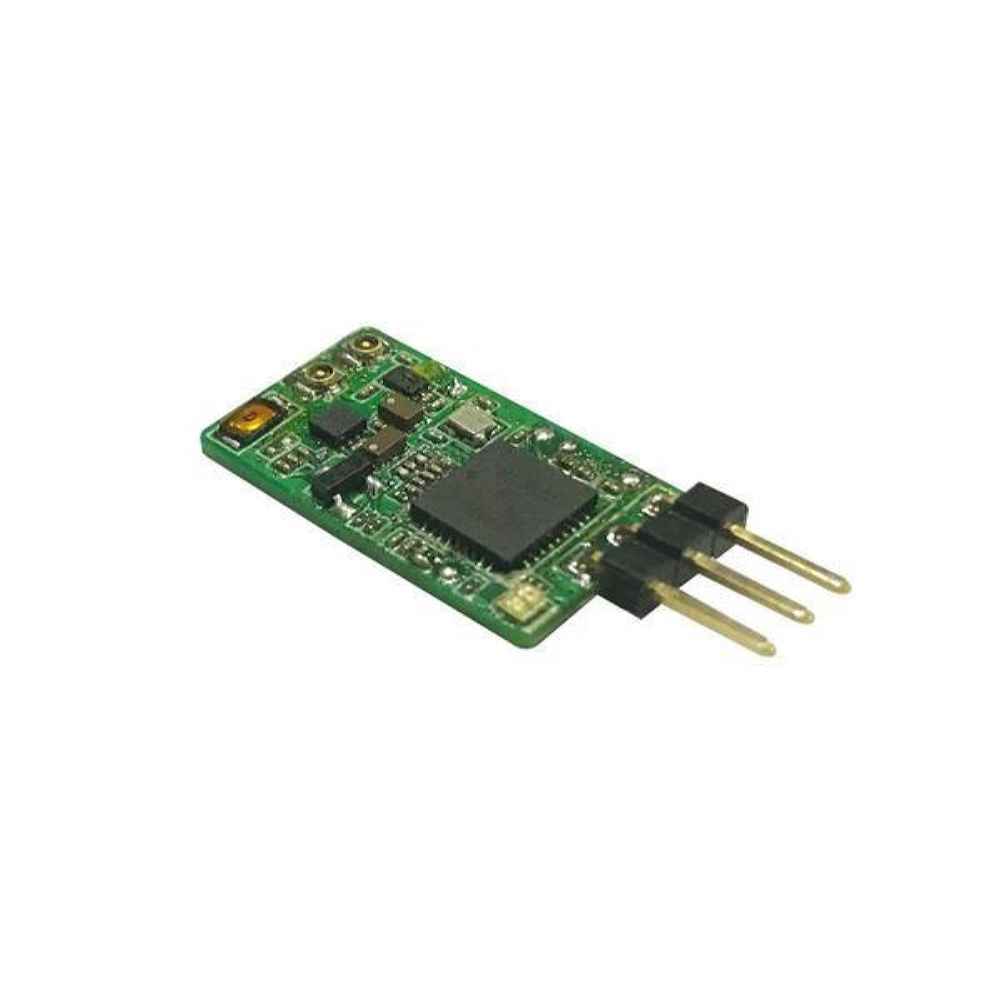

FrSky XM Plus Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone
The FrSky XM Plus Micro D16 SBUS Receiver is a compact, lightweight solution for FPV racing drones, weighing just 1.6g. It supports up to 16 channels and offers full range capability, comparable to X4R and D4R setups. This receiver operates on a 2.4GHz frequency and is designed to minimize the overall weight of your racing craft. With dimensions of 21.5x12x3.5mm, it fits seamlessly into tight spaces. It features an operating voltage range of 3.7 to 10V and an operating current of 30mA at 5V. The XM Plus also includes RSSI output for enhanced signal strength monitoring and is firmware upgradeable for future enhancements.
FrSky XM+ Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone
OVERVIEW:
This insanely tiny 2.4GHz diversity receiver available from TBS is the next big thing in miniaturization of racing craft. Weighing in at under 2g, this receiver is perfect for those racers who are looking to lower their AUW. These are rated to 鈥籪ull range搂, so identical to your X4R and D4R setups.
Specification:
Brand Name: FrSky
Item Name: XM+ RC Receiver
Model: XM+
Dimension: 21.5x12x3.5mm(LxWxH)
Weight: 1.6g
Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA@5V
Operating Range: FULL range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable
Compatibility: FrSky D16 mode
Package Included:

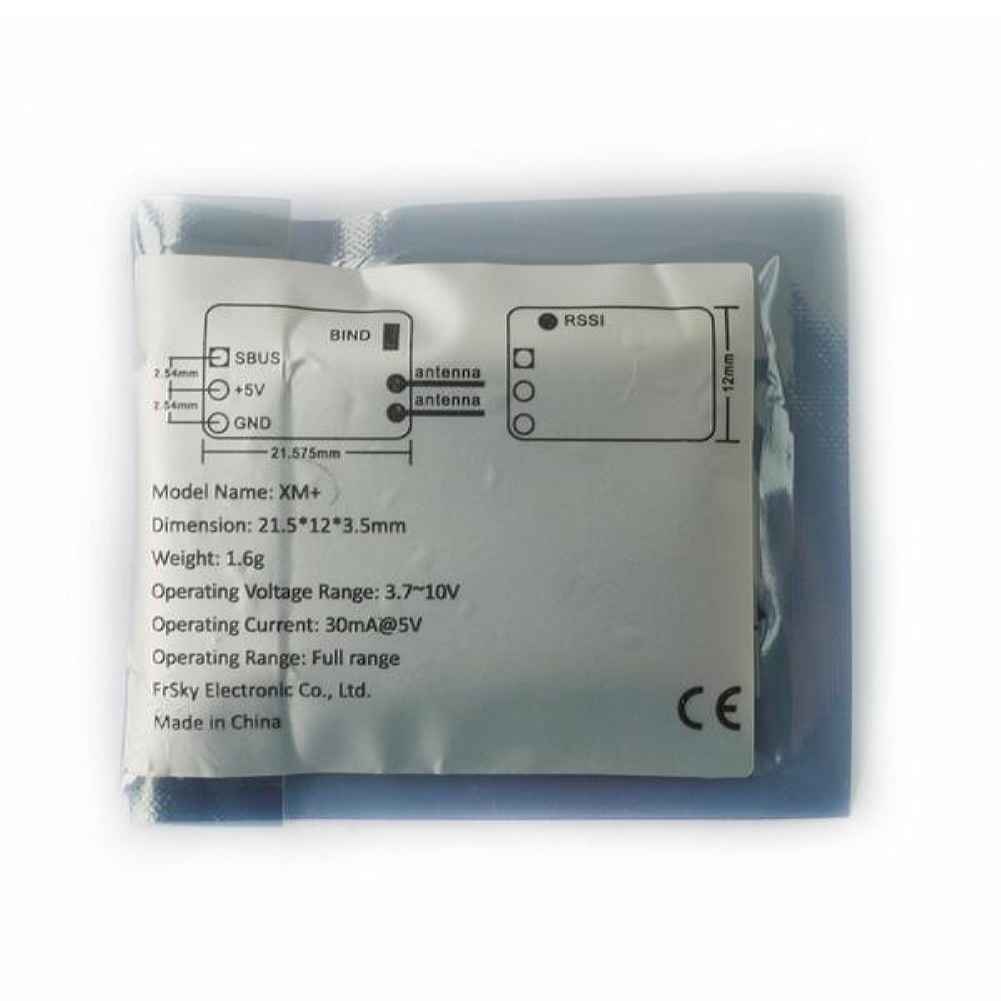

1 x XM+ RC Receiver
