GEPRC ELRS Nano 915MHz/868MHz PA500 Receiver with T-Antenna for FPV Racing Drone, Open-Source, Long Range, 500mW Telemetry

Description

GEPRC ExpressLRS ELRS Nano 915MHz/868MHz PA500 Long Range TXCO Open-Source Receiver With T-Antenna for FPV Racing Drone

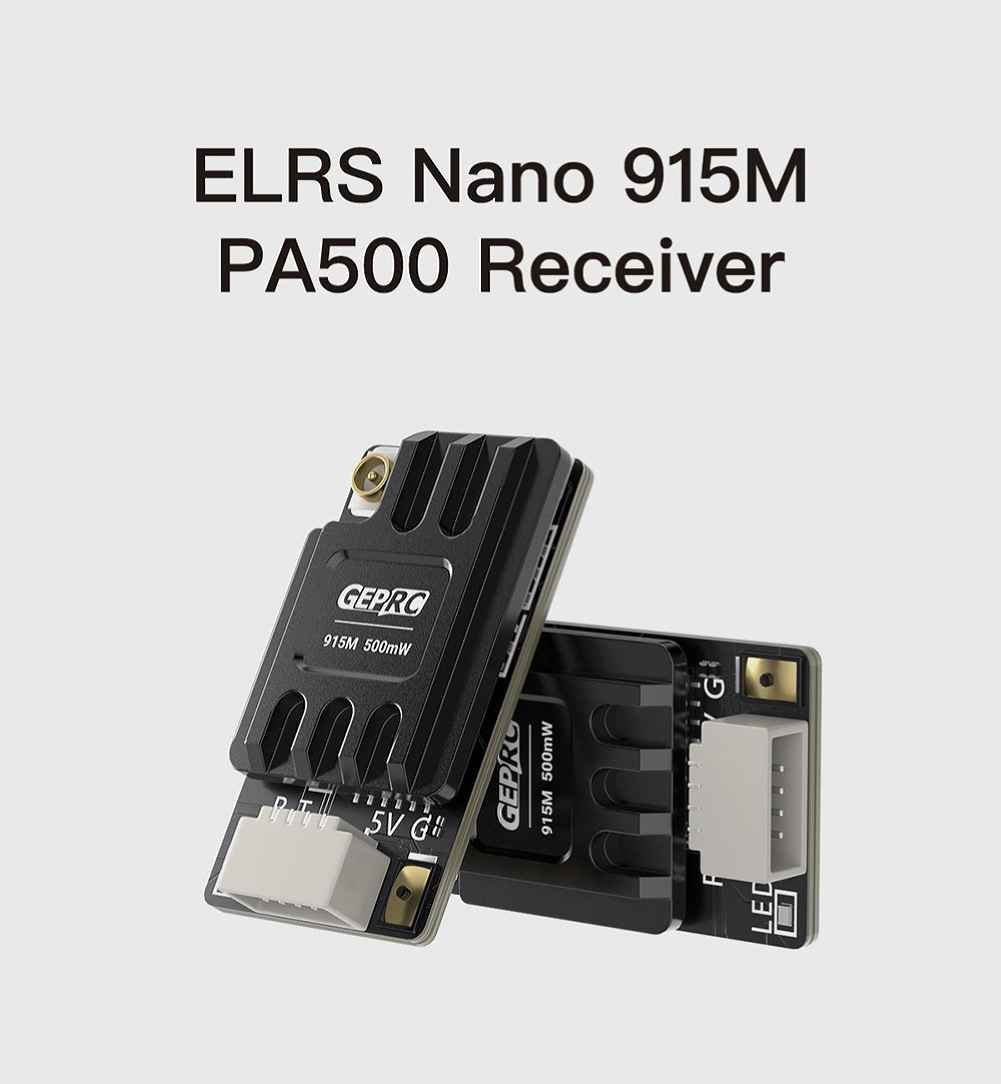

The GEPRC ELRS Nano 915MHz/868MHz PA500 receiver is a cutting-edge solution for FPV racing drones, based on the ExpressLRS open-source project. This receiver offers exceptional long-range performance with low latency and high refresh rates. It features a TCXO to maintain frequency stability during temperature fluctuations, ensuring reliable control. With a telemetry power of up to 500mW, it includes a built-in WIFI antenna for easy firmware upgrades. Installation is simplified with an sh1.0 connector, and the aluminum alloy CNC shell enhances heat dissipation. Compact and lightweight, the receiver measures 13x23x5.5mm and weighs just 1.9g.

GEPRC ExpressLRS ELRS Nano 915MHz/868MHz PA500 Long Range TXCO Open-Source Receiver With T-Antenna for FPV Racing Drone
Summary:
The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.
The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shift caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.
Feature:
1. Compact size of 13x23x5.5mm
2. Weighing only 1.9g
3. WIFI firmware upgrade
4. ELRS open-source project, long-range remote control
5. Maximum refresh rate of 200Hz
6. Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
7. Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW
8. Equipped with an sh1.0 connector for easy installation
9. Adopts an aluminum alloy CNC shell to optimize heat dissipation

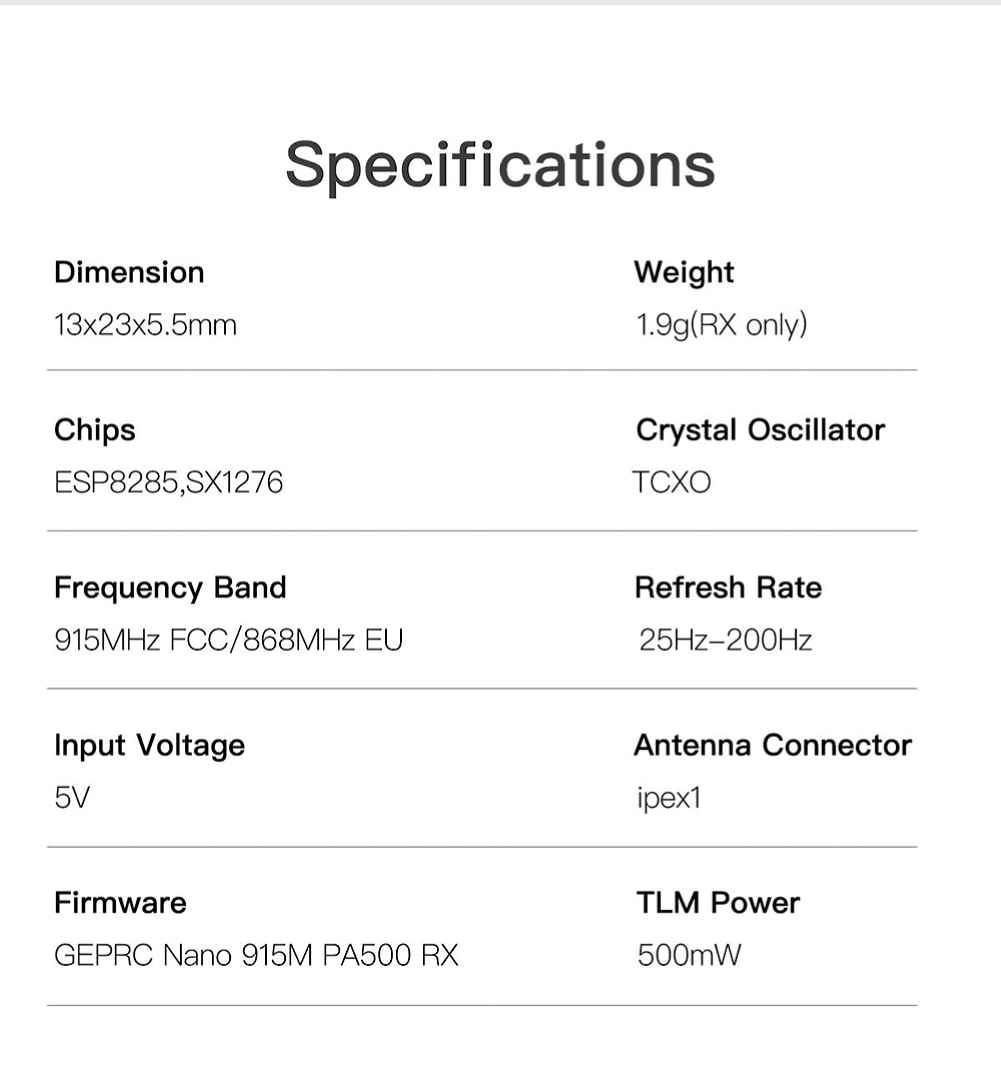

Specifications:
Brand: GEPRC
Model: ELRS Nano 915M PA500 receiver
Dimension: 13x23x5.5mm
Weight: 1.9g (RX only)
Chips: ESP8285, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC /868MHz EU
Refresh Rate: 25Hz-200Hz
Operating Voltage: 5V
Antenna Connector: ipex1
Telemetry Power: 500mW
Firmware: GEPRC Nano 915M PA500 RX
Includes:
1 x ELRS Nano 915M PA500 receiver
1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual

Package Included:
1 x ELRS Nano 915M PA500 receiver
1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
