GEPRC ELRS Nano 915MHz V2 RX Receiver for FPV Drones, Open Source, Long Range, TCXO, 17x11mm, 0.7g
Original price was: $33.98.$27.86Current price is: $27.86.
- Open Source ExpressLRS for long-range and low latency
- TCXO for stable performance in varying temperatures
- Compact 17x11mm size, lightweight at 0.7g
- Up to 50mW telemetry power
- WIFI-enabled for easy firmware upgrades
You May Also Like
Description

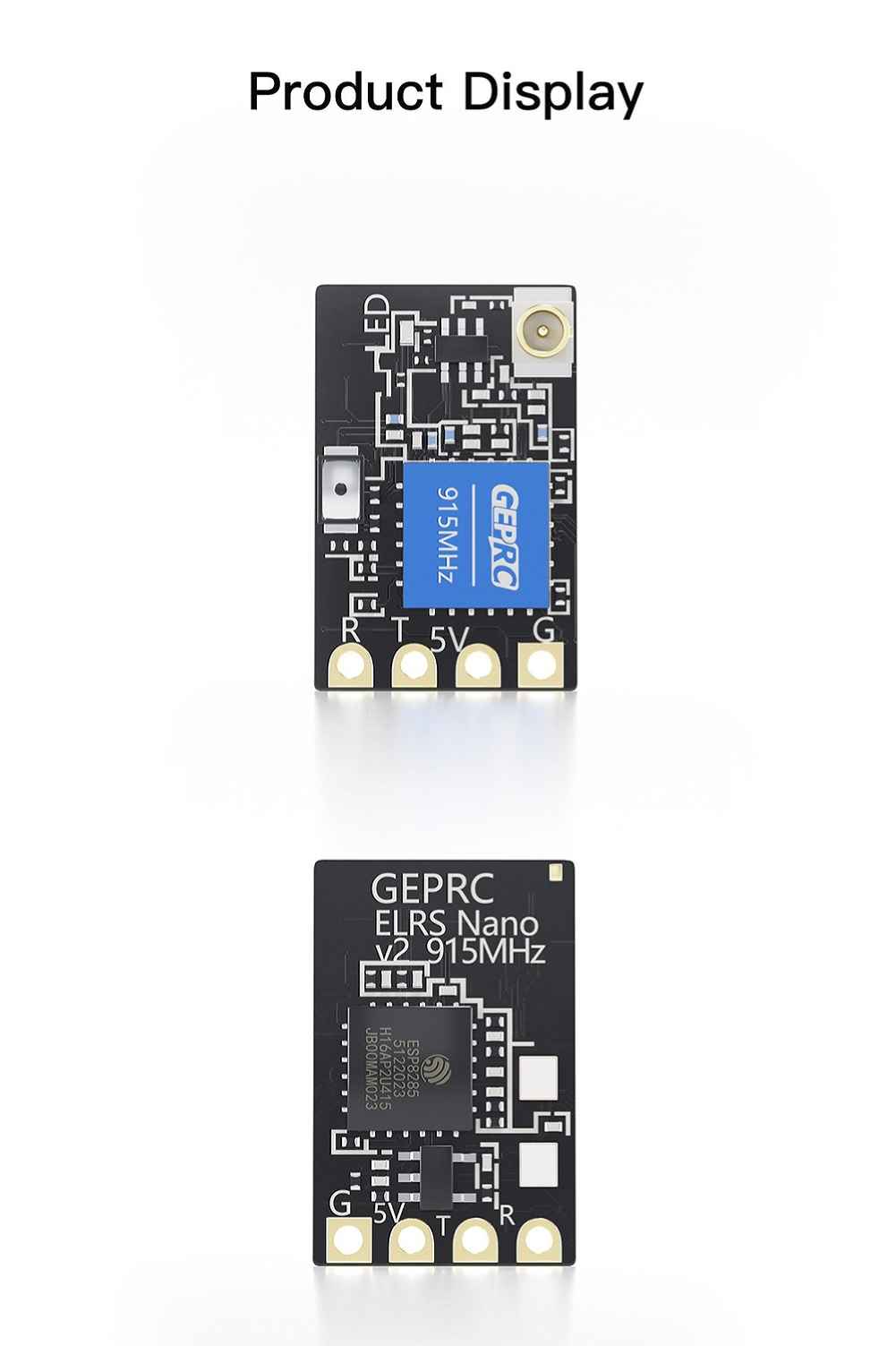

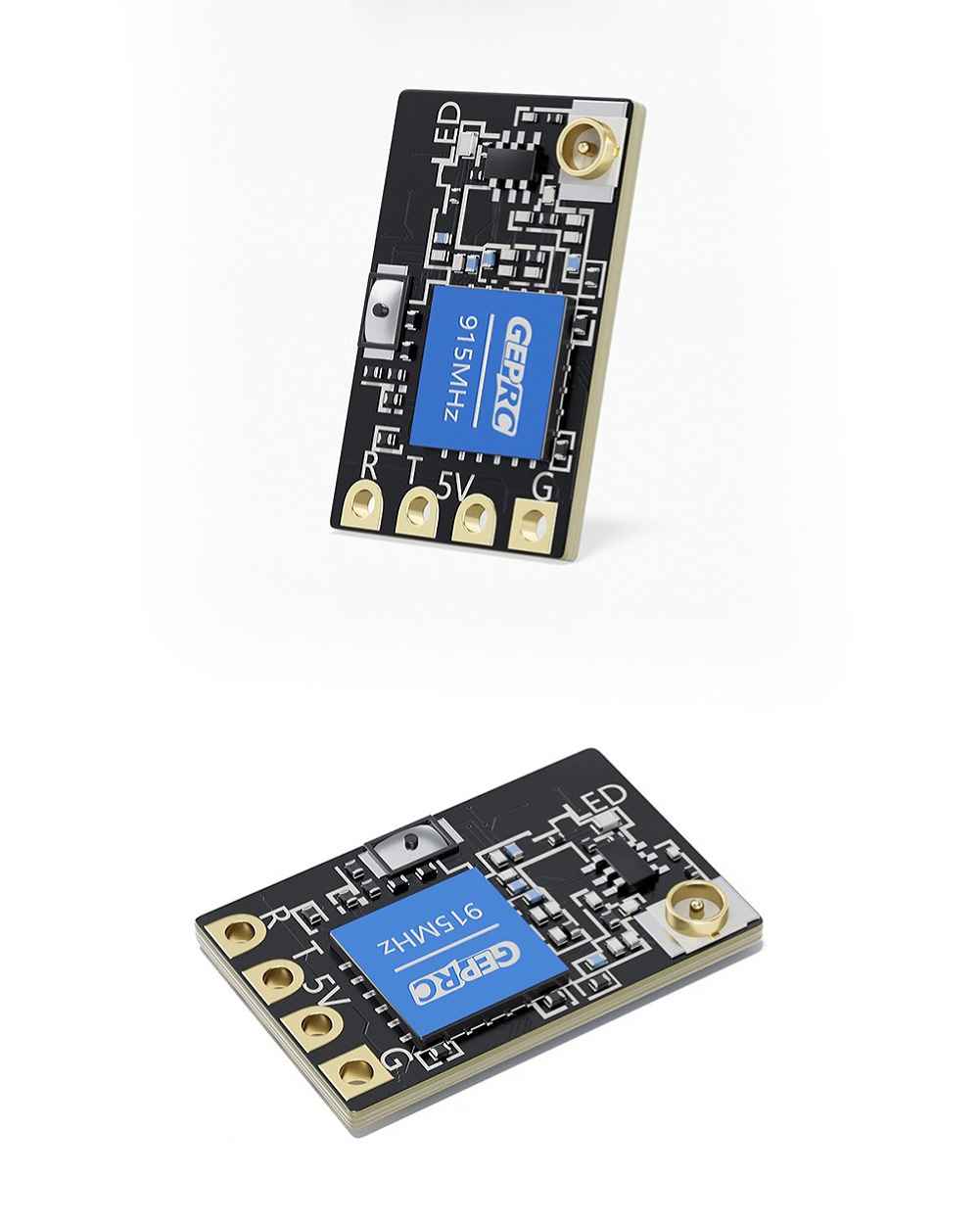

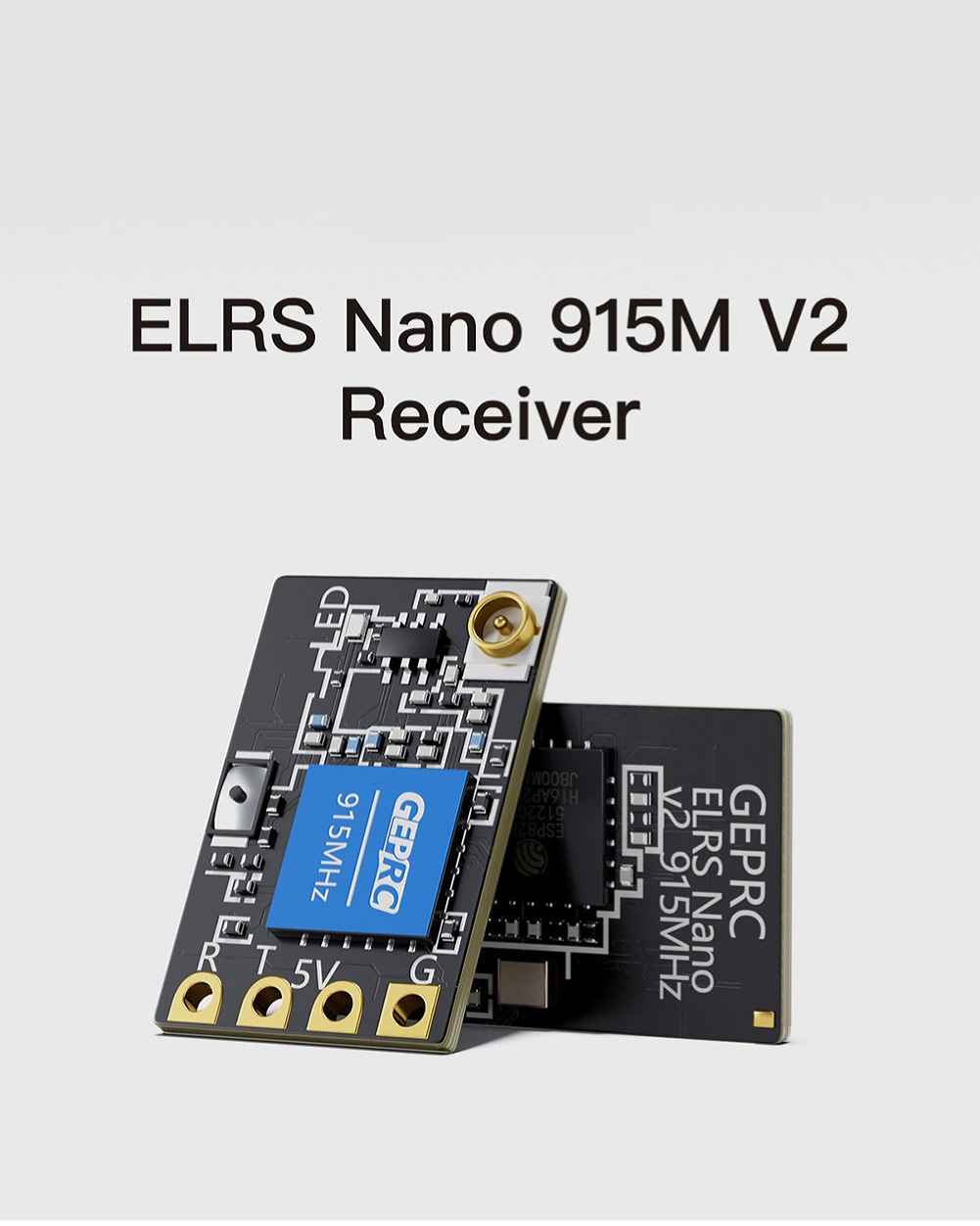

GEPRC ELRS Nano 915MHz V2 Open Source Long Range TCXO RX RC Receiver for FPV RC Racing Drones
The GEPRC ELRS Nano 915MHz V2 Receiver is an advanced receiver system designed for FPV RC racing drones. Built on the ExpressLRS open source project, it offers long-range operation and low latency, all at an affordable price. The receiver features a TCXO temperature-compensated crystal oscillator, ensuring stability even in varying temperatures. With a telemetry power of up to 50mW and a maximum refresh rate of 200Hz, it guarantees reliable performance. The compact size of 17x11mm and a lightweight design of 0.7g make it ideal for drone enthusiasts. Additionally, the built-in WIFI antenna allows for easy firmware upgrades.
GEPRC ELRS Nano 915MHz V2 Open Source Long Range TCXO RX RC Receiver for FPV RC Racing Drones
Summary:
GEPRC ELRS Nano 915M V2 Receiver is a new generation receiver system based on ExpressLRS open source project. ExpressLRS features long range operation, low latency, and low price.
The ELRS Nano 915M V2 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shift caused by temperature changes;the telemetry power is up to 50mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.
Feature:
* 17x11mm Small size
* 0.7g weight
* WIFI Upgrade firmware
* ELRS open source project, remote control
* Maximum refresh rate of 200Hz

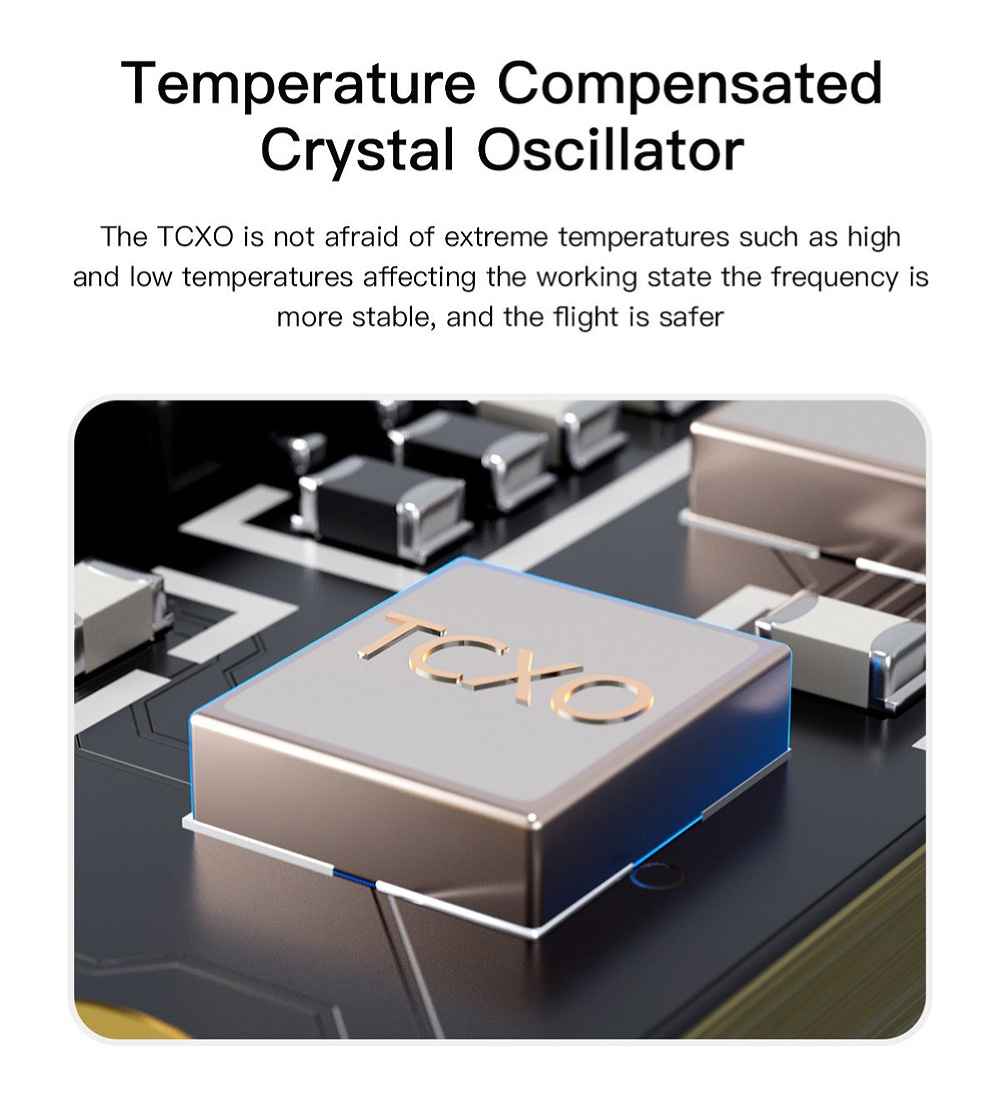

* The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
* Up to 50mW telemetry power

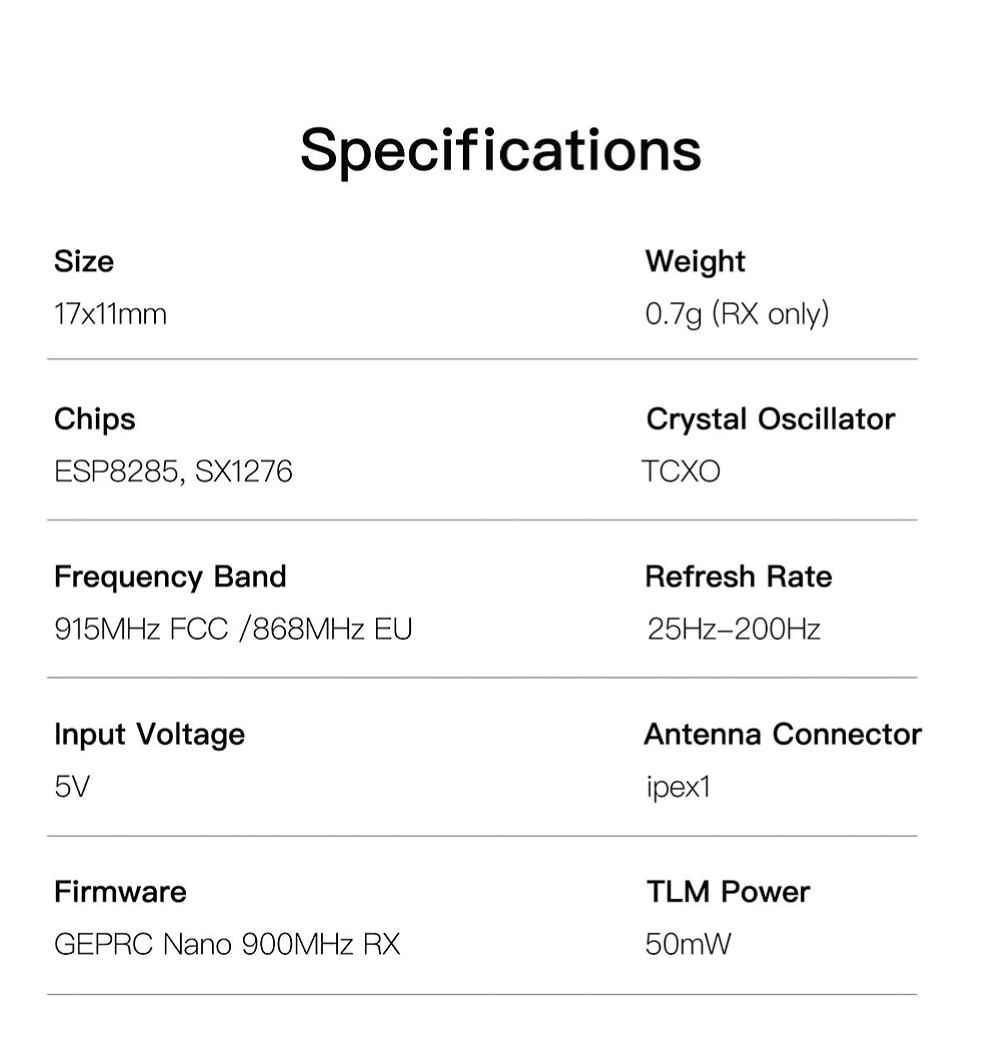

Specifications:
Brand: Geprc
Size: 17x11mm
Weight: 0.7g (RX only)
Chips: ESP8285, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC /868MHz EU
Refresh Rate: 25Hz-200Hz
Input Voltage: 5V
Antenna Connector: ipex1
TLM Power: 50mW
Firmware券GEPRC Nano 900MHz RX
Package Included:
1 x ELRS Nano 915M V2 Receiver

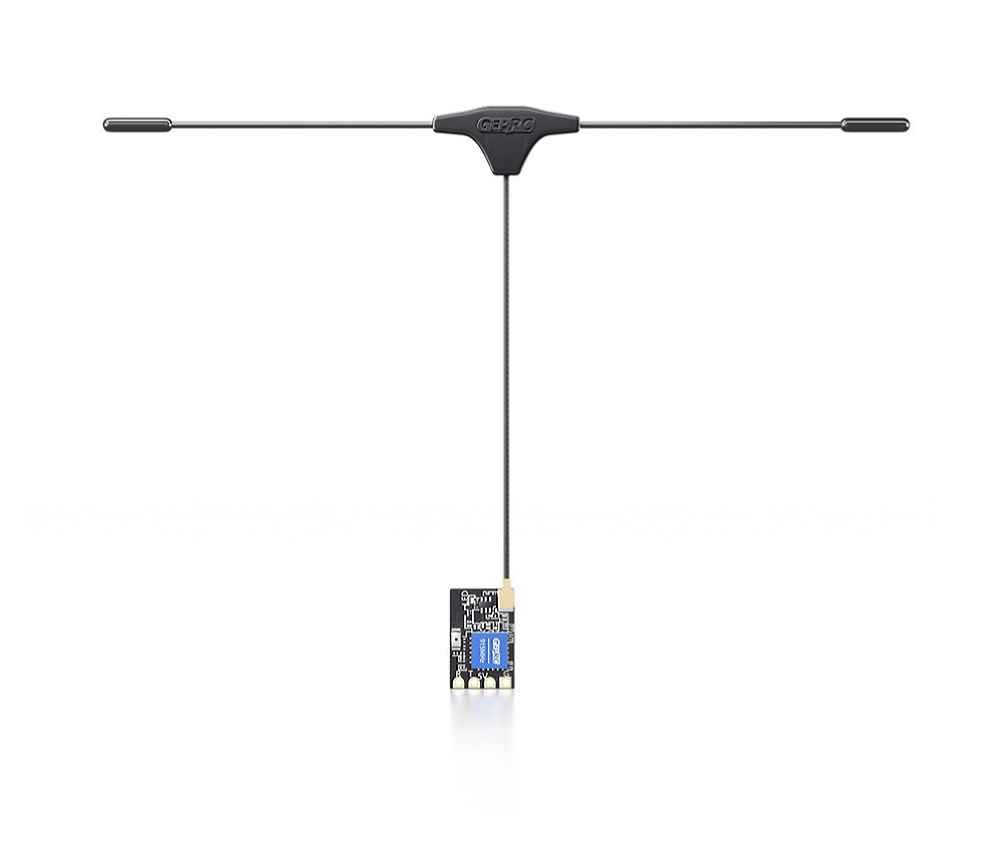

1 x Antenna
1 x Heat shrink tube
4 x Silicone cable
1 x Pin (4pin)
1 x Instruction manual
