HAKRC ELRS 2.4GHz/915MHz Long Range RC Receiver with T-Type Antenna for FPV Drones

SKU: RC2011224Brand: HAKRC

Price range: $21.54 through $21.68

  • Available in 2.4GHz or 915MHz frequencies
  • Compact size: 11mm x 18mm, lightweight at 0.8g
  • Includes T-type antenna for enhanced reception
  • Compatible with FPV RC racer drones
  • Features ESP8285H16 chip for reliable performance

You May Also Like

Description

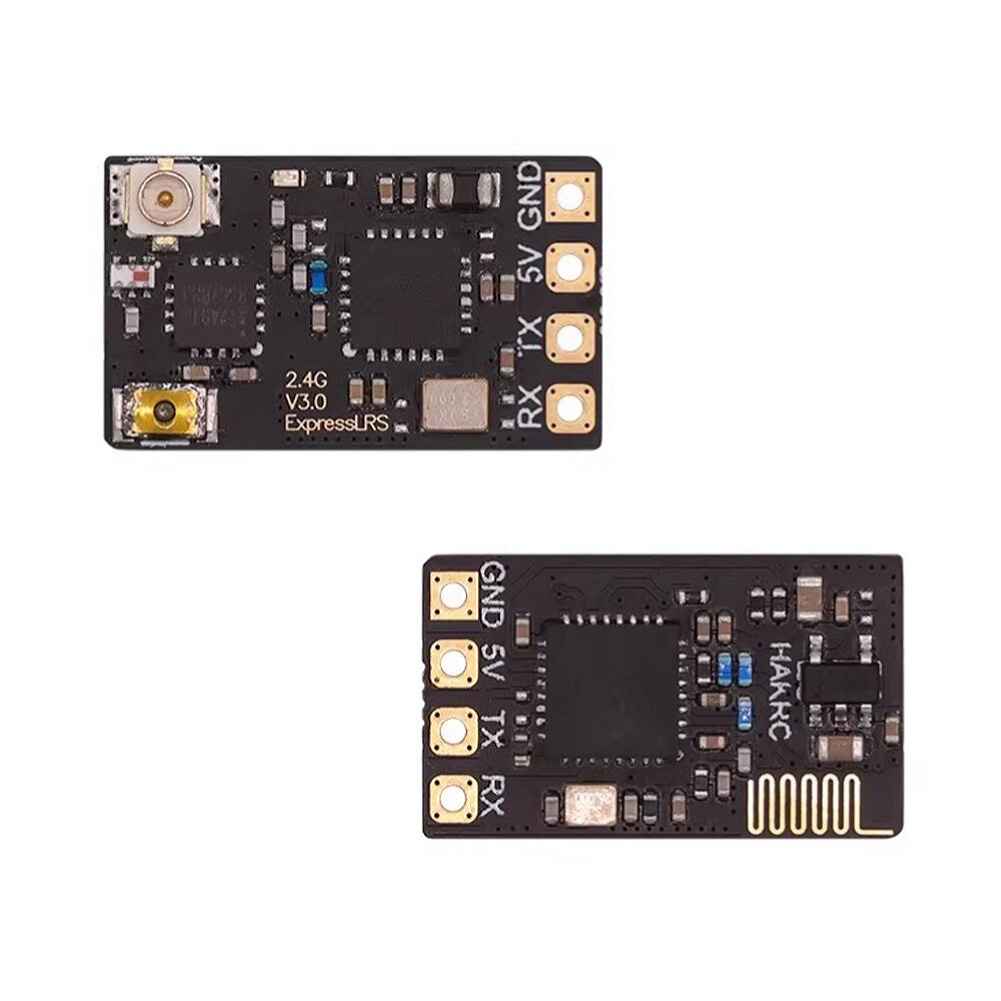

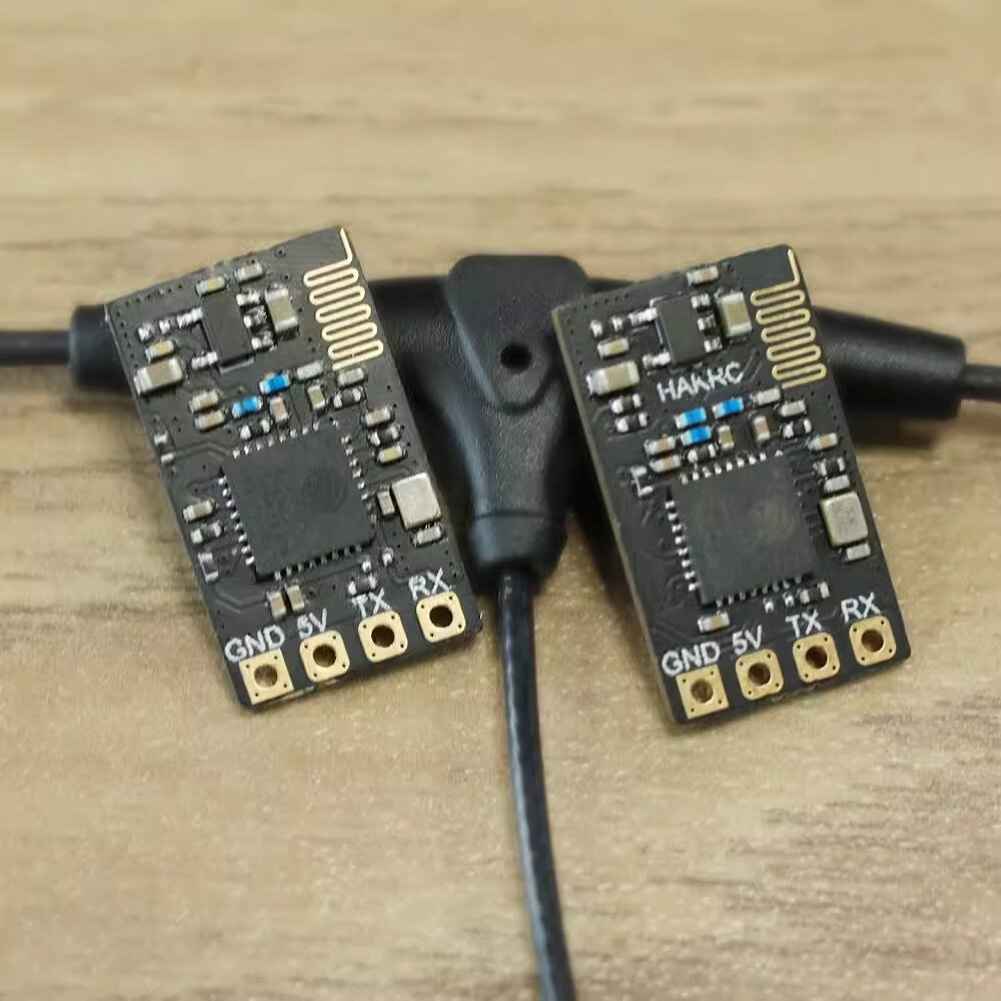

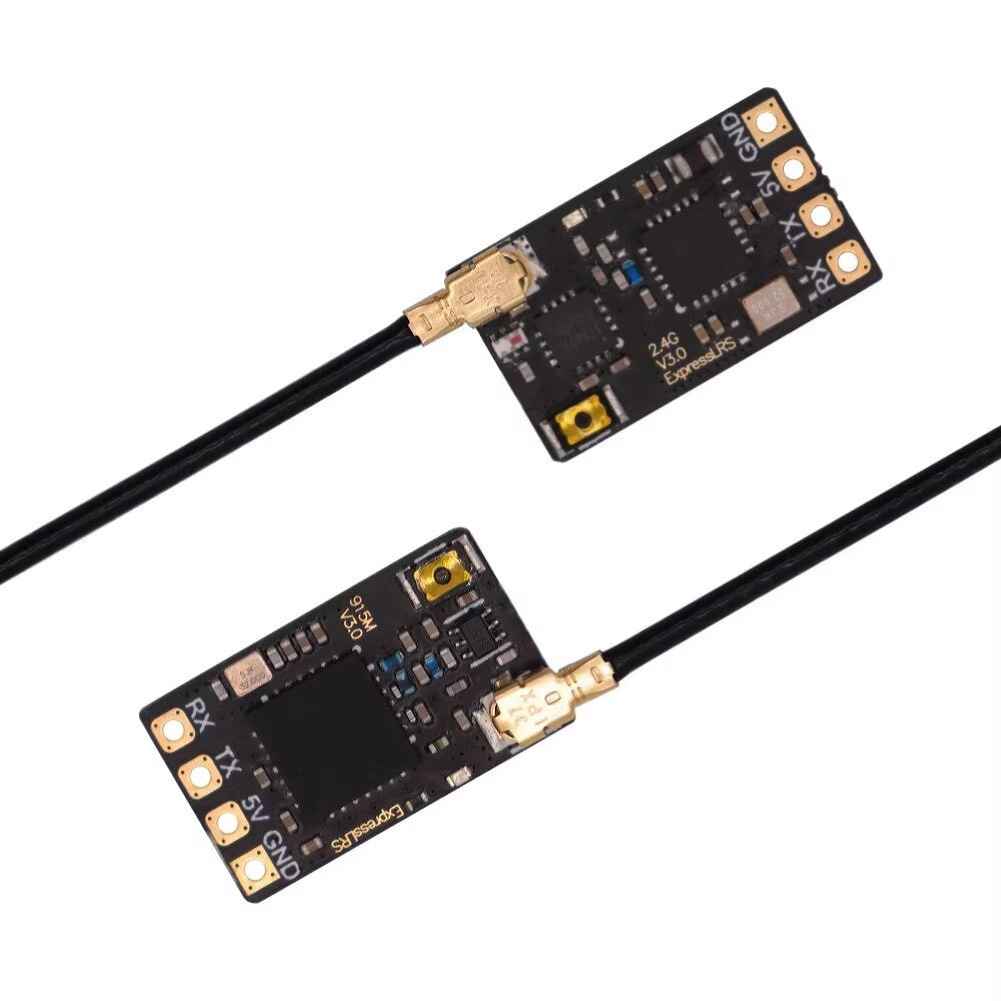

HAKRC ELRS 2.4GHz/915MHz RX Long Range RC Receiver with T-Type Antenna for FPV RC Racer Drone

The HAKRC ELRS Long Range RC Receiver, available in 2.4GHz or 915MHz frequencies, is designed for FPV RC racer drones. Featuring a T-type antenna and powered by the ESP8285H16 chip, this receiver ensures reliable communication with a return power of 50mW. It operates on an input voltage range of 3.3V to 5.5V and weighs only 0.8g. The receiver’s compact size of 11mm by 18mm makes it ideal for lightweight drone setups. It includes an indicator light for easy status monitoring: double flash for binding mode, slow flash for no signal, steady light for signal received, and quick flash for WiFi upgrade mode. Quickly toggle the receiver on and off three times to enter binding mode or wait 60 seconds for WiFi upgrade mode.

HAKRC ELRS 2.4GHz/915MHz RX Long Range RC Receiver with T-Type Antenna for FPV RC Racer Drone
Specification:
Brand: HAKRC
Model: ELRS-915M
Name: ExpressLRS Receiver
Frequency: 915Mhz
Antenna: T type
Chip: ESP8285H16+SX1276IMLTRT
Return power: 50mW
Input voltage: 3.3V-5.5V
Weight: 0.8g (receiver only)
Size: 11mm*18mm
Model: ELRS-2.4G
Name: ExpressLRS Receiver
Frequency: 2.4G
Antenna: T type
Chip: ESP8285H16+SX1280IMLTRT
Return power: 50mW
Input voltage: 3.3V-5.5V
Weight: 0.8g (receiver only)
Size: 11mm*18mm
Receiver indicator light:
– Double flash: Binding mode
– Flash slowly: no transmit signal received
– Steady on: transmitting signal received
– Flashing quickly: WIFI upgrade mode
– Turn the receiver on and off quickly three times in succession to enter binding mode, and enter wifi upgrade mode after 60 seconds.

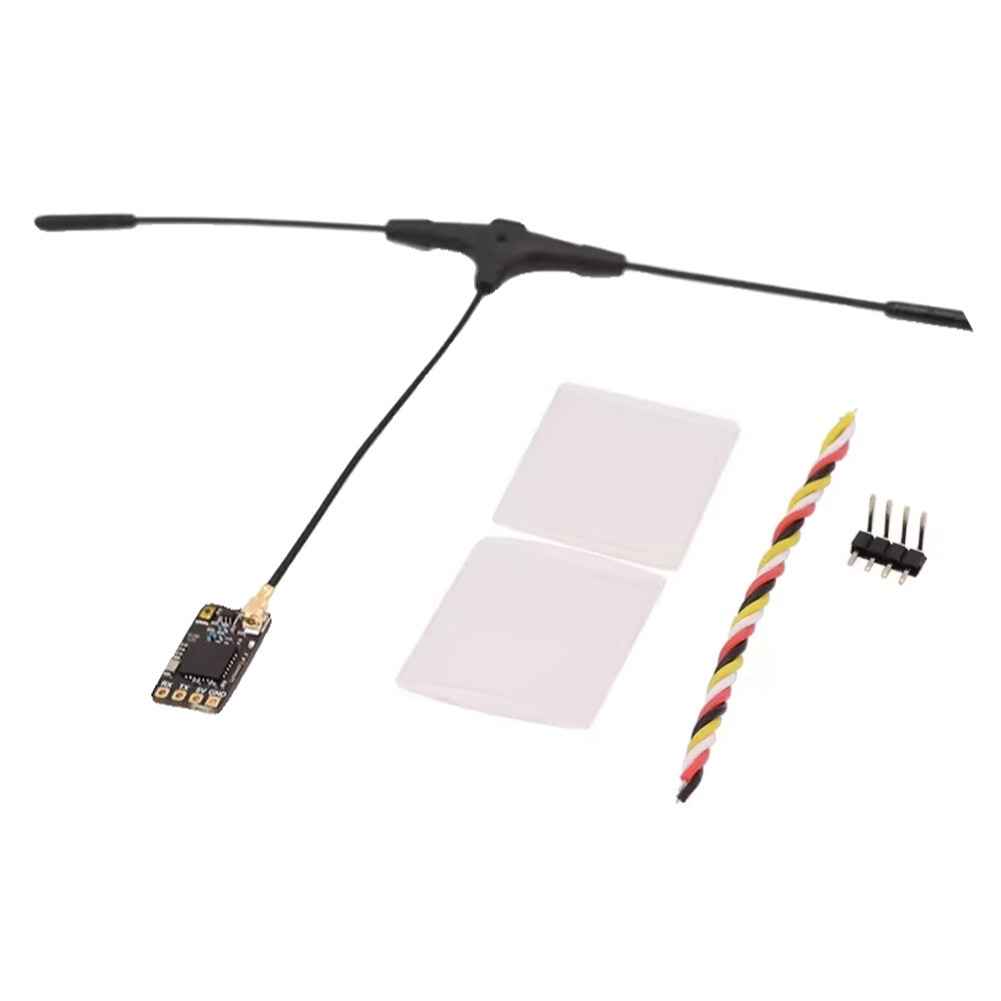

Package Included:
1 x HAKRC ELRS 2.4GHz or 915MHz Receiver
