Happymodel ES900 DUAL RX ELRS 915MHz/868MHz Long Range Receiver for FPV RC Drones and Airplanes

Description

Happymodel ES900 DUAL RX ELRS 915MHz/868MHz Long Range True Diversity Receiver for FPV RC Racer Drone Airplane

The Happymodel ES900 DUAL RX is a true diversity receiver designed for FPV RC racer drones and airplanes, offering long-range capabilities at 915MHz or 868MHz frequencies. This compact receiver features an ESP32 PICO D4 and dual SX1276, ensuring reliable performance. With an IPEX MHF 1/U.FL antenna connector and a telemetry power of 17dbm, it provides robust connectivity. The receiver operates on a CRSF protocol with an input voltage of +5V DC. Weighing just 1.5 grams without the antenna, it includes a built-in temperature compensated crystal oscillator (TCXO) for enhanced stability. The receiver is compatible with the latest firmware version for optimal functionality.

Happymodel ES900 DUAL RX ELRS 915MHz/868MHz Long Range True Diversity Receiver for FPV RC Racer Drone Airplane
Description:
Brand: Happymodel
Type: 915MHz/868MHz true diversity receiver

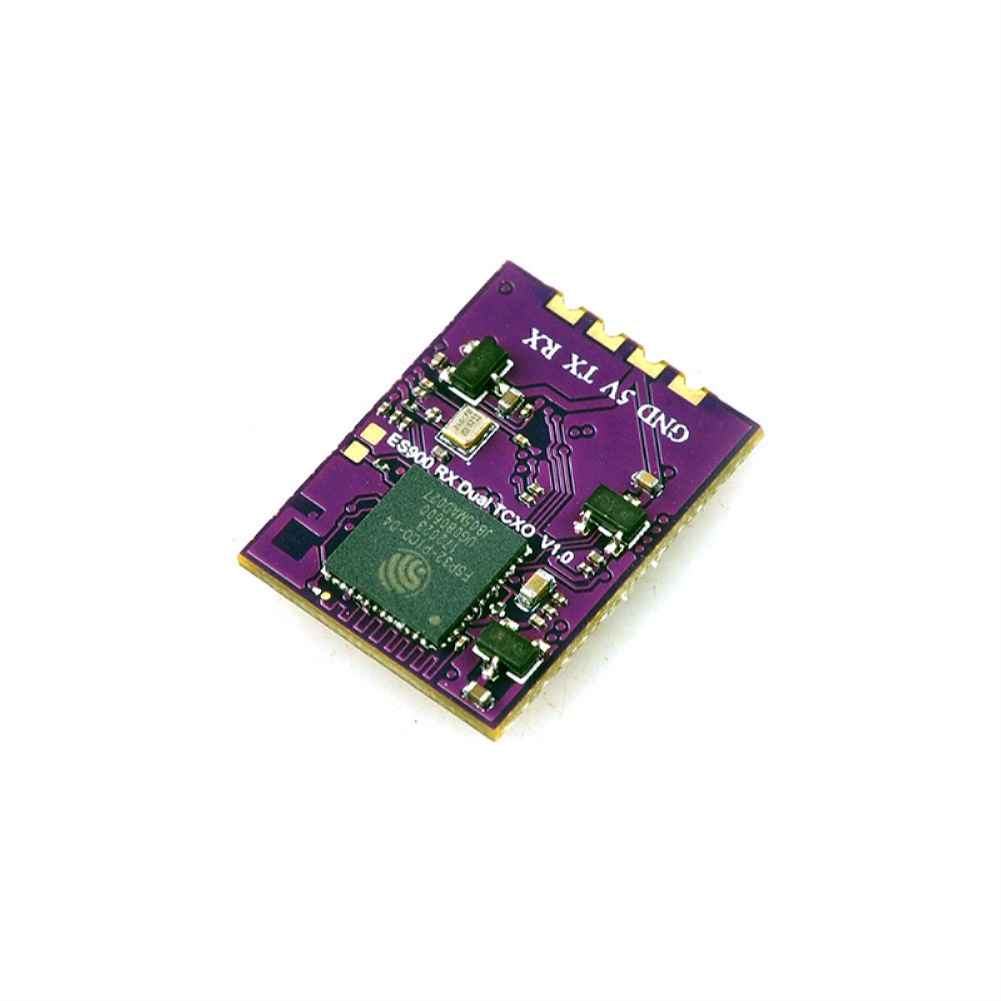

ESP32 PICO D4, dual SX1276
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 915MHz or 868MHz (Optional)
Telemetry power: 17dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ ※5v§ pad
PCB size: 21.5mm x 16mm

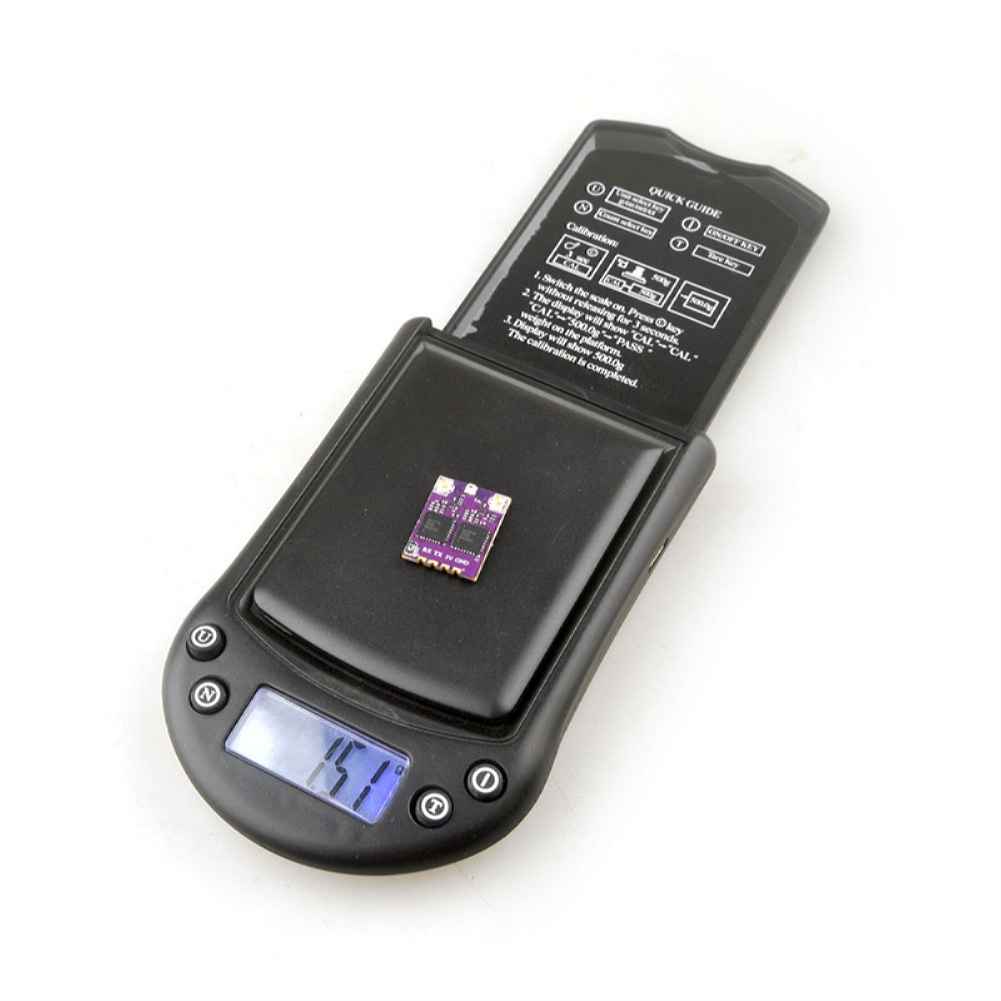

Weight: 1.5gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Firmware target: HappyModel ES900 Dual RX (Would be available on the latest version soon)

Package Included:
1 x Happymodel 915MHz/868MHz true diversity receiver
