Happymodel X12 ELRS Pro V1.1 5-In-1 AIO Flight Controller with 12A ESC, 2.4G ELRS V3.0 Receiver, 5.8G 400mW OPENVTX

Description

Happymodel X12 ELRS Pro V1.1 5In1 AIO Flight Controller Built-in 12A ESC 2.4G ELRS V3.0 Receiver 5.8G 400mW OPENVTX

The Happymodel X12 ELRS Pro V1.1 is an advanced 5-in-1 AIO flight controller designed for RC enthusiasts. It integrates a 12A ESC, a 2.4G ELRS V3.0 receiver, and a 5.8G 400mW OPENVTX, all in a compact 30x30x8mm form factor. Weighing only 5.1g, it features a powerful STM32F411CEU6 MCU, ICM42688P sensor, and supports 1-2S battery input. With built-in Betaflight OSD, voltage, and current meters, it ensures precise control and monitoring. The onboard UART ExpressLRS 2.4GHz receiver offers flexible packet rates and compatibility with ExpressLRS V3.x.x TX Modules. This controller is ideal for high-performance multi-rotor applications.

Specifications:
Brand Name: Happymodel
Model: X12 ELRS Pro
Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
betaflight_4.4.0_STM32F411
VTX antenna: U.FL

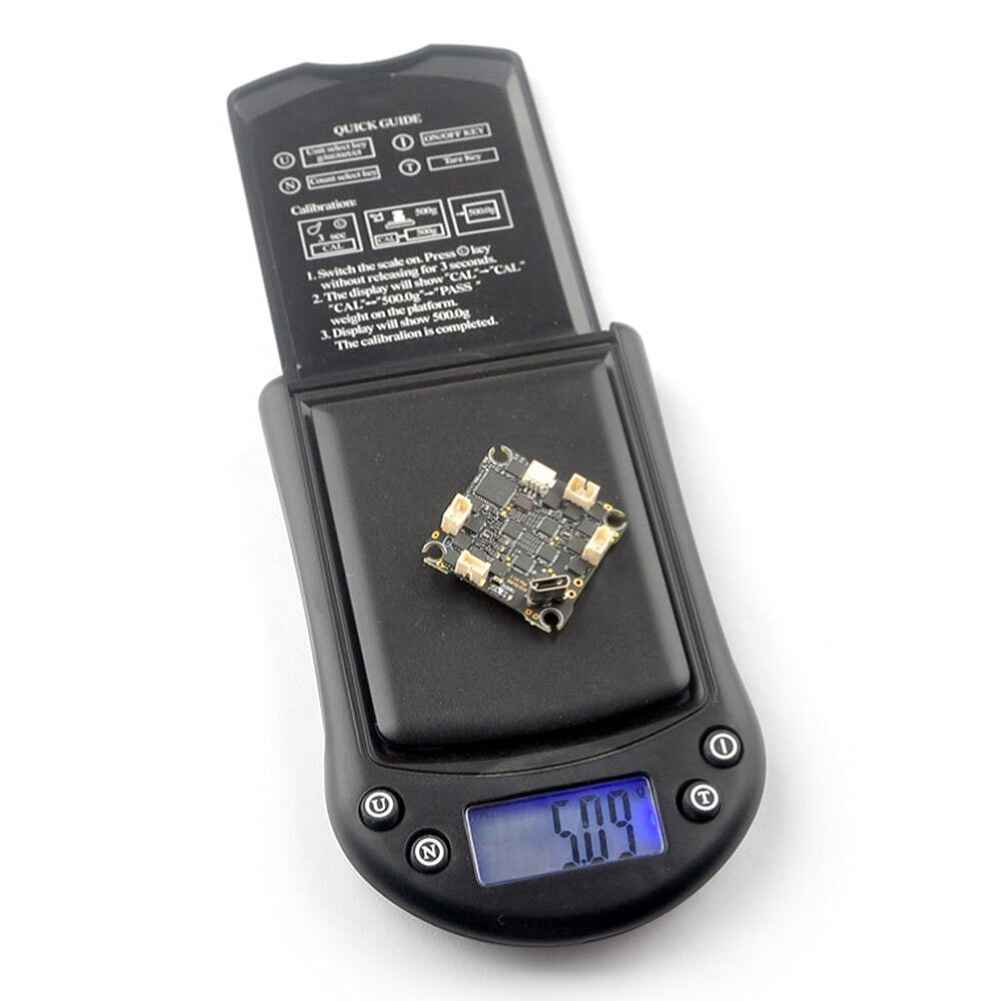

Weight: 5.1g
Size: 30x30x8mm

X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor: ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

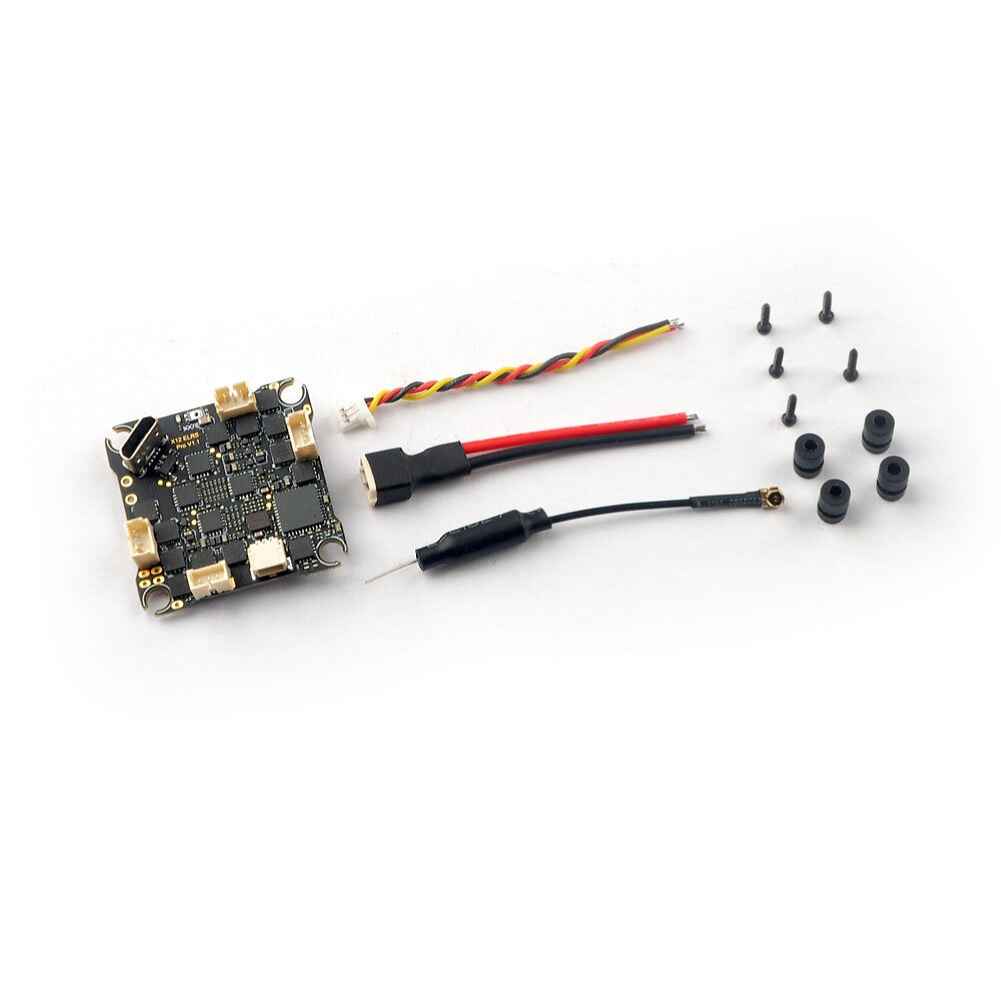

Package Included:
1 x X12 ELRS Pro v1.1 5IN1 AIO Flight Controller
1 x Antenna
1 x Connection Cable
1 x Plug Connector Cable
1 x Bag of Screws
