HGLRC LED MINI Controller Module 2-6S for W2812 LED Lite Strip, DIY RC Airplane FPV Racing Drone Accessory

Description

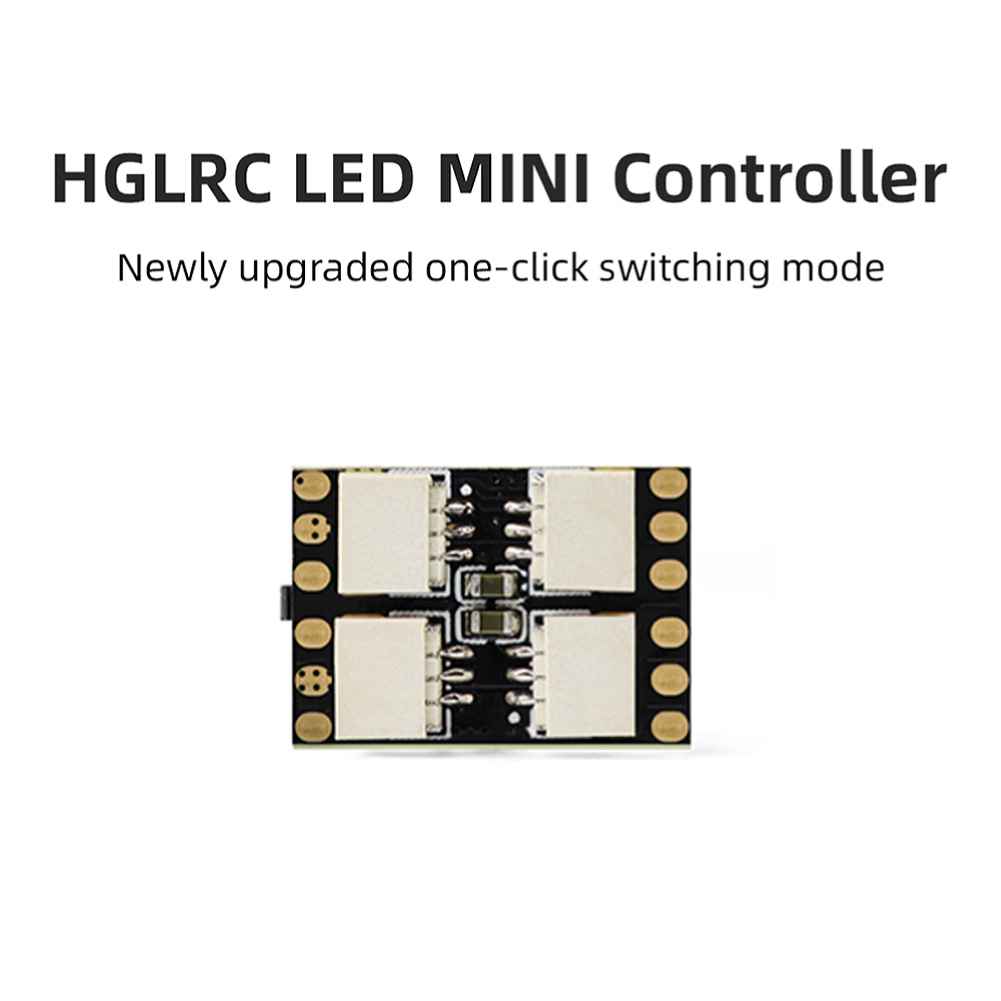

HGLRC LED MINI Controller Module 2-6S for W2812 LED Lite Strip DIY RC Airplane FPV Racing Drone

The HGLRC LED MINI Controller Module is designed for DIY RC airplane and FPV racing drone enthusiasts. This compact module allows for seamless integration with W2812 LED Lite Strips, though the strips are not included. Easily switch modes with a single click, eliminating the need for complex computer adjustments. With a reserved pad, it matches all LED connections and supports two parameter adjustment modes. Connect directly to a 2-6S power supply or through a flight controller for remote adjustments. The module features an electronic switch function for remote control setup and offers various LED functions, including color switching and multiple flashing modes. The upgraded smaller size ensures convenient installation.

Notice: Only Controller Module. NOT Included LED Strips.
Clcik here buy Compatible LED Strip.
Features:
1. Switch modes with one click Eliminate tedious computer parameter adjustments
2. Reserved pad Matches all LED connections
3. Reserve two parameter adjustment modes Can be directly connected to 2-6S power supply Or connect the flight controller to perform remote control parameter adjustment.
4. Add electronic switch function Remote control switch can be set up
5. The size will be smaller after the upgrade Installation is more convenient
Specifications:
Input voltage: 2-6S(7.4-25V)

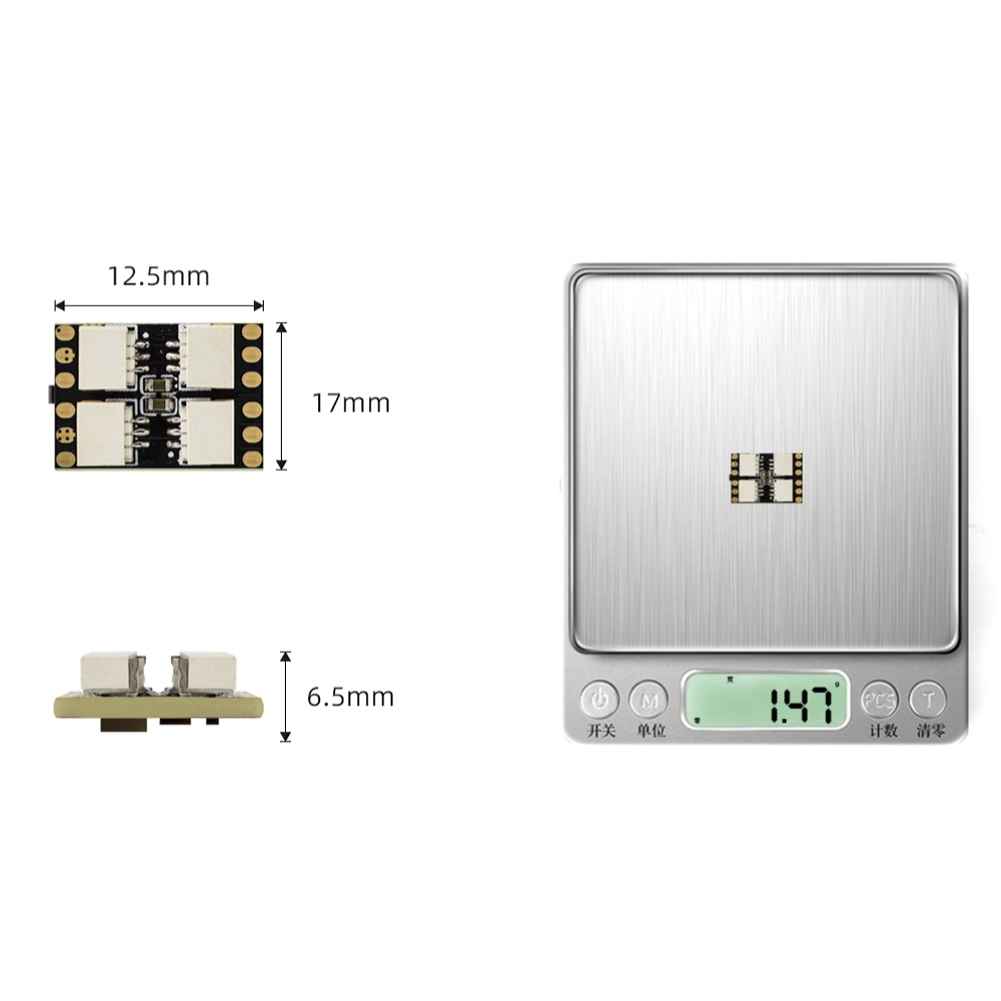

Size: 17mm*12.5mm*6.5mm
Weight: 1.47g (single)
LED Function Buttons:
1. Short press to switch colors
2. Press and hold for 3 seconds to enter the flashing mode switch (the LED status indicator is always on)
3. Flashing mode: slow flashing, steady lighting, cycle, fast flashing
4. Can be switched to blue, red, green, yellow

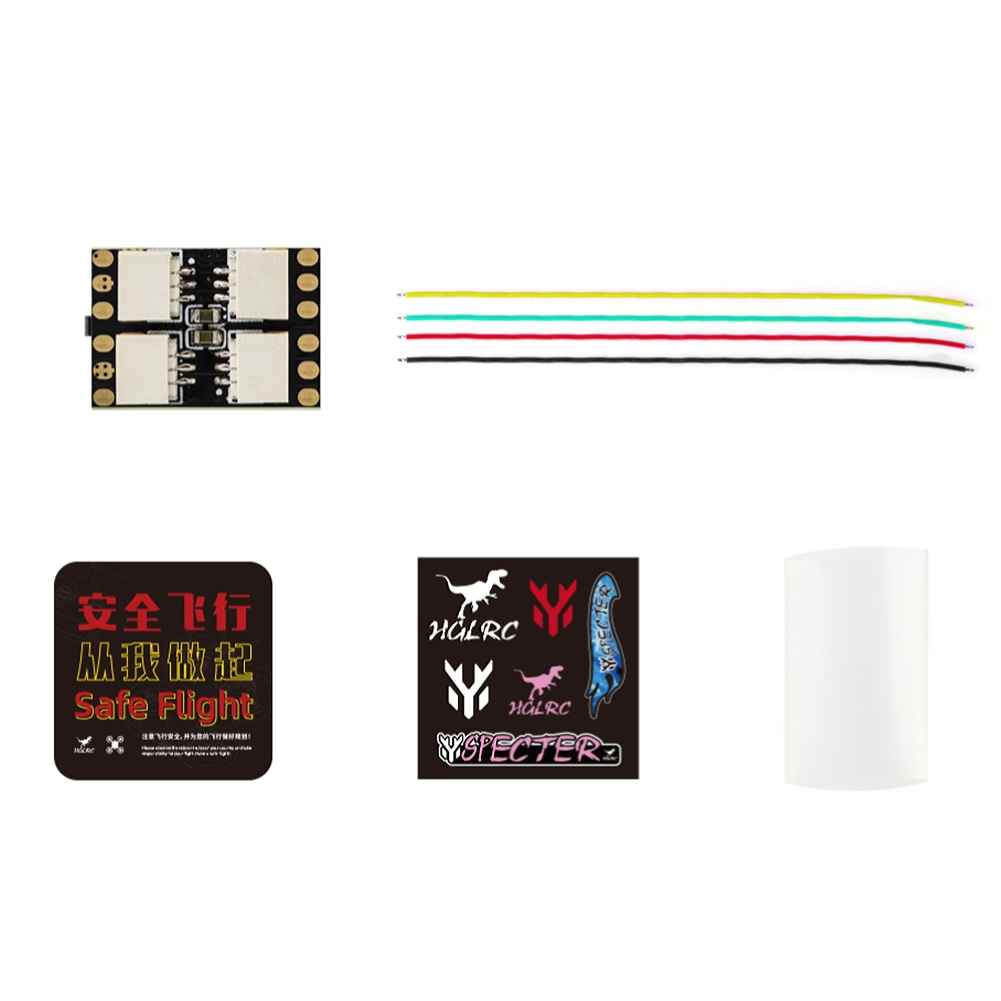

Package Included:
1 x HGLRC LED MINI Controller Module
4 x 30AWG 100mm connecting cable (red, black, yellow, green)
